Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

Report :

1) Received Class A surface.

2) Created tooling axis using extract method.

3) Created offset with 3mm distance.

5) Created B surface.

6) Filled gaps that are formed after missing few surfaces from Class A using Multi-Section method.

7) Created C curface using both Draft direction and Reference surface option as per requirement.

8) Joined Class A and Class C.

9) Found Intersection of the above Join and Class B.

10) Trimmed it along with the Intersection.

11) Closed Body is formed.

12) Points for Heat Stakes are given.

13) Concentric circles are made on given points.

14) They are padded to required length.

15) Heat Stakes are formed.

16) They are assembled to the Part Body.

17) Rough location to put points for Way locators are given.

18) Two intersecting lines are drawn across points.

19) They are padded to required height, thickened.

20) Draft operation is done on all surfaces.

21) Edge fillets and chamfers are given.

22) Way locators are formed.

23) It is also assembled to the Part Body.

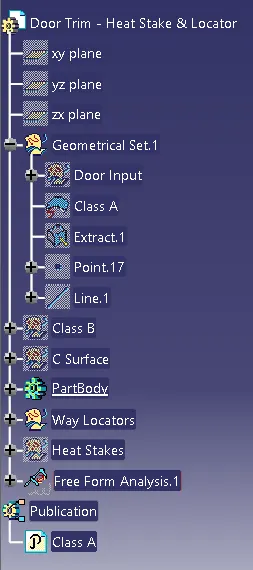

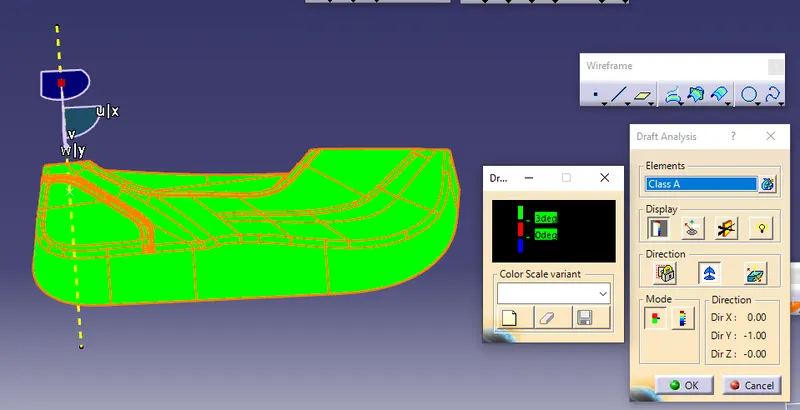

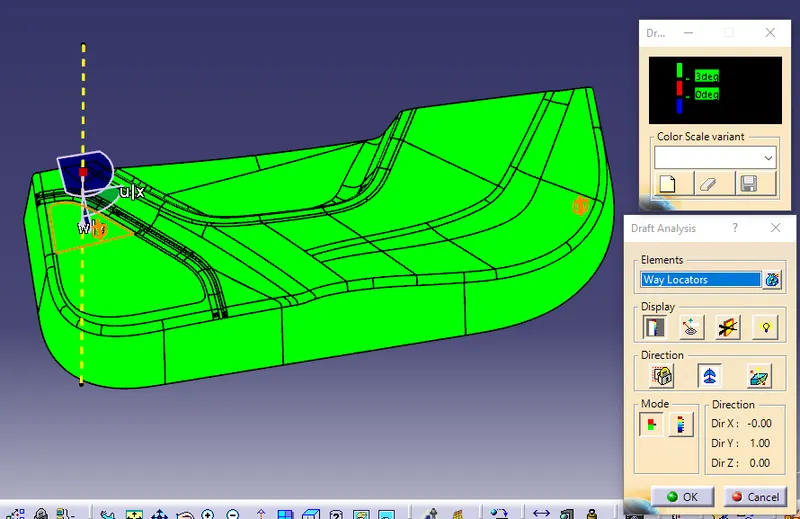

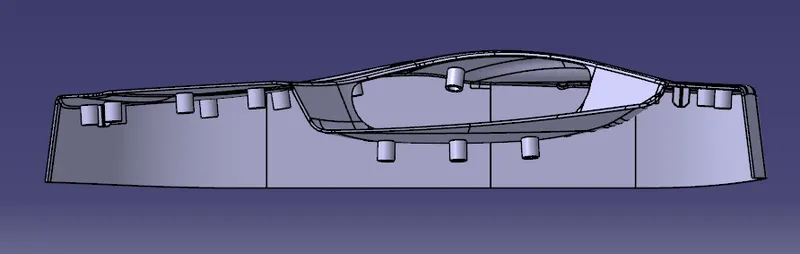

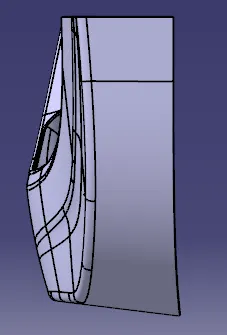

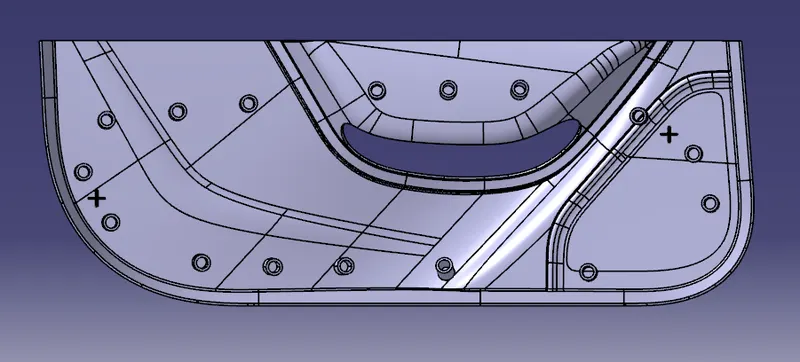

24) Final Product is obtained

25) Final Draft Analysis is done.
