Week 9 - Challenge 3 - Bumper
Hello,

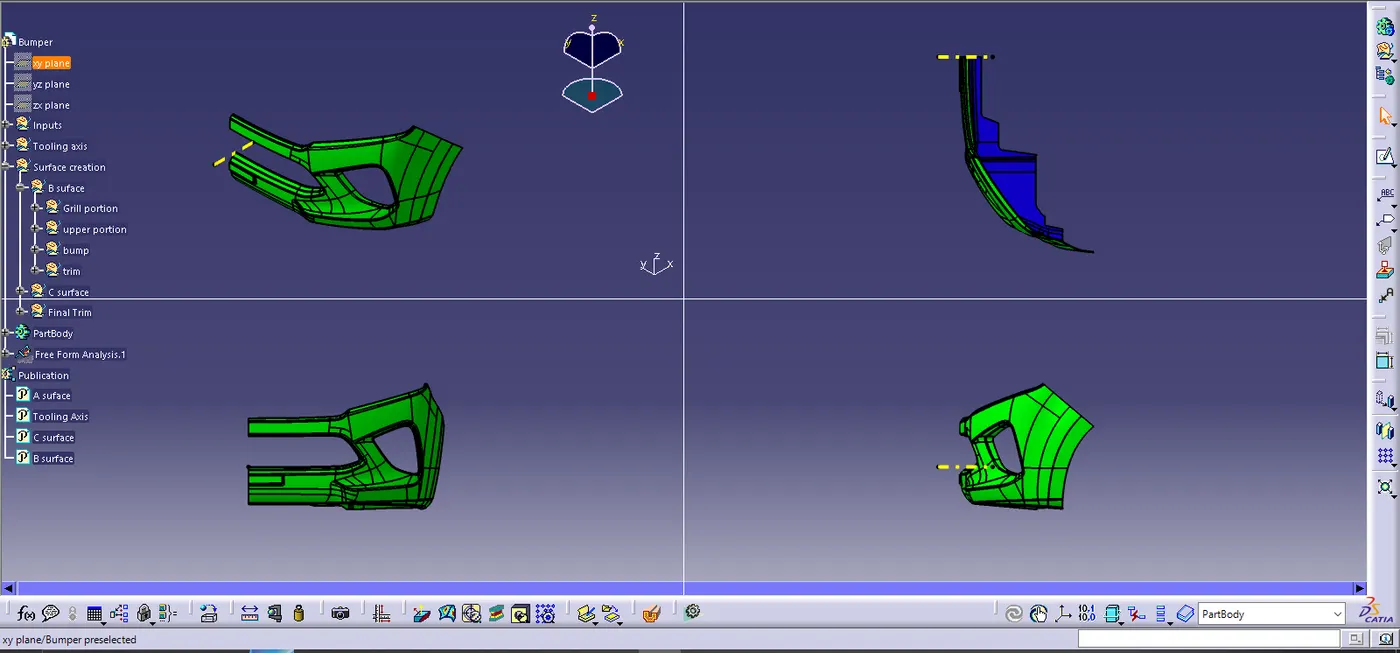

The yellow line is Tool axis here. here bumper has already design the way the Tooling axis became X direction.
The Draft of A suface show us green color which mean is above 3 degree limit.

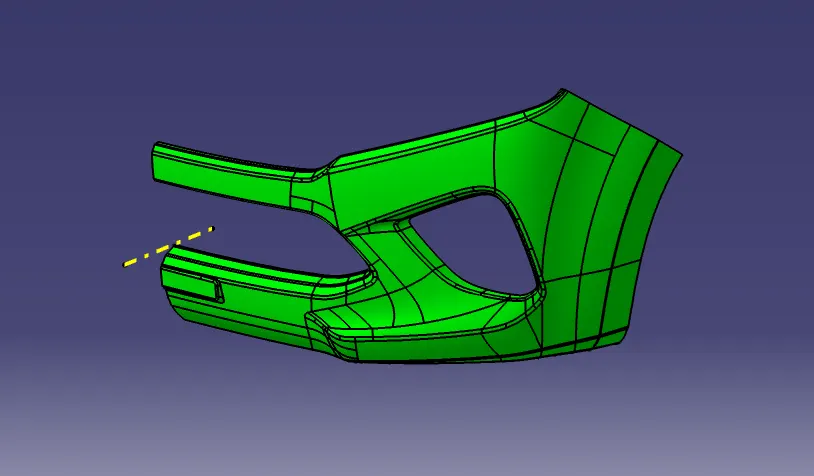

Below are the image of final product bumper iso views:
