Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Hello,

Creation of Tooling axis:

Here, the part has lots of perpendicular surface along X & Z direction. So Y direction become Tooling Axis.

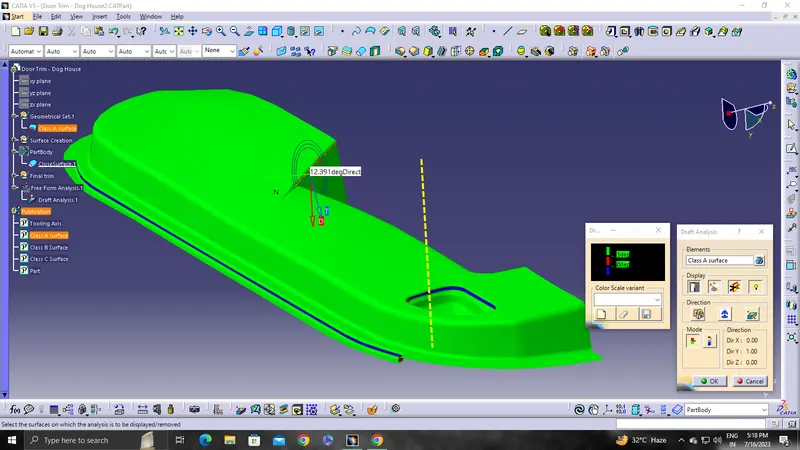

Draft analysis of Class A surface:

Considering, Tooling axis part can clear in every direction. But there is problem here, The cavity in part has some negative slope that shown in Blue colour. Same for Strip. Every Green surface is above 3 degree.

Therefore we cant go with any other tooling axis creating methods.

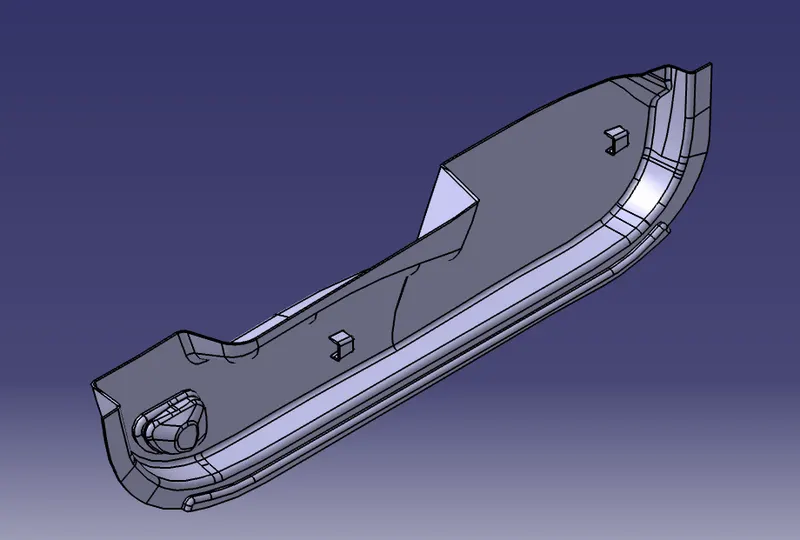

Final product ISO view:
