Week 9 - Challenge 3 - Bumper

AIM:

   To Create the Bumper Plastic Component Trough the given Class A Surface were given below.

INTRODUCTION:

• CLASS A SURFACE:

• CLASS B SURFACE:

• CLASS C SURFACE:

A surface Connecting the Class A and Class B surfaces is the Class C surface.

• STEPS FOR CREATING THE CLASS B & C SURFACES:

• TOOLING AXIES:

• The tooling axis is the direction in which the core or mold cavity opens.
  This axis is important in determing part orientation in mold, core, and cavity design.
• The Model is observed from 3 planes and the xy plane is chose for the details. so the centre grill were chosen and a point has been created.

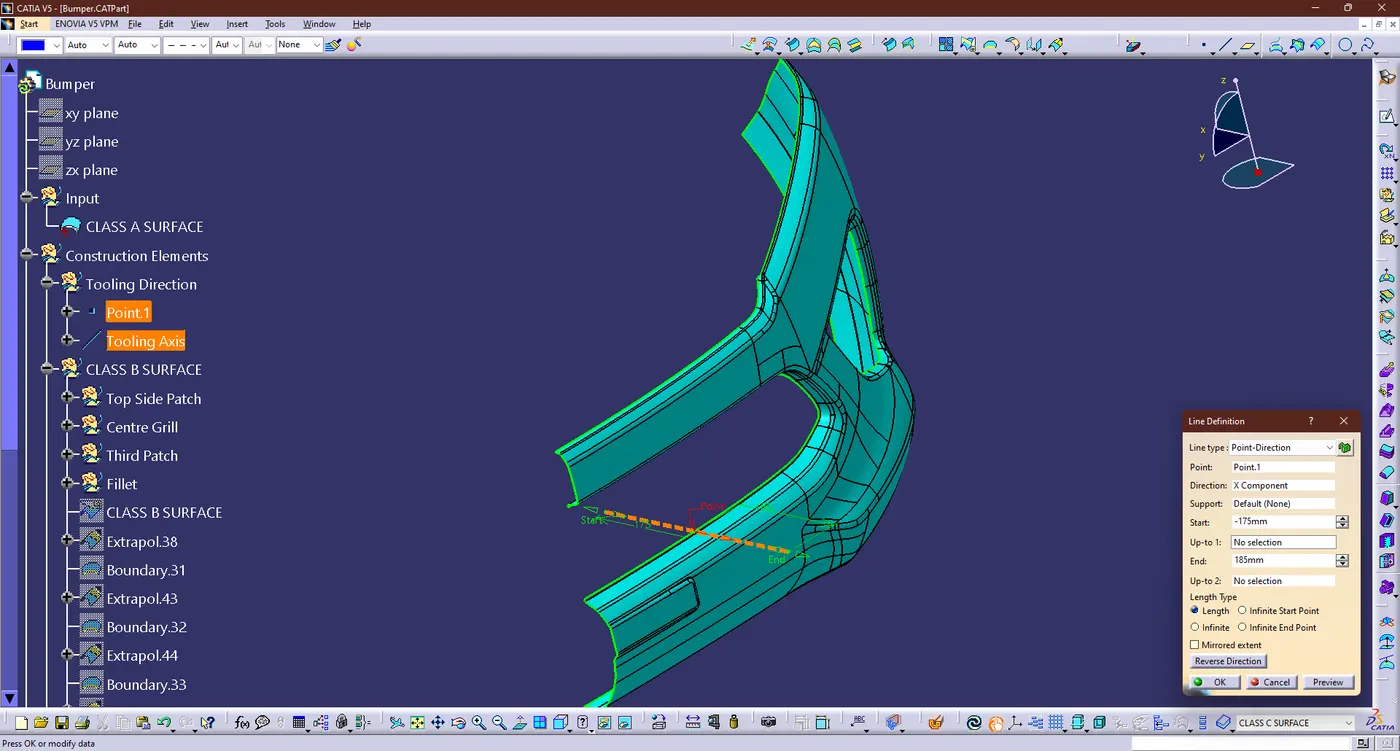

• Now create the line by using the point and given name has Tooling Axis and image were mention below

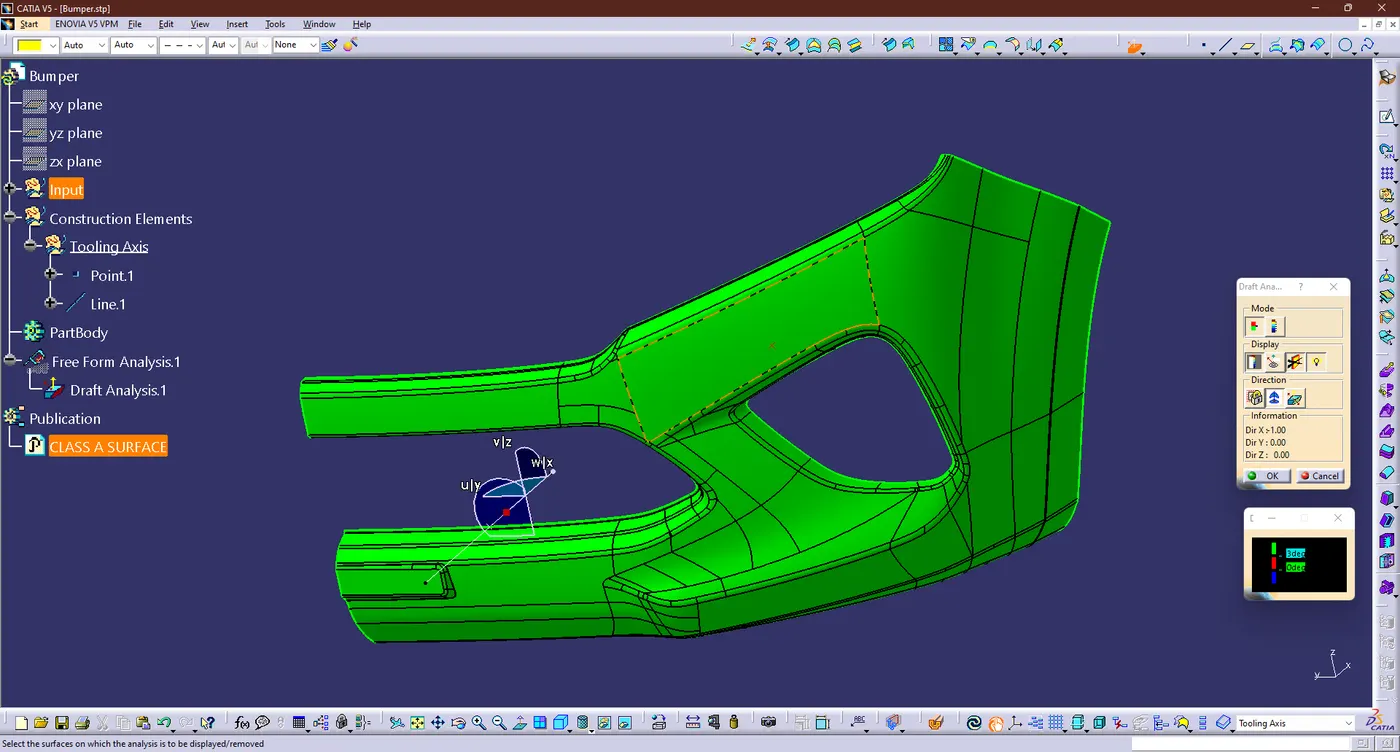

• DRAFT ANALYSIS(CLASS A SURFACE):

• Now perform draft analysis using the draft analysis option on the Class A Surfaces
• Then, after opening the draft analysis toolbox, find the compass and align it with the axis of the tool, click the lock icon after alignment, and click add to the surface.
• Checking the surface it should lies on 0.5 to 3 deg  and in our case it should lies on the 3 deg

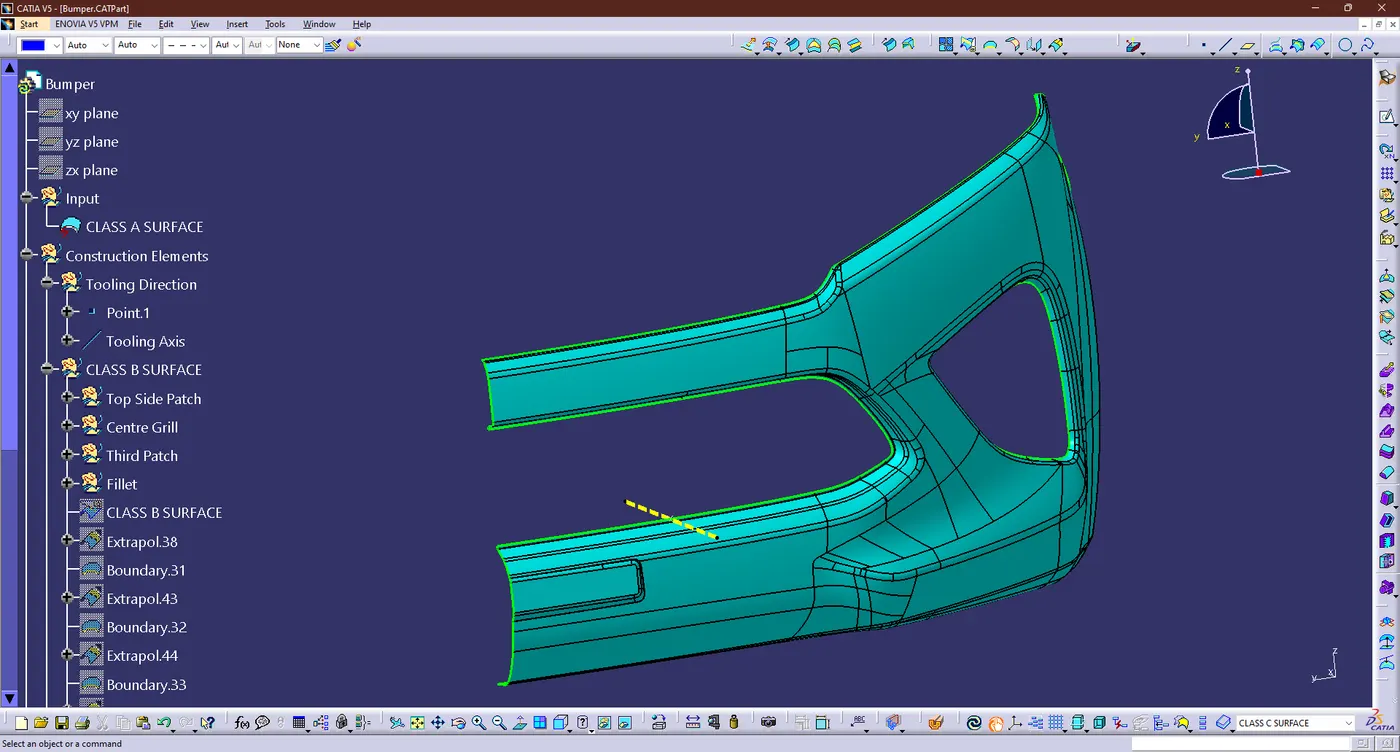

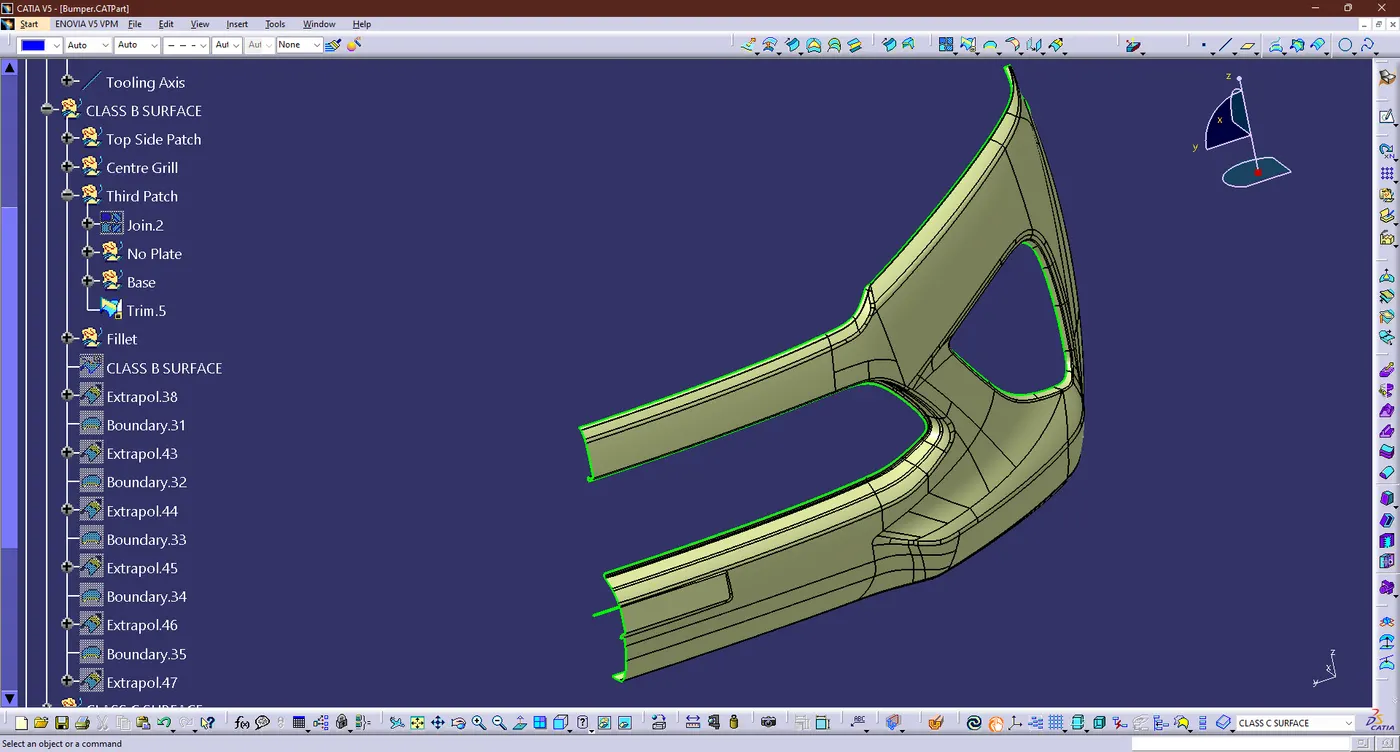

• CREATING A CLASS B SURFACE:

• First thing we need do OFFSET the Class A surface by 3mm  due to given thickness

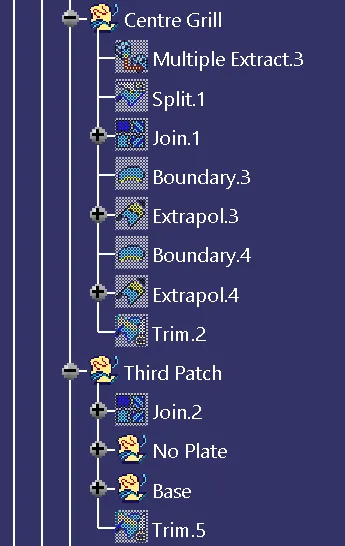

• Areas where surface B has Problems are fixed by closing them wirth commands such as Multisecction, Sweep, Extract, Boundary, and Extrapolate.
• Finally, all created surfaces will be Trimmed or joined to previously creaated offset surfaces.
  This create a single, unique surface that will serve as the final Class B Surface

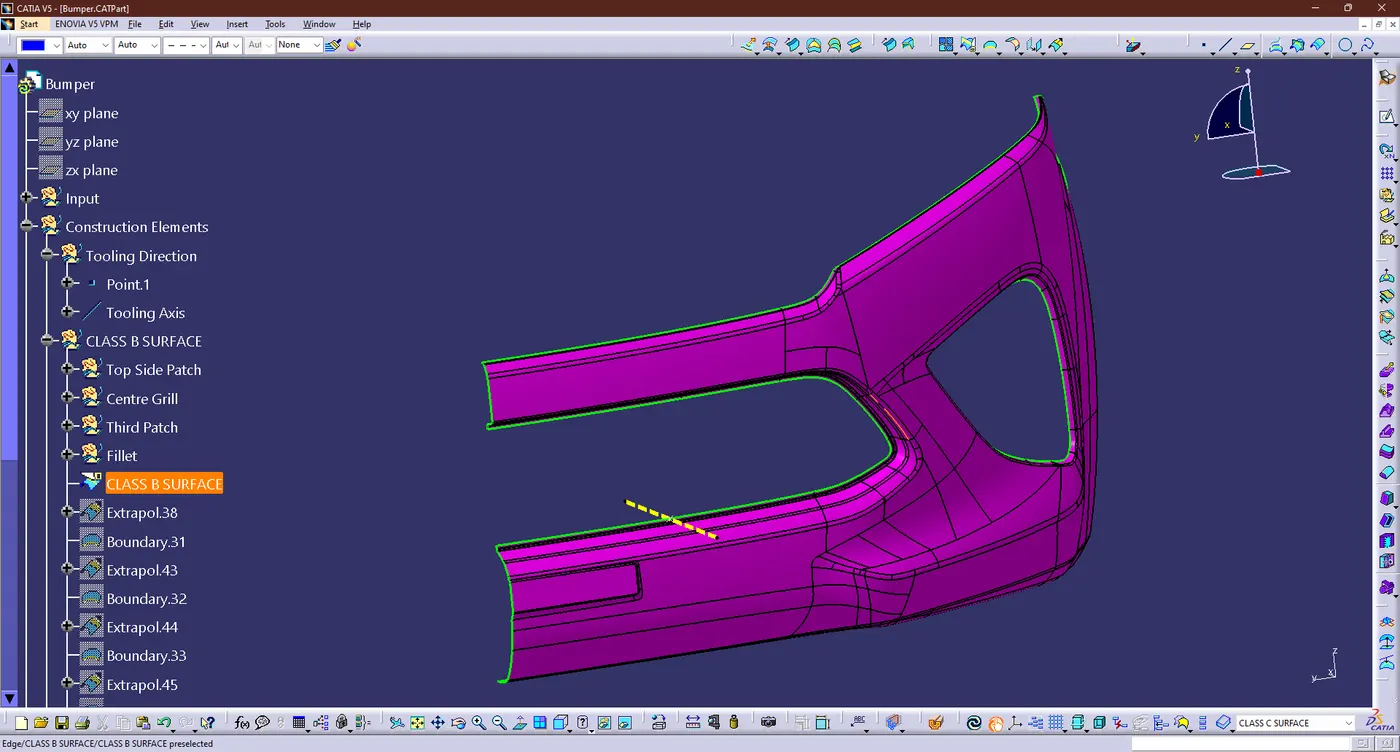

• B surface created is checked for any gaps or errors by creating a complete boundary.

• Now trim the all surface and given fillet as per the CLASS A surface but some different have it offset through 2.5mm from Class A suface so given the accurate values for the each edge fillet i.e 5 - 3 = 2
• Apply fillet value and we got like this

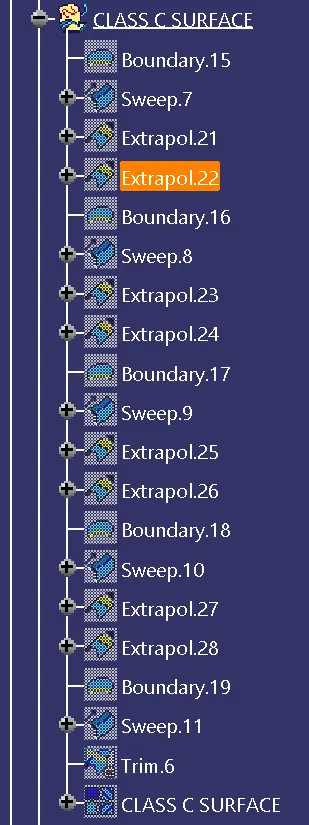

• CREATING CLASS C SURFACE:

• The Boundary were created from the Class A surface for the Class C surfaces.
• Now using the sweep command and given reference as main tooling axis, then givne direction of the tooling were considered to create clsss C surface

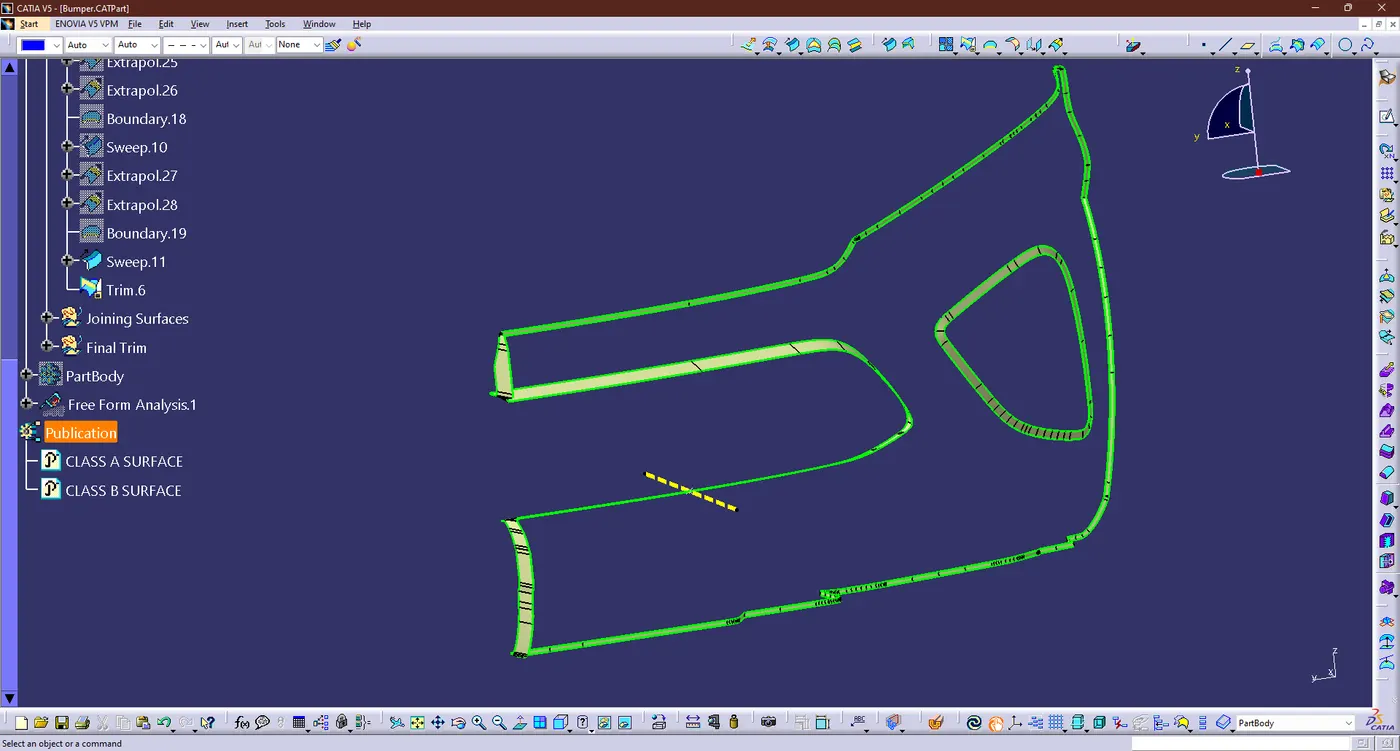

• Then we got the CLASS C SURFACE like this condition:

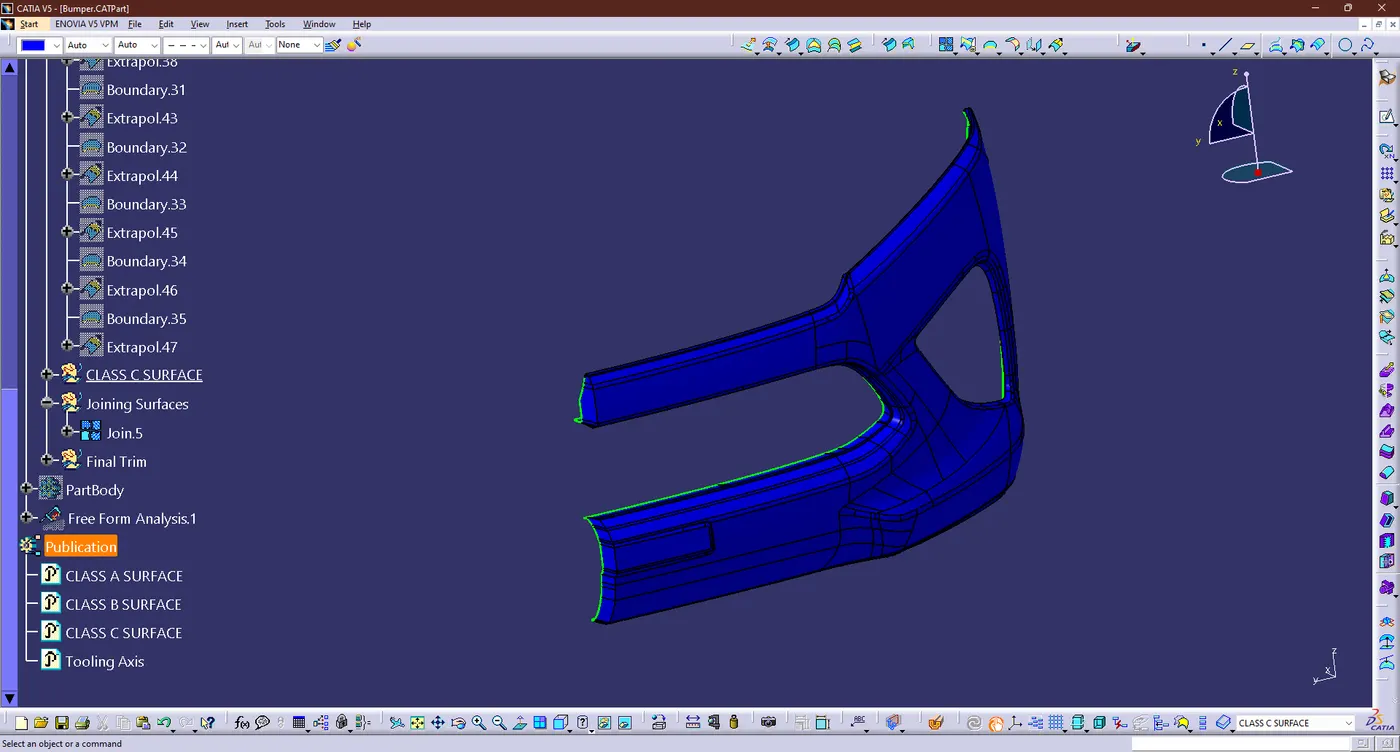

• FINIAL WORK:

• Now Join the CLass A & C surface together so we got like this

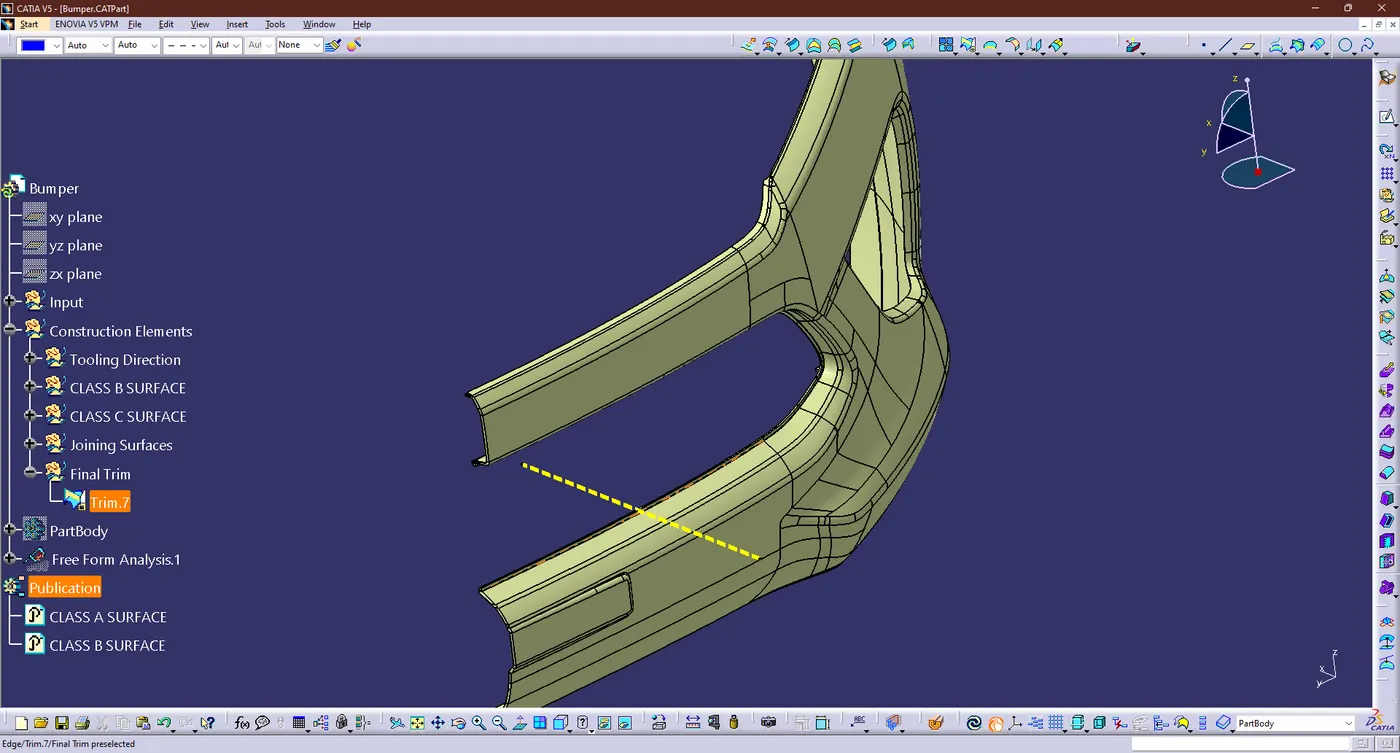

• Then trim the surface of Class A & C surface through Class B surface and finially we got like this

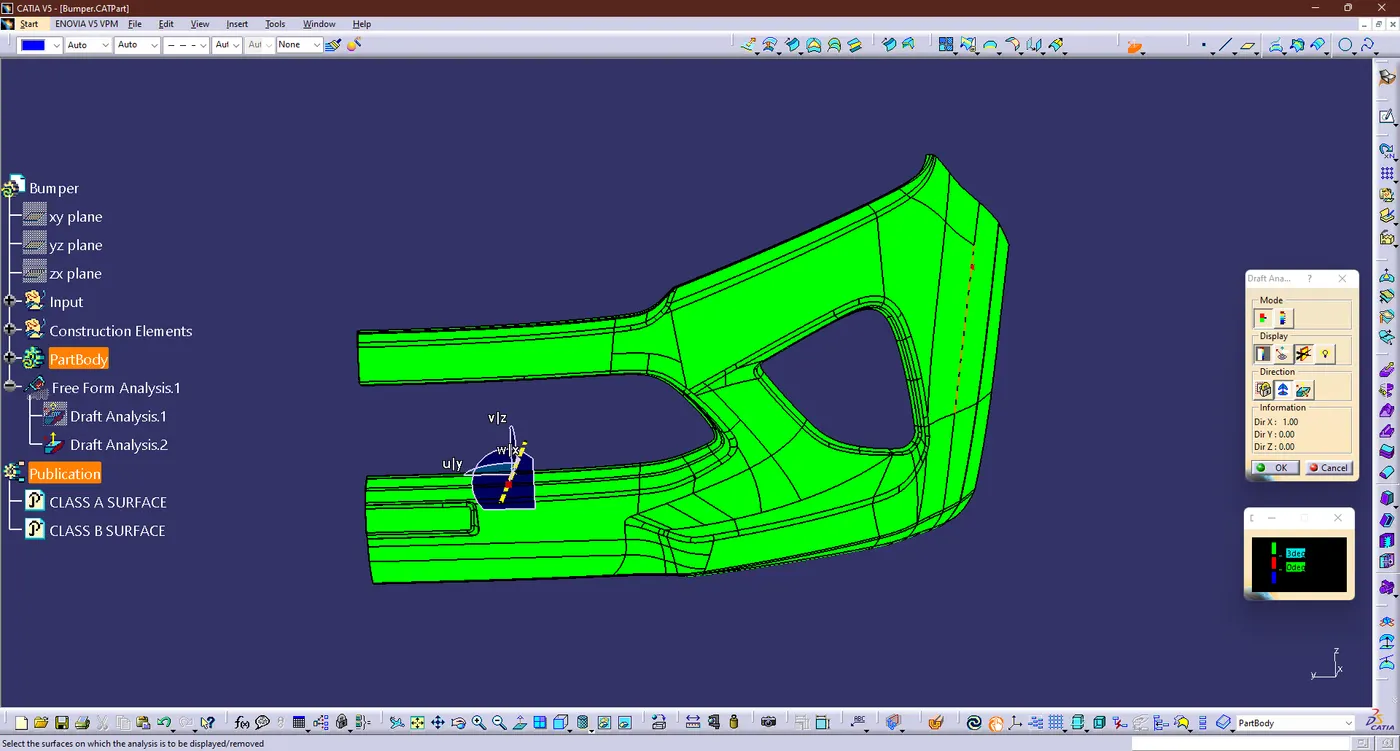

• DRAFT ANALYSIS (PARTBODY):

• In Plastic Design, the draft analysis or angle that is considered in the OEMs is 3 degree
• Same thing were do follow for the draft analysis on earlier and output mention below
• Then we got degree has 3 deg.

• Draft analysis on the solid part resulted in green, blue regions.
• The green area shows the part that can be machined or manufactured by the casting machine and the angle of inclination is 3 degree
• The blue area indicated that the part may be OK for some OEMs but still needs improvements for other manufactures because the draft angle is greater than 3 degree
• A red color not appearing in this case indicates that the till angle is less than 3 degrees and cannot be manufacuted or if manufacturing will be defective.

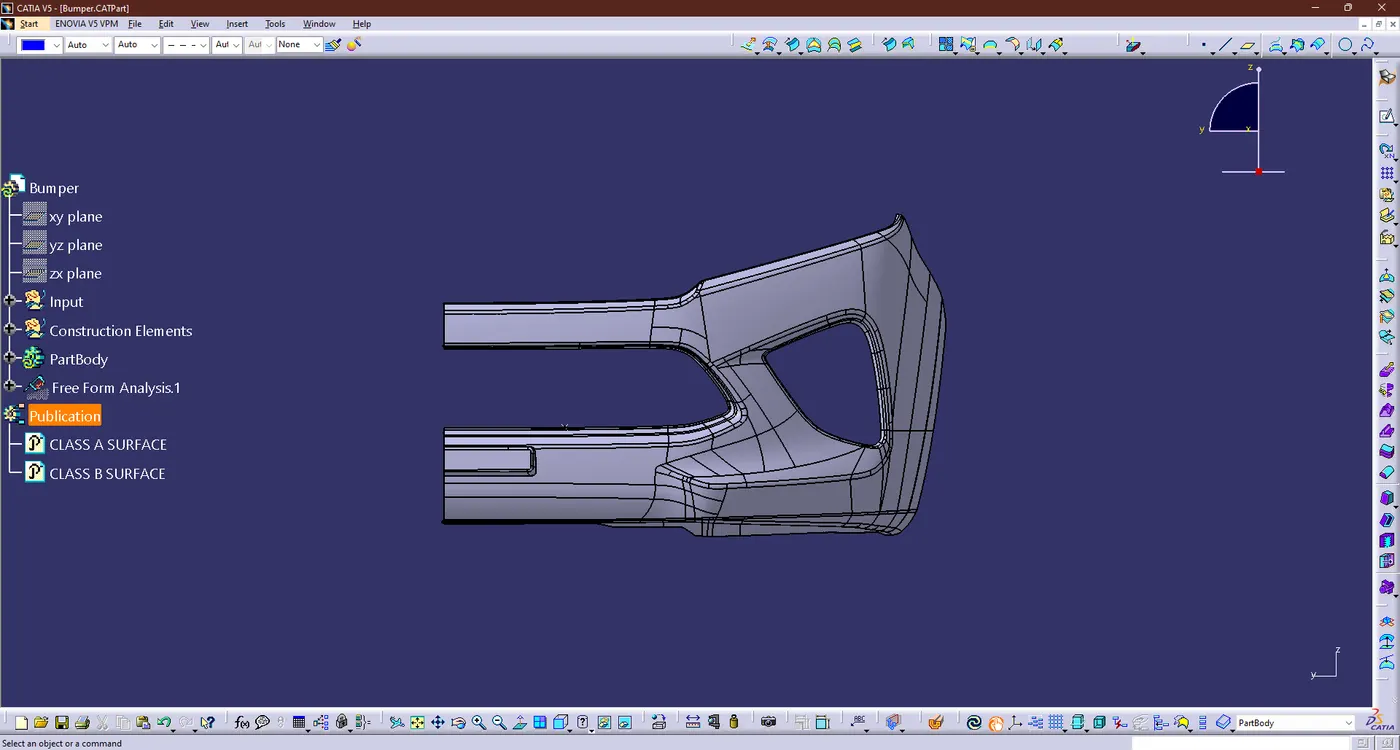

• SOLID BODY(PARTBODY):

• The hollow structure has created then create as a solid body by selecting the Body option and then selecting the Close body surface and hence we got the final output were mention below

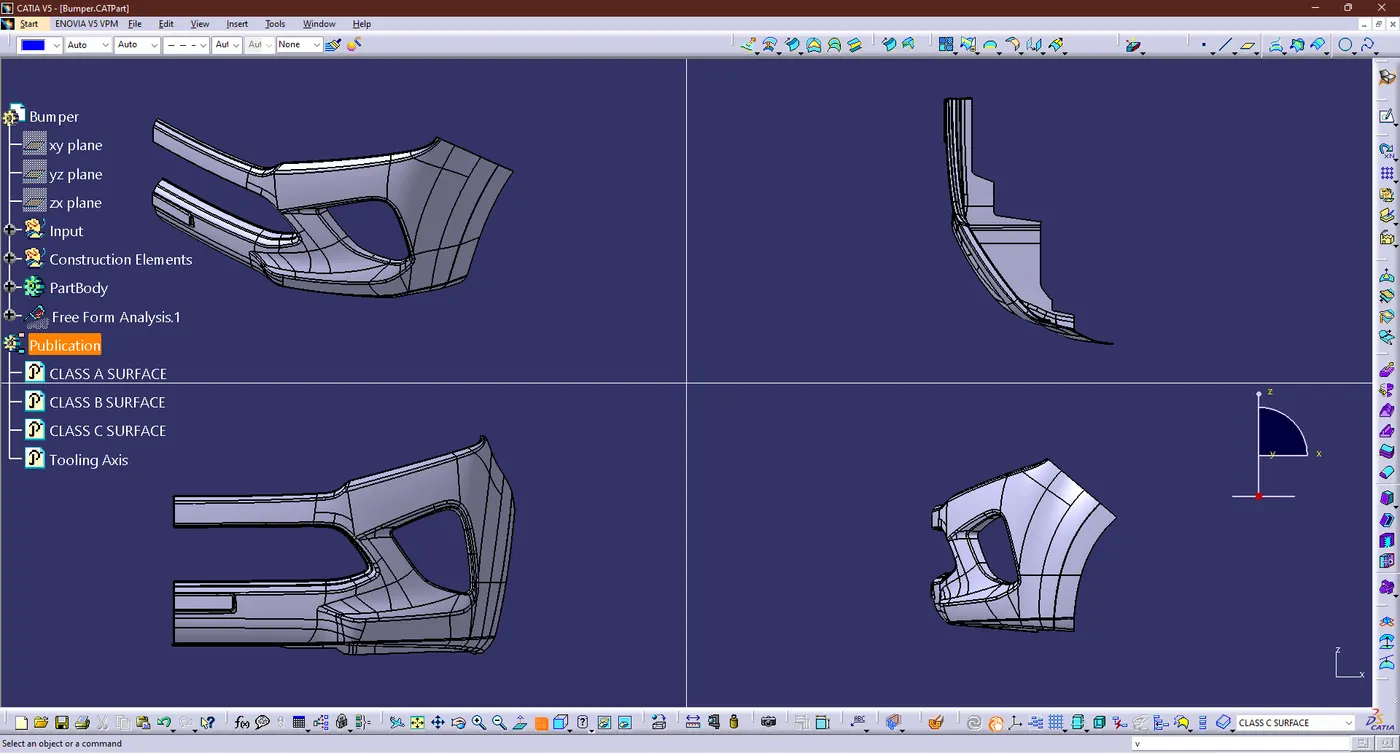

• DIFFERENT ORIIENTATION;

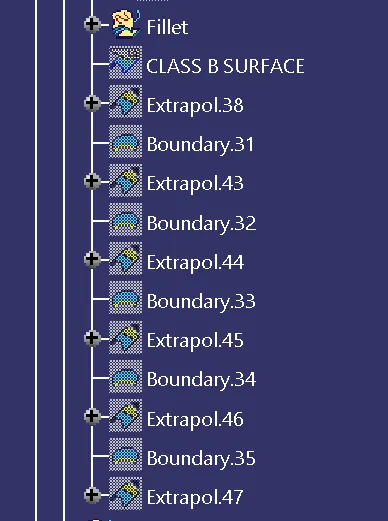

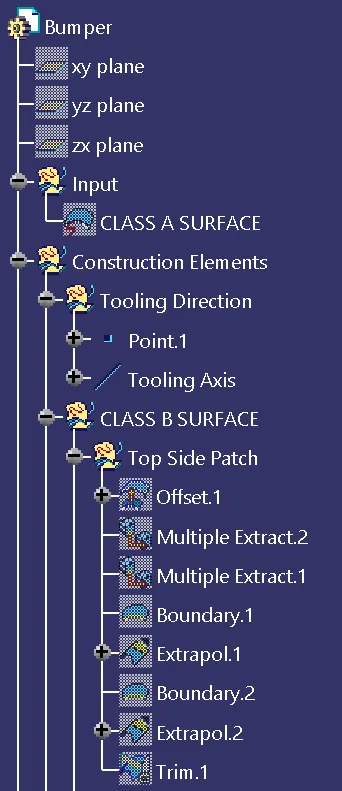

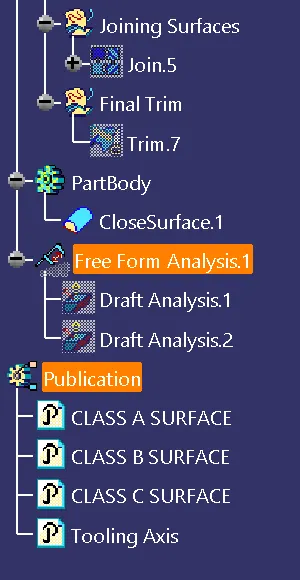

• TREE STRUCTURE:

• Generated model tree shows that all geometry sets are named for clarity.
• Publication of tooling axes, surfaces of surfaces A, B and C is performed and

• FILES:

• The output file were mention on browe option in the name of the "week 9 challenge 3 (Bumper).zip"  and also output image were uploaded in the same folder.
