Week 9 - Challenge 3 - Bumper

for the draft analysis:

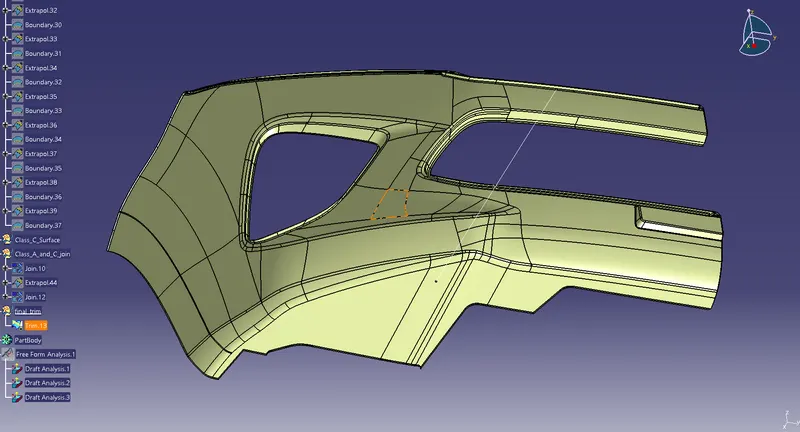

1. a point is taken on the surface given.

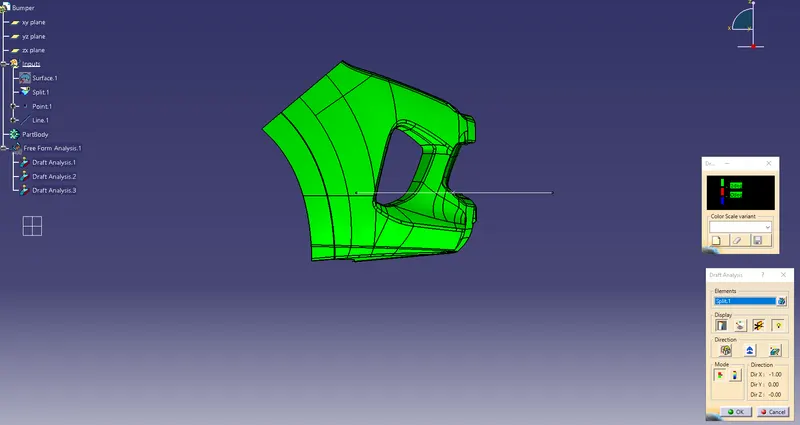

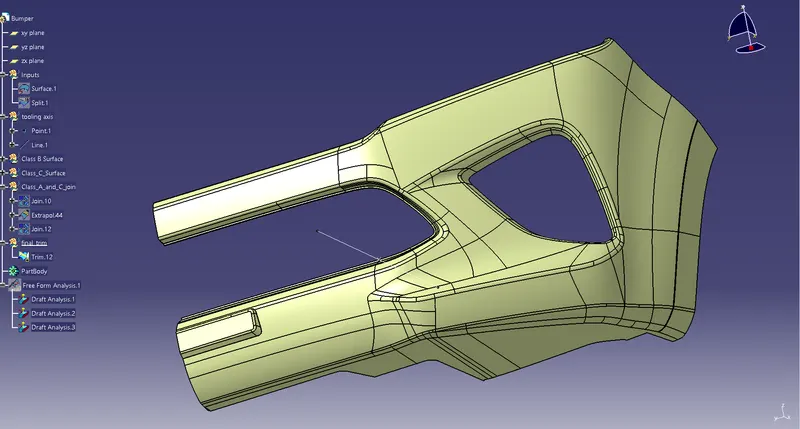

2. we need to decide a surface orientation from which most of the surfaces are visible most.

3. here the axis was x axis.

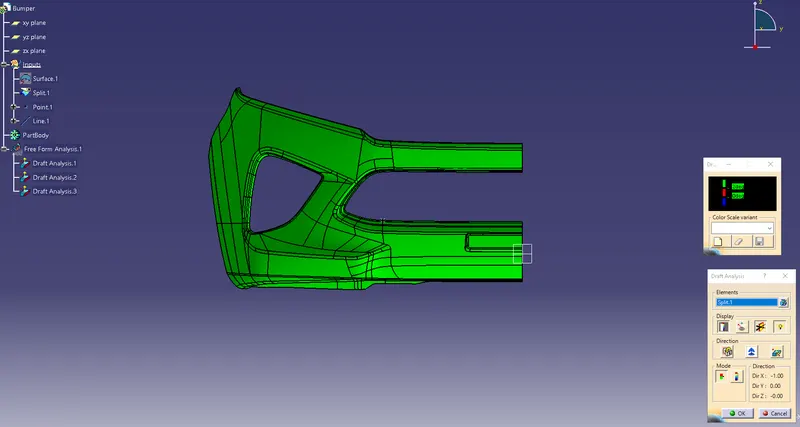

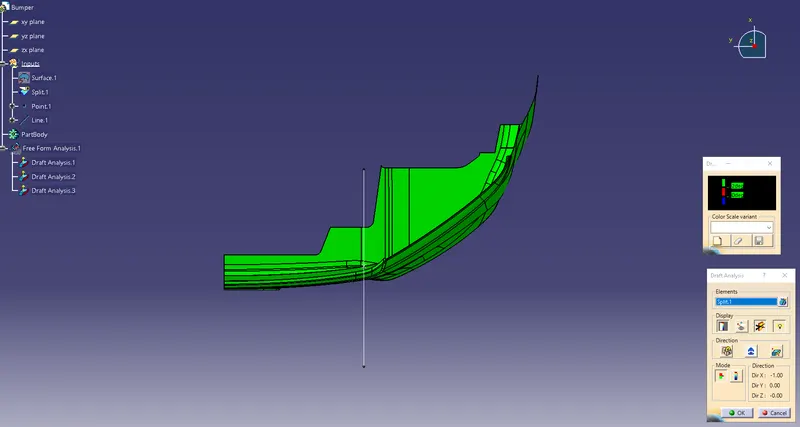

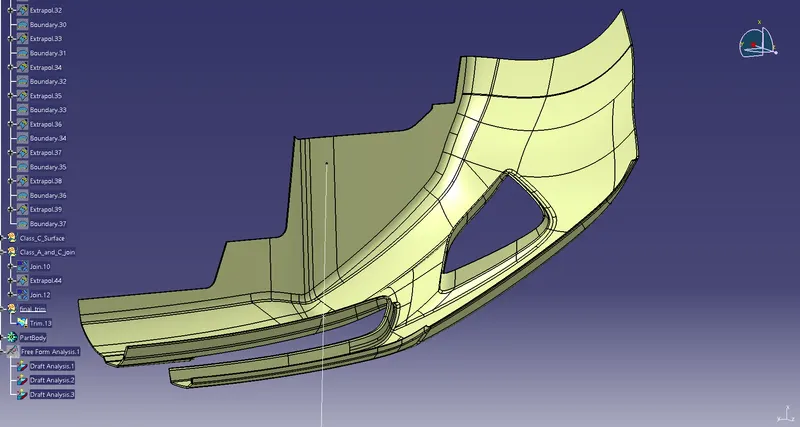

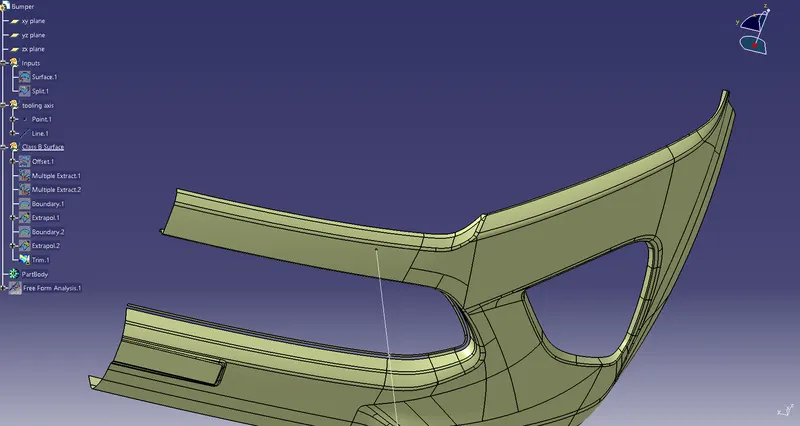

4. we draw a line from this point in the x axis direction.

5. we select material mode from Customize view.

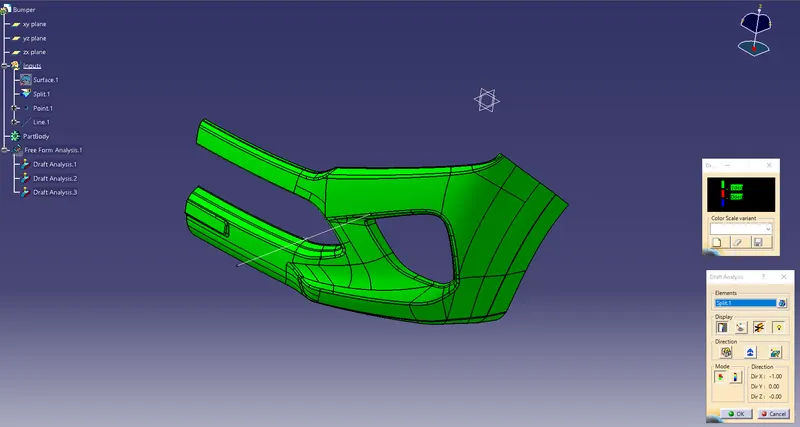

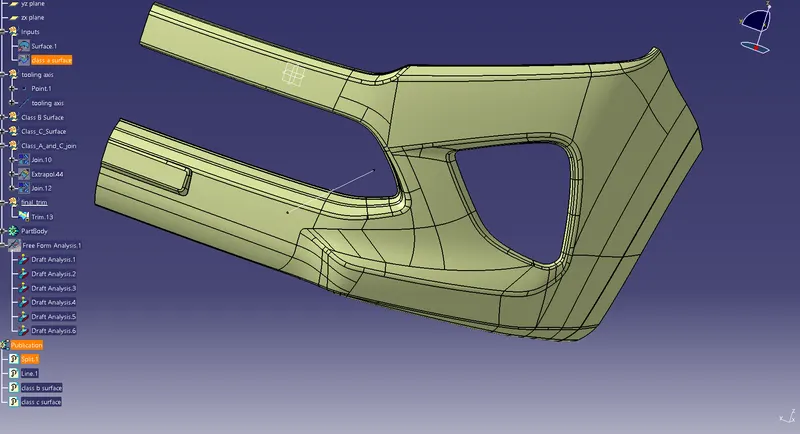

6. now draft analysis shows that the drawing angles are wothin limits of 2 degrees.

7. so this dummy tooling axis is made actual tooling aixs.
