Week 9 - Challenge 3 - Bumper

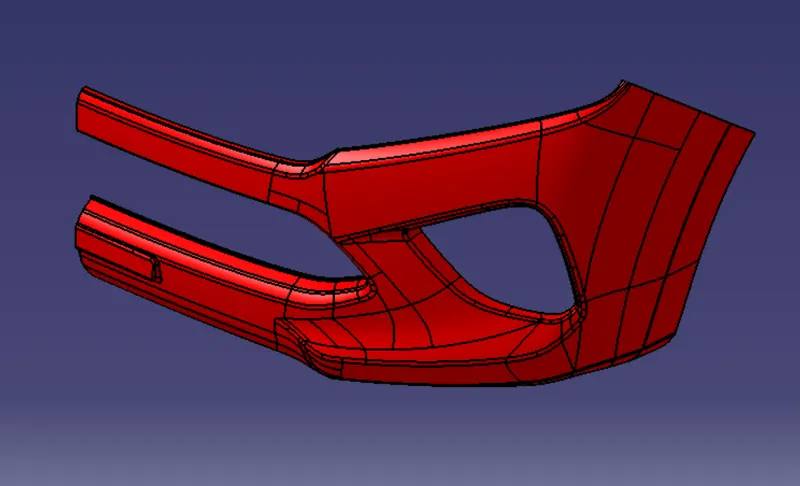

Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
Take the Thickness of the component to be 3 mm
INPUT FILES :

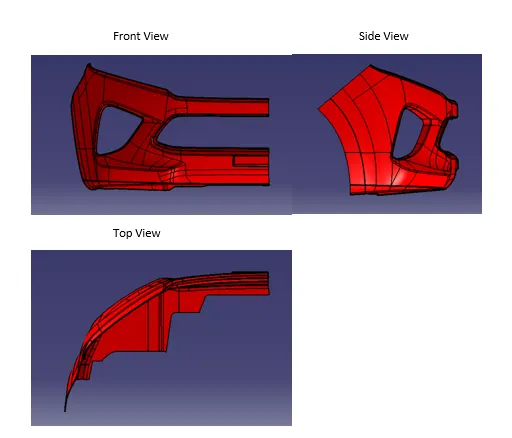

BUMPER .CAT PART
BUMPER IGES
BUMPER .STP
Use Bumper .STP File
Tooling Axis :

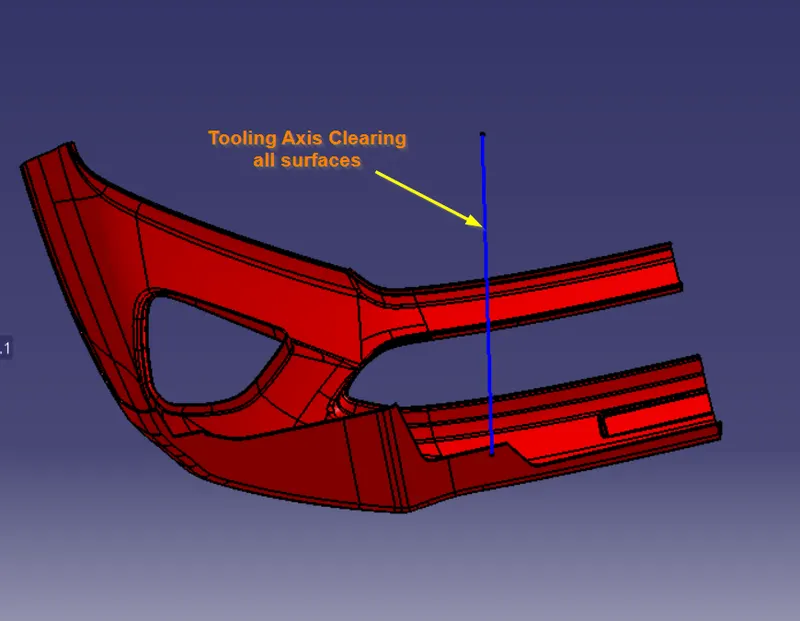

Selected one straight edge of the bumper, created a point on the edge and
draw the line perpendicular to the surface.
This line considers a dummy tooling direction and analyzes the draft. This line clears the draft analysis.

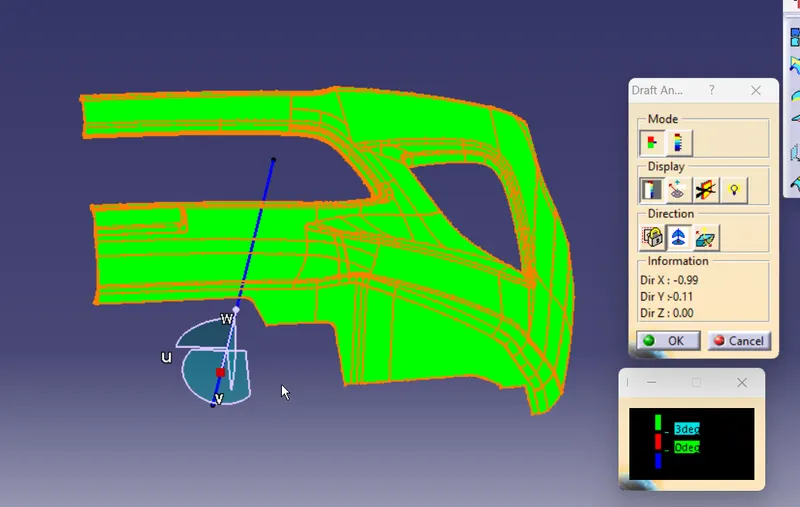

Draft Analysis :

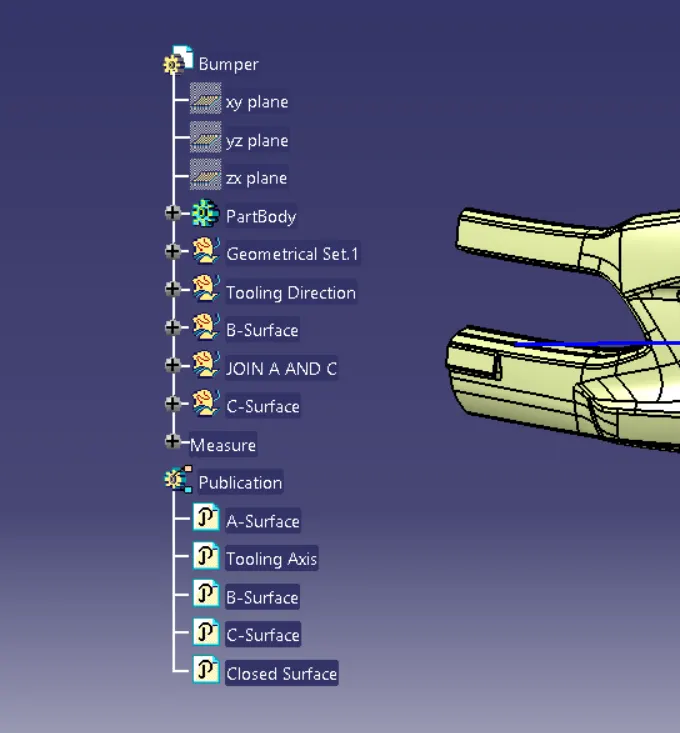

Geometrical Set:
Repairing B-Surface:

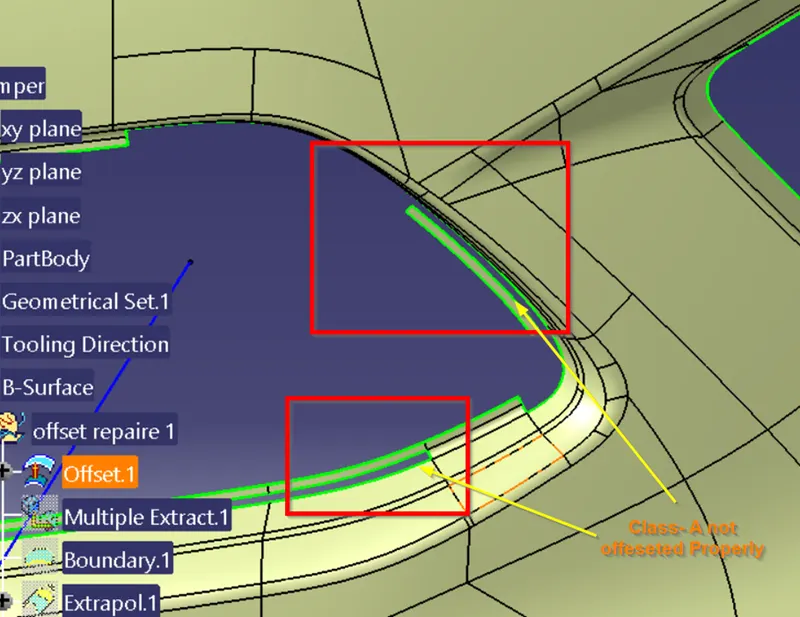

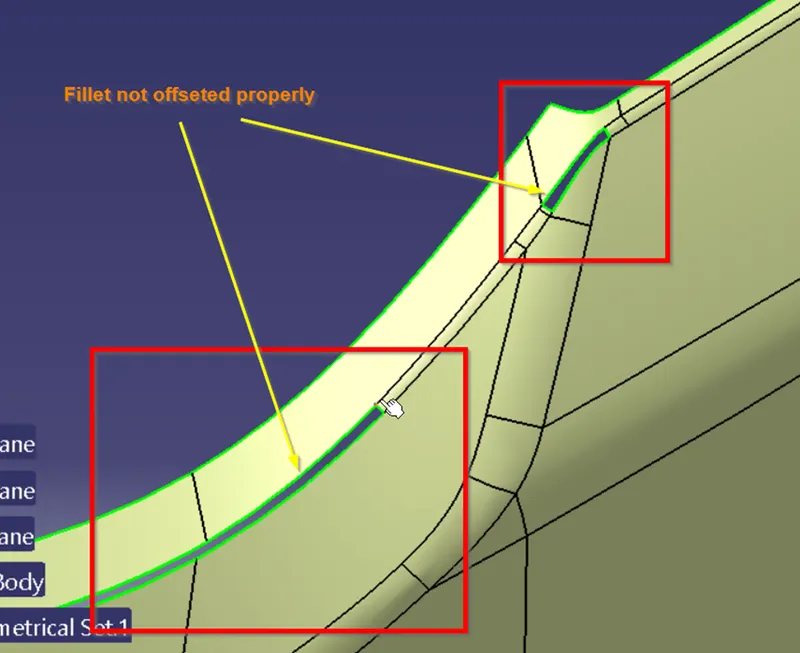

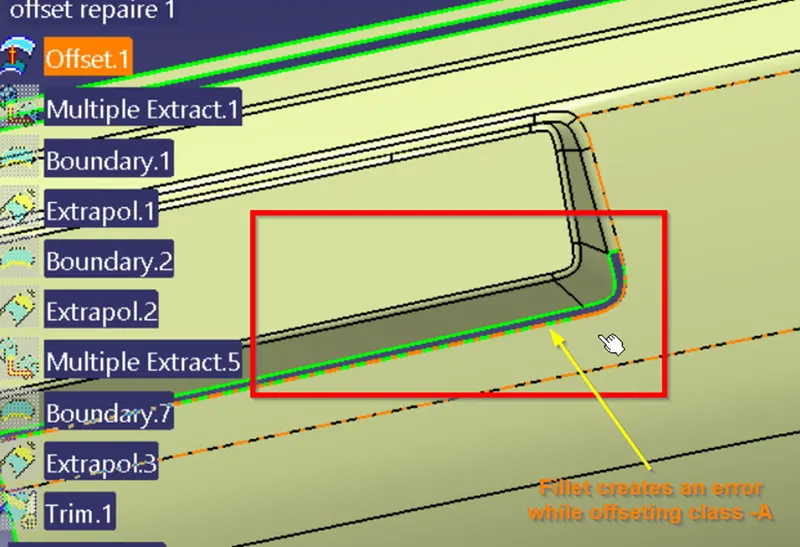

Above all surface error was faced while offsetting the class - A. To fix these errors, extracted flat surfaces which
make the fillets, untrimmed, make sharp corners, and then give their fillet value. This is how fixed those errors.

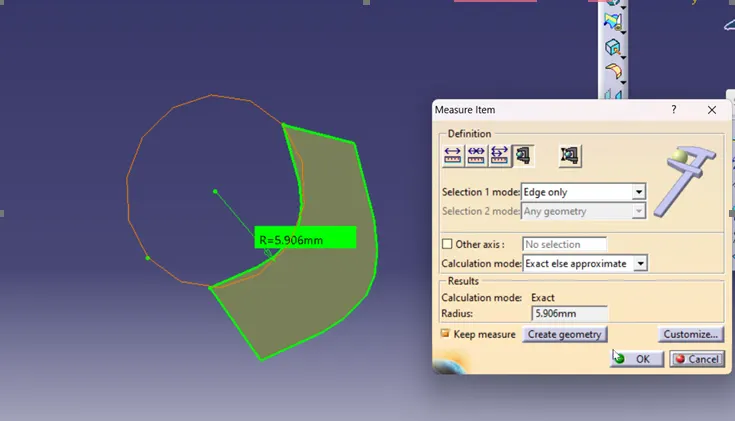

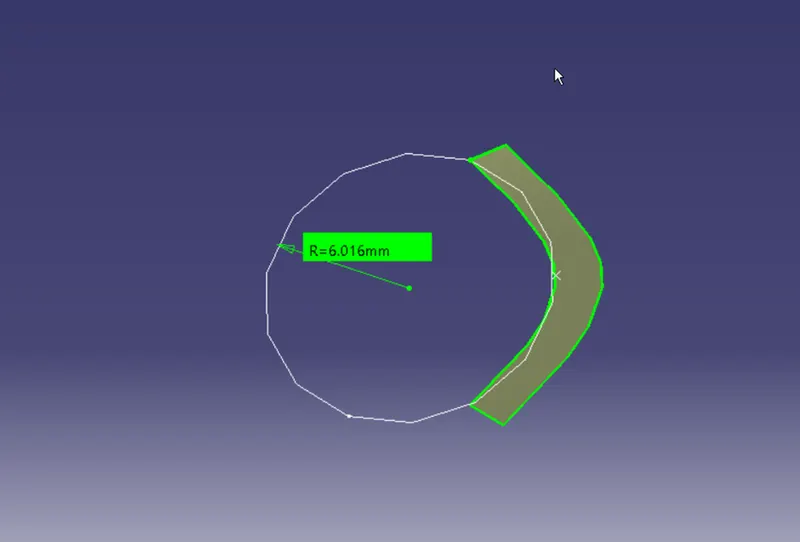

When repairing the offset surface, To measure the exact radius of the fillets, I couldn’t show the actual radius.
So, extracted the fillet, untrimmed it, then draw a three-point circle, and got the radius.

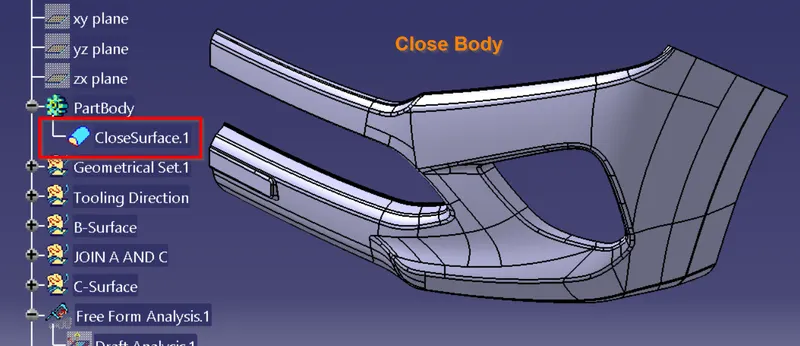

Close Body :
