Week 9 - Challenge 3 - Bumper
the Draft analysis report for both the given Class-A surface and the final plastic component
In a draft analysis we have to position the tool direction on surface class A and the compass should be lock in the tool direction and then check the analysis under running point should check the draft angel on the surface oh the class c
If the

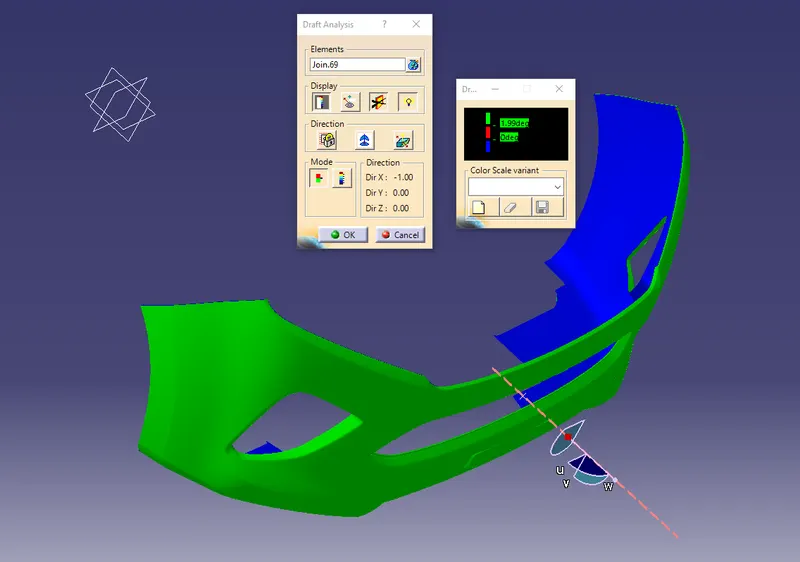

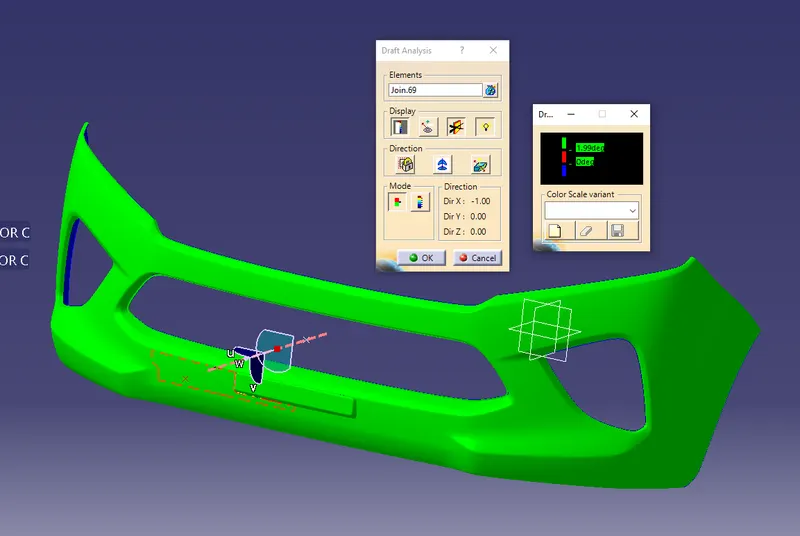

red represent - no draft
Green represent - positive draft on cavity side
Blue represent - negative draft on core side
Please check the report in given below attached file for draft analysis

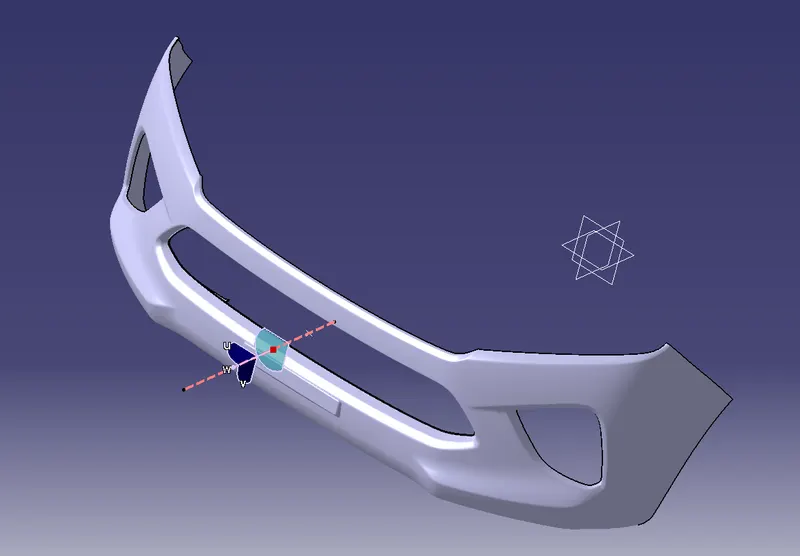

Tooling direction

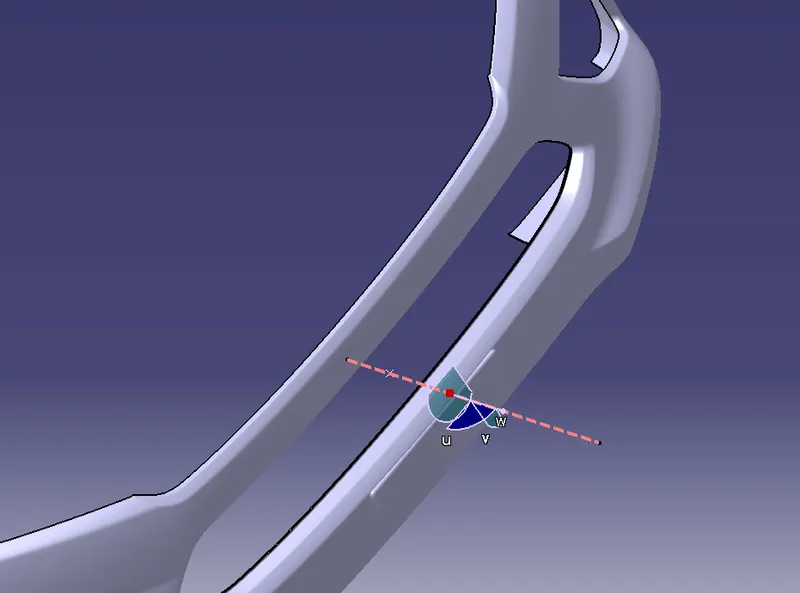

We make a point & line in on the surface on the hole center for tooling direction
And the tooling direction depends upon the surface of draft angel given by as and then we move on the tooling direction
And the direction of compass should be an lock through the line along the surface
If the tooling direction to desired the cavity and core side of the surface

Surface A

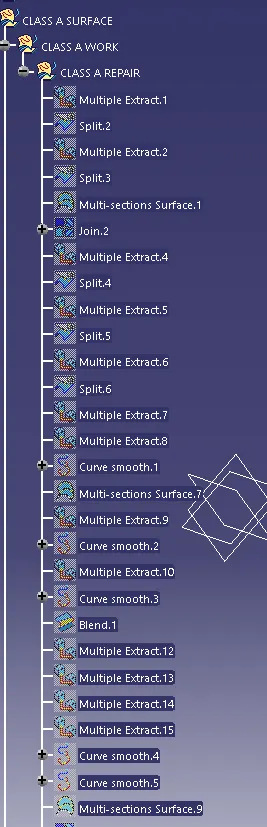

Repair the class a surface there is a n number of surface we should be the join the all surface together in single surface

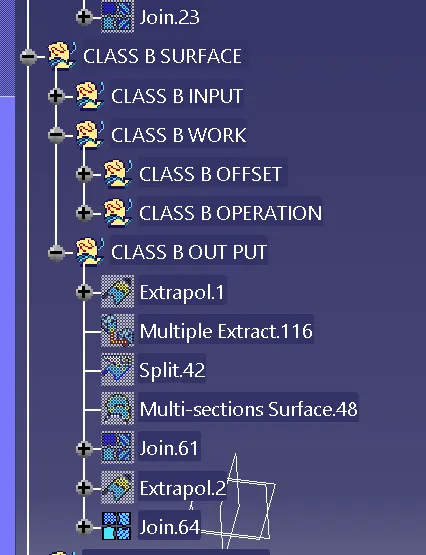

Surface b operation

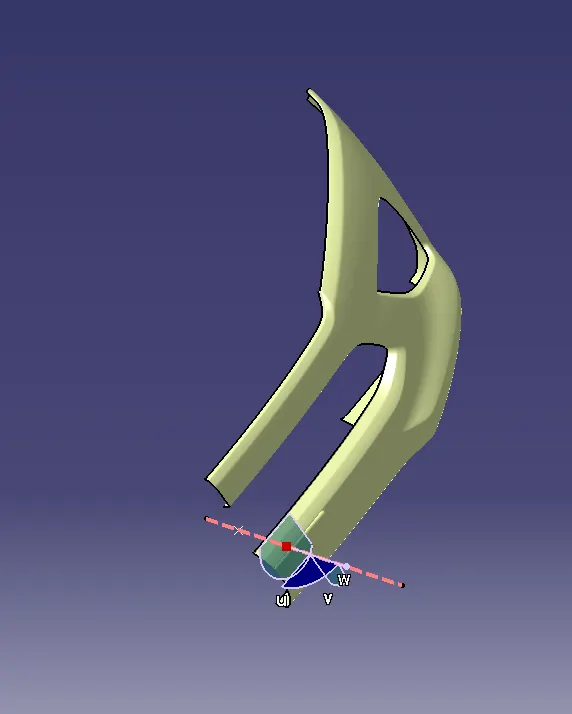

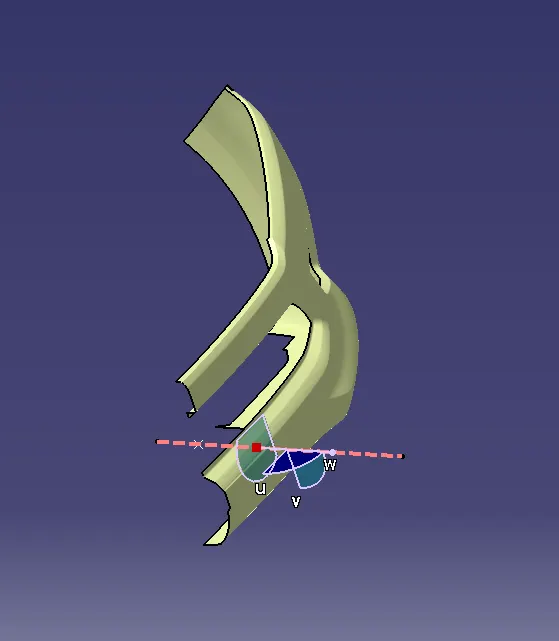

1st we start form the surface a and then offset 2.5mm from the class a toward the an z direction and then repair the surface of b offset surface
all the repair completed and then extrapolated on the boundary

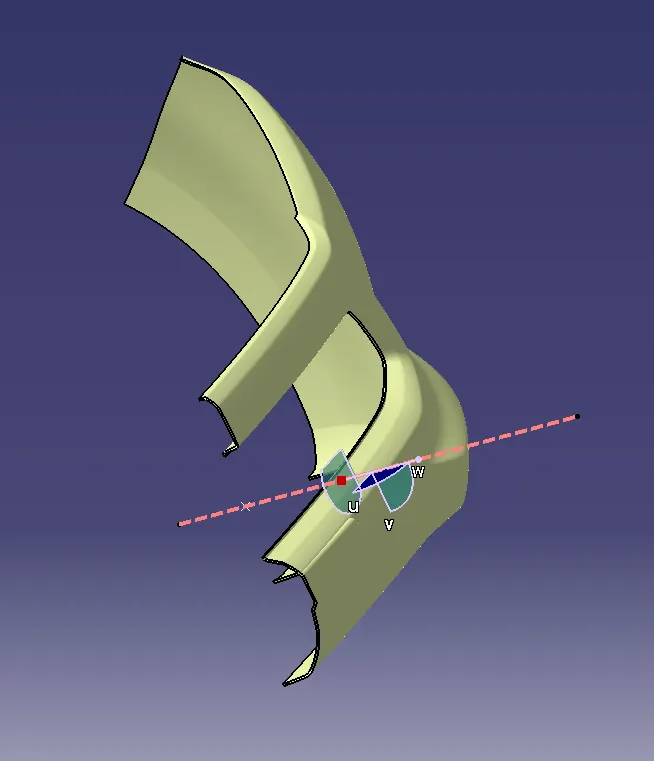

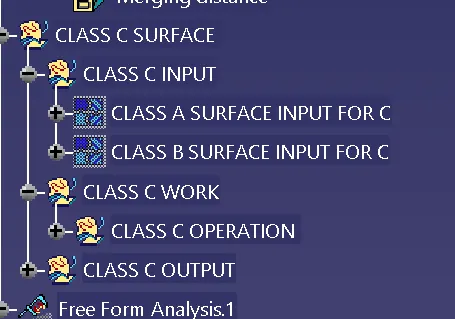

SURFACE C

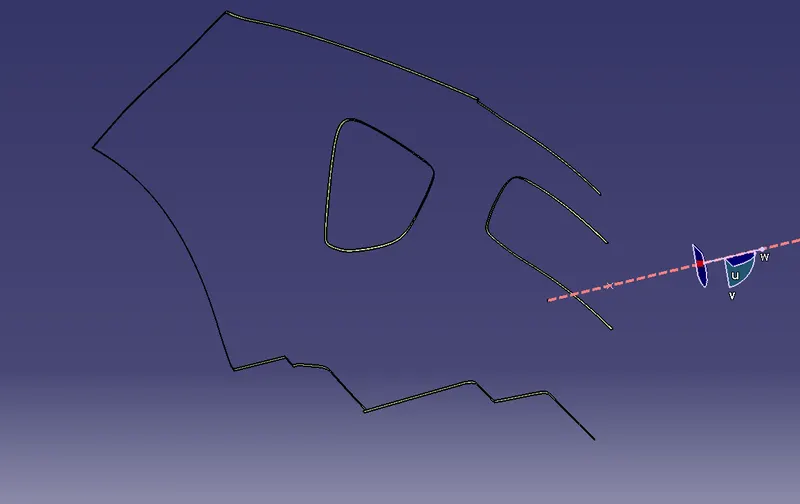

TRIM operation
one all the operation done on the bumper and the symentery of finished trim object and then final look out are in given below

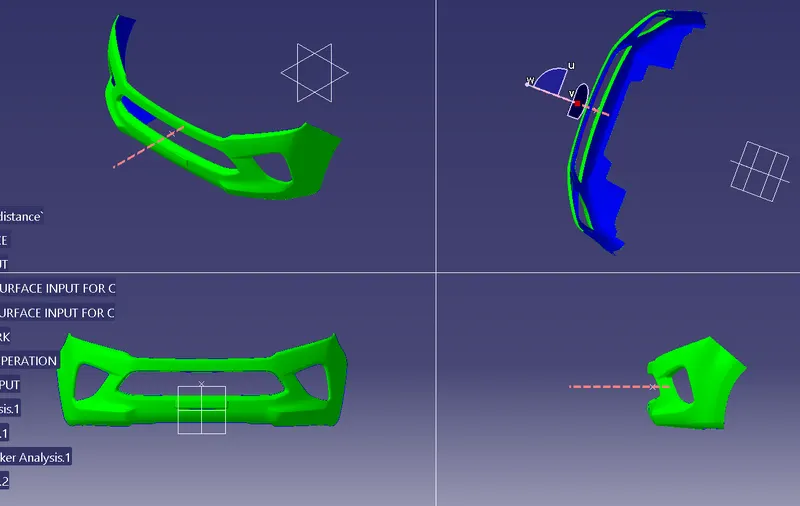

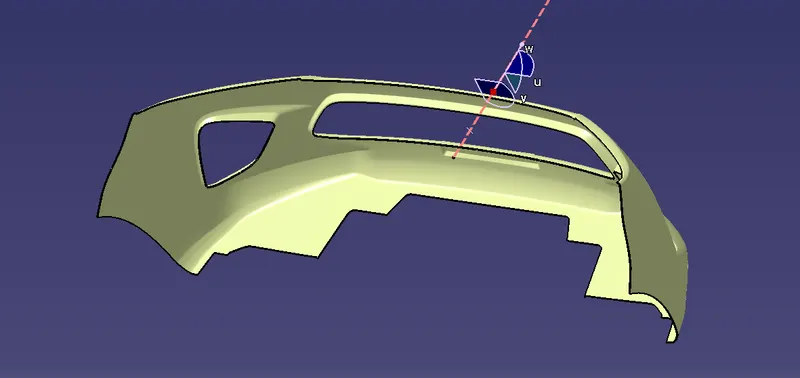

the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

CLOSED SURFACE ON PART BODY
