Week 9 - Challenge 3 - Bumper

REPORT

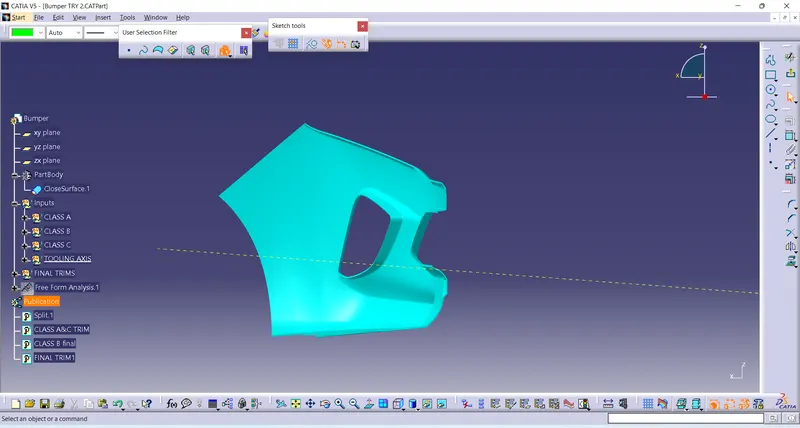

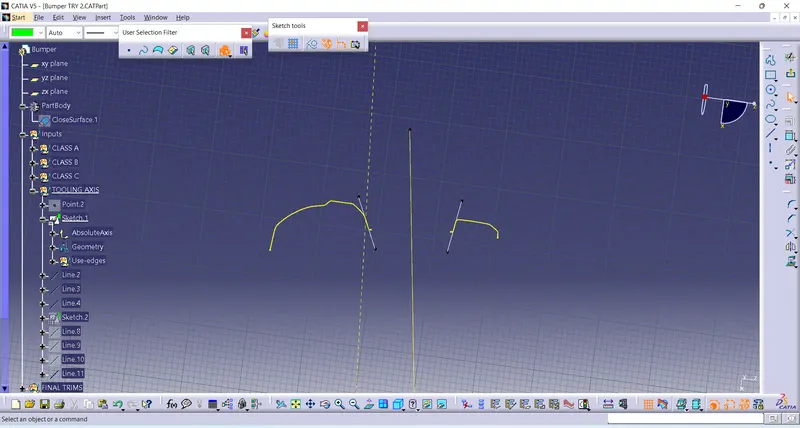

TO get the tooling axis first i create a dummy tooling axis, then intersect the given class A surface both horizontal & vertically with respective planes. then i draw lines through the 2 corresponding faces which are more likely to come parallel to the dummy tooling axis. the i bisecting line of this 2 line, after doing this in both horizontal & vertical intersections i got 2 bisexting lines. then i bisect these 2 bisecting line to get a single line which can be use as tooling axis

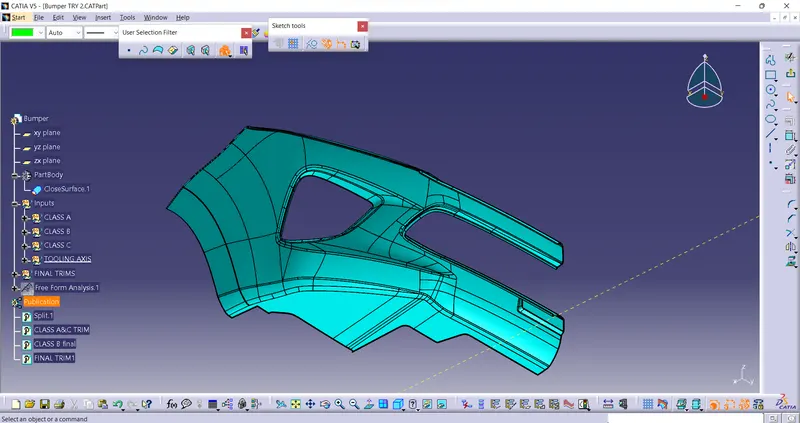

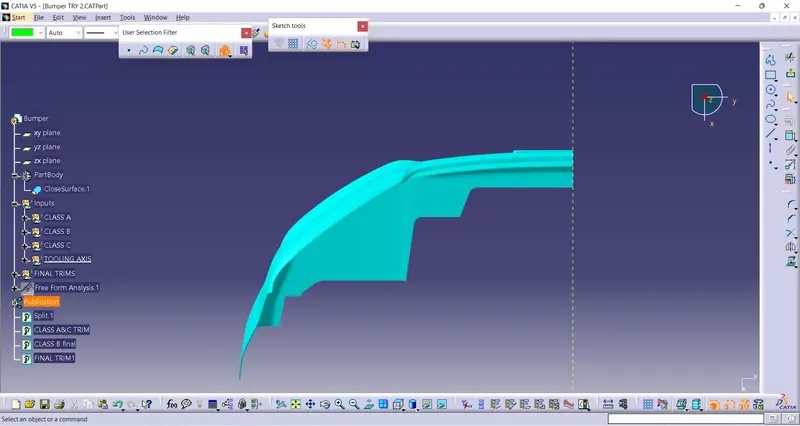

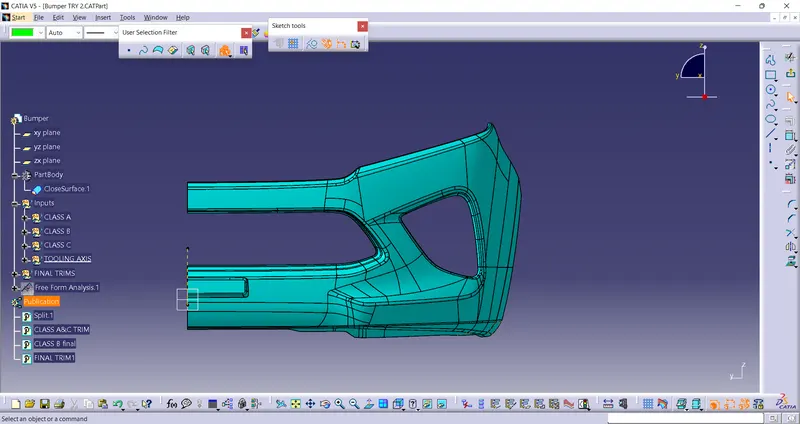

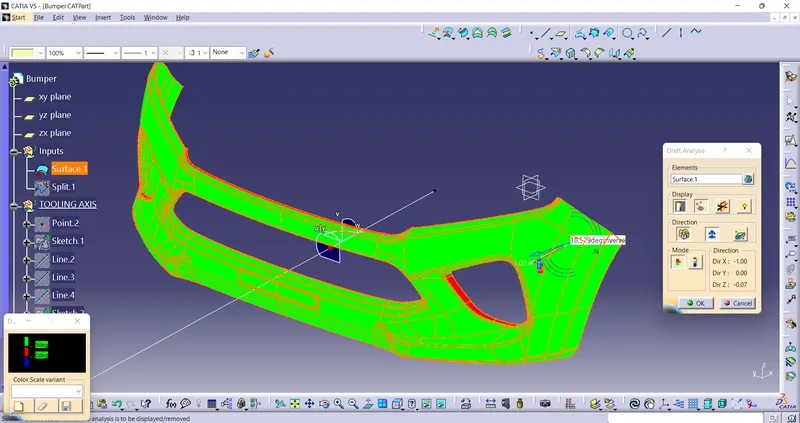

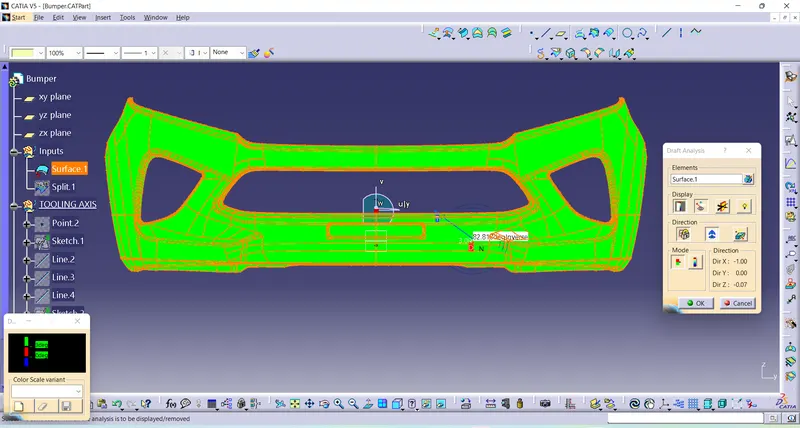

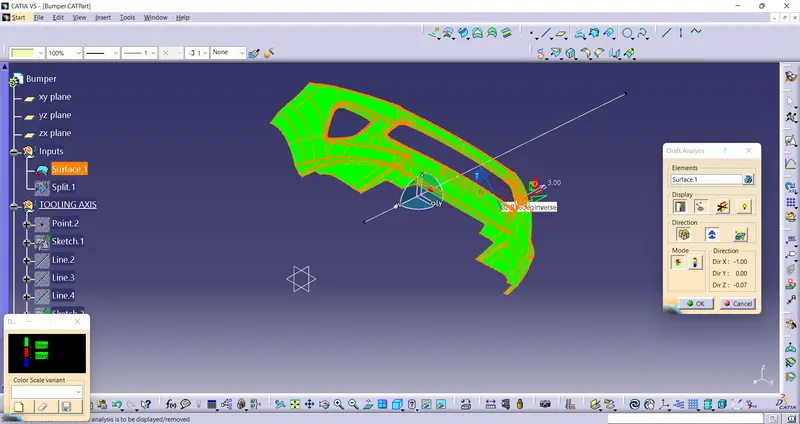

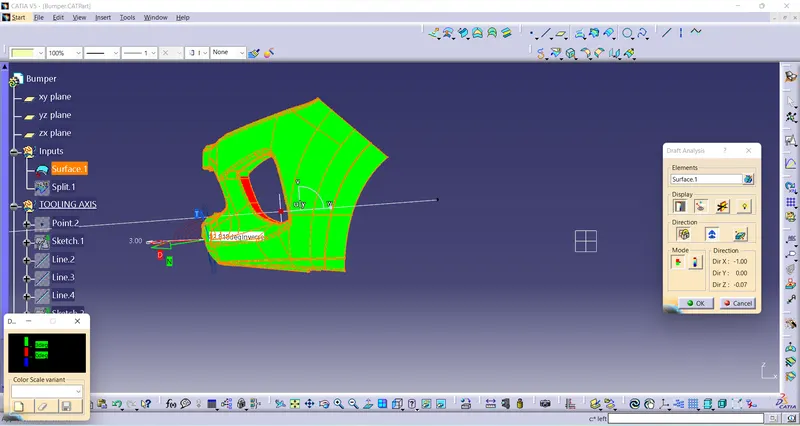

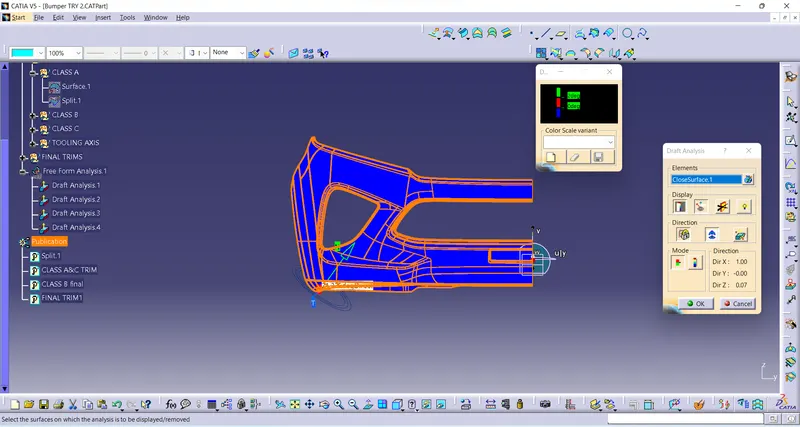

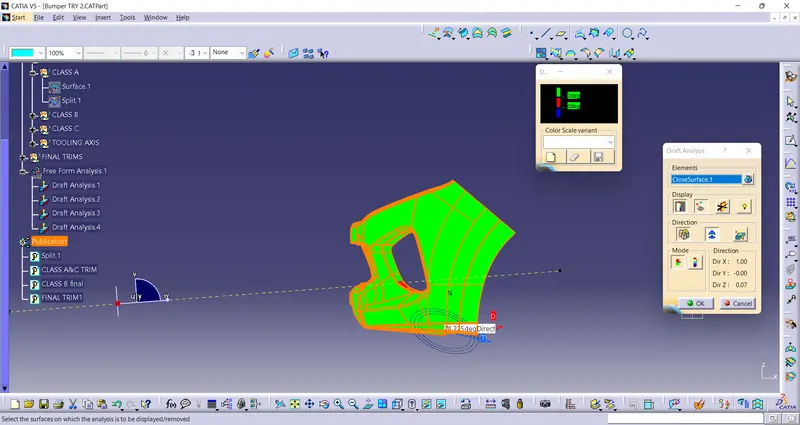

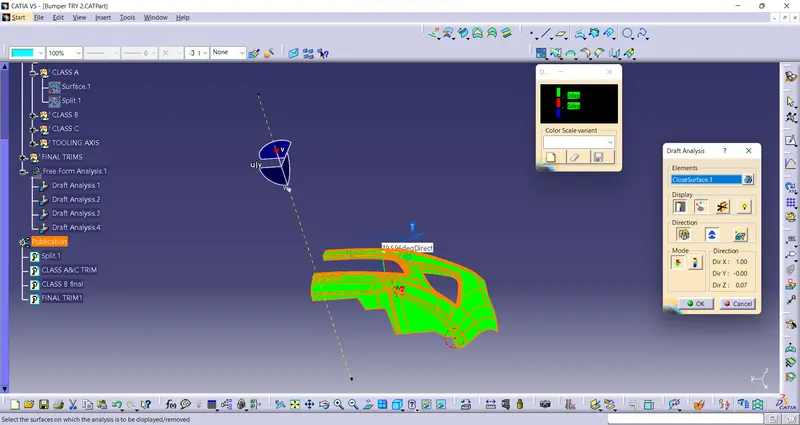

after creating tooling axis i done draft analysis with 3 degree. in the draft result at portions the draft angle is slightly less then 3 degree
