Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

REPORT

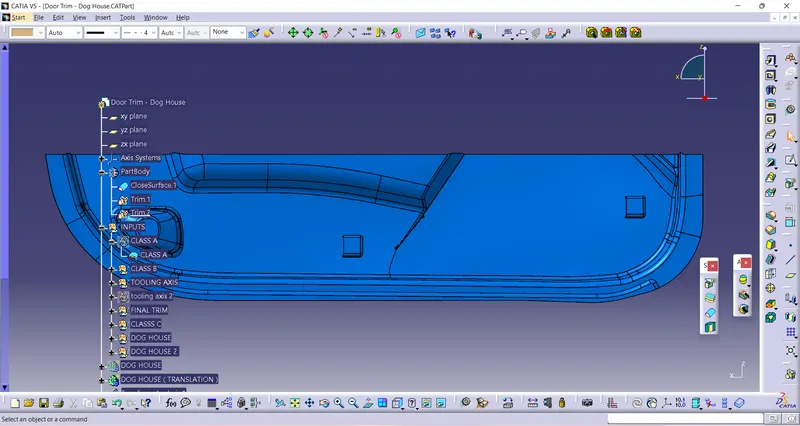

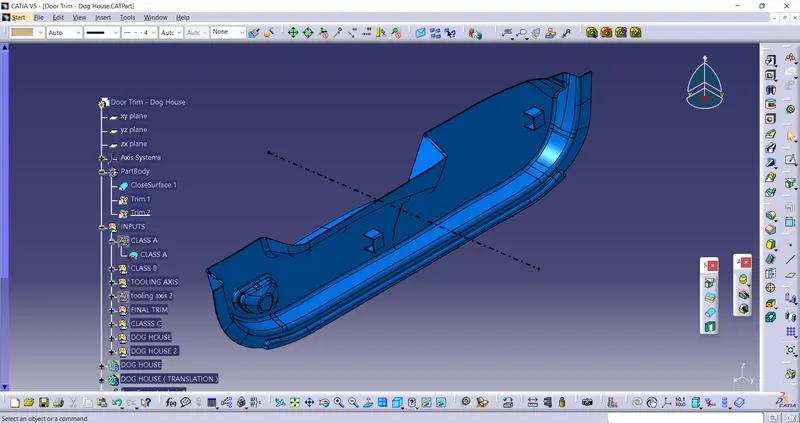

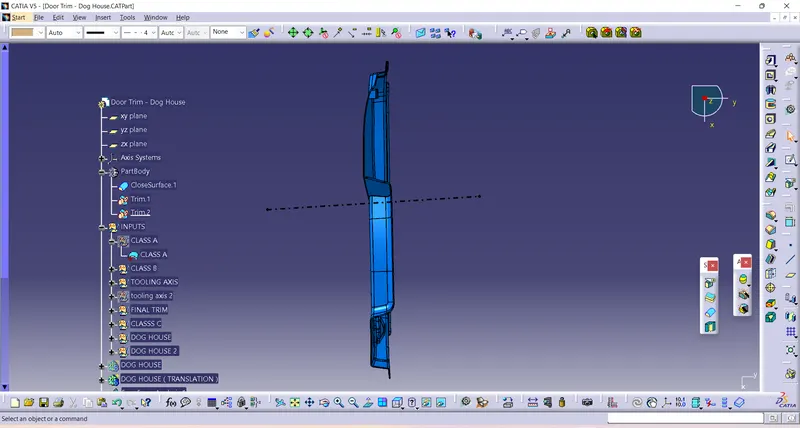

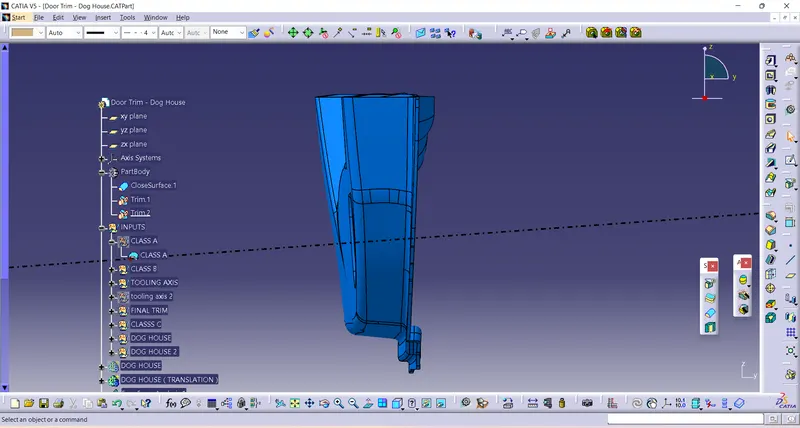

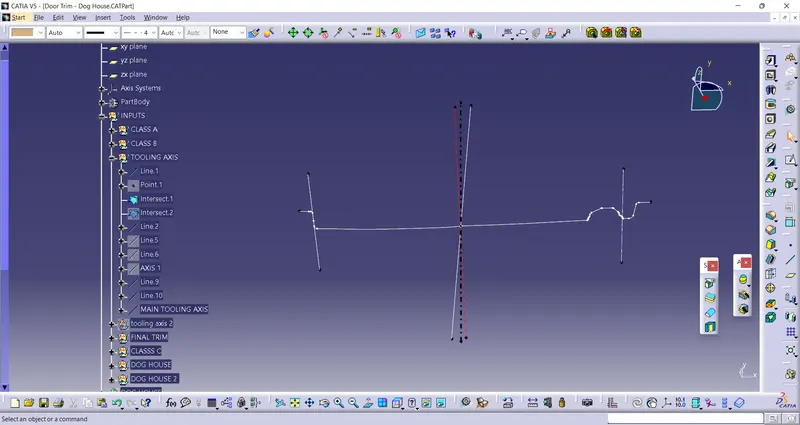

IN order to get a tooling axis first i create a point in center of CLASS A surface and then make a dumy tooling axis and creatr an plane to intersect the class A.

then i take 2 lines in the inersectin which are more likely to be parallel to the dumy tooing axis, and i extented these 2 lines in intersection and and create a bisecting lines of these 2 lines through the point i created. then i create another bisecting line of the dumy tooling axis and the bisecting aline i get earlier to get the tooling axis.

( note : i have try to created create tooling axis ment ways but none of them are clearing 100% in draft analysis, the tooling axis i use here only have clear almost side's in draft analysis. )

DRAFT ANALYSIS

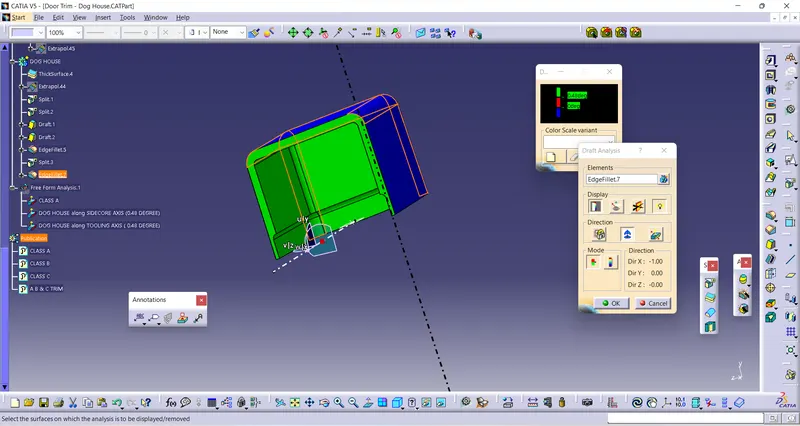

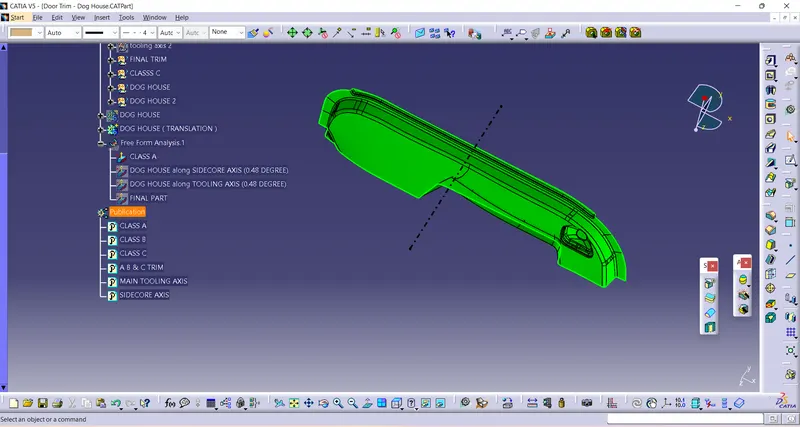

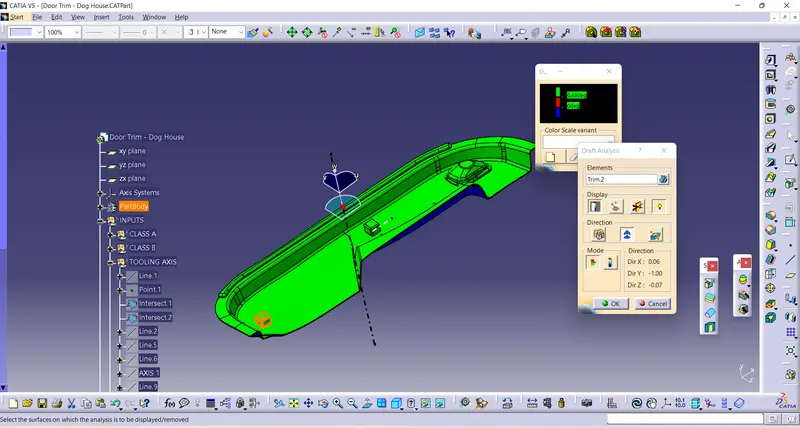

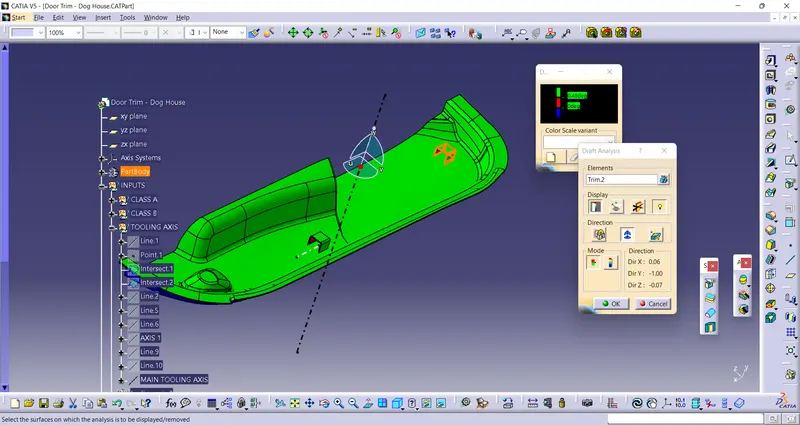

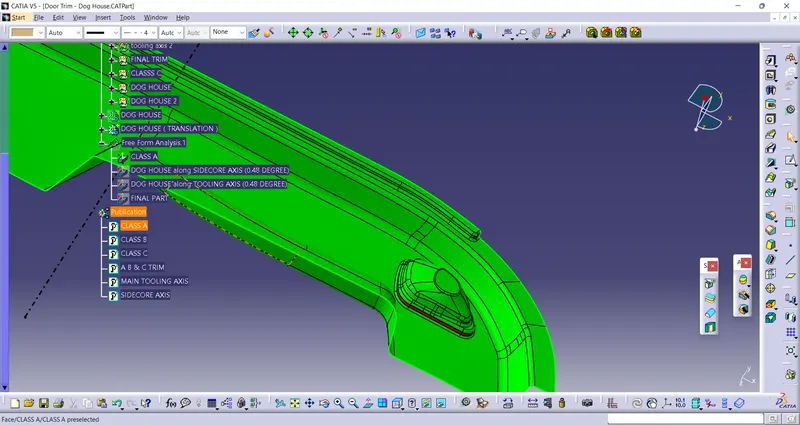

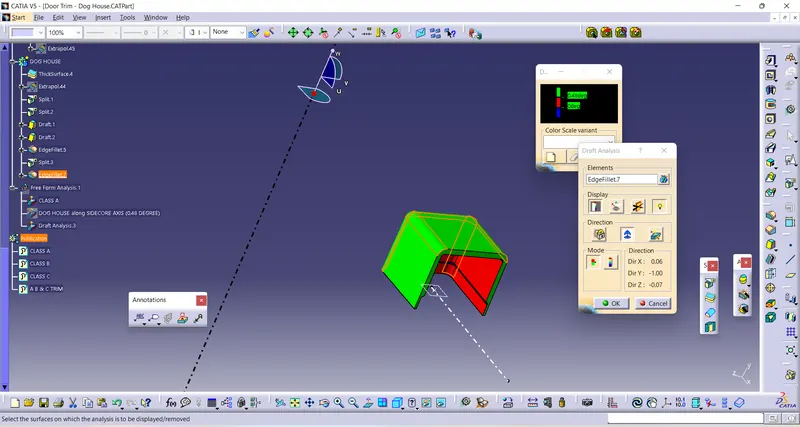

i ave done draft analysis for CLASS A , FINAL PART, DOG HOUSE ALONG TOOLING AXIS & DOG HOUSE ALONG SIDECORE AXIS

In draft analysis i did not get all faces cleared by the tooling axis i have created
