Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

REPORT

to get the tooling axis, i create a point in the top face and create boundary of class a and extent the lines at 4 corners. and extent the perpendicular line and bisect the lines in coresponding oposite corners and get 2 lines. then again bisect the 2 lines to get the tooling axis

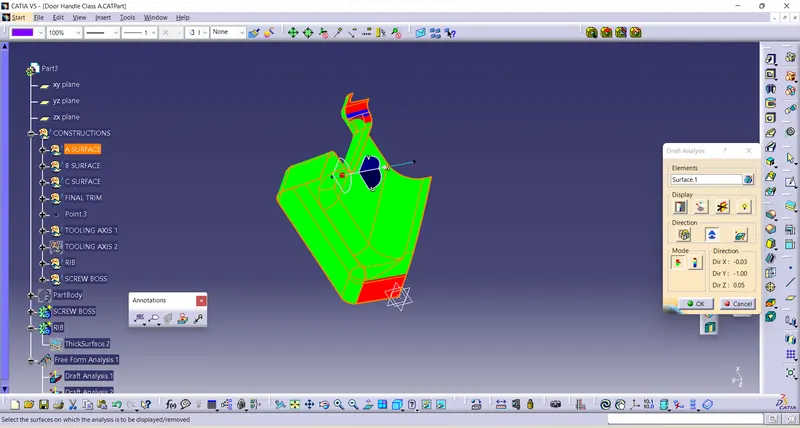

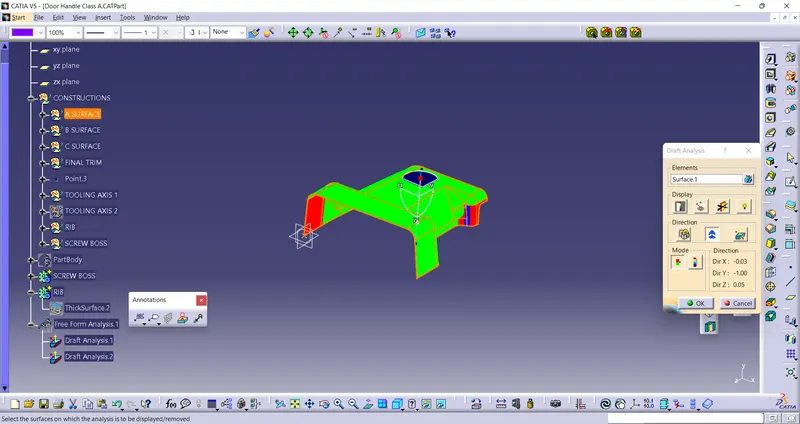

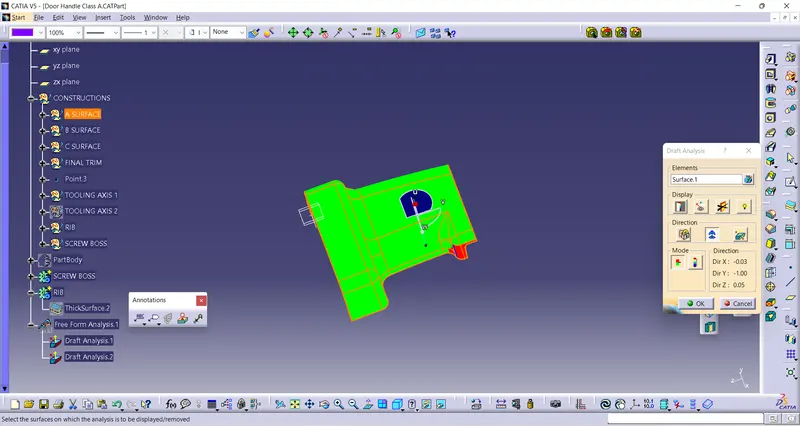

[i ahve tried meny methods to create the tooling axis but i cant get the right one. i use the axis which look better in draft analysis]
