Week 9 - Challenge 2 - Switch Bezel Design

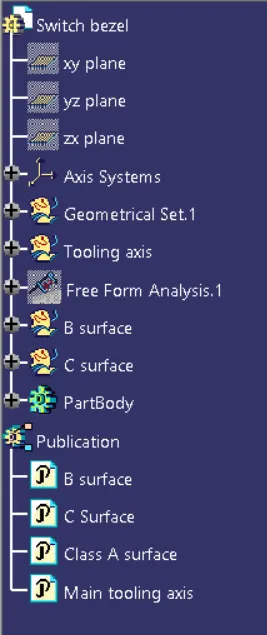

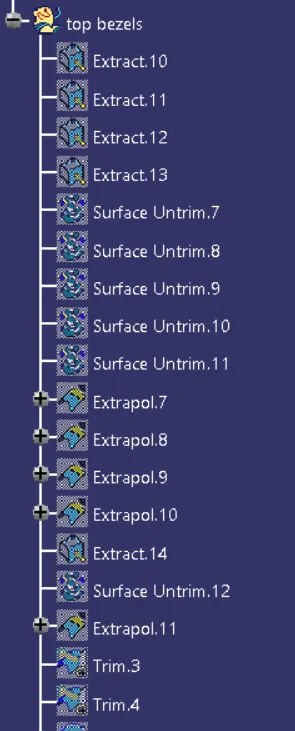

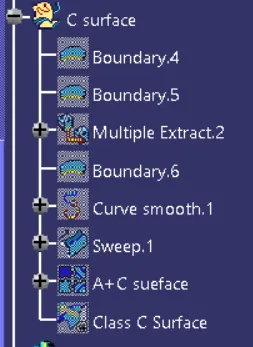

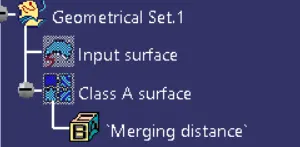

• Tree structure


• Draft analysis-
  Draft angle of all the surface is above minimum 3 degrees hence draft is ok.

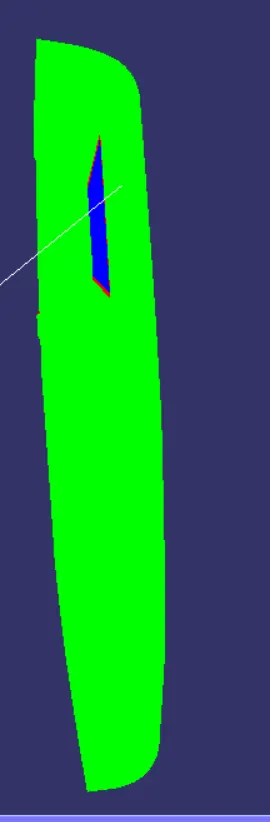

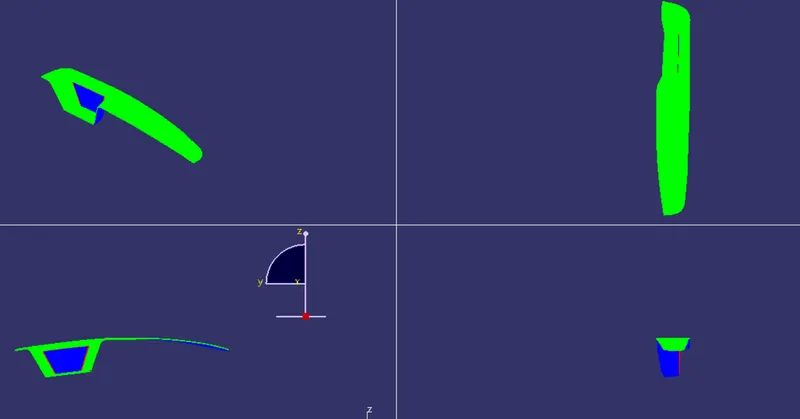

• Draft Analysis of Class A surface

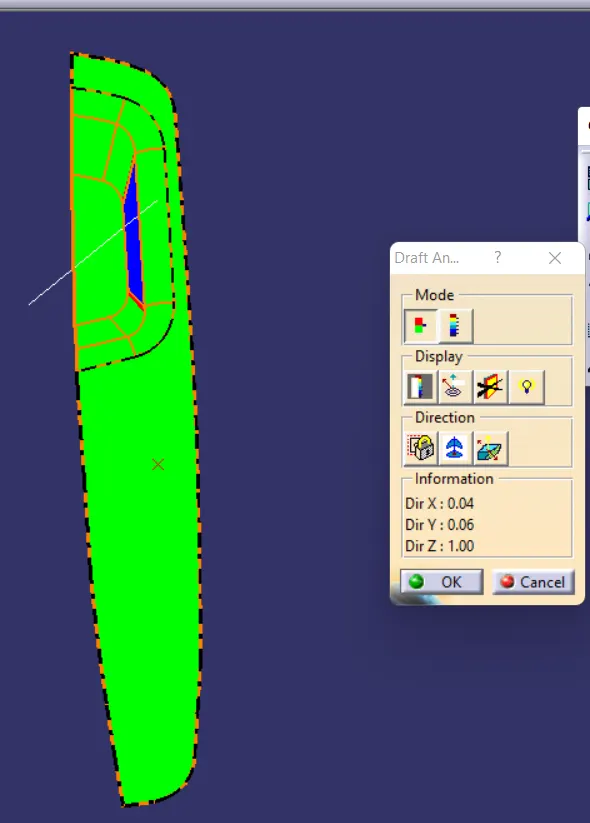

Draft analysis of final closed body

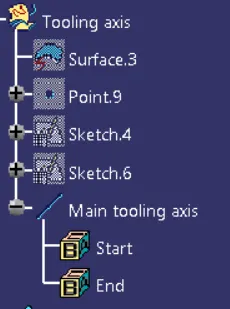

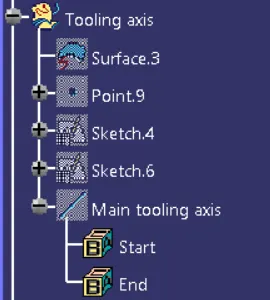

Tooling Axis construction

1. select the flat surface and extract it useing extract command
2. plot a point on the extracted surface . plot axis system on it
3. useing sketcher work bench intersect the corresponding 3d surface along X-Z plane , elongate the intersect lines and draw a new bisecting line by takeing intersecting lines as refrence through the point.
4. construct other sketch on Y-Z plane , intersect the surface along Y axis and extract it . draw a line through the point and make it 3 degrees inclined to the extracted intersecting line
5. draw the bisecting line by takeing sketch 1 and sketch 2 as refrence that is the tooling axis.

Views of plastic components
