Week 9 - Challenge 2 - Switch Bezel Design

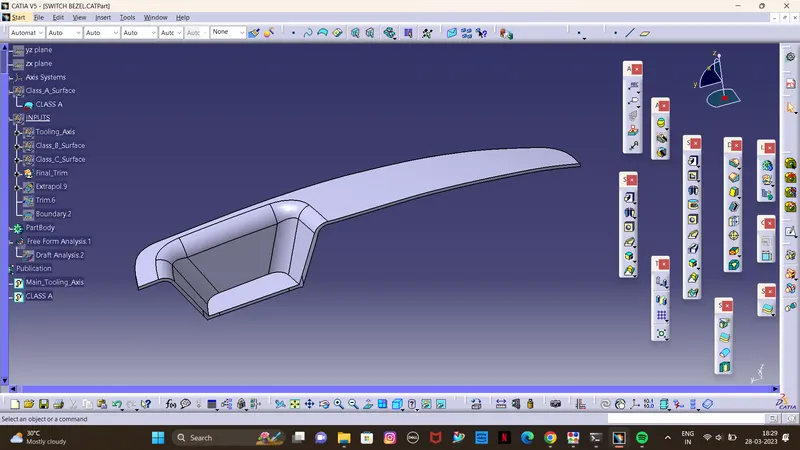

SWITCH_BEZEL_EXERCISE.

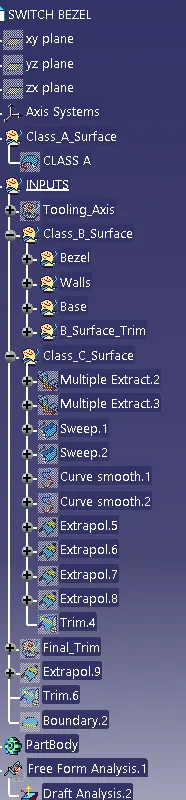

PART TREE.

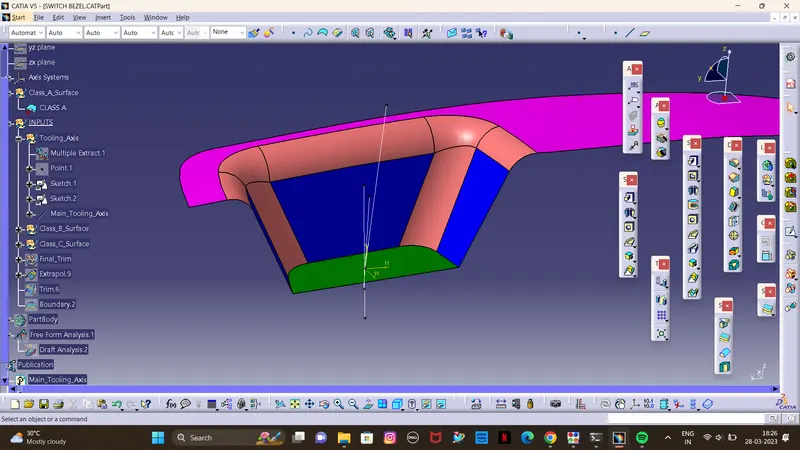

TOOLING AXIS.

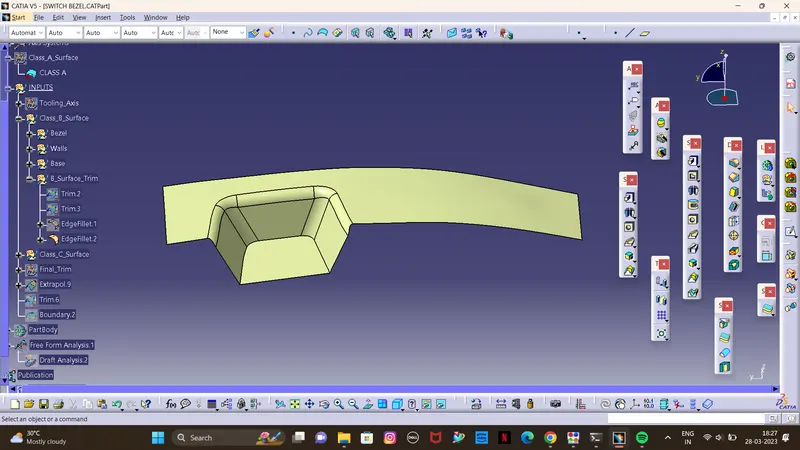

CLASS B SURFACE.

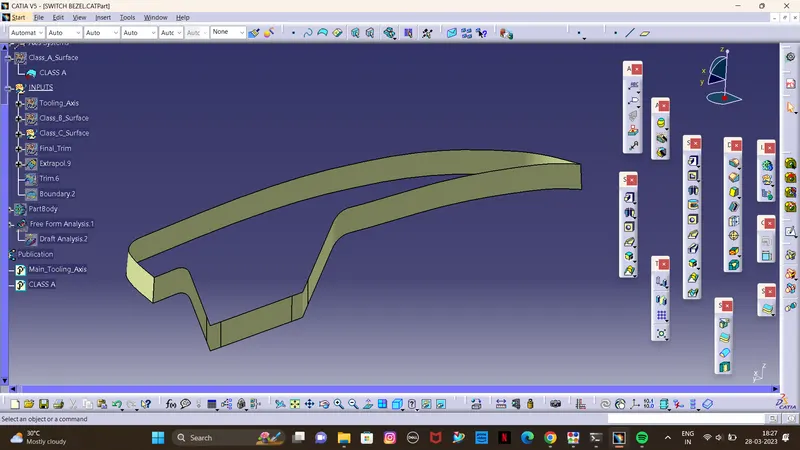

CLASS C SURFACE.

CLASS A, B & C SURFACES.

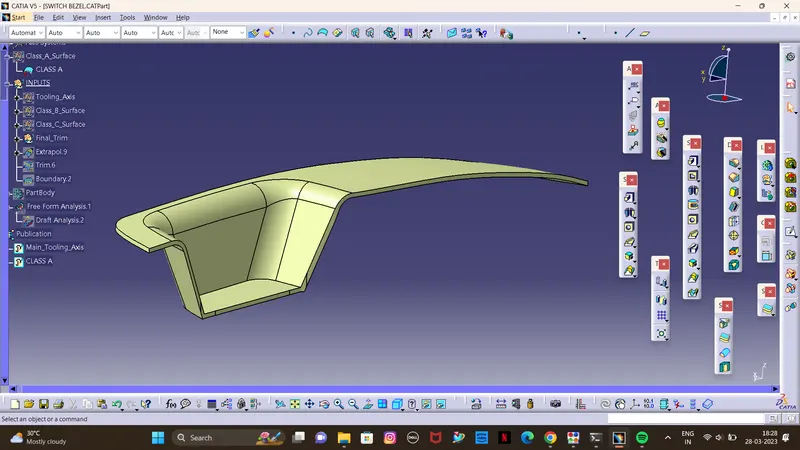

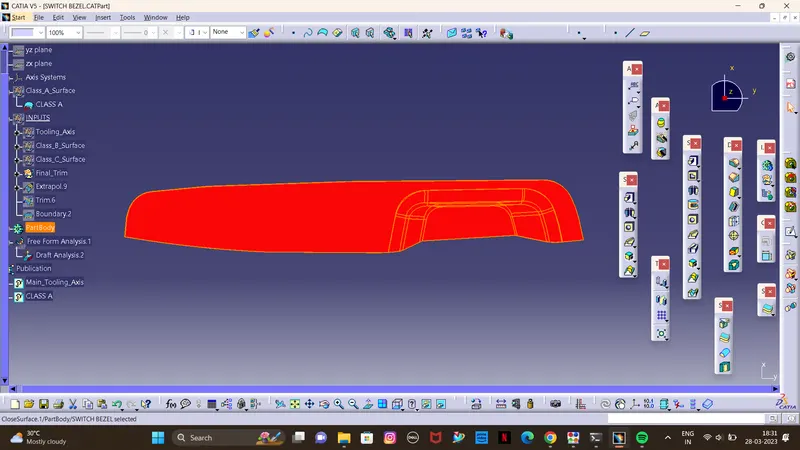

FINAL PLASTIC.

SOLID.

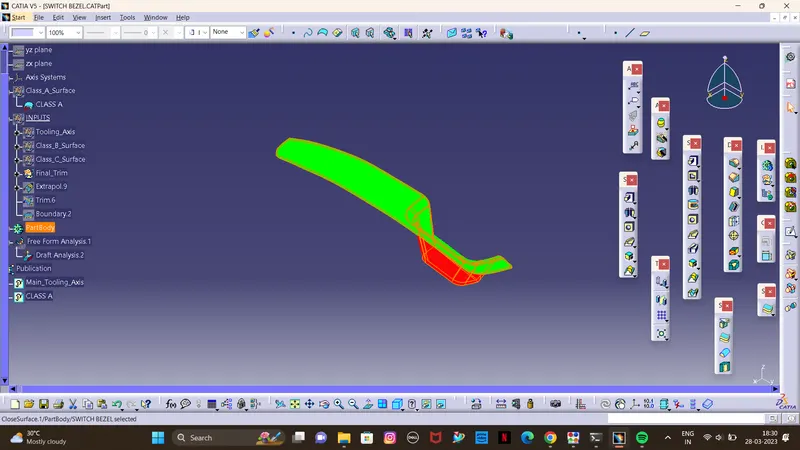

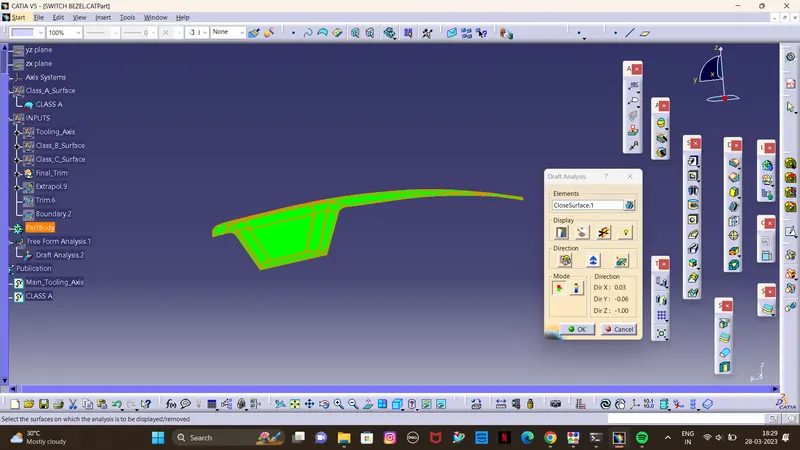

DRAFT ANALYSIS.

SOLID.

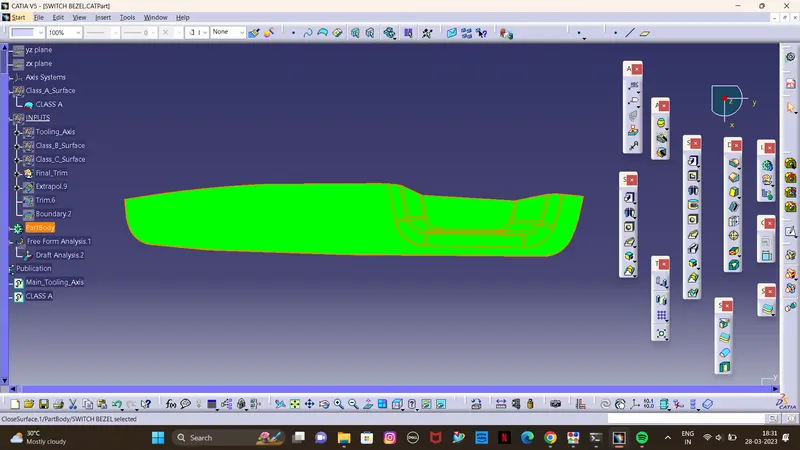

ISOMETRIC VIEW.

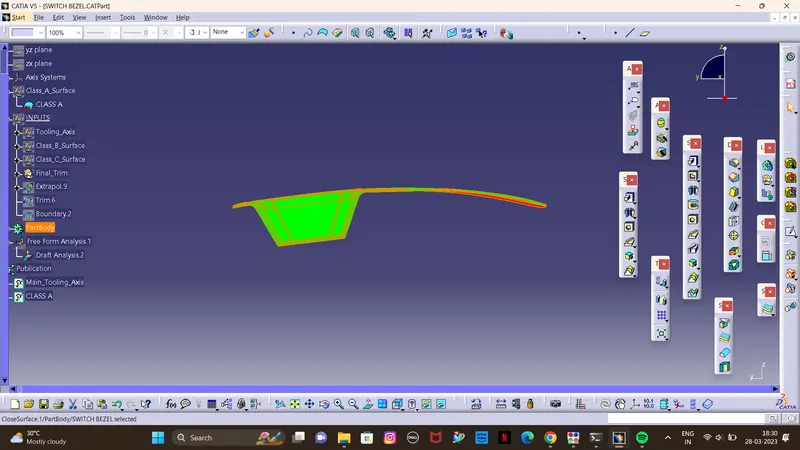

FRONT VIEW.

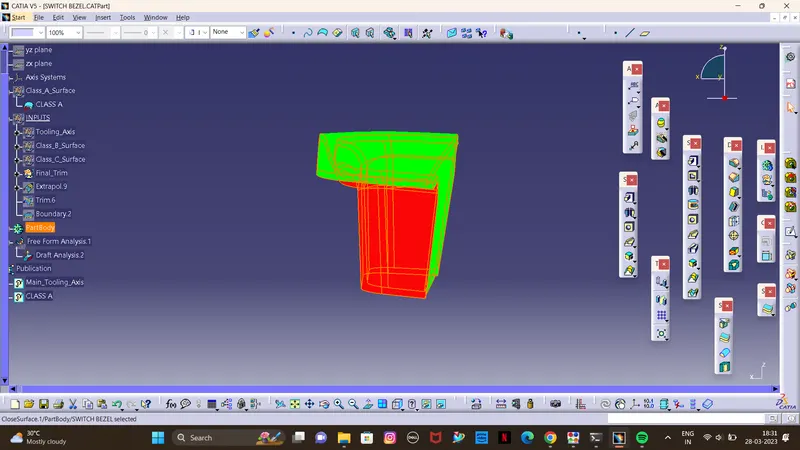

SIDE VIEW.

TOP VIEW.

BOTTOM VIEW.
