Week 9 - Challenge 2 - Switch Bezel Design

CREATING TOOLING AXIS

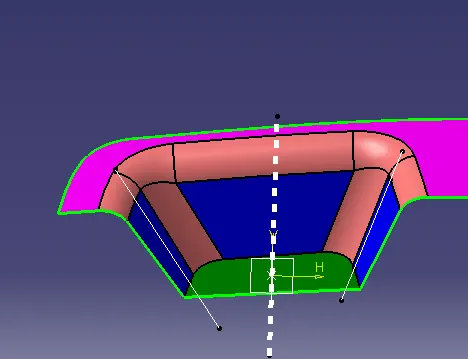

• First, we create a plane on the surface. Then draw two lines based on the projection of class A or using the intersection of the point’s method.

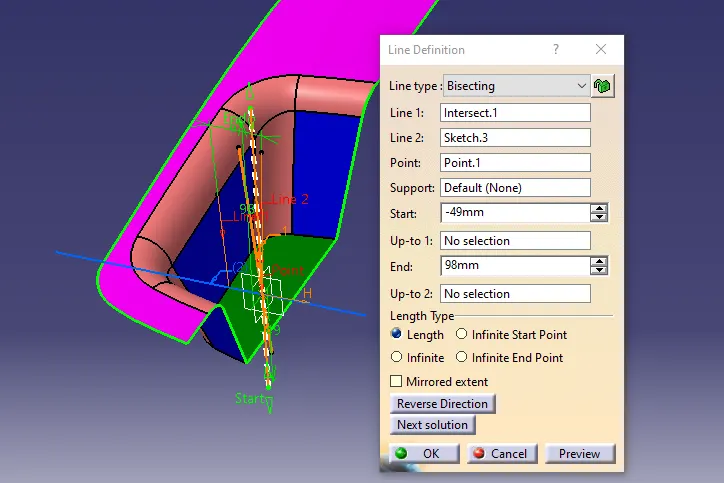

• Now Using the Bisecting method, select the two projected lines and get the Tooling axis.

DRAFT ANALYSIS FOR CLASS A SURFACE

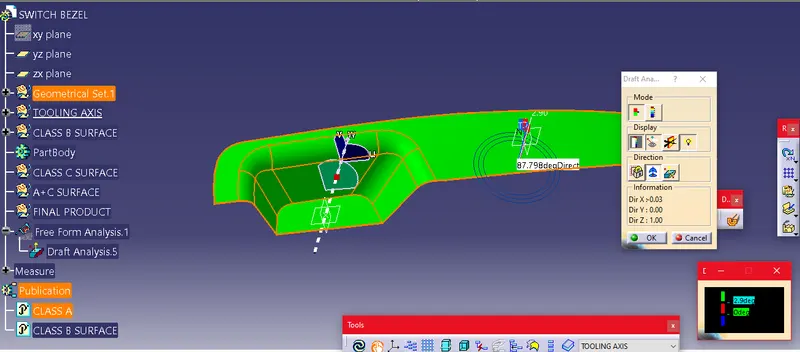

• After creating the Tooling axis, I checked for the draft analysis by clicking insert-->Analysis-->Draft analysis.

CREATING CLASS B AND CLASS C SURFACES.

• Then I created the Class B surface, Using the following commands.
• • Offset.
  • Trim.
  • Multi-surface.
  • Boundary.
  • Split.
  • Join.
  • Untrim.
  • Extract.
  • Multi-Extract.

• Then I created the Class C surface, Using the following commands.
  • Sweep.
  • Boundary.
  • Smooth- Surface.
  • Multi-Extract.

• After creating the Class B and Class C Surface, I Joined the Surface A and Surface C and Trimmed them with Surface B.
  • Join A+C.
  • Trim A+C-B.

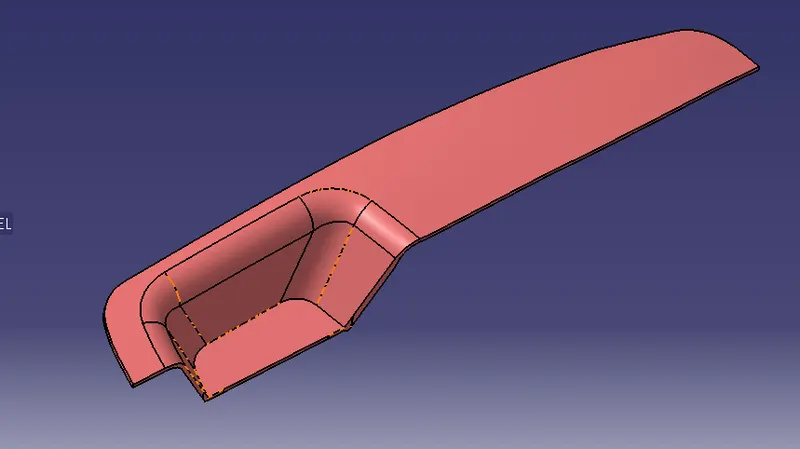

• After creating the Closed Surface, I checked for the closed surface.

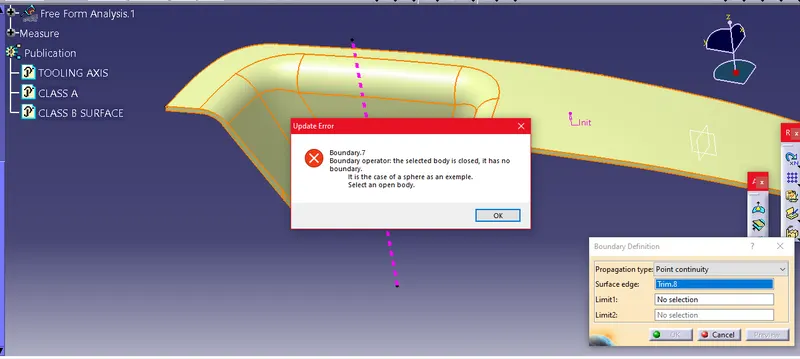

CLOSED SURFACE- CHECKED BOUNDARY CONDITIONS FOR CLOSED SURFACES.

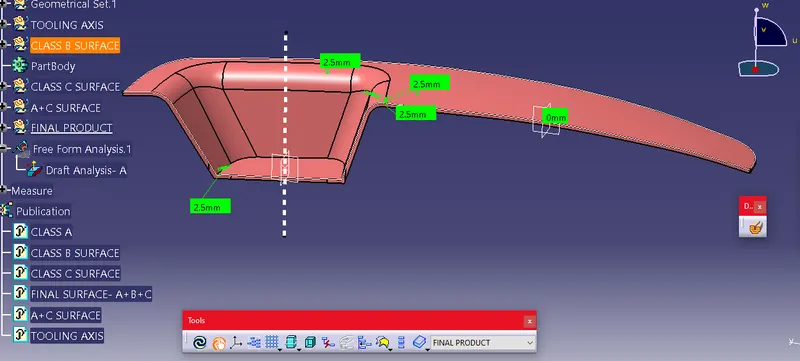

DRAFT ANALYSIS FOR FINAL PRODUCT SURFACE.

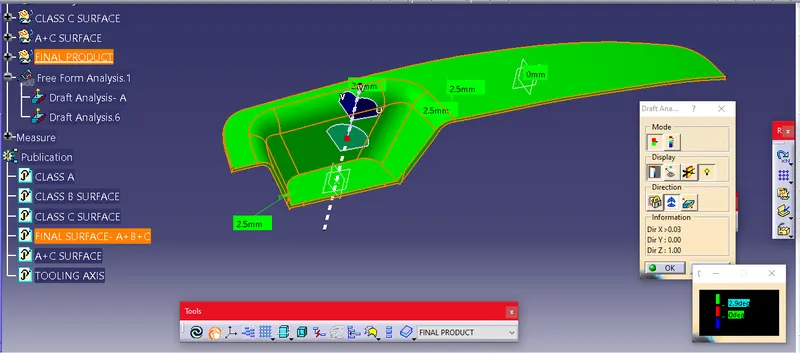

After creating the closed surface, I checked for the draft analysis by clicking insert-->Analysis-->Draft analysis.

And My Closed surface passed the draft analysis test.

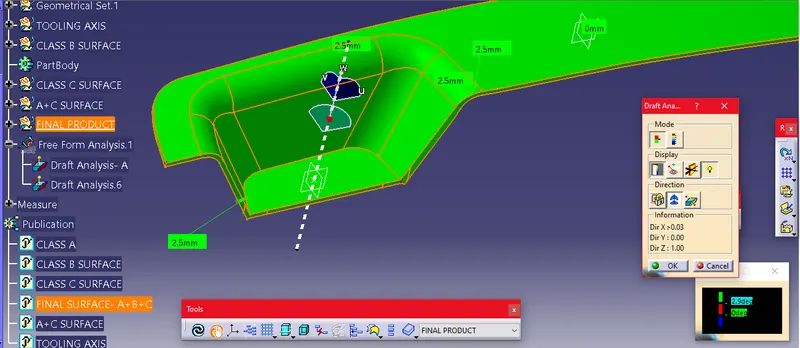

DRAFT ANALYSIS FOR CLOSED SURFACE

MEASUREMENTS

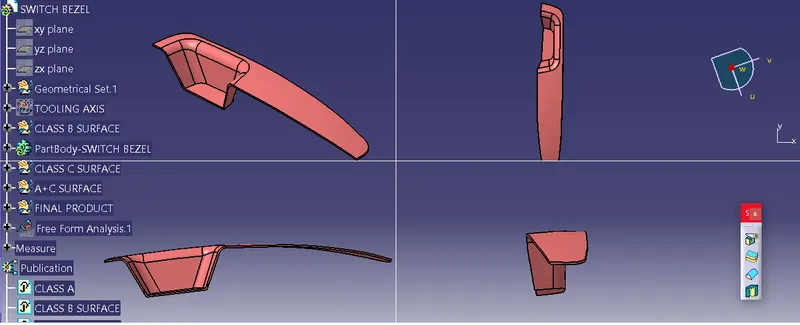

FRONT, TOP AND SIDE VIEWS.

ISOMETRIC VIEWS
