Week 8 - Challenge 1 - Base Bracket Design

CREATING TOOLING AXIS

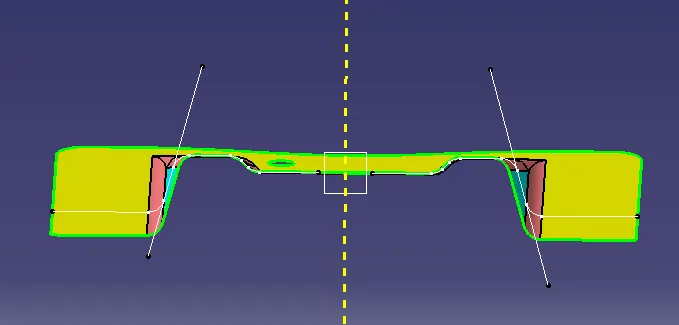

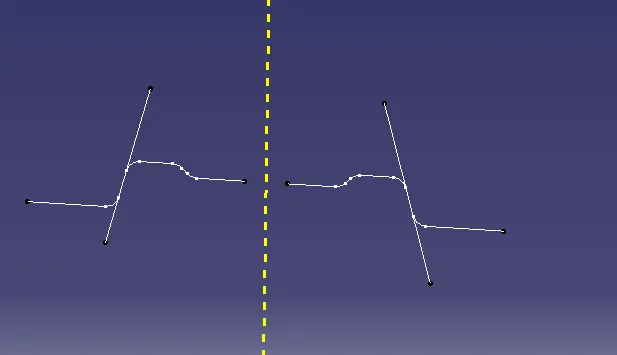

• First, we create a plane on the surface. Then draw two lines based on the projection of class A or using the intersection of the point’s method.
• Now Using the Bisecting method, select the two projected lines and get the Tooling axis.

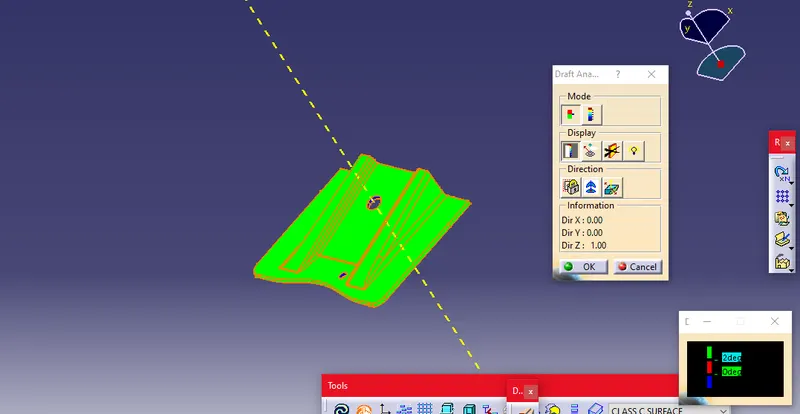

Draft analysis report for both the given Class-A surface.

• After creating the Tooling axis, Draft analysis is done on the Class- A and final Product.

CLASS A, B & C

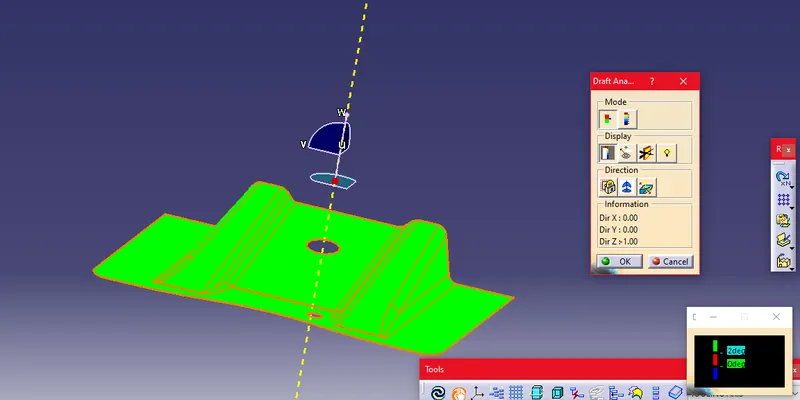

Draft analysis report for the final plastic component.

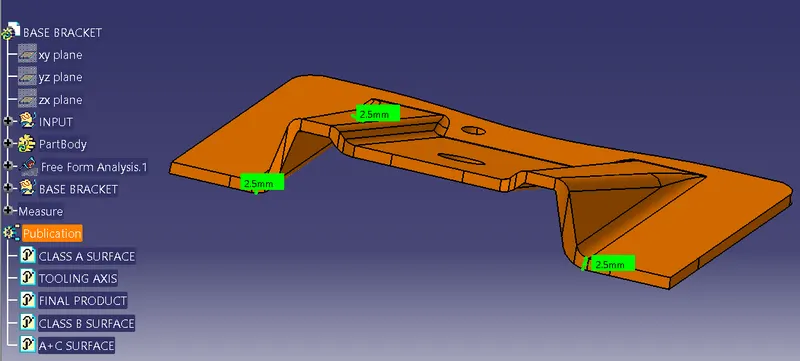

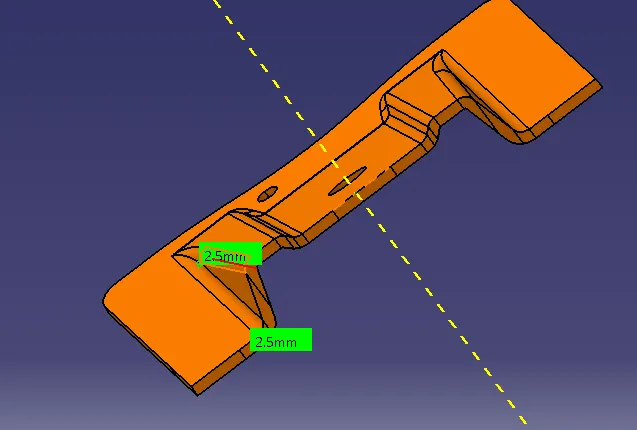

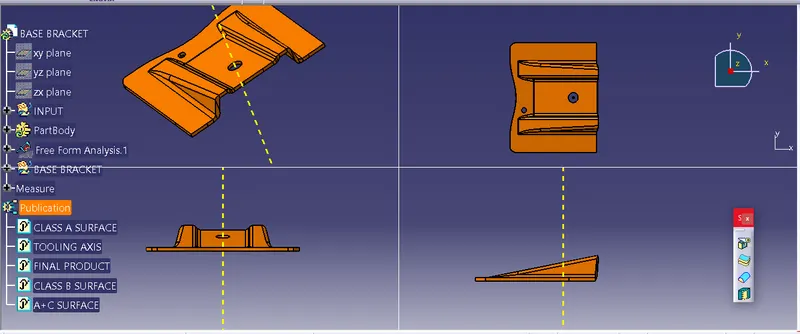

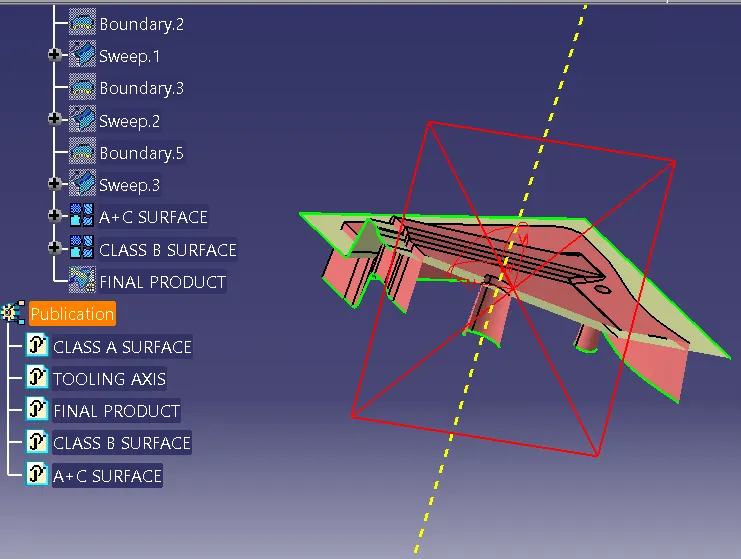

Screenshots of the solid model:
