Week 9 - Challenge 1 - Base Bracket Design

INPUT GIVEN :

CLASS A SURFACE (STYLING DATA) IS GIVEN.

NEED TO CREATE PLASTIC PART WITH GIVEN STYLING DATA.

USE CLOSED SURFACE COMMAND TO CREATE SOLID BODY.

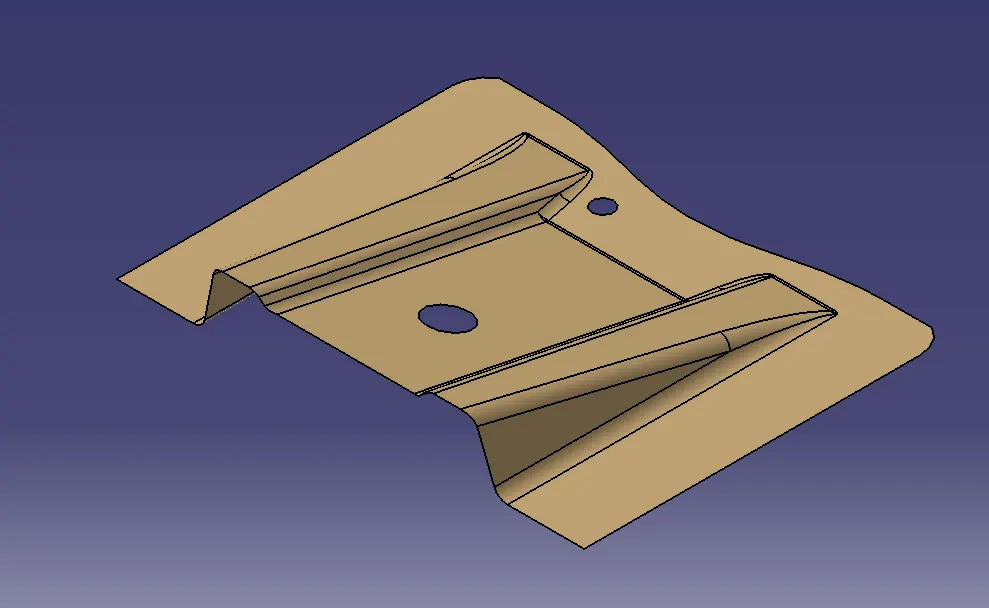

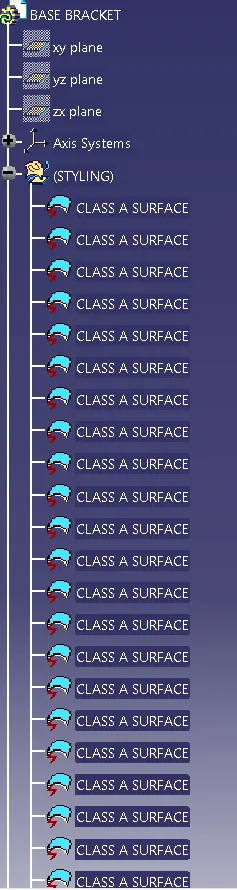

CLASS A SURFACE :

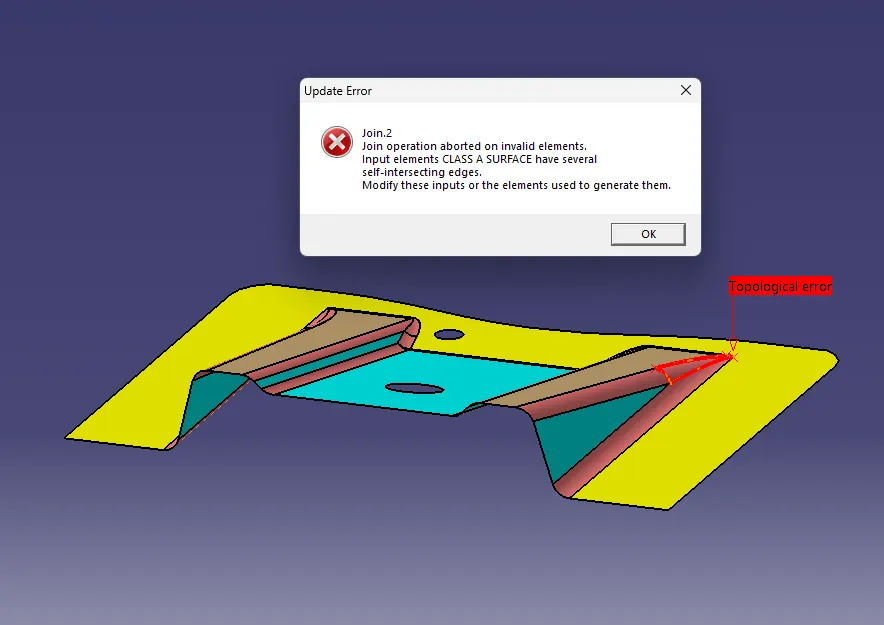

THERE WAS A SMALL ERROR IN SURFACES SO I USED THE TRIM COMMAND INSTEAD OF JOIN.

JOINED USING TRIM COMMAND

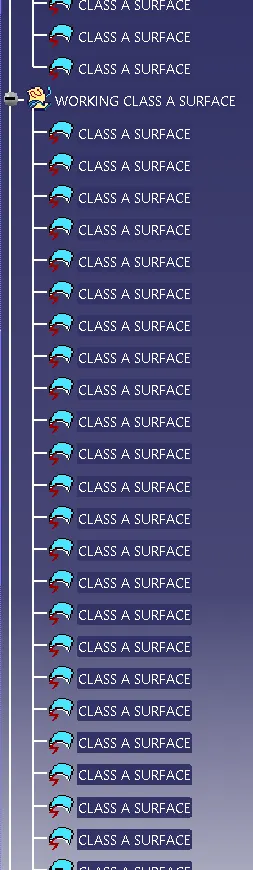

MADE A COPY OF THE GIVEN CLASS A AND WORKED ON THAT.

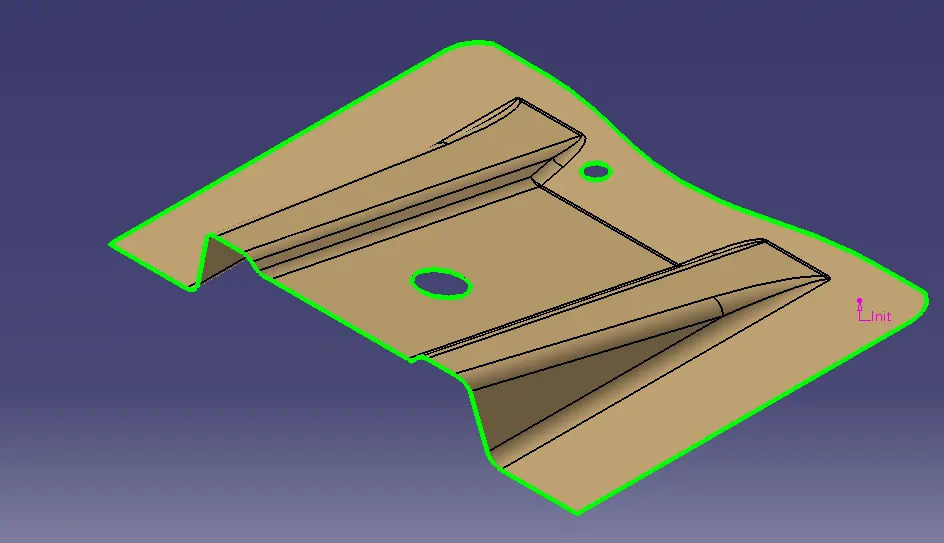

CHECKED NO GAPS WITH BOUNDARY COMMAND

VISUALLY INSPECTED THE PART AND ASSUMED THAT IN Z+ IS TOOLING.

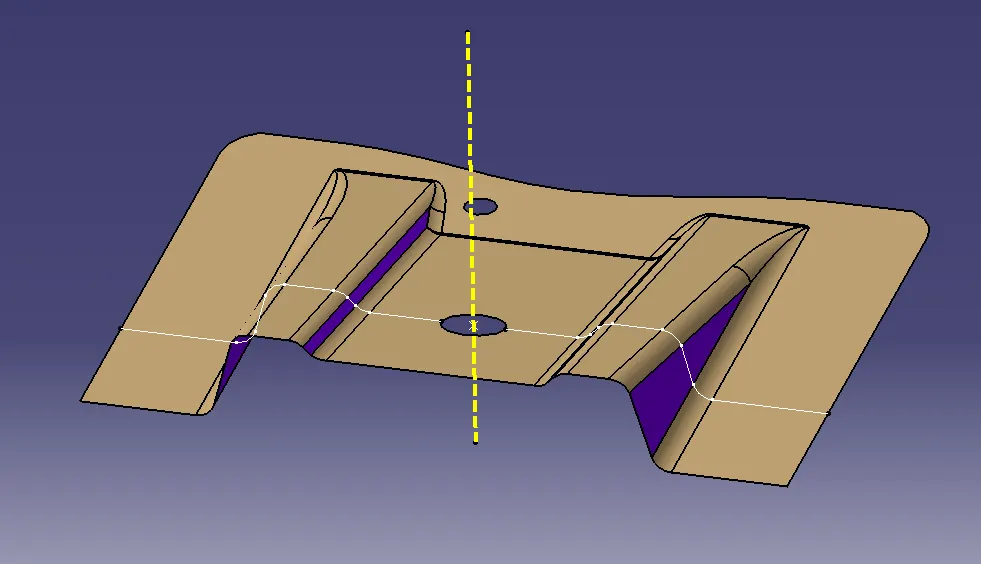

MARKED SURFACED PARALLEL TO THE TOOLING AXIS AND CHECKED FOR ITS DRAFT.

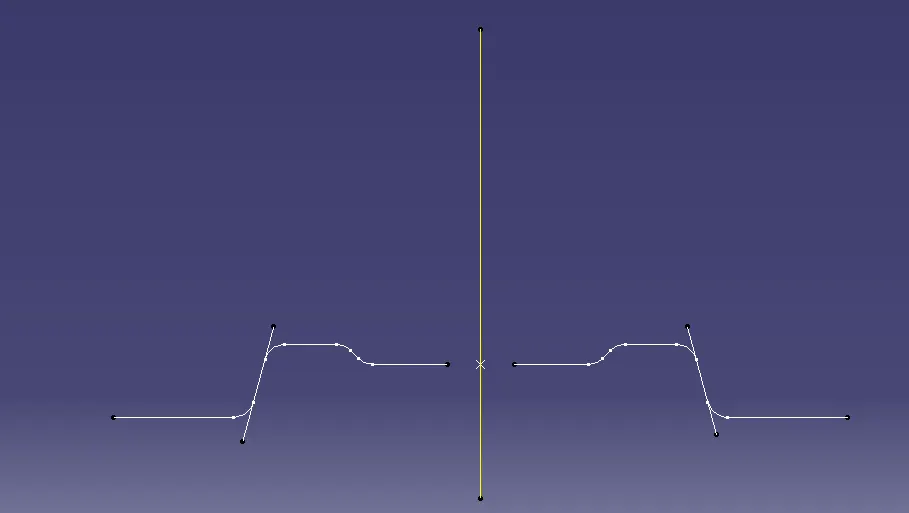

USING THE BISECTOR METHOD CHECKED FOR DRAFT ANGLE WHICH IS ALMOST PARALLEL TO TOOLING (ANGLE IS MORE THAN 3 DEGREES).

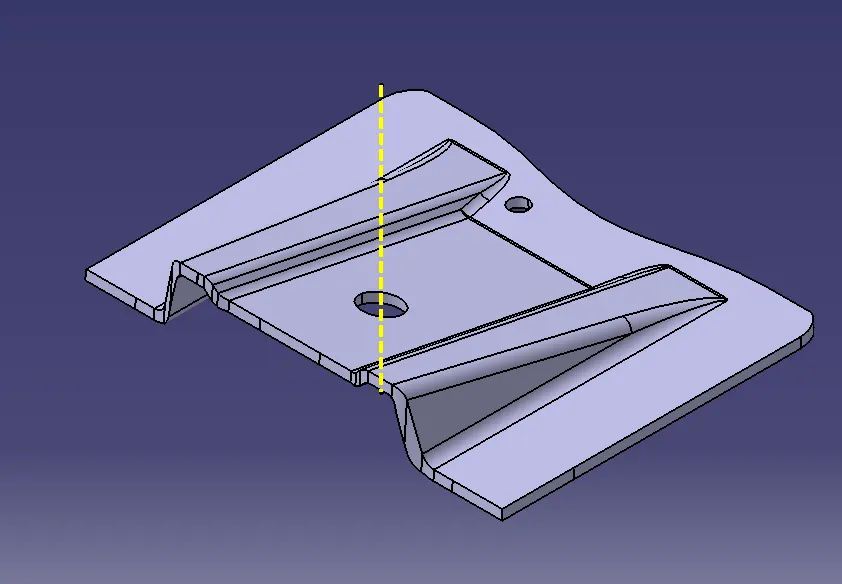

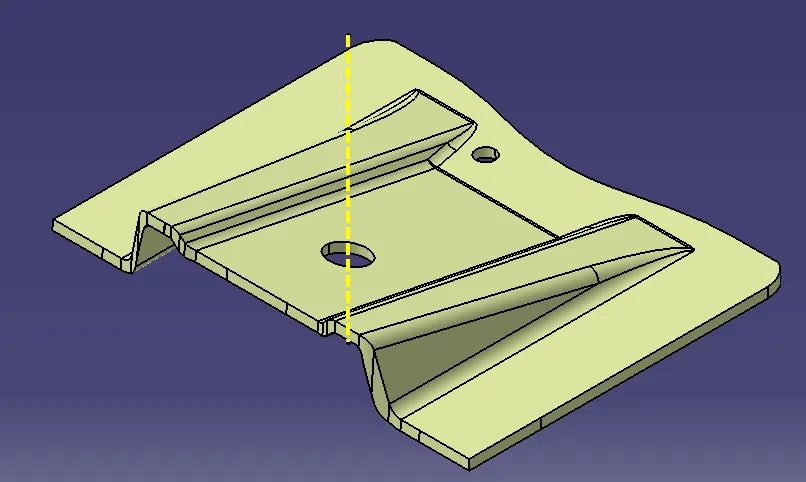

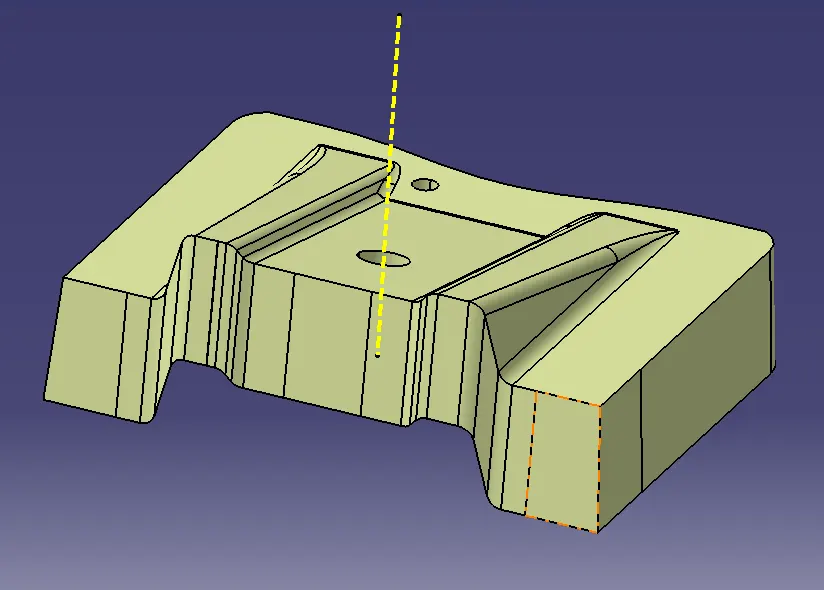

CREATING TOOLING AXIS

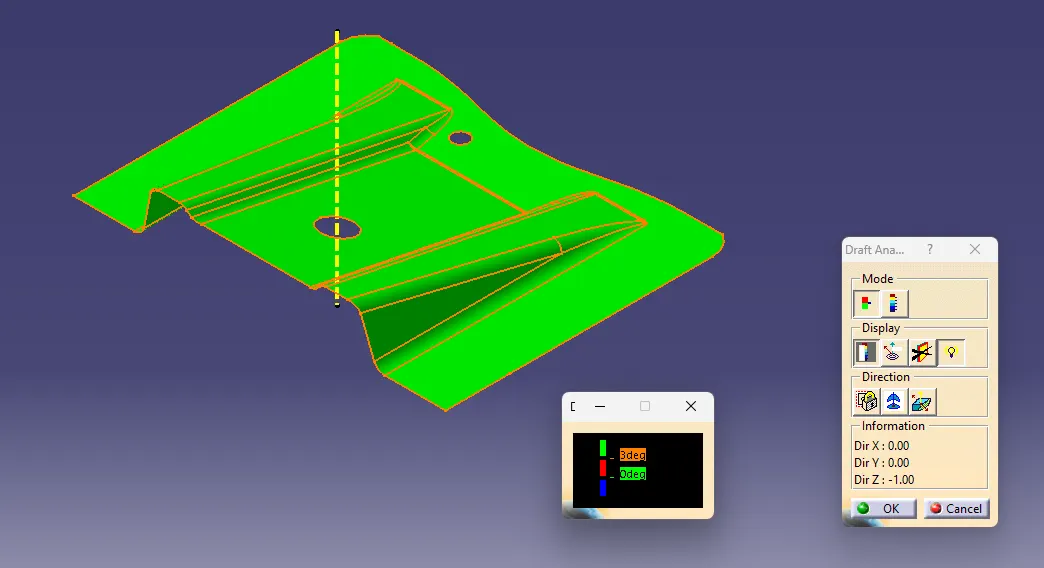

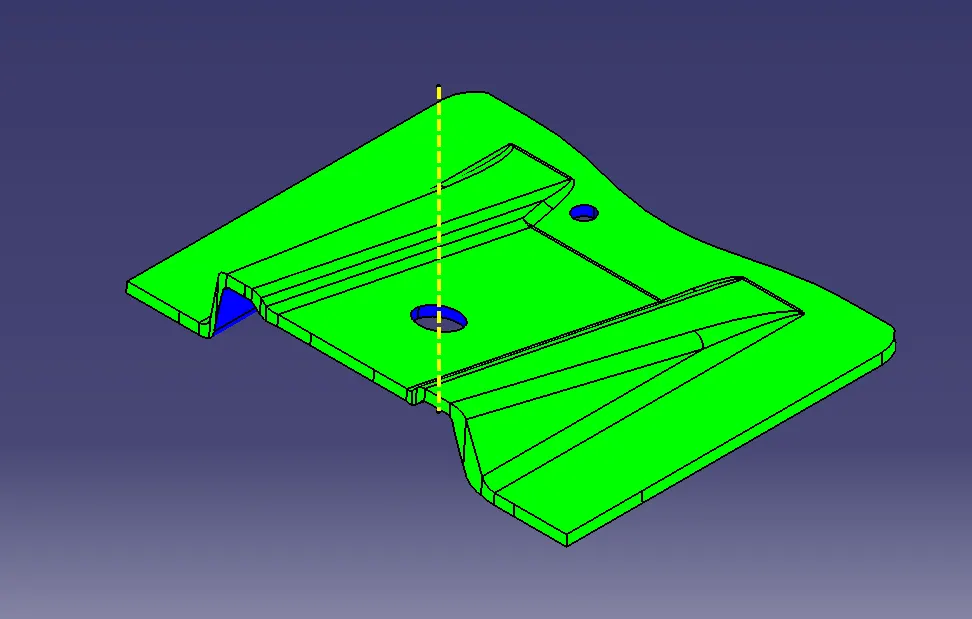

DRAFT ANALYSIS OF CLASS A SURFACE :

SHOWING ALL FACES IN GREEN

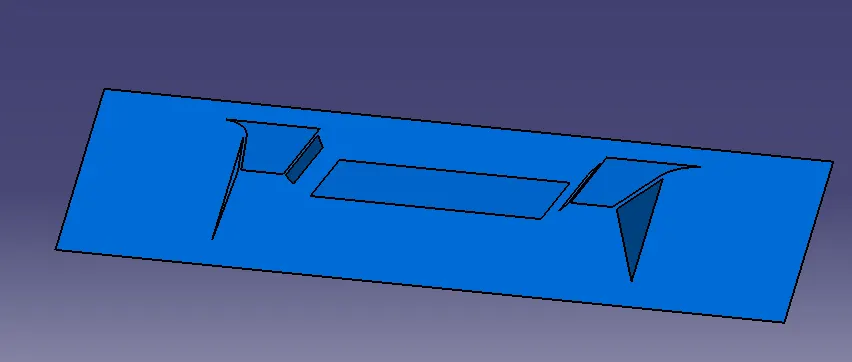

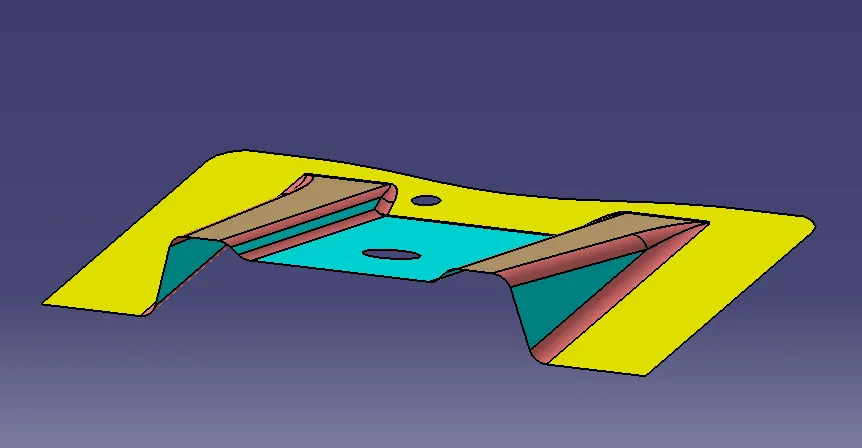

CLASS B SURFACE:

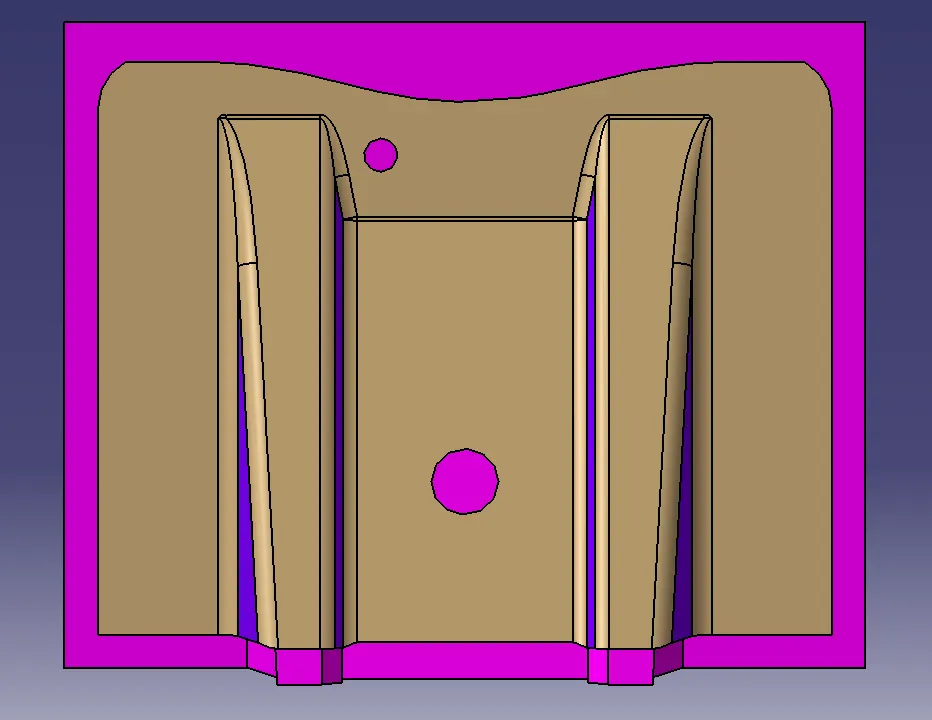

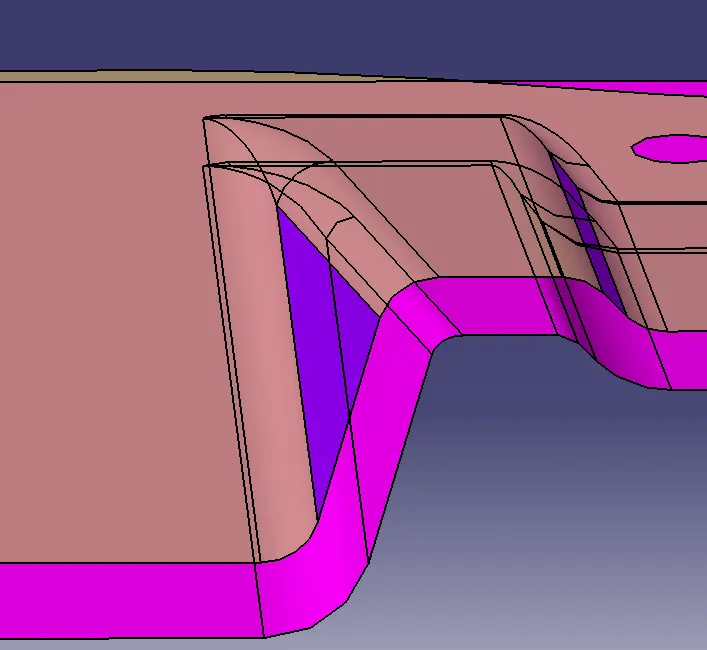

AFTER THIS STARTED TO CREATE B SURFACE BY OFFSETTING AND TRIMMING THE SURFACES (EXCEPT THE FILLETS)

EXTENDING THE SURFACE USING "UNTRIM" AND TRIMMED USING "TRIM"

ENSURING CLASS B IS LARGER THAN CLASS A.

TO AVOID ERRORS WHILE TRIMMING.

FILLETS ARE DONE BY ANALYSING IT WHETHER IT IS INSIDE OR OUTSIDE

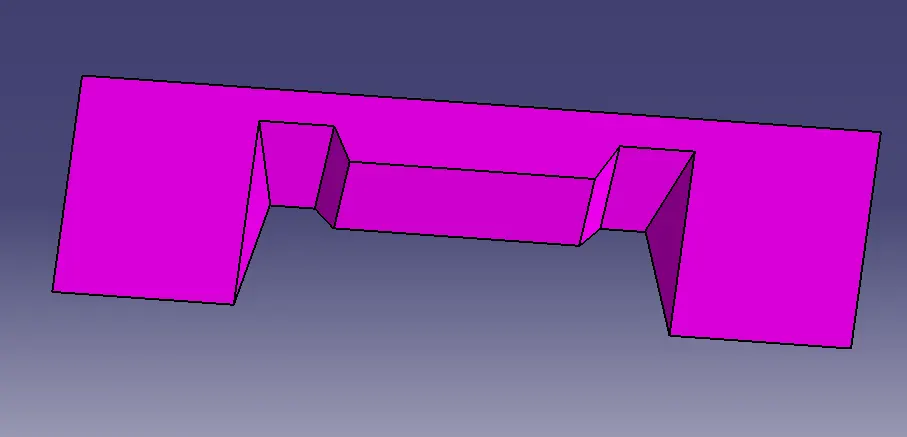

CLASS C SURFACE :

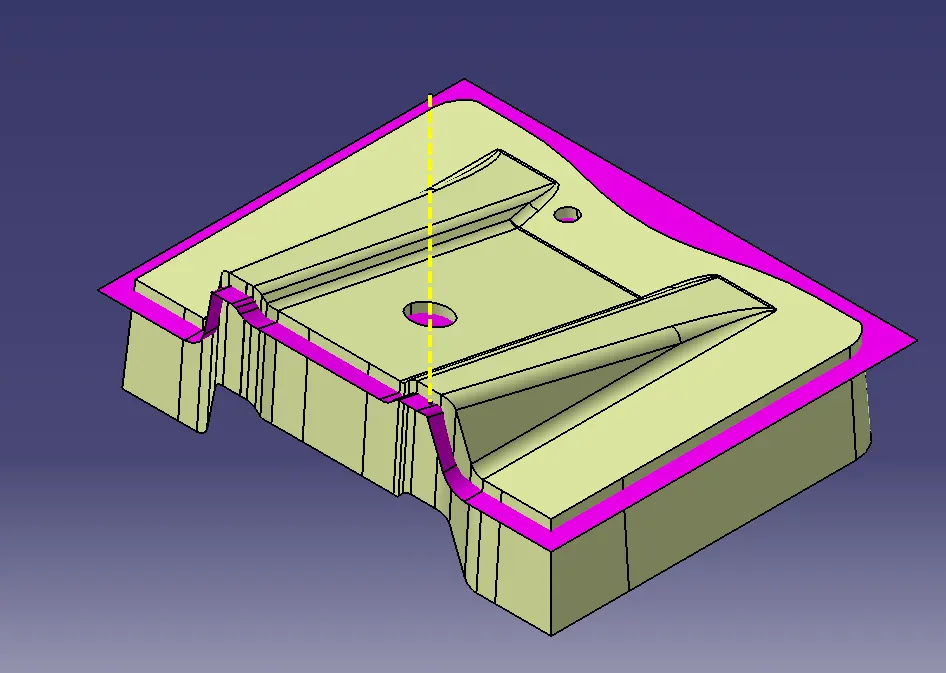

STARTED TO CREATE C SURFACE USING BOUNDARY OF CLASS A AND TOOLING AXIS.

USINIG SWEEP COMMAND CLASS C IS CREATED.

CLASS A AND C JOINED.

TRIMMED WITH CLASS B

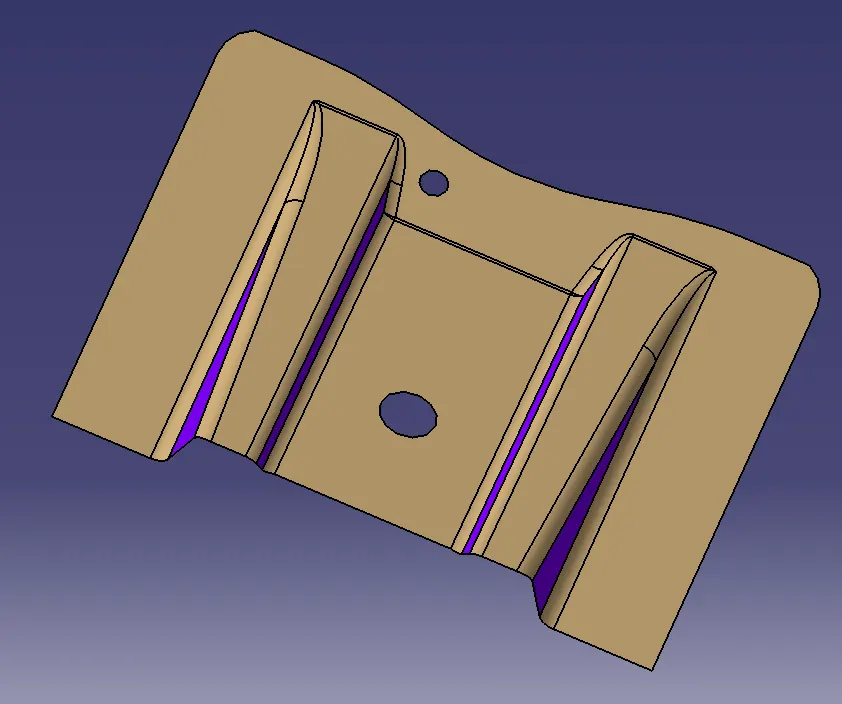

CLASS A+B+C

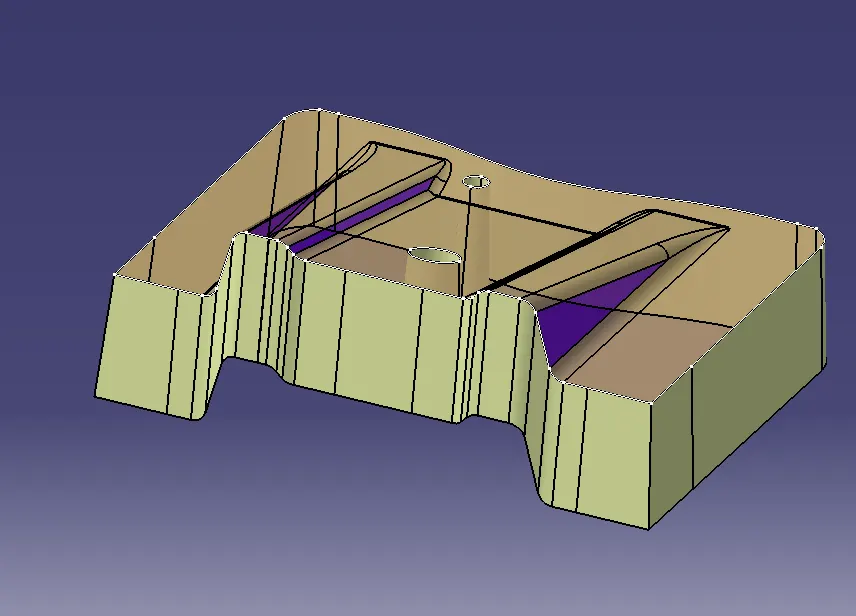

SOLID CREATED USING CLOSED SURFACE COMMAND.

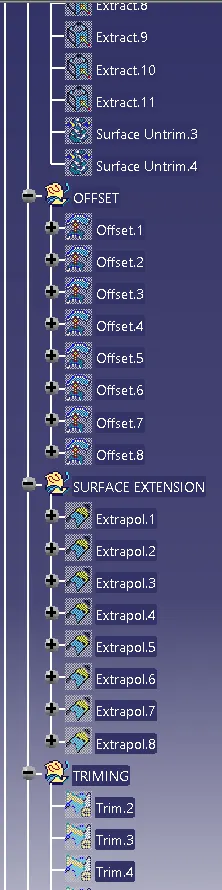

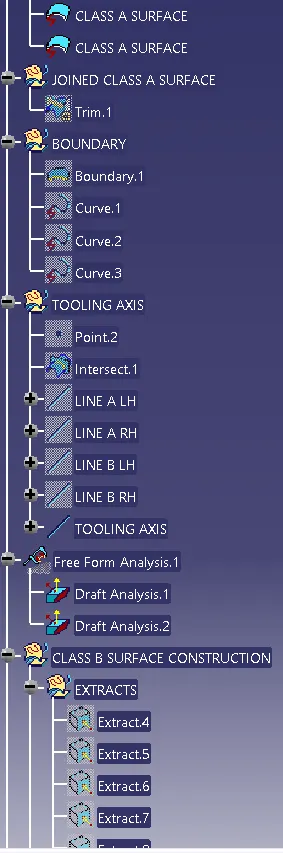

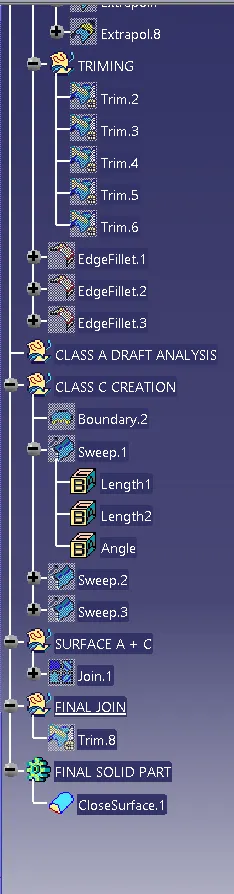

FEATURE TREE OF THE PART

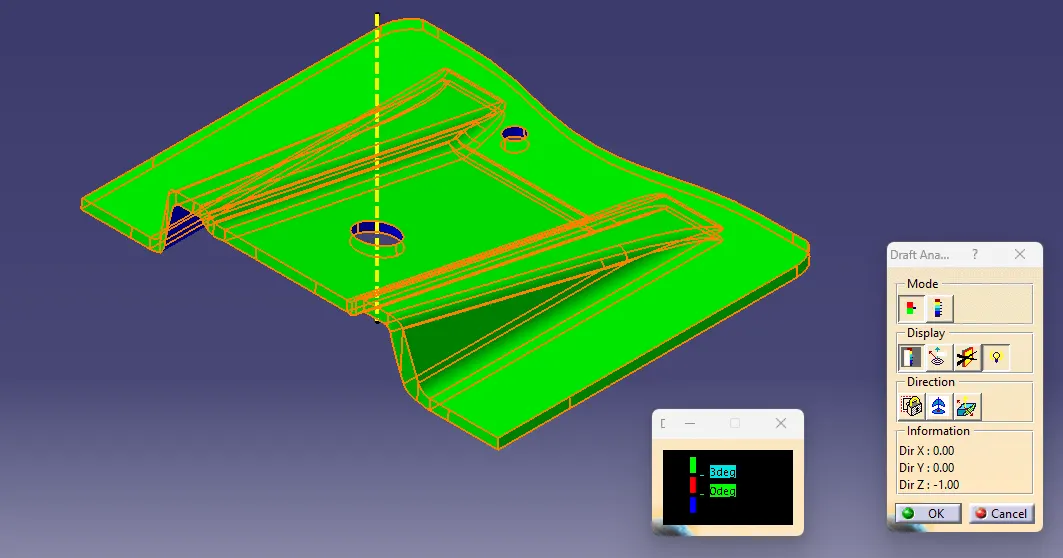

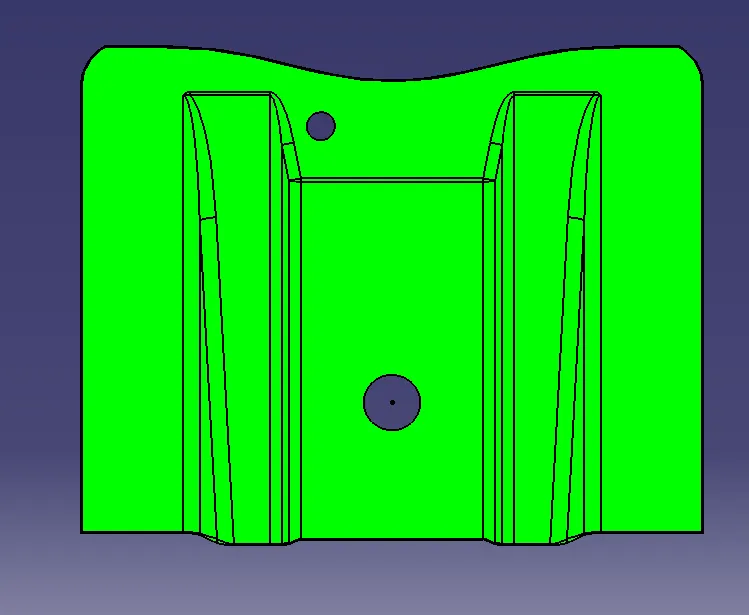

SOLID PART CLEARING DRAFT ANALYSIS 3 DEGREE :

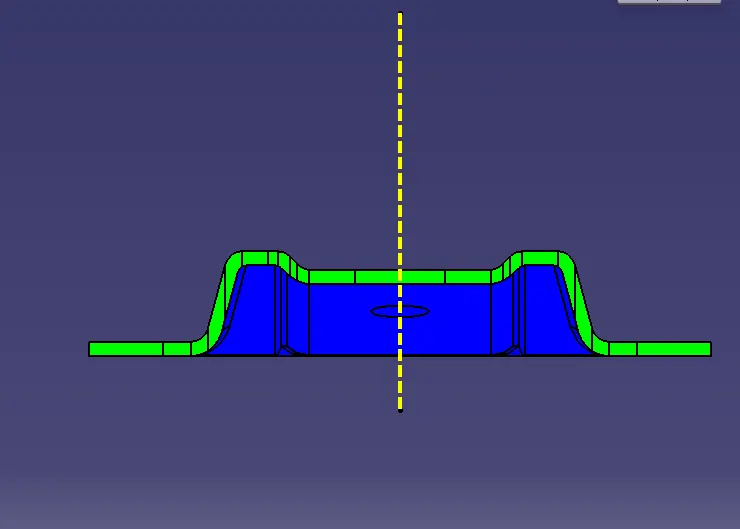

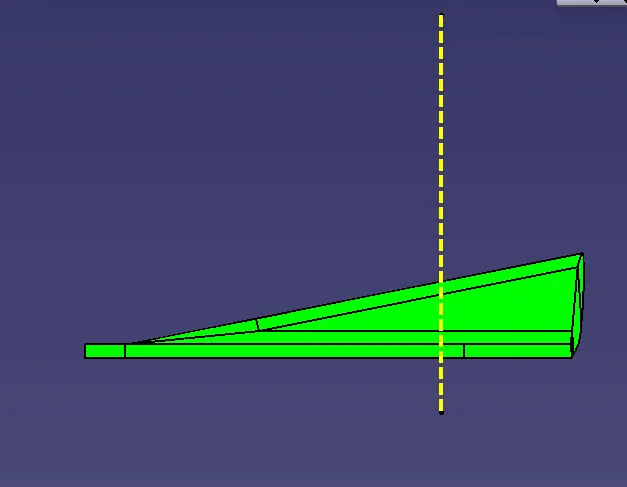

DRAFT ANALYSIS OF THE PART IN VARIOUS VIEWS

CONCLUSION :

GAINED KNOWLEDGE OF DEVELOPING A PLASTIC PART FROM "CLASS A" TO "SOLID PART" AND DOING DRAFT ANALYSIS FOR BOTH.
