Week 9 - Challenge 1 - Base Bracket Design

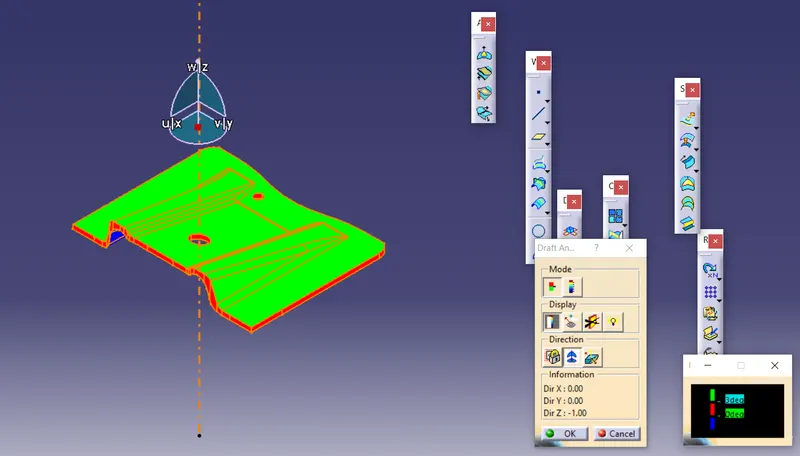

Draft analysis of class A

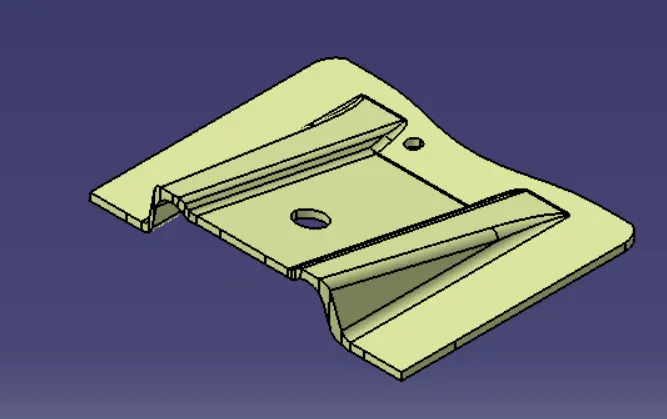

Draft analysis of final component

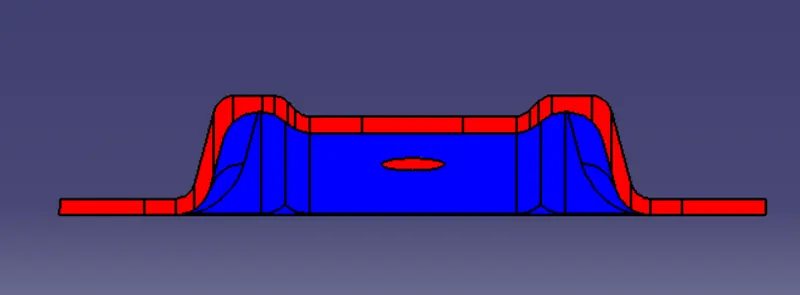

Draft anslysis
Draft analysis ensure the component can be manufacturable the standrad draft angle of the component is 0 to 3 degree.The component can be easily remove from core cavity without damage the draft analysis ensure the draft angle is given correctly to the component where is required.
Tooling axis
Tooling axis is given in which way the part is removed such as axis like x,y,z based on the component.Tooling axis ffor the given compinet is taken as z-axis
Tooling axis by using biscuting method

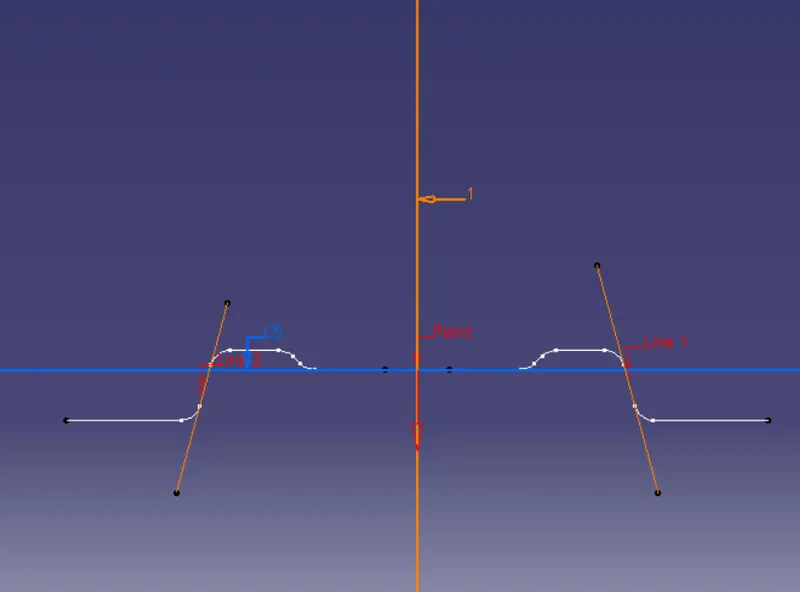

Creating the plane for the required axis.Creating the intersect with reference to the plane and creating line by using point to point in line command .
By using line command the line type of biscuting and select the lines created using point by using the intersect point .

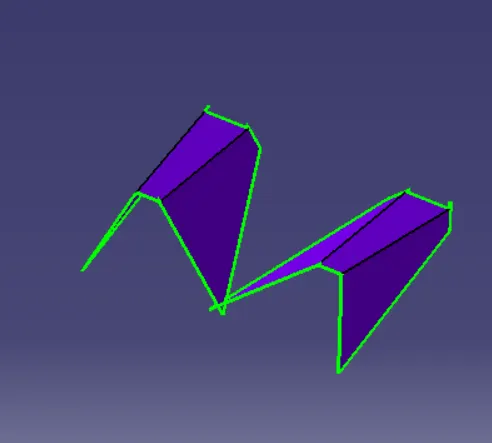

The lines should be selected the tooling axis will be created.

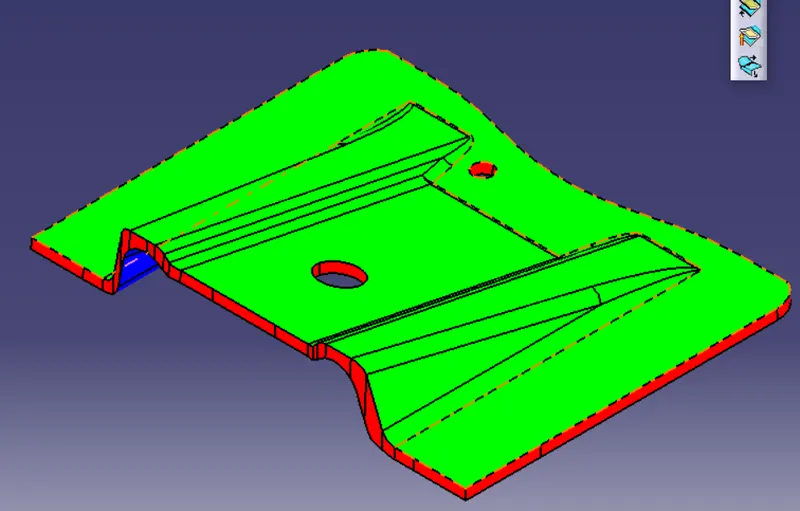

Draft analysis of final componet in different views
Front view

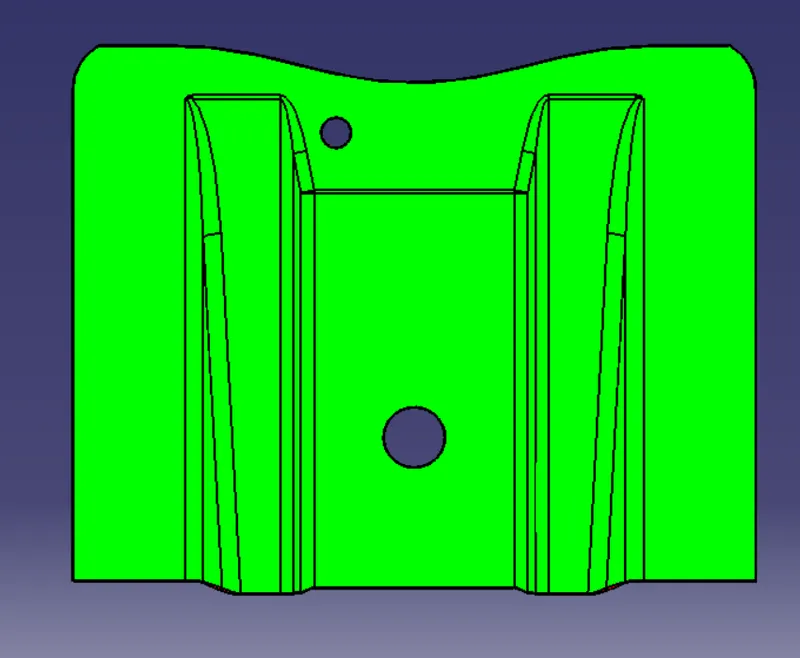

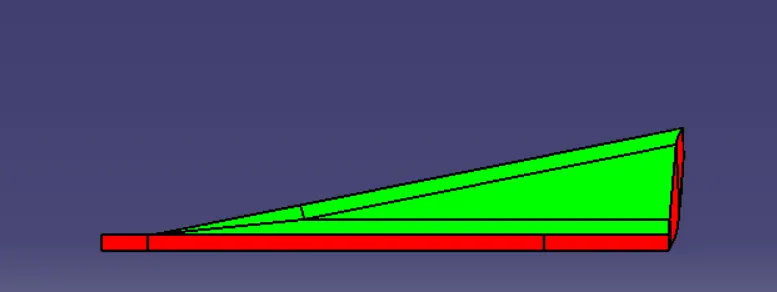

Top view
Side view
Isometric view

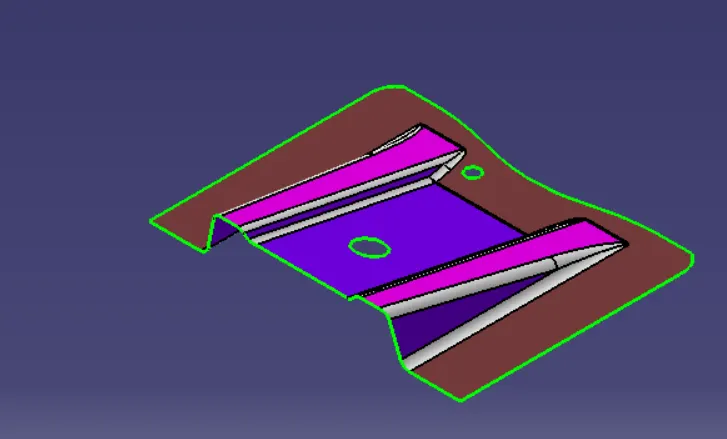

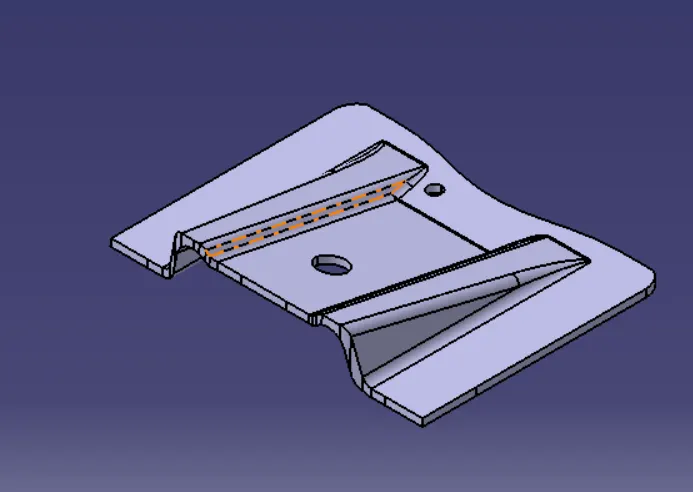

Rib 1 and rib 2
Class b surface

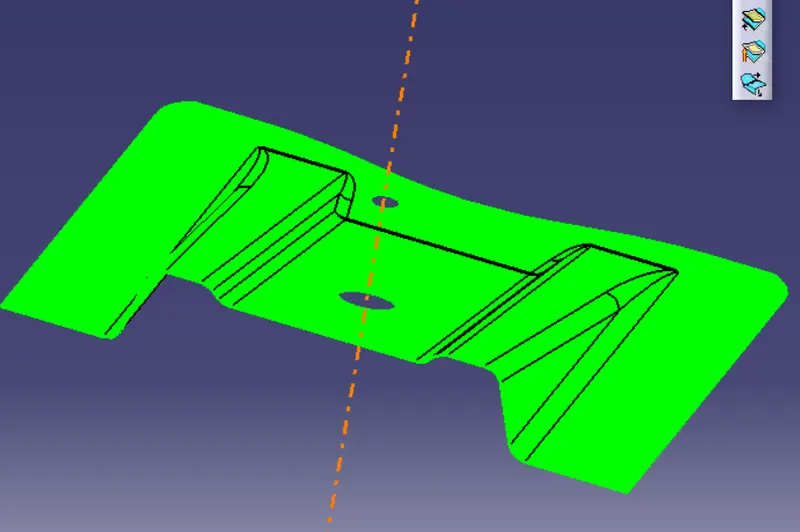

Final componet in suraface
Final component in solid model

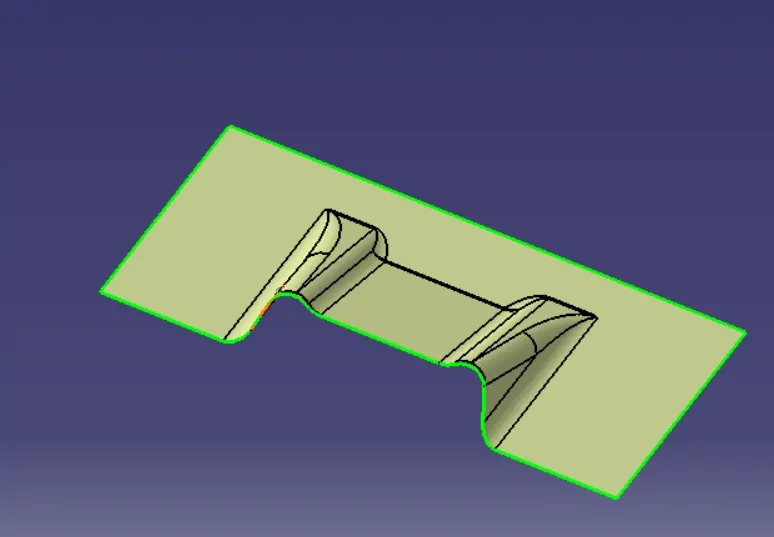

class a surface
