Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

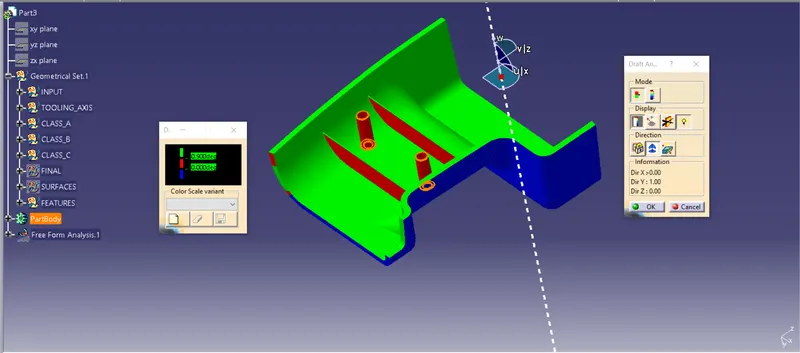

The ribs and screw boss features have a draft of 0.5deg, So the faces of the rib and screwboss are highlighted in red.

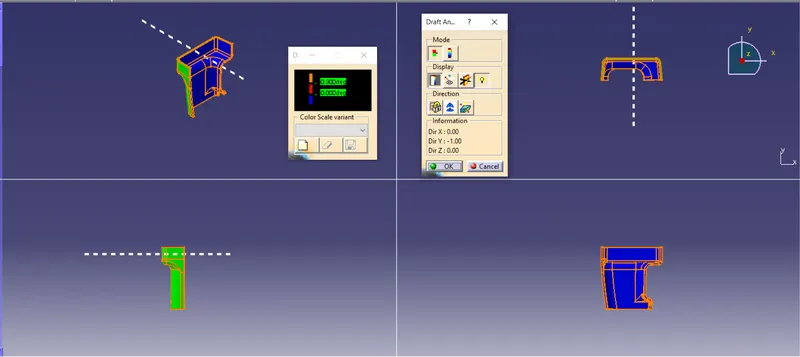

Class C faces highlighted in blue are due to the draft with reference to the vertical faces in the part and not in reference to the tooling axis.
