Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AIM :-

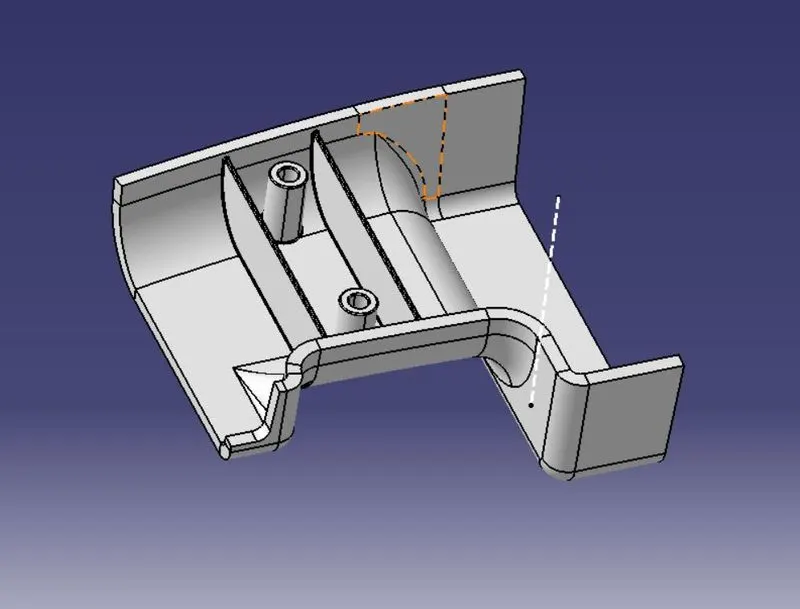

Create the rib for the Drill Handle

CONSIDERATION :-

OFFSET 3MM

Guidelines for Bosses:

• Draft - 0.5 degrees on the walls of boss
• Thickness - Typically 40%* of the nominal wall at the base.
• Height to Diameter Ratio - 3:1
• Radii - 0.25mm maximum radii.


  DESCRIPTION:

  Class A surface: Class-A surfaces is a term used in most in automotive design to describe a set of freedom surfaces of high efficiency and quality.

  Class B surface: Class B surfaces are the secondary surfaces that you can we see sometimes but are less important.

  Class C surface: Class C surface are the surfaces which connects the class A and Class B surfaces.

  Draft analysis: Draft analysis is performed on components where the ejection of materials happen after the material is made inside the tools.

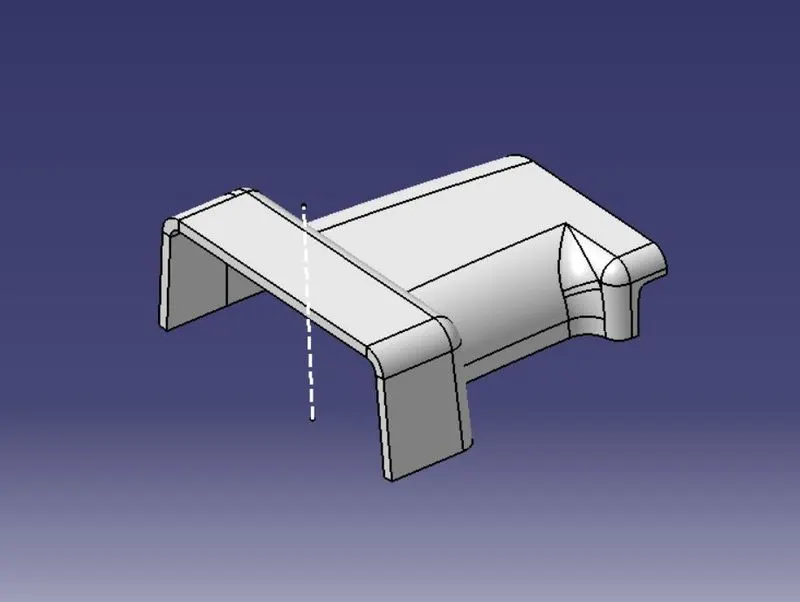

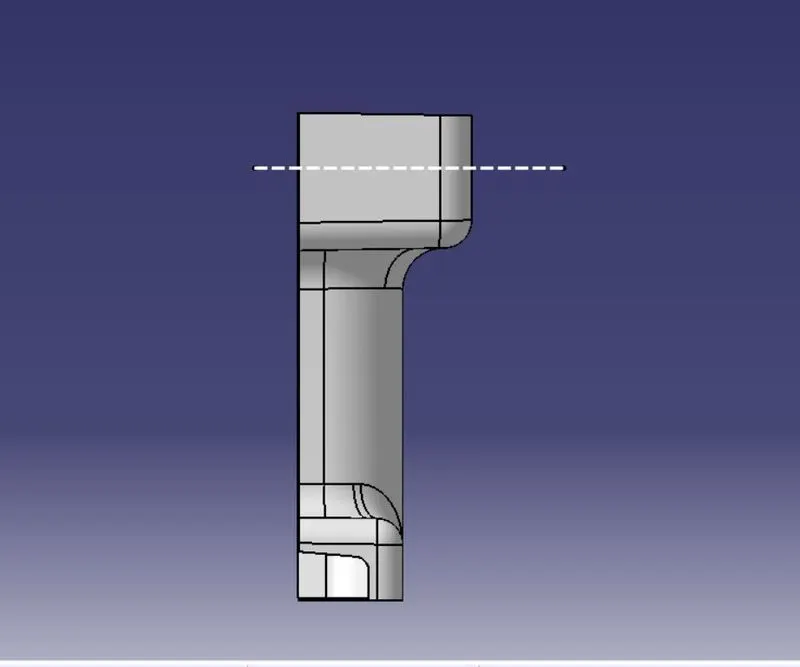

  TOOLING AXIS CREATION: Generally tooling axis is created using bisecting line method. But in the components where it has a bin, then the tooling axis is considered as a line normal to the base surface of bin. Same is done with this component. A line normal to base surface is created and considered as tooling axis

  Draft analysis of Class A: Draft analysis is performed on Class A to check the validity of the tooling axis. During draft analysis, it was observed that bin walls are having 90 degree angle with base. There is no minimum draft given to the walls. Since we are not authorised to make changes in Class A surface, we can inform Class A designer to give minimum draft to walls

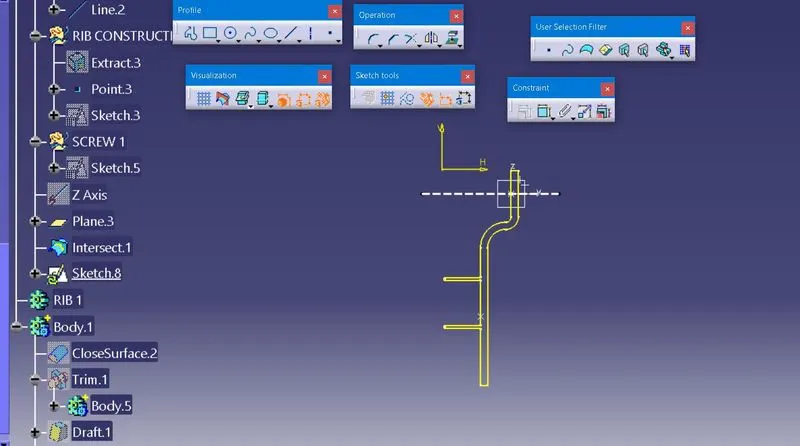

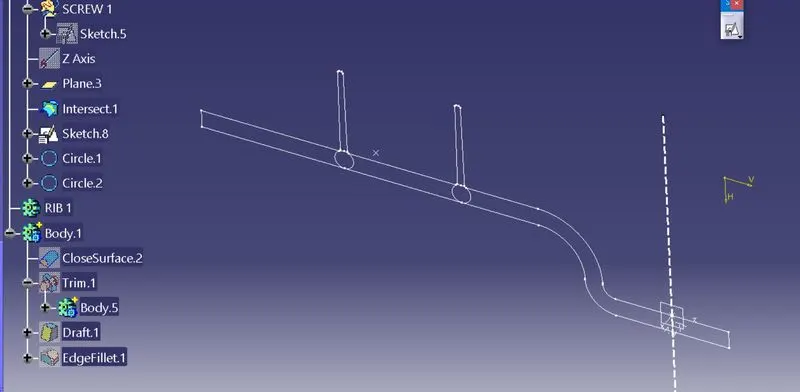

RIB ROOT ANALYSIS

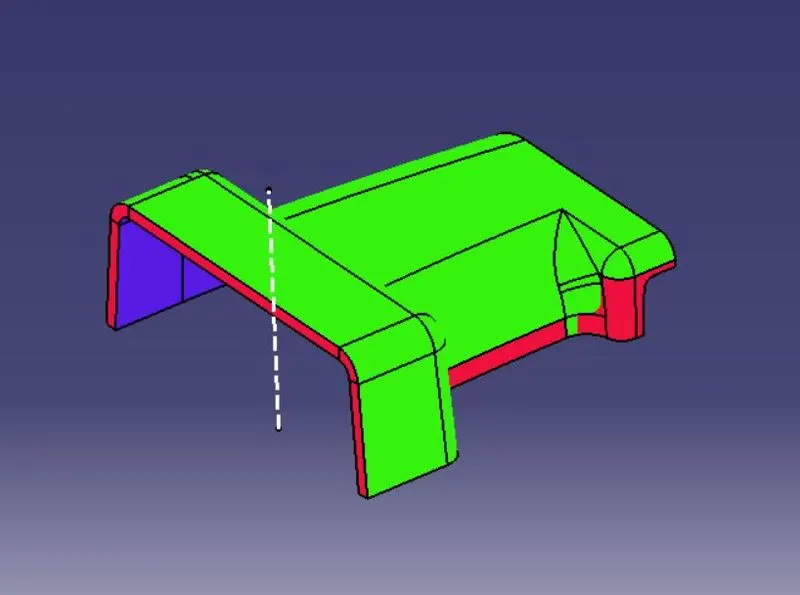

CLASS A DRAFT ANALYSIS

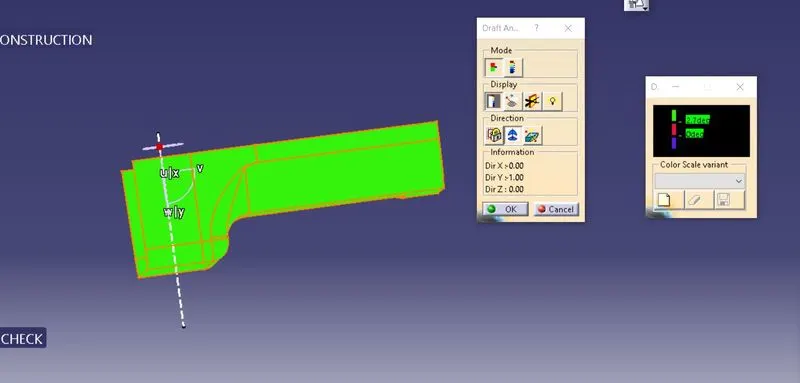

DRAFT ANALYSIS
