Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1
REPORT REGARDING CREATION OF B SIDE FEATURES OF DOOR HANDLE
TOOLING AXIS CREATION
- CREATED A TOOLING ASXIS BY USING NORMAL TO SURFACE METHOD BY EXTRACTING ONE FLAT SURFACE
- PERFORMED DRAFT ANALYSIS ON IT FOUND FEW SURFACE ARE NOR GETTING CLEAR DUE TO FLAT SURFACES WITH NO DRAFT ANGLE ON THE CLASS A SURFACE

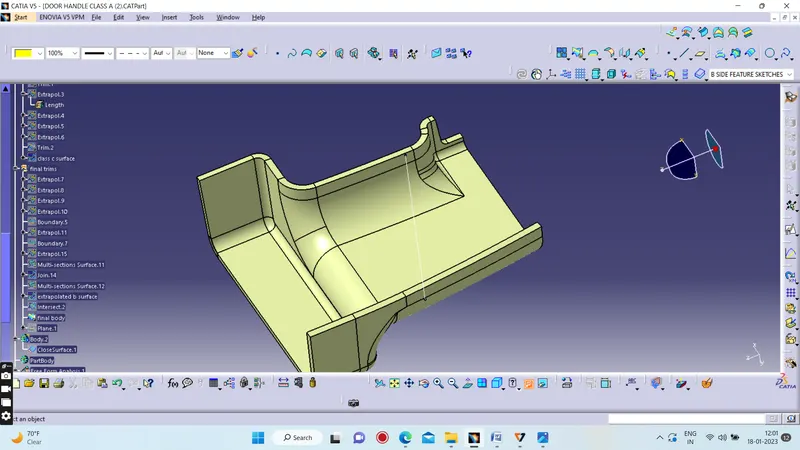

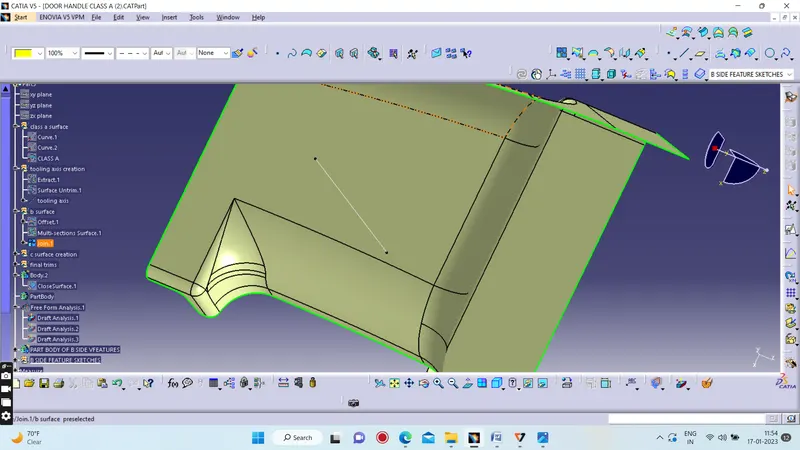

B SURFACE CREATION
- CREATED B SURFACE BY USING OFFSET METHOD AND FOUND ONLY ONE SURFACE IS MISSING SO FILLED THE AREA USING MULTI SECTION SURFACE COMMAND BY GIVING PROPER SUPPORT AND SURFACE FINISH

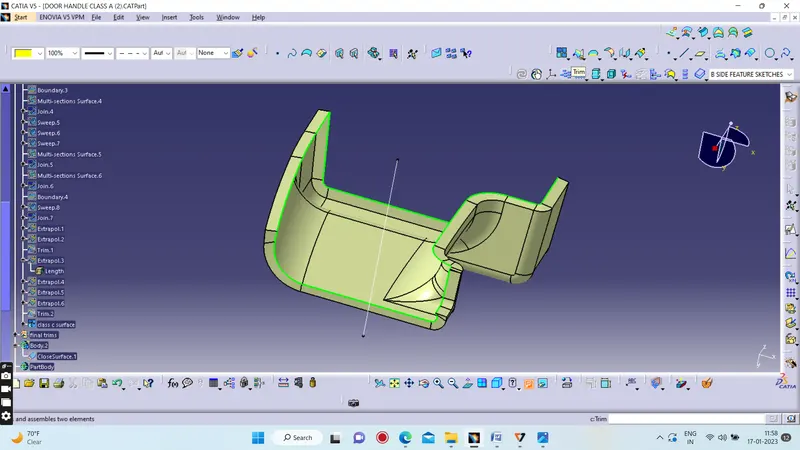

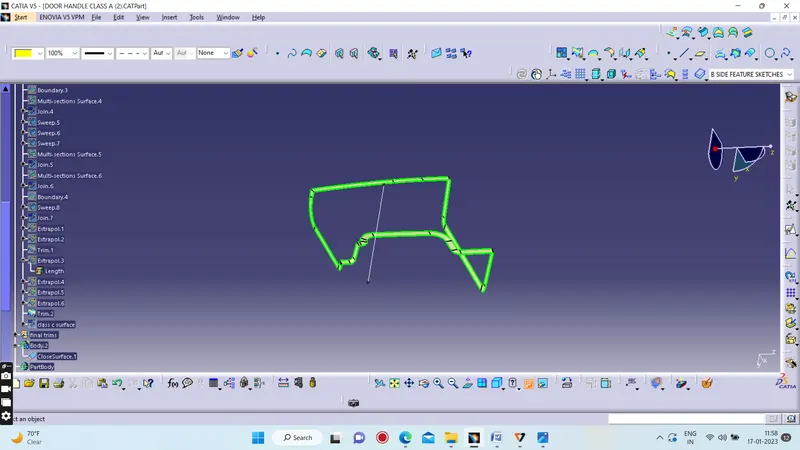

CLASS C SURFACE CREATION
- BY TAKING INPUTS FROM THE CLASS A SURFACE CREATED C SURFACE BY USING SWEEP COMMAND IN WHICH I USED WITH DRAFT DIRECTION AND WITH REFEREANCE SURFACE METHOD BY GIVING DIRECTION OUTSIDE WITH 3 DEGREES AND 93 DEGEREE ANGLE

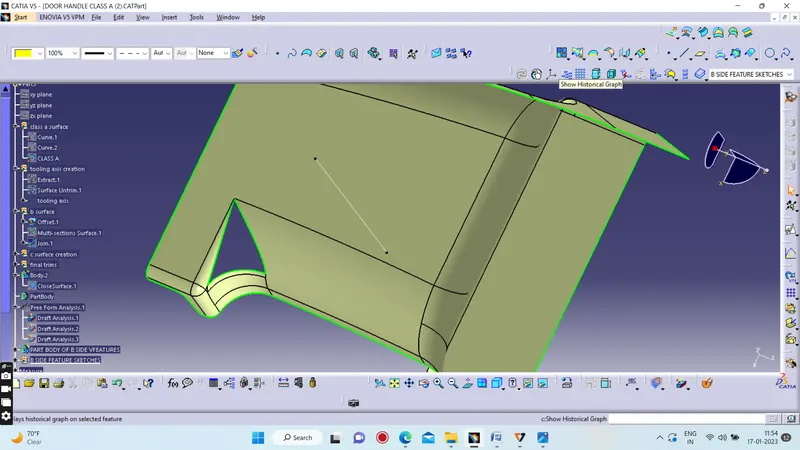

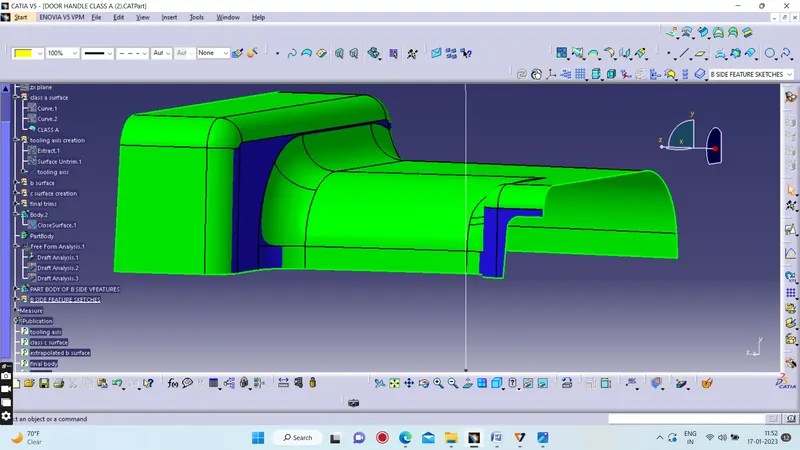

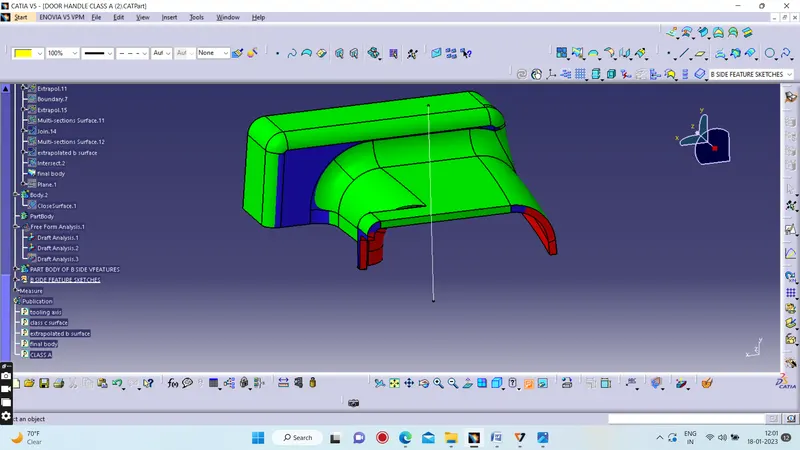

FINAL DRAFT ANALYSIS - PERFORMED DRAFT ANLYSIS ON THE SURFACES CREATED USING TRIM COMMAND OF BOTH EXTRAPOLATED B SURFACE AND JOIN OF CLASS A B SURFACE
- SOME SURFACE NOT GETTING CLEARED DUE TO IMPROPER CREATION OF THE CLASS A SURFACE WITH LESSER DRAFT IN SOME AREAS NEED SOME ALTERNATIONS ON THE CLASS A SURFACE

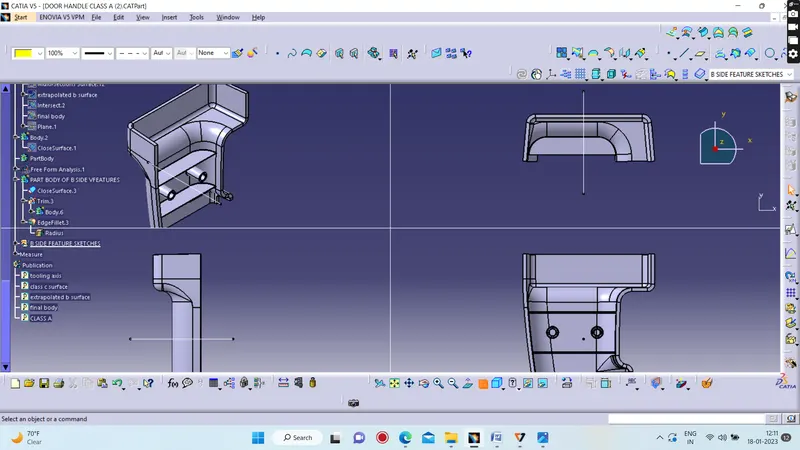

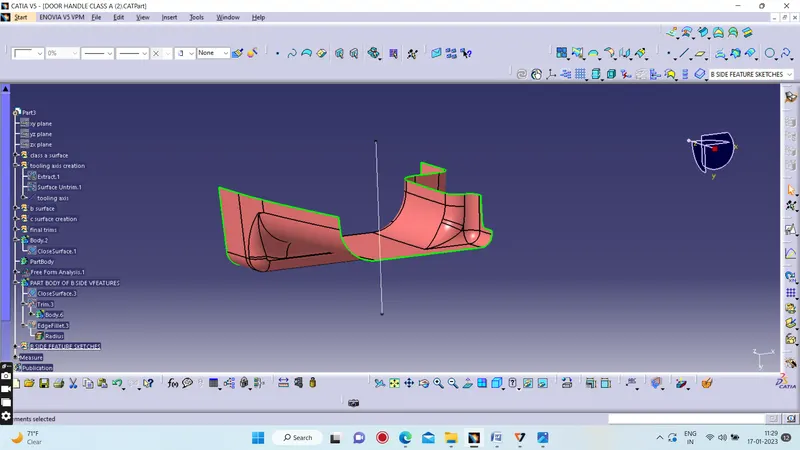

B SIDE FEATURES CREATION

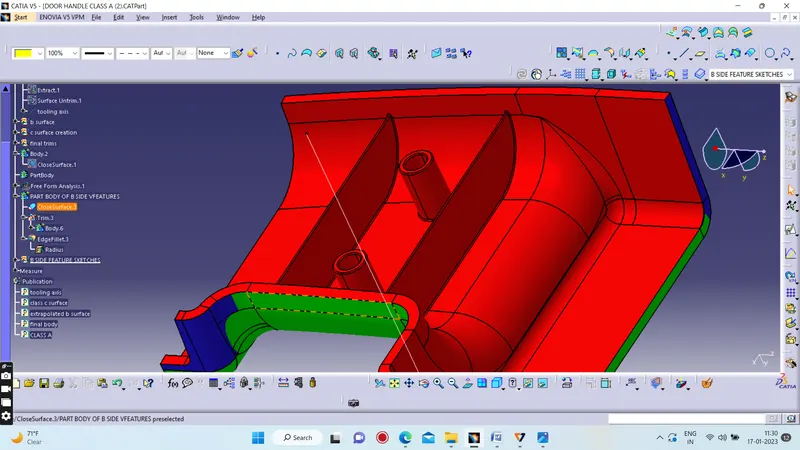

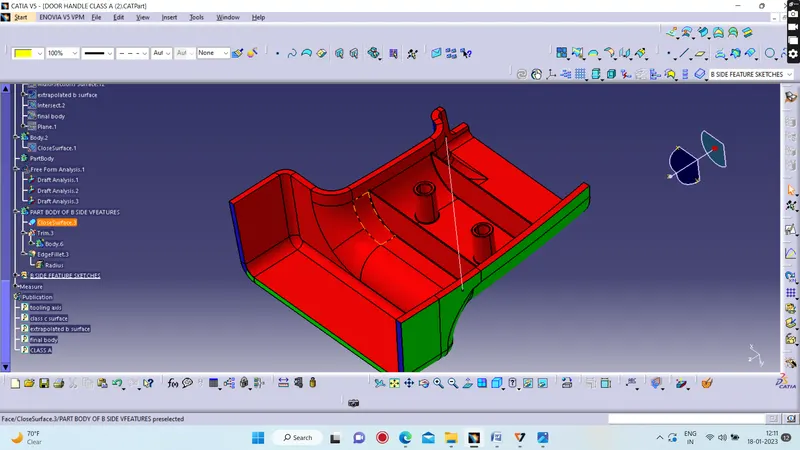

- AS PER THE INPUT GIVEN CREATED A PLANE NORMAL TO THE CURVE AND CREATED 2 RIBS WITH PROPER THICKNESS AND 0.5 DRAFT AND RADIUS OF 0.25

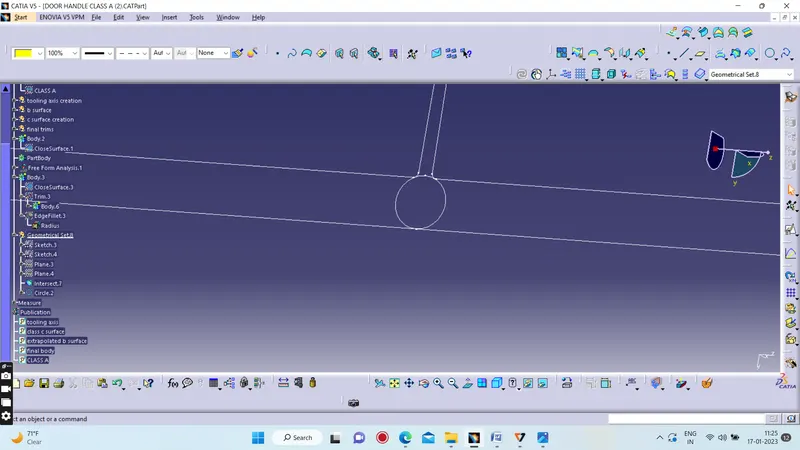

- CJECKED THE RIB ROOT THICKNESS IT IS ALSO OF RADIUS 1.314 (IE) 2.628 DIA WICH IS SATISFACTORY

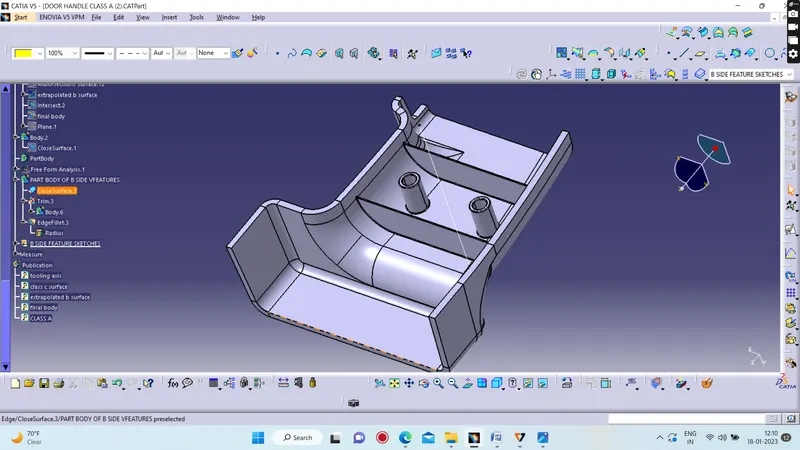

- CREATED 2 SCREW BOSES WITH PROPER DIAMETER AND WITH PROPER DRAFT OF 0.5 BOTH SIDES INNER AND OUTER AND RADIUS OF 0.2

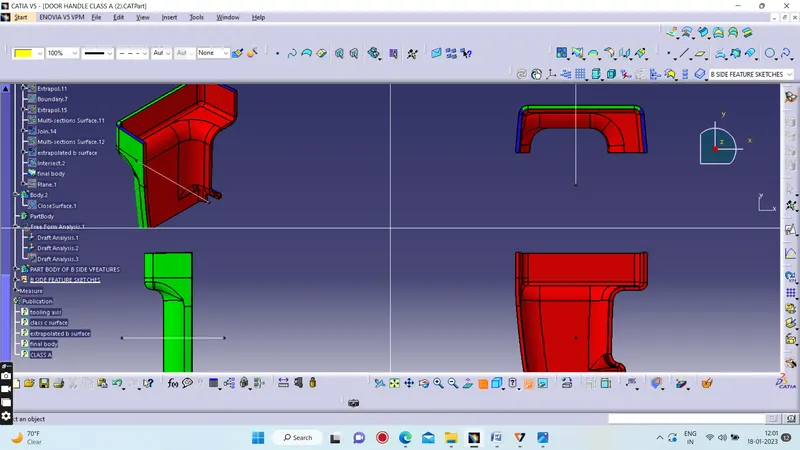

- DRAFT ANALYSIS IS DONE ALL THE B SIDE FEATURES ARE GETTING CLEARED WITH THE CLASS B SURFACE ALONG CORE SIDE
