Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Draft Analysis on Class A

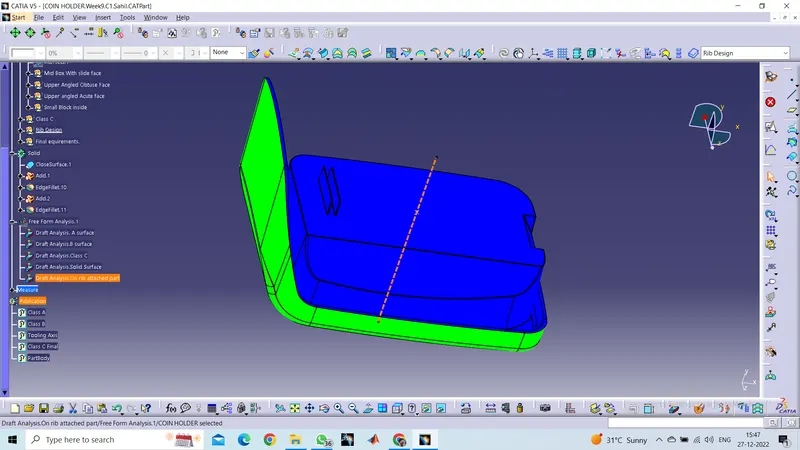

DA on Final solid Part

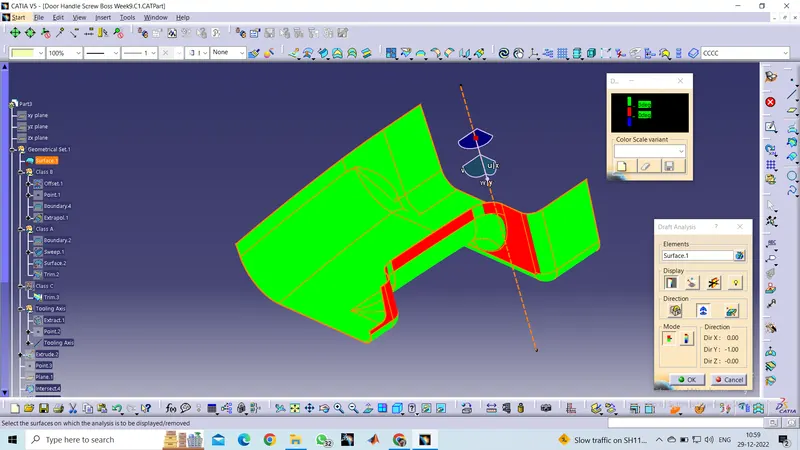

Draft Analysis on Class A clearified there is some error in class A itself.

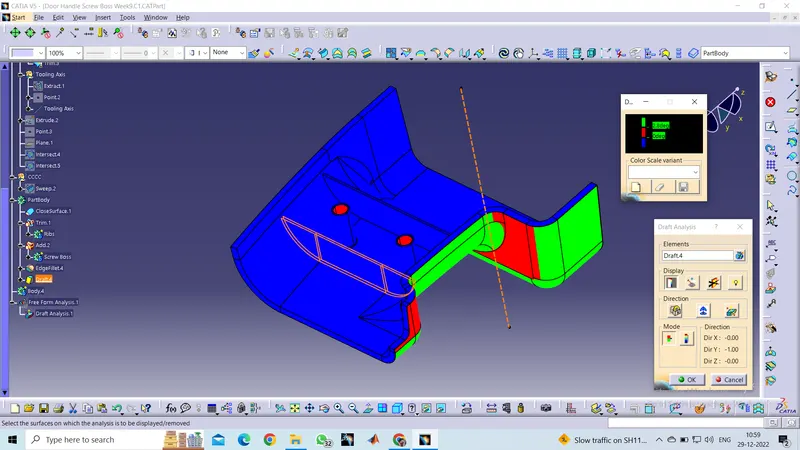

However when performed on Solid part we found the error was seen on sweep surfacein very few areas. When angle was reduced to 2.5-2.8 the error got eliminated. Draft angle was given 93degrees outwards.

Tooling Axis here was created using angle that gave the view of all sides with all posible surface visible.

PLease mention if anything left out, ill get back.
