Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

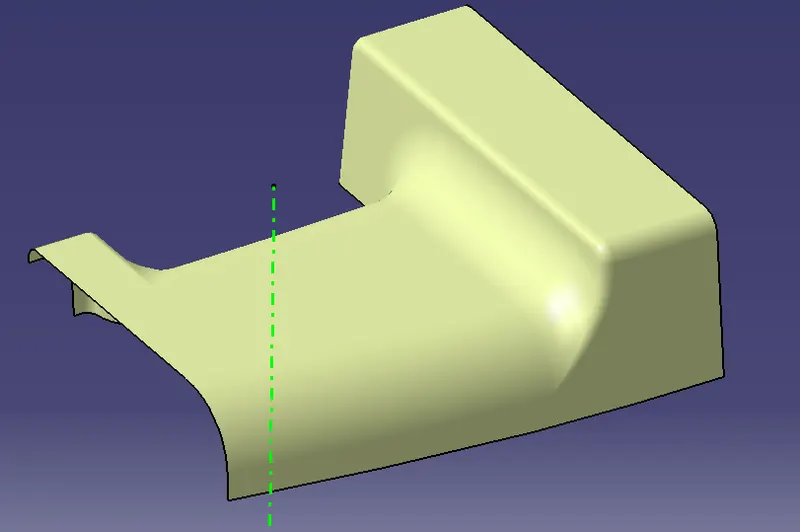

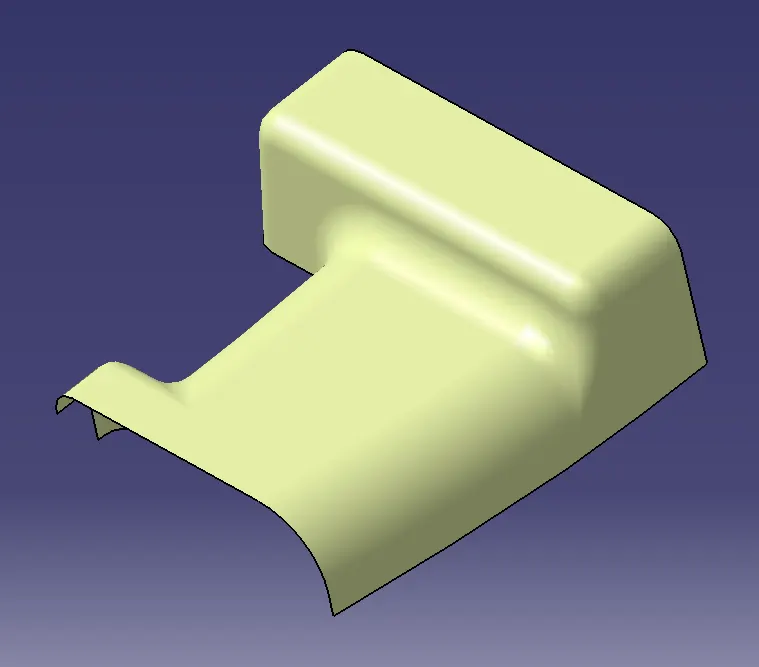

Input - Class A:

Creation of Tooling Axis:

Initially both the Side Walls of the Part is considered as Inputs for the Axis.

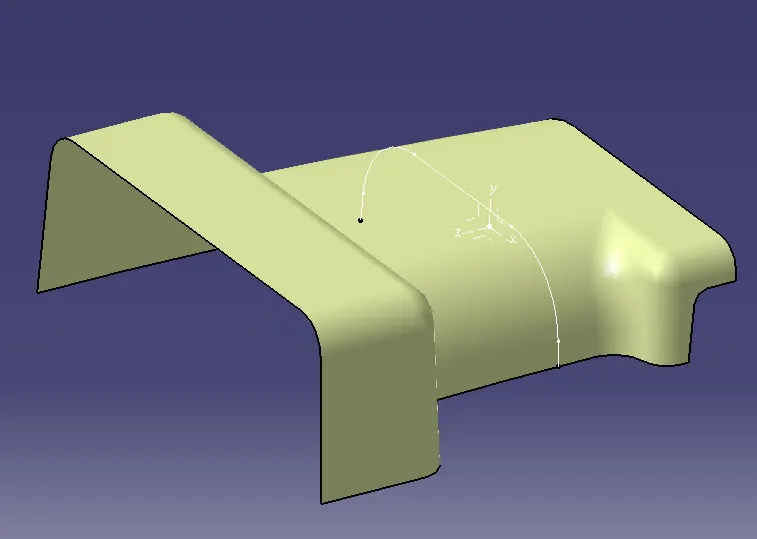

So, We create a Intersecting Line using a Newly Created Axis as shown:

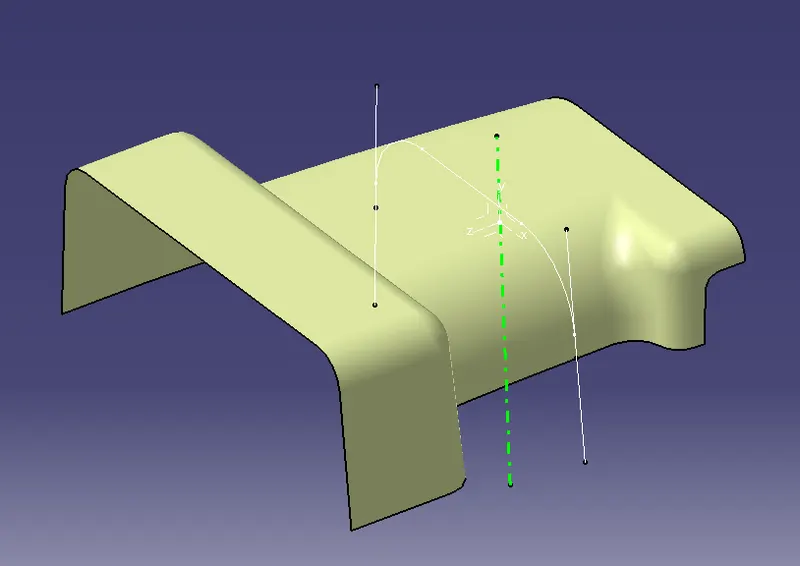

Using the End Lines of the Intersect, We create a Bisecting Line:

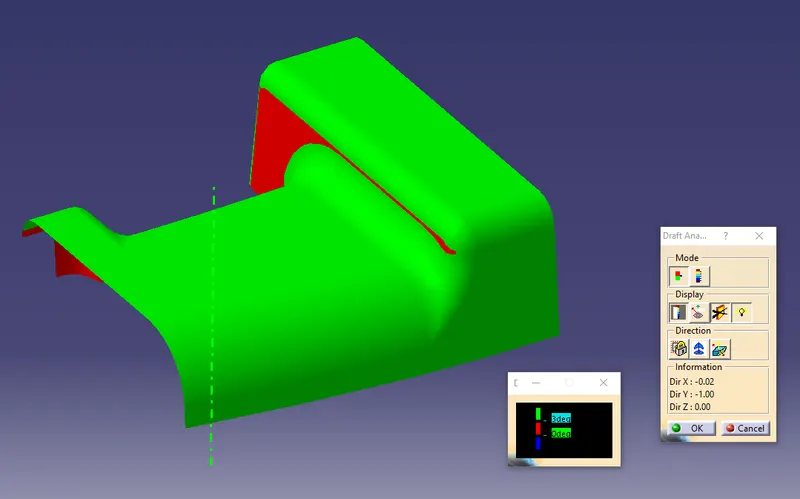

Using the Bisecting Line, We do a Draft Analysis to determine the values:

As per the Analysis, there are no Vertical Walls in the Surface.

The Least Angle is around 1deg for the Class A.

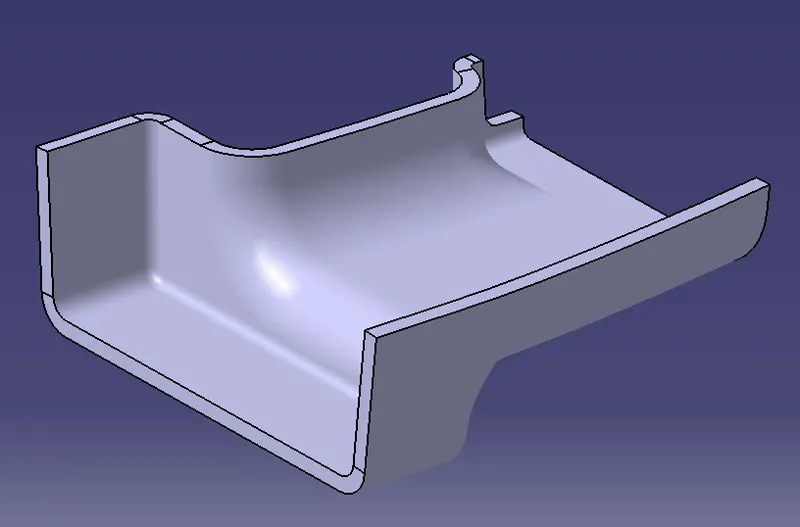

Class B:

Since Thickness is not mentioned in the Task, We assume the value to be 3mm.

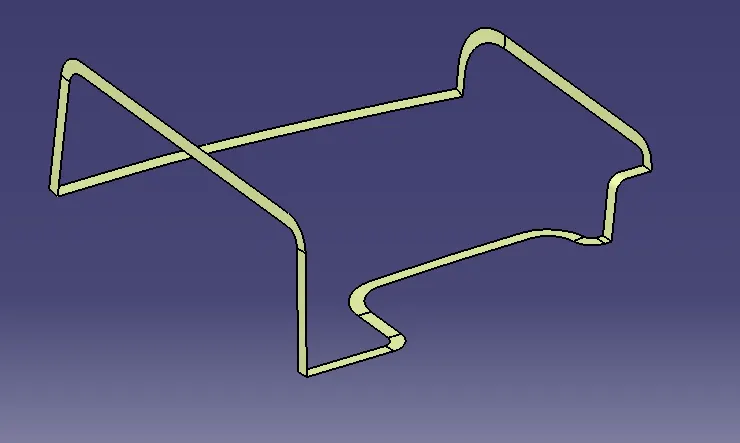

Class C is created using the Boundary from Class A:

Close Surface:

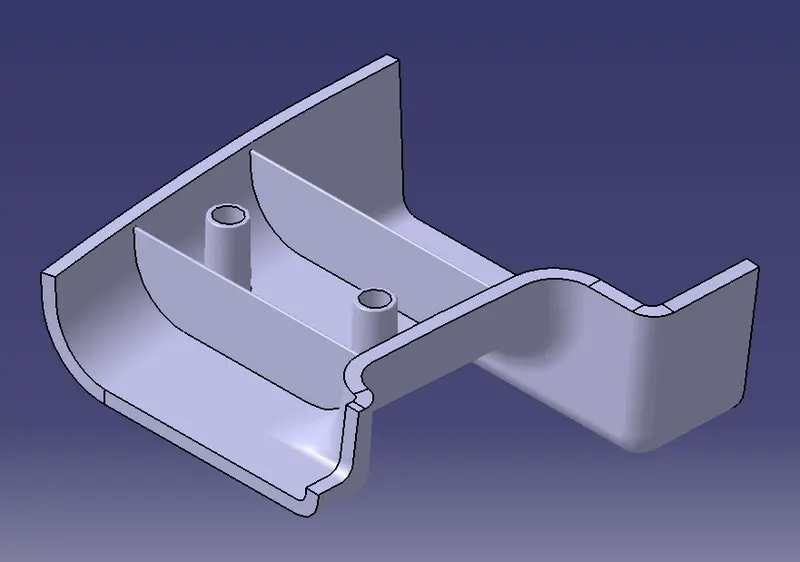

We create the Features such as Ribs & Screw Bosses using the given Design Guide Lines:

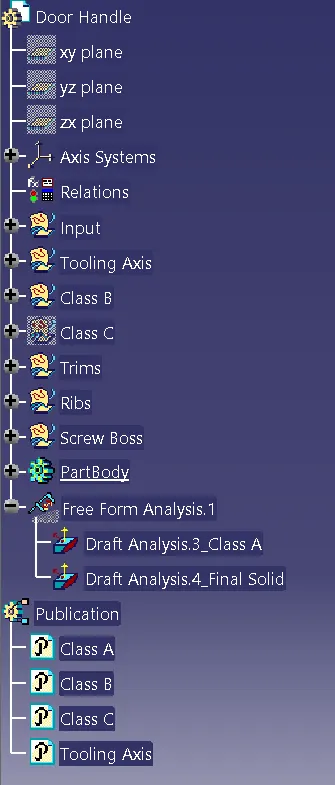

Model Tree:
