Week 8 - Challenge 4 - Bumper

Input

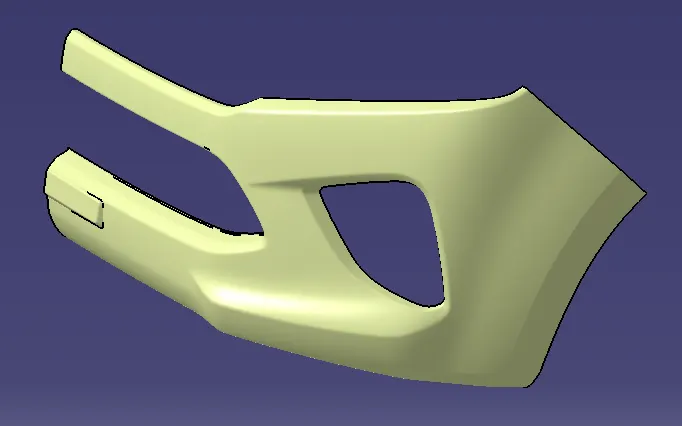

Class A:

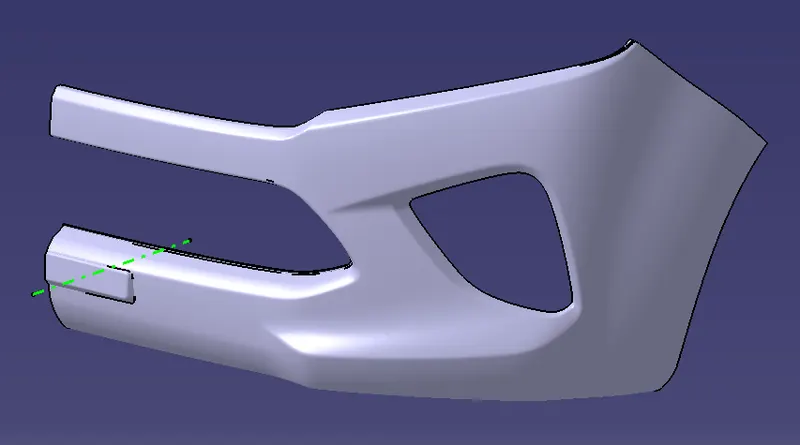

Creation of Tooling Axis:

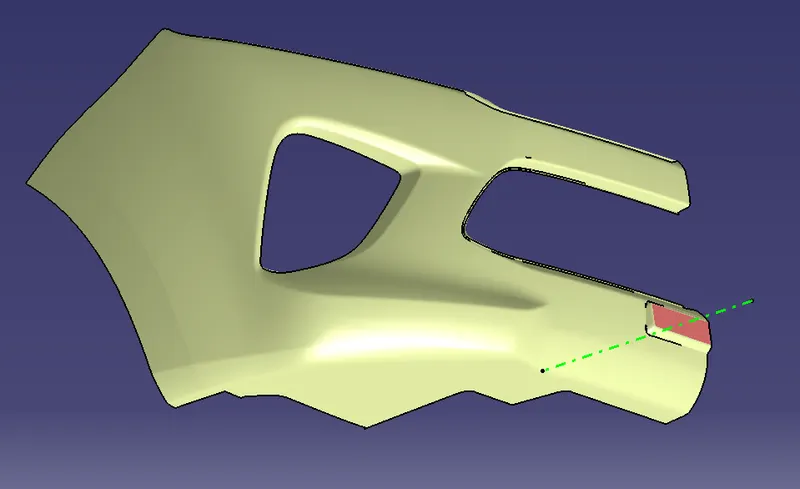

The possible Tooling Axis would be Line, Normal to the Planar Surface as shown below:

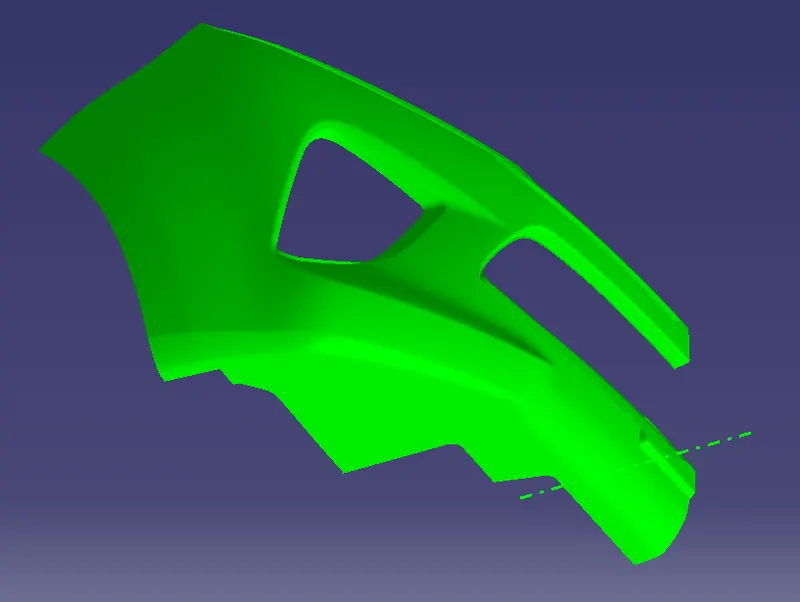

Draft Analysis for Class A for 3deg:

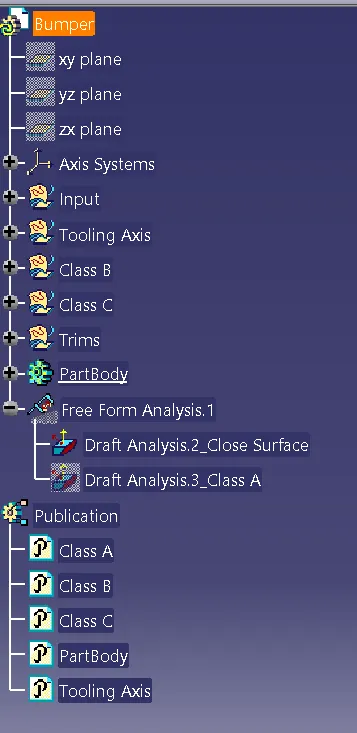

Model Tree:

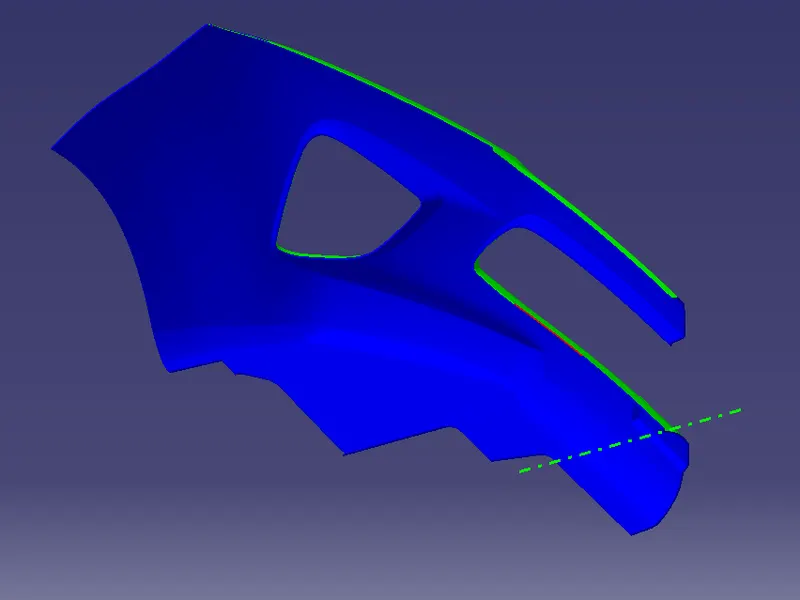

Draft Analysis for Close Surface at 3deg:

Isometric View:

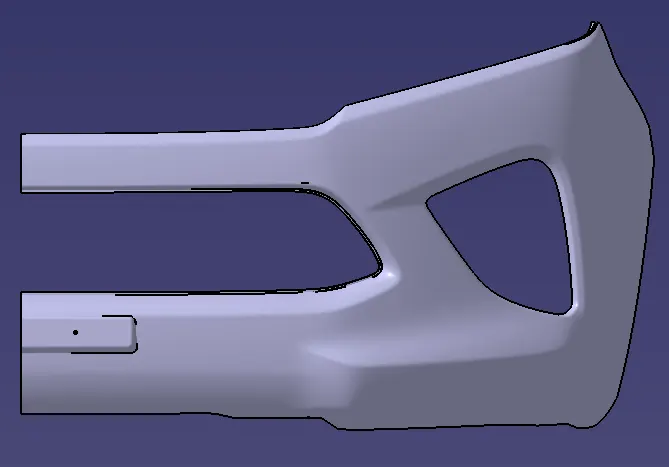

Front View:

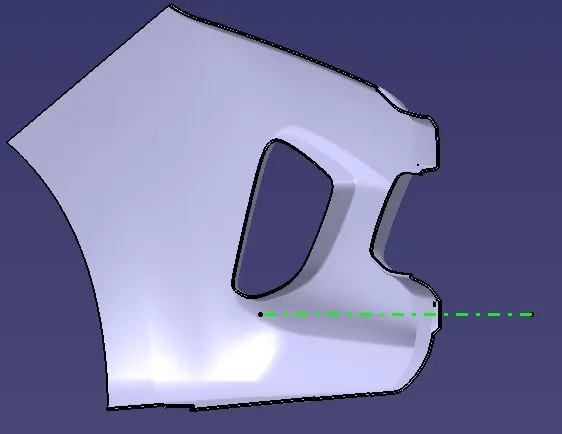

Top View:

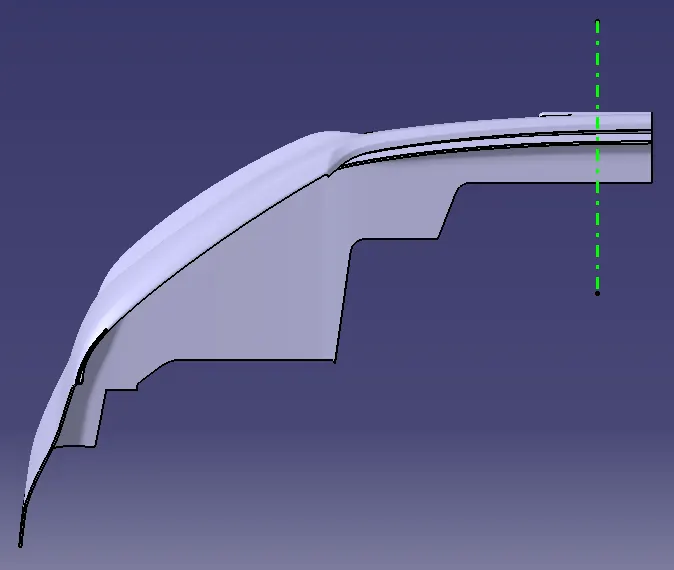

Side View:

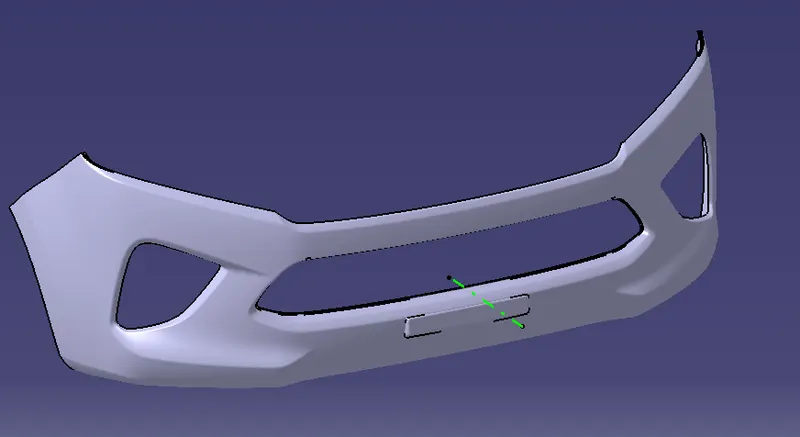

Mirrored Part (Full Bumper):
