Week 8 - Challenge 6 - Core & Cavity Design

Tooling Axis Creation:

Initially the Inner Walls of the Part are taken into account.

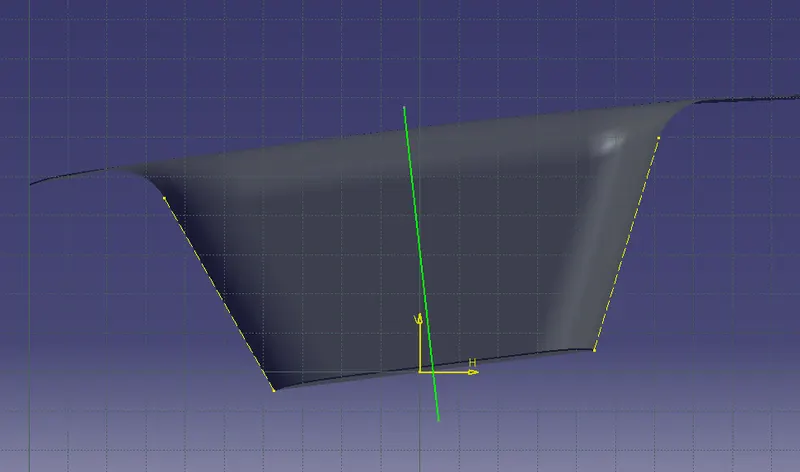

A Bisecting Line is created in between them:

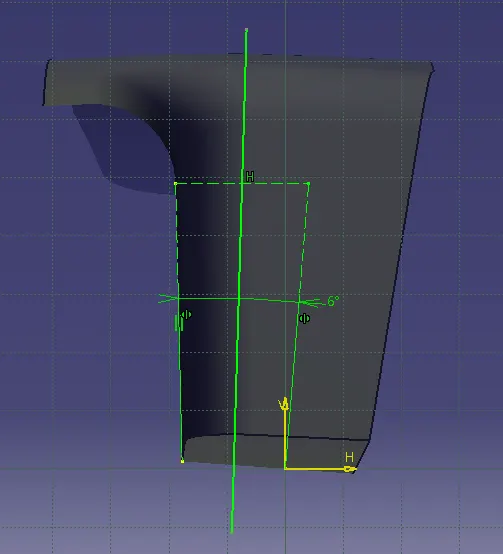

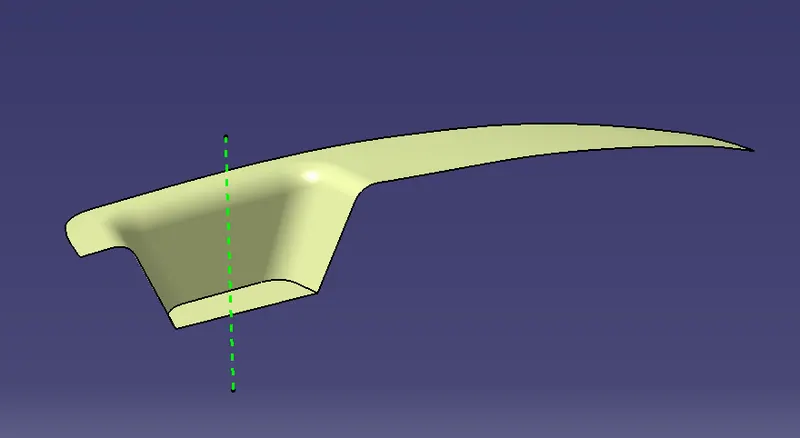

Using the two Sketches, a Third Bisecting Line is Created, which forms the Tooling Axis for the Part:

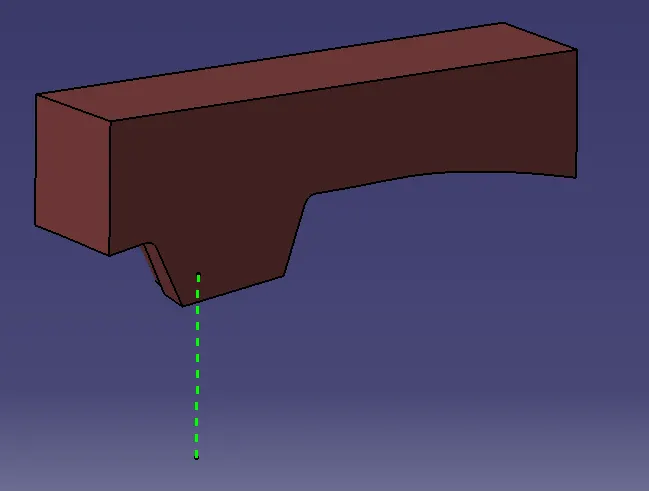

Core:

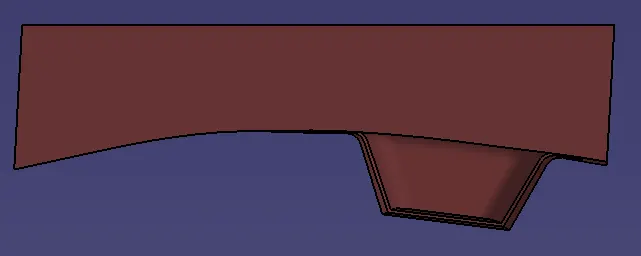

Front View:

Side View:

Cavity:

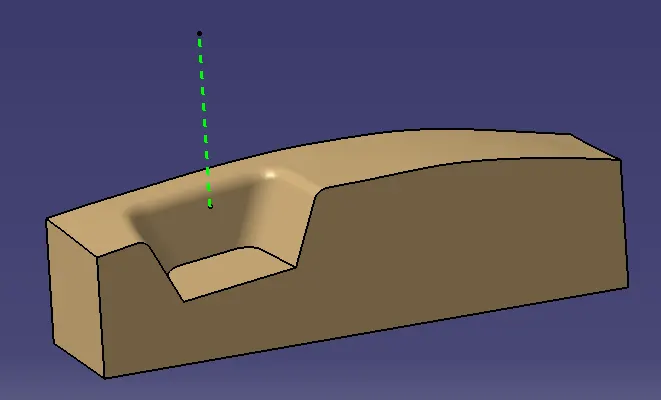

Isometric View:

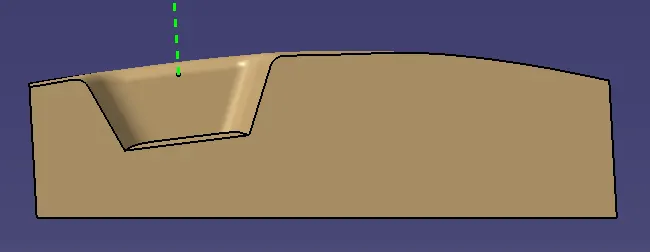

Front View:

Side View:

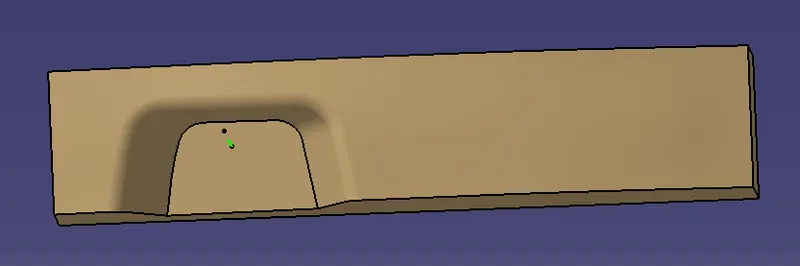

Top View:

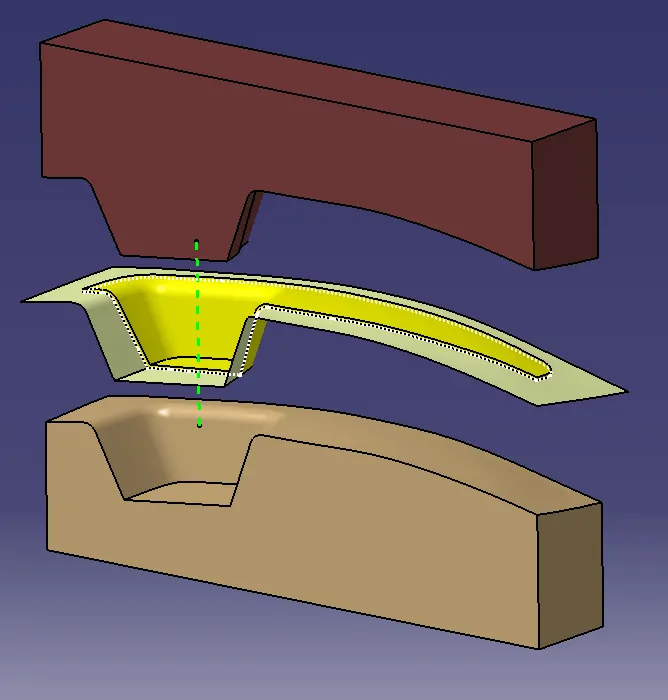

Core & Cavity with Part:

Maroon - Core

Light Brown - Cavity

Yellow - Switch Bezel

Extended Surface - Parting Surface

Dotted Line - Parting Line
