Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

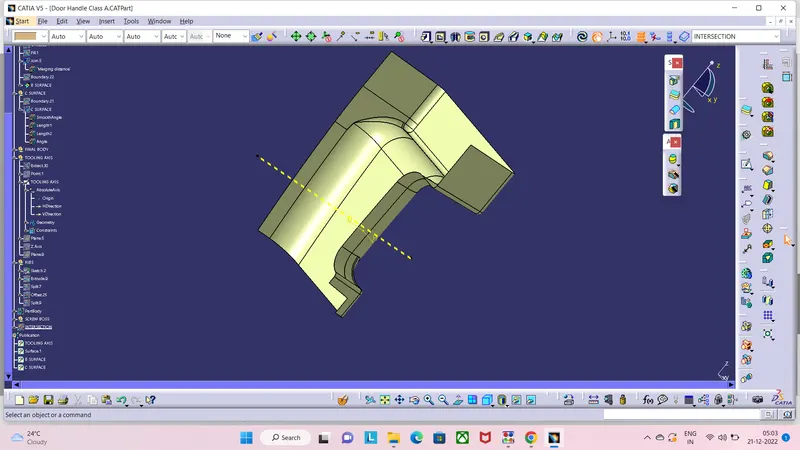

THIS IS THE B SURFACE CREATED.

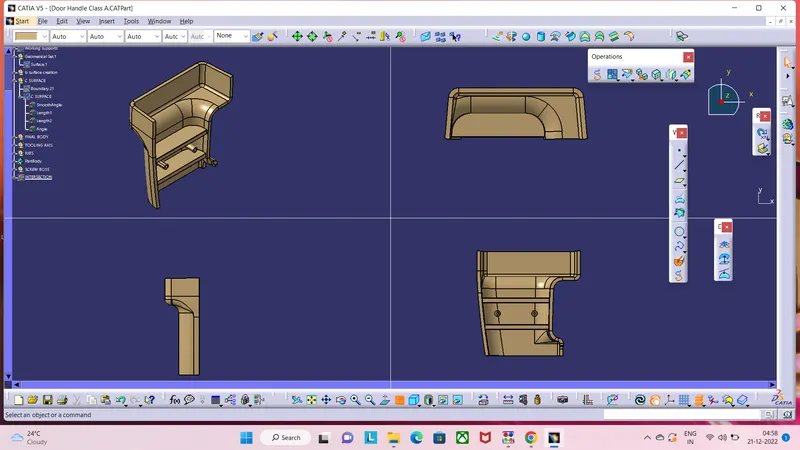

THE FINAL RIBS AND SCREW BOSS PART HAS BEEN CREATED .

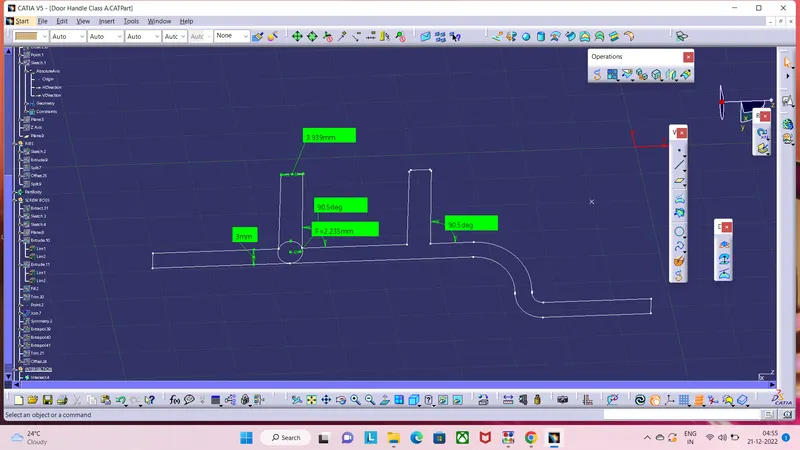

FROM THE PICTURE THICKNESS T=3MM HENCE PERMISSIBLE WALL THICKNESS IS W=1.4*3=4.2MM ,ALSO MINIMUM THICKNESS REQUIRED AT THE END IS 0.75 MM WHICH IN OUR CASE IS 3.939,AFTER THE INCLINATION OF 0.5 DEGREES TO BOTH RIBS THE ANGLE OF INCLINATION BETWEEN SURFACE AND RIB IS 90.5 DEGREES,ALSO THE THE TRITANGENT CIRCLE VALUE IS ALSO UNDER THE LIMITS.
