Week 8 - Challenge 3 - Coin Holder Design

REPORT:-

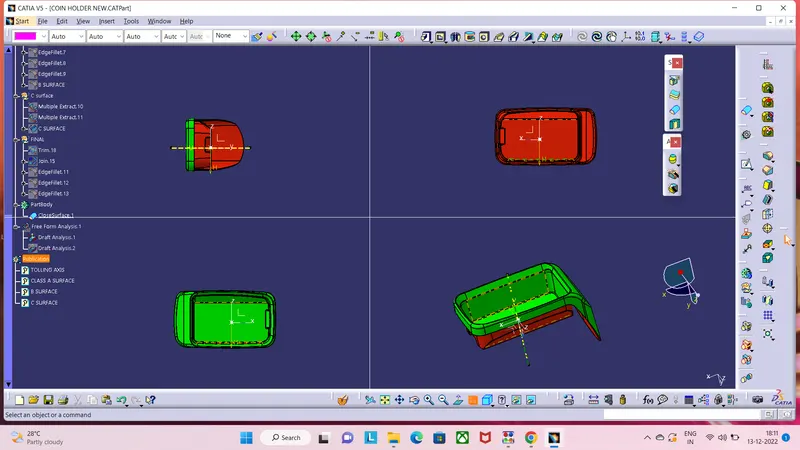

1:- SELECTION OF TOOLING AXIS:-

AS WE CAN SEE MOST OF THE LINES ARE CLOSE TO VERTICAL HENCE IT WILL BE EASIER TO TAKE THE TOOLING AXIS IN THE DIRECTION PARALLEL TO THE VERTICAL DIRECTION ALSO IT WILL BECOME EASIER AT THE TIME OF EJECTION AS THE EJECTOR CAN PUSH THE BASE LAYER OF THE COIN HOLDER.HENCE THROUGH BISECTING METHOD I HAVE TAKEN THE AXIS .

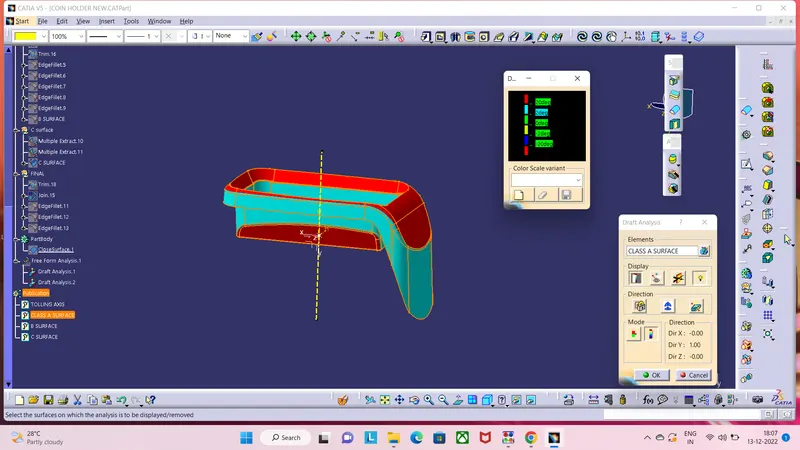

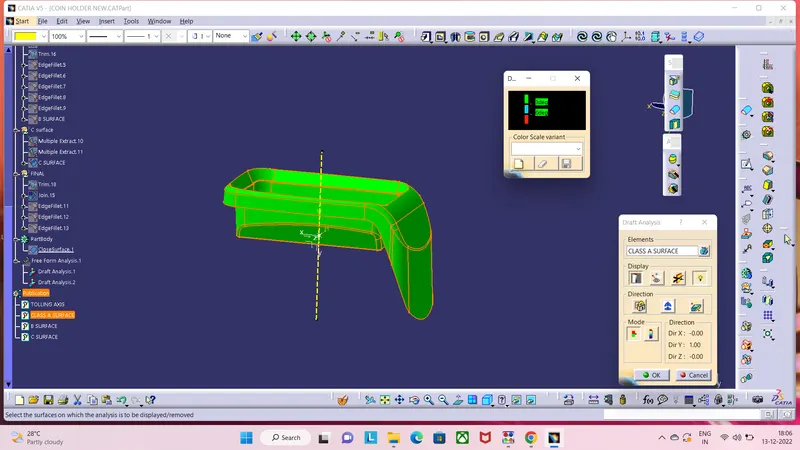

2. DRAFT ANALYSIS OF CLASS A SURFACE :- FROM THE ANALYSIS ITS CLEARLY SEEN THAT MANY LAYERS ARE ARE AT THE INCLINATION OF MORE THAN `pm`20 DEGREES SHOWN BY RED COLOR,ALSO OTHER SURFACES ARE INCLINED AT 'pm'2 DEGREES SHOWN BY BLUE COLORS.

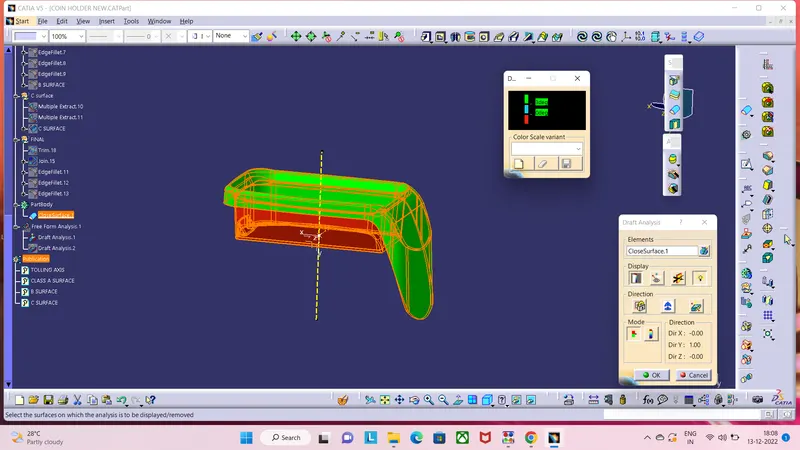

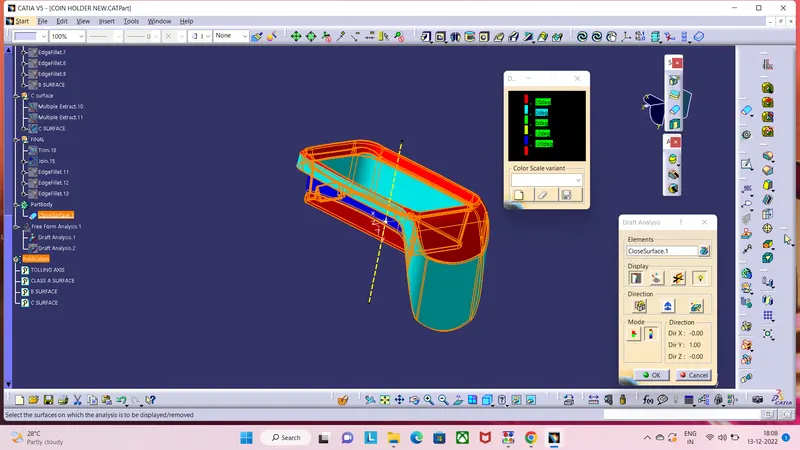

3.DRAFT ANALYSIS OF FINAL COMPONENT:-

IT SHOW THAT MANY SURFACES ARE AT INCLINATION OF MORE THAN 2 AND 20 DEGREES RESPECTIVELY SHOWN BY (+)BLUE, (-)YELLOW & (+) RED,(-) VIOLET RESPECTIVELY.
