Week 8 - Challenge 1 - Base Bracket Design

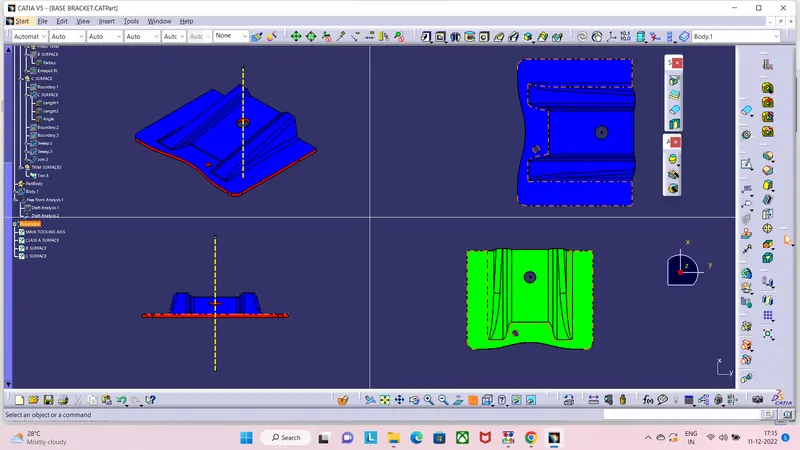

REPORT:- TOOLING AXIS IS PREFFERED BY TESTING A DUMMY TOOLING AXIS AND FINALISING THE BEST AXIS KEEPING IN MIND THE LOCATION OF HOLES.

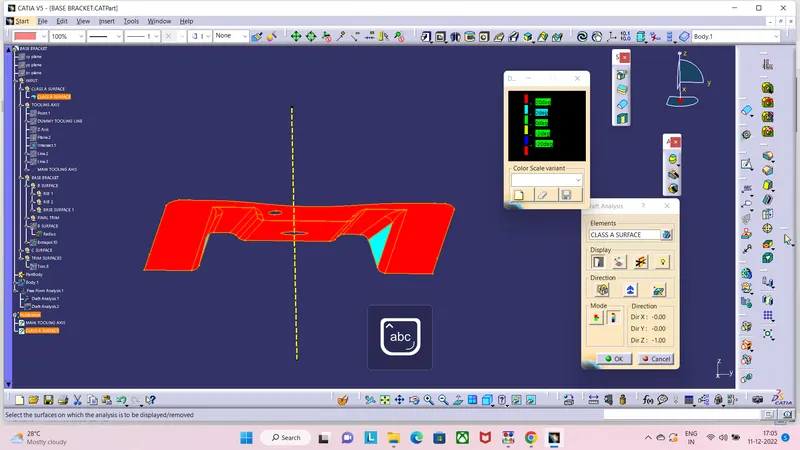

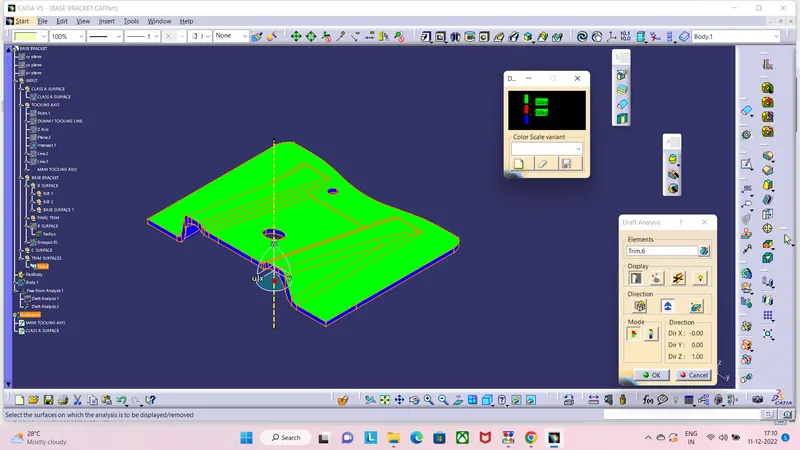

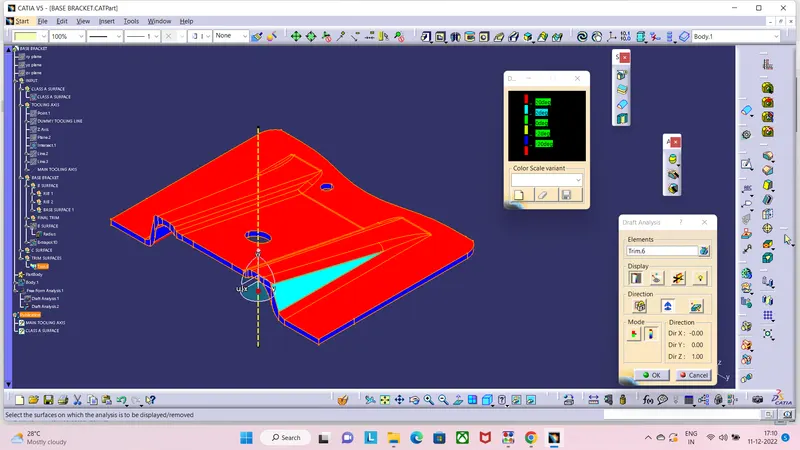

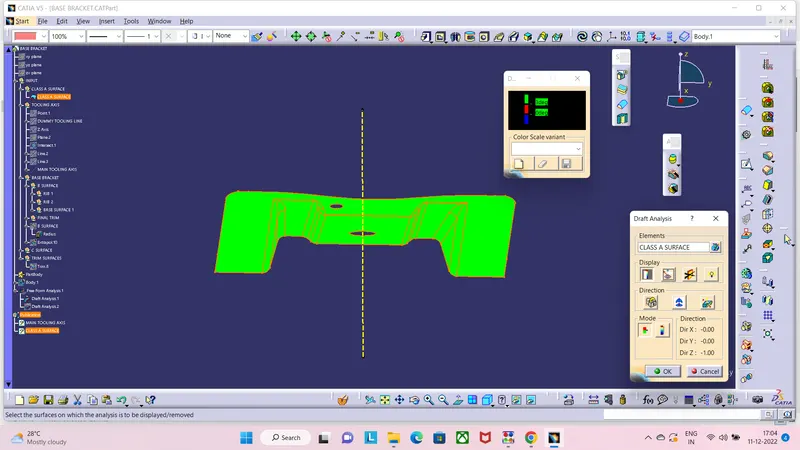

ON THE BASIS OF DRAFT ANALYSIS WE CAN SAY THAT THE PART CAN BE FORMED AS THE COLOR CODING SUGGEST 3 DEGREE DRAFT IS PERMITTED.
