Week 8 - Challenge 6 - Core & Cavity Design

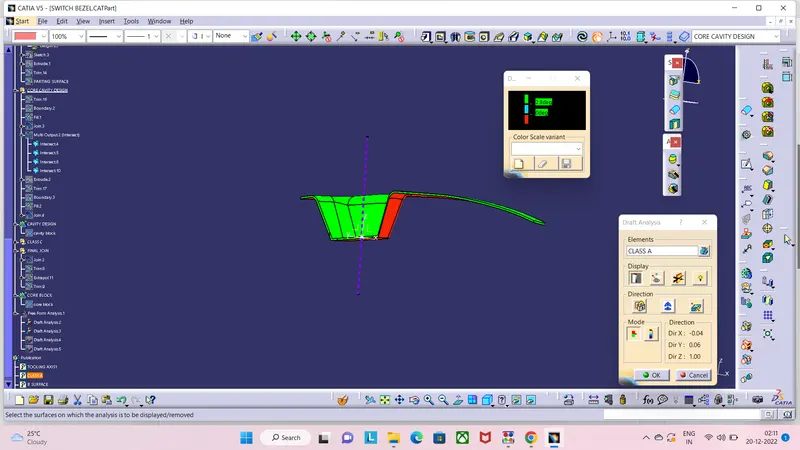

from this draft analysis of switch bezel it is clear that no surface is parallel to tolling axis as there is no surface in blue color,also the green and red color shows the surfaces greater than 3 degrees in positive and negative direction.

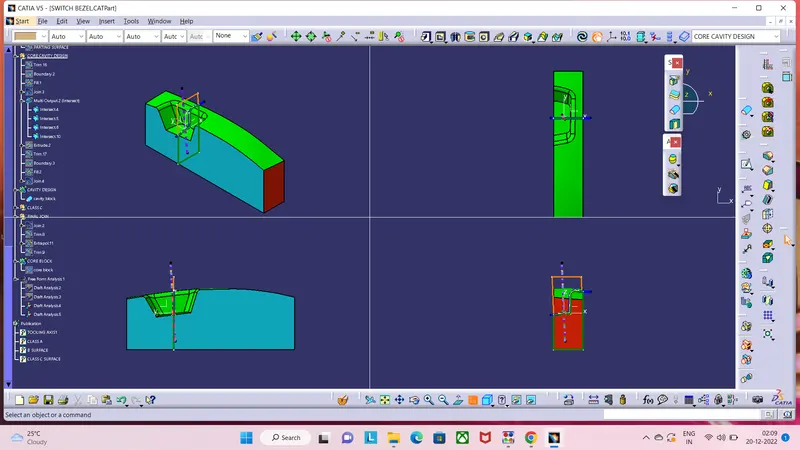

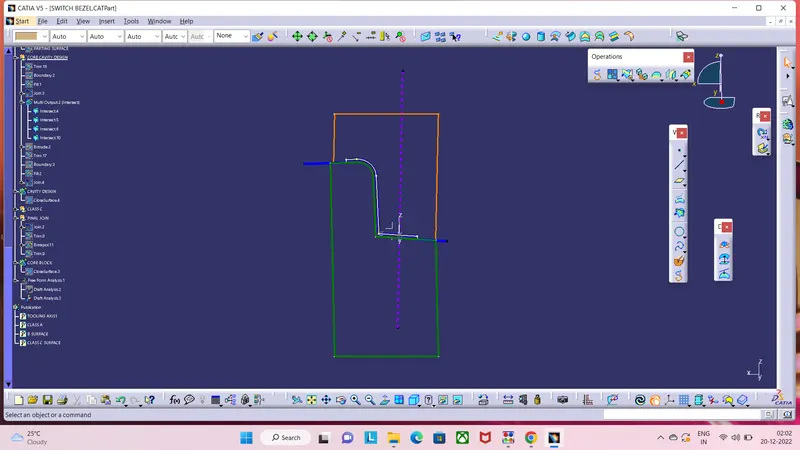

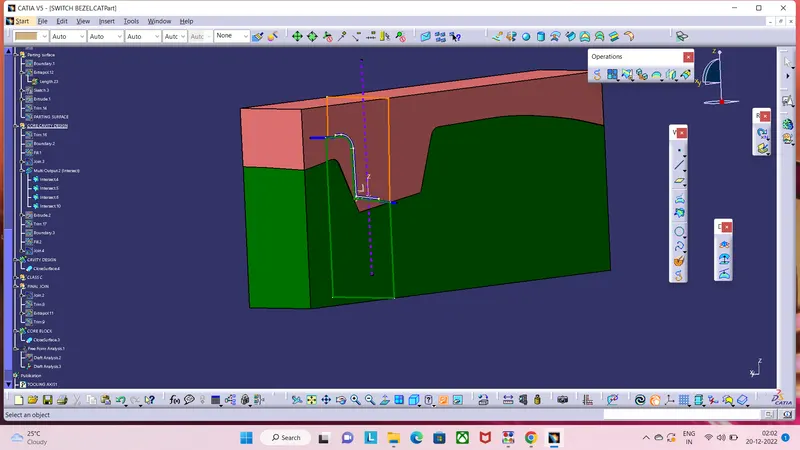

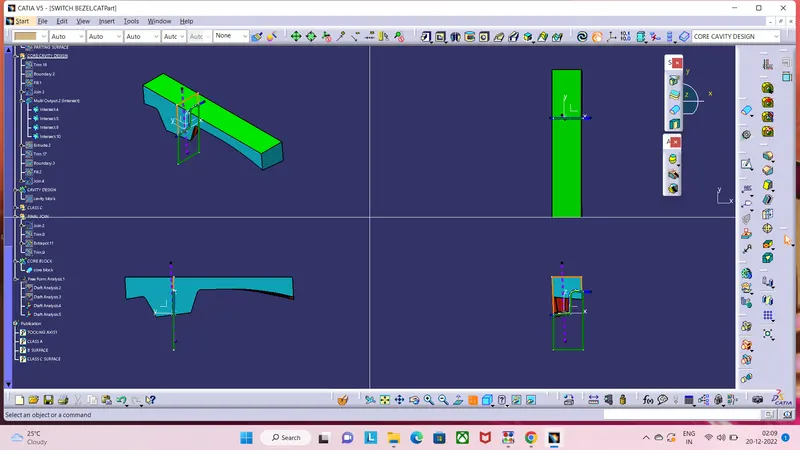

The Blue color line shows the parting line the orange and green line shows the core and cavity part
