Week 8 - Challenge 4 - Bumper

REPORT:-

A) TOOLING AXIS:- THE TOOLING AXIS PASSES THROUGH THE NUMBER PLATE SURFACE AS IT IS THE MOST CONVINIENT AND NORMAL TO THE SURFACE ALSO ALL THE SURFACE ARE VISIBLE WHEN SEEN THROUGH A TOP VIEW ,WHEN REFRAMED .

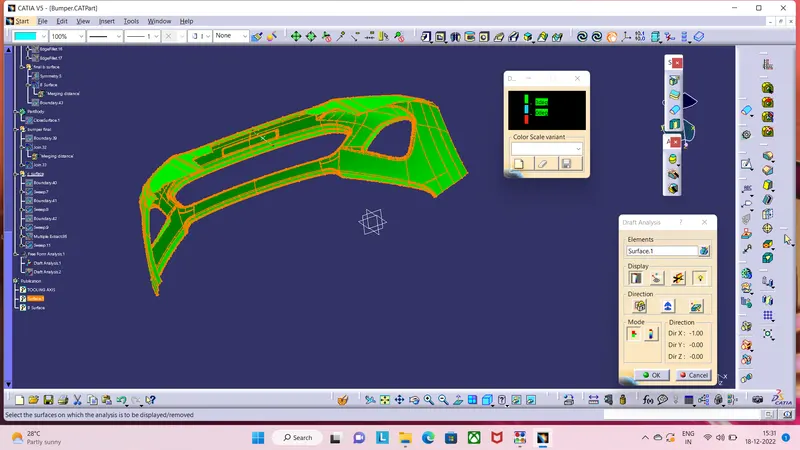

B)A CLASS ANALYSIS:- FROM THE ANALYSIS ITS SEEN THAT MOST OF THE LAYERS ARE GREATER THAM 3 DEGREES AS IT IS SHOWING THE GREEN COLOUR.

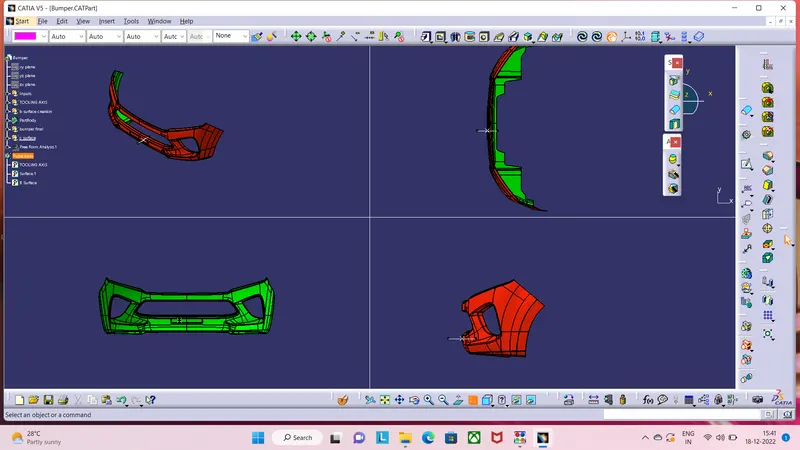

C)PART ANALYSIS:- THE PART SHOWING GREEN IS MORE THAN 3 DEGREES AND THE PART SHOWING RED IS IN NEGATIVE DIRECTION.
