Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

NOTE:

THICKNESS OF THE COLSED BODY SURFACE IS NOT GIVEN, SO I CONSIDERED 2.5 MM THICKNESS.

REPORT:

TOOLING AXIS CREATION:

• ANALYSE SUITABLE SURFACE FOR CREATING TOOLING AXIS
• ESTRACT SURFACE FROM CLASS A
• CRATE A POINT USING POINT ON A SURFACE COMMAND
• CREATE A LINE PERPENDICULAR TO THE SURFACE
• THIS IS OUR TOOLING AXIS

DRAFT ANALYSIS:

• TO PERFORM DRAFT ANALYSIS OPEN FEATURE DRAFT ANALYSIS OPTION
• THEN PUT CUSTOMIZE VIEW PARAMETERS TO MATERIAL MODE
• THEN CLICK ON COMPASS ICON TO ALIGN THE COMPASS INTO TOOLING AXIS, THEN CLICK ON THE SURFACE.

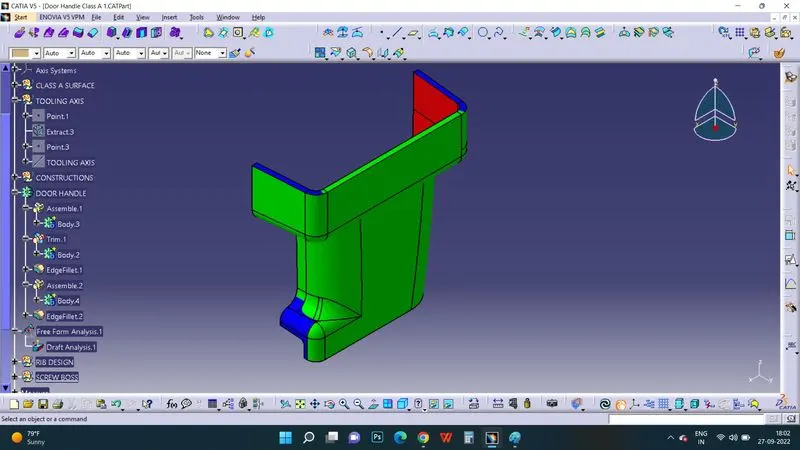

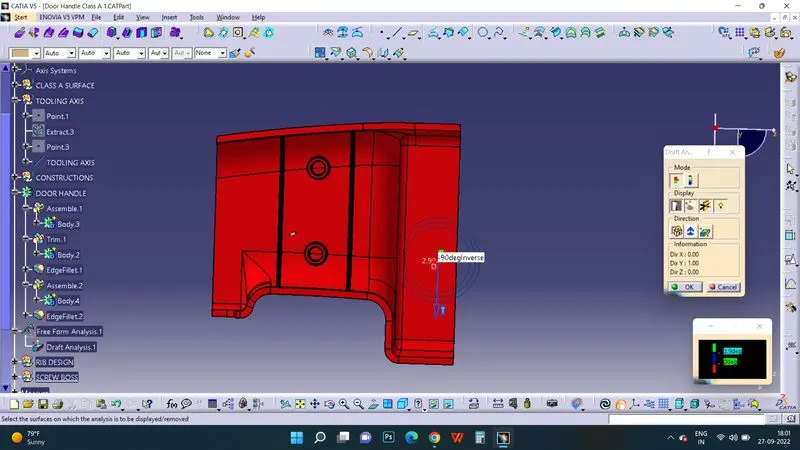

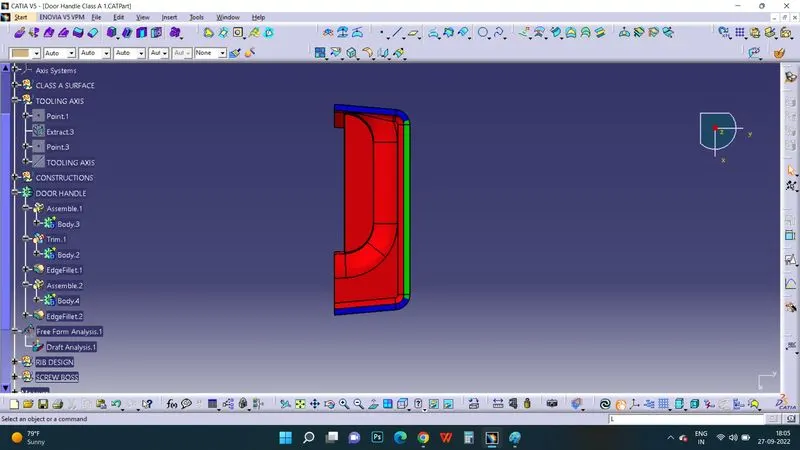

• IN THIS DRAWING DRAFT ANALYSIS FROM THE FEW SURFACES NOT COMING PROPERLY DUE TO CLASS A SURFACE ANGULAR ISSUES. KINDLY SEE THE IMAGES BELOW.

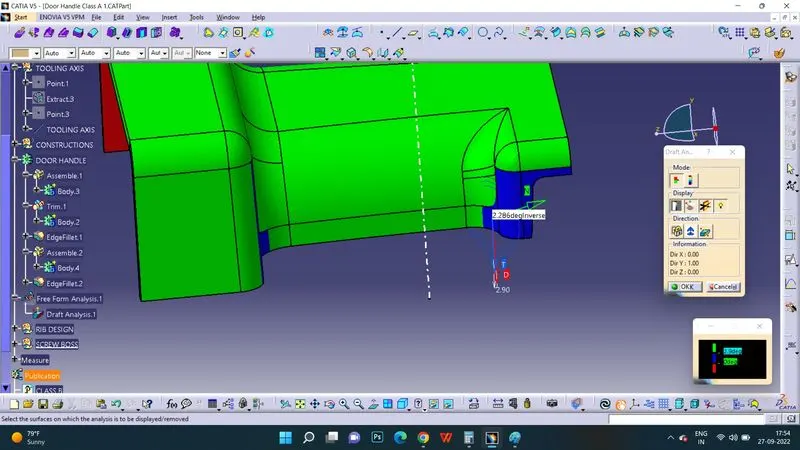

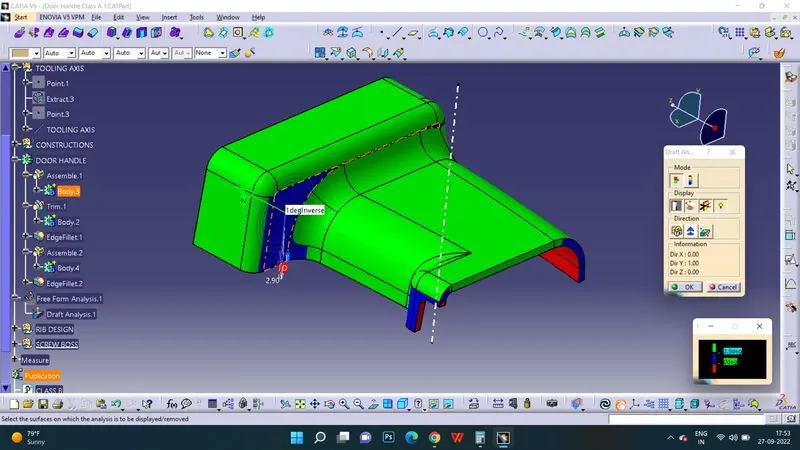

IN THE ABOVE IMAGE THE SIDE WALLS HAVING 1 DEGREE IN ONE SIDE AND OTHER SIDE HAVING 2.2 DEGREES DRAFT ANGLES, DUE TO THIS CANT ABLE TO GET THE DRAFT ANALYSIS RESULTS.

OTHER THAN DRAFT ANALYSIS IM CREATED RIBS AND SCREW BOSS.

ISOMETRIC VIEW

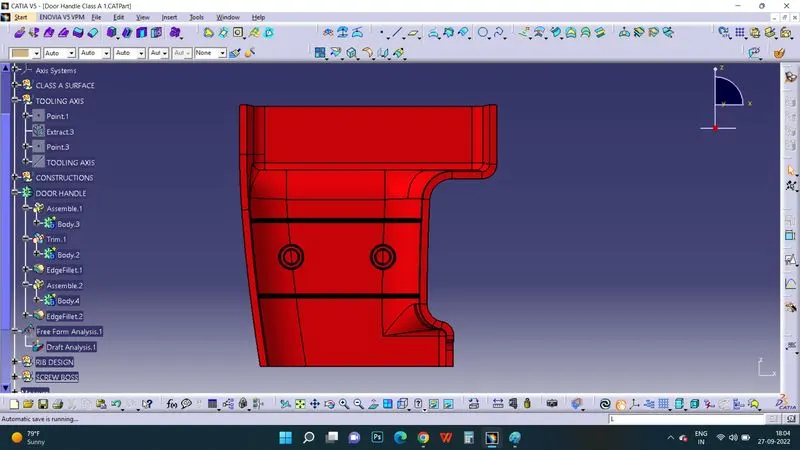

FRONT VIEW

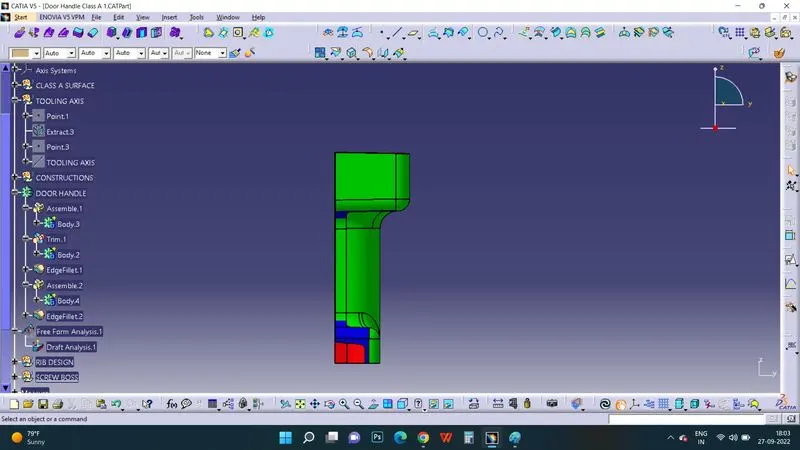

L SIDE VIEW

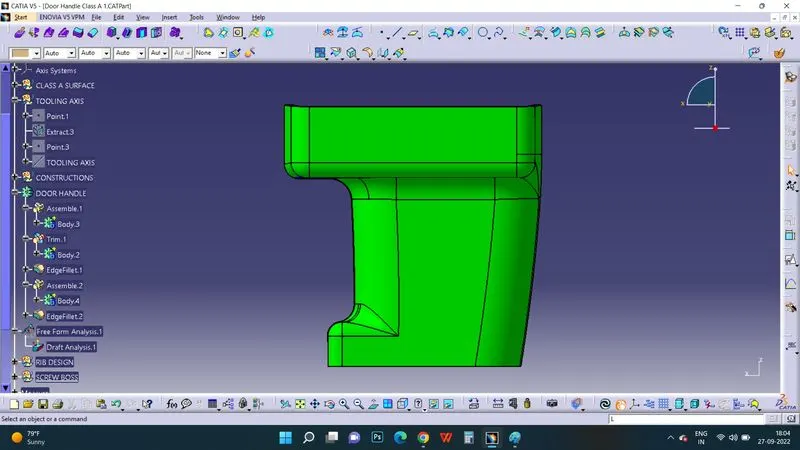

R SIDE VIEW

TOP VIEW

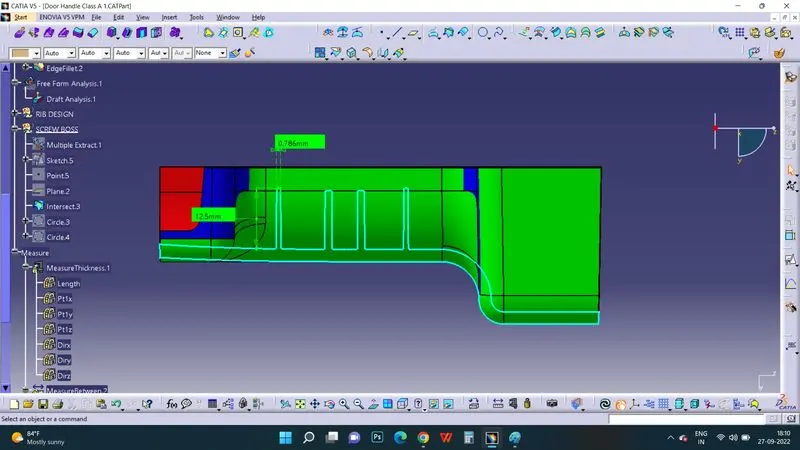

INTERSECTIONS OF RIB AND SCREW BOSS
