Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

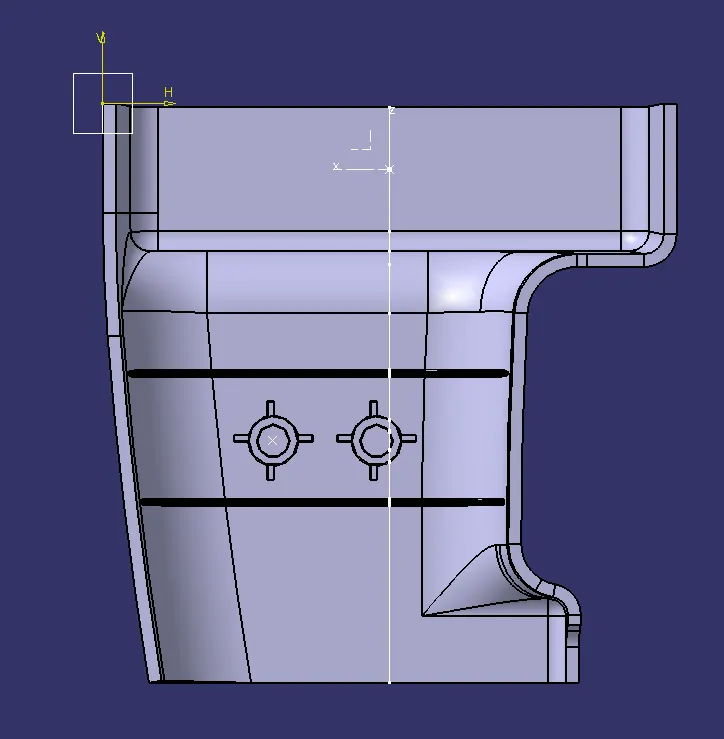

front view
top view

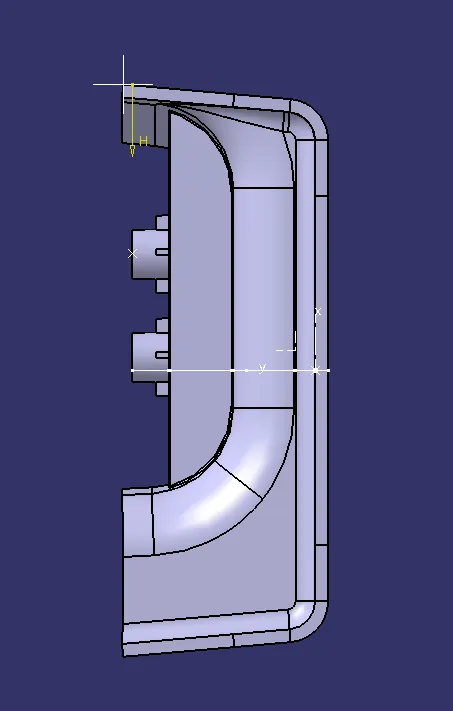

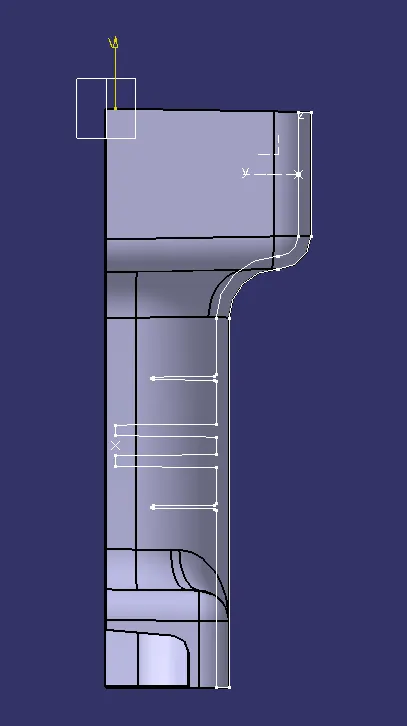

side view

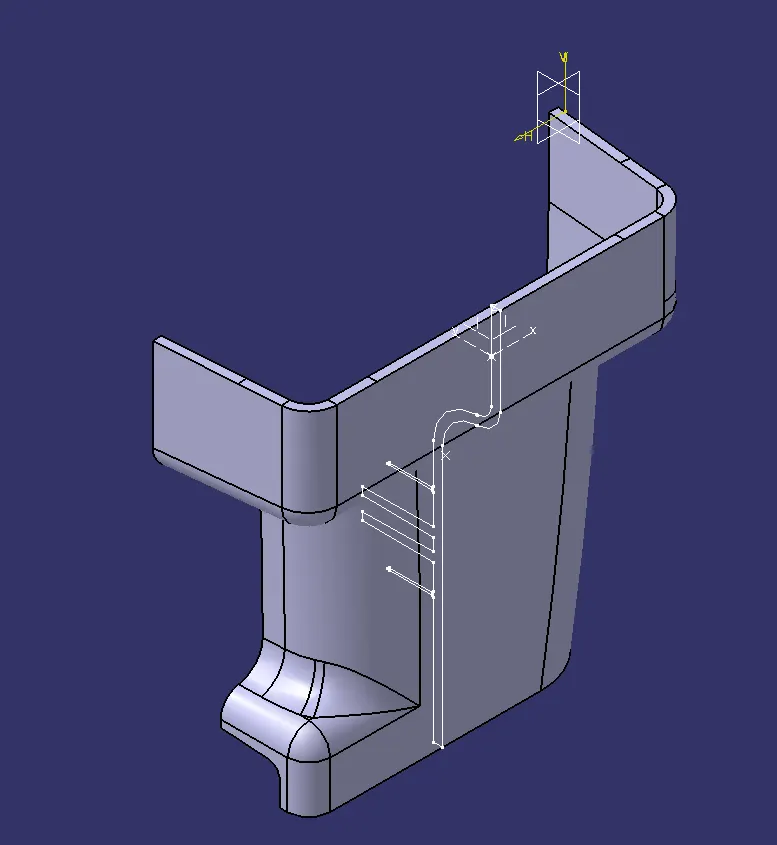

isometric view
AIM:
- To Create the Door Handle Component from the given Class-A surface.
- To Create the tooling axis for the given Class-A Surface meeting the requirements of the draft angle.
- To Attach B side Features in the component.
- To perform the Draft analysis on the model.
TOOLS USED:
- Boundary
- Join
- Multiple extract
- Bisecting line
- Trim
- Surface offset
- Draft analysis
- Intersect

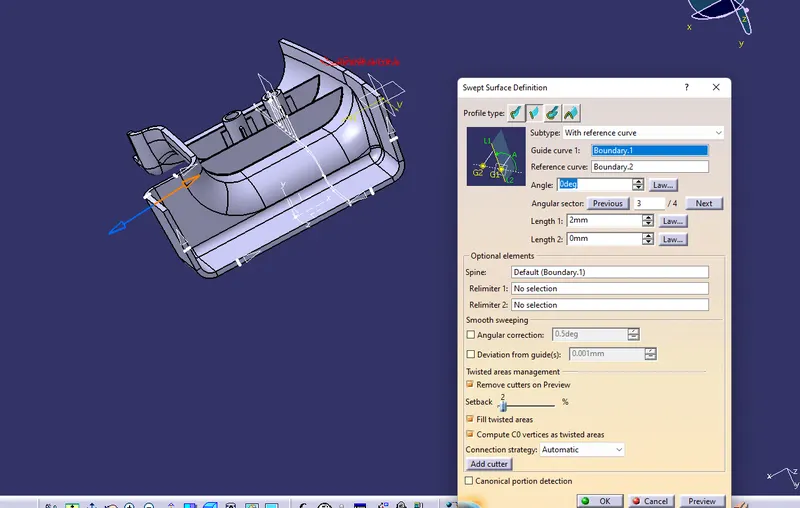

- Surface sweep
- Close body surface
DESCRIPTION:
CREATING TOOLING AXIS -
The Tooling Direction is basically the direction that the mold pulls a part. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dye line or the Tooling Direction.
- Open the given CAT part file.
- Find the correct tooling axis where the material don't interfere with the tooling axis and all the elements can be created.
- Create an axis system using at the centre of the switch Bezel.

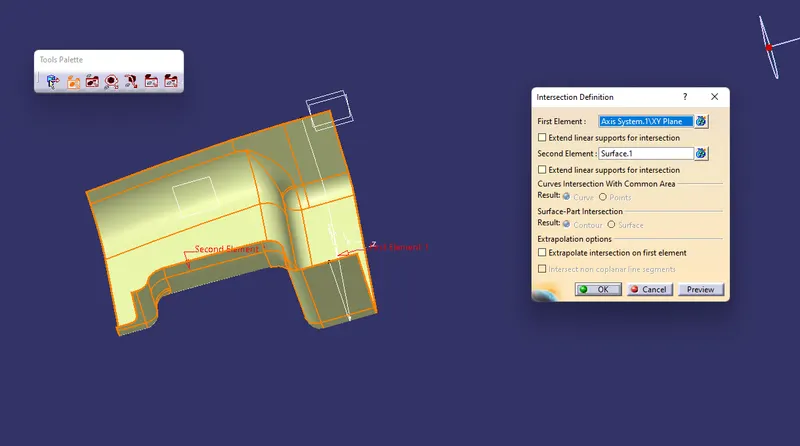

- Intersect the yz plane with respect to the class A surface.
- Hide the class A surface and create point to point lines on the suspected drafts.

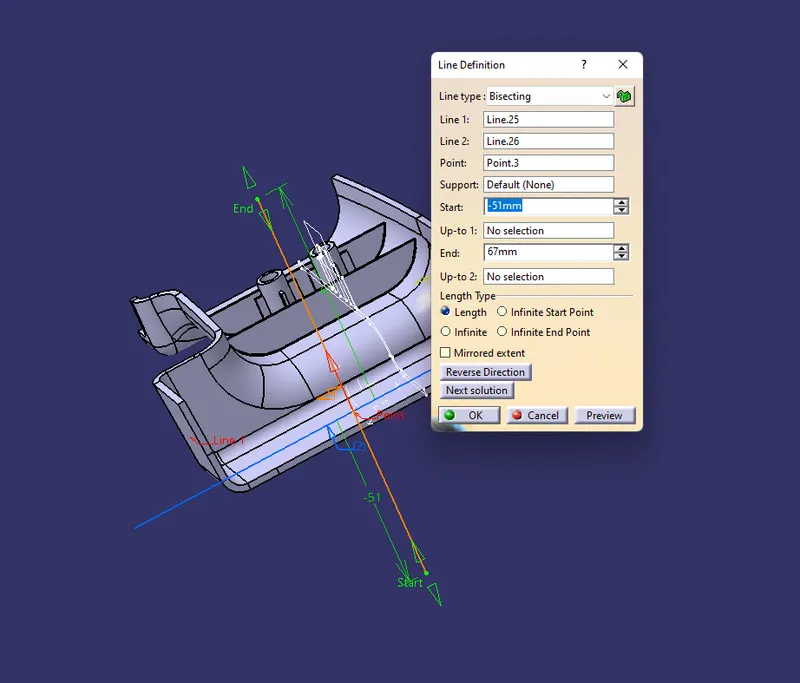

- Create bisecting line with the two lines and point to create a tooling axis.
- BISECTING LINES were used to get the exact medium from the two sides so that maximum positive draft angle can be achieved.
CREATING CLASS B SURFACE
- Extract the surfaces from the class A using multiple extract and untrim them.

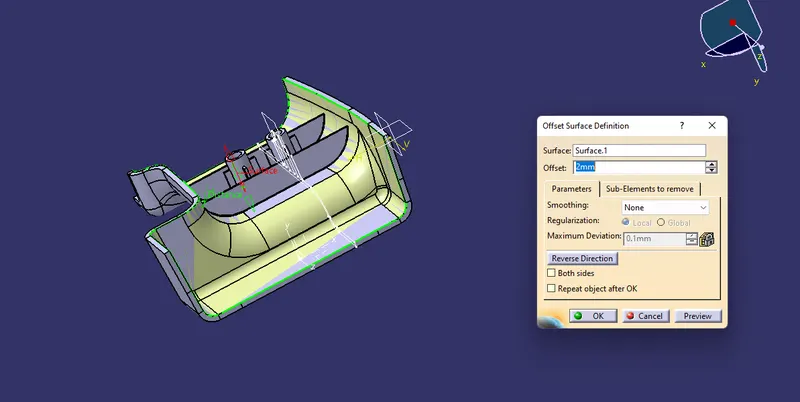

- offset the surfaces to 2 mm to create the thickness.
- Trim the extra surfaces using trim command.

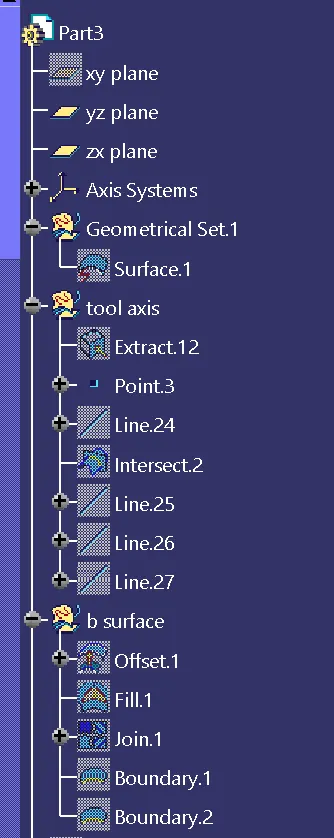

- Insert them into new geometrical set and name it with respective part names.
- Apply fillets to the model after creating the entire surface.

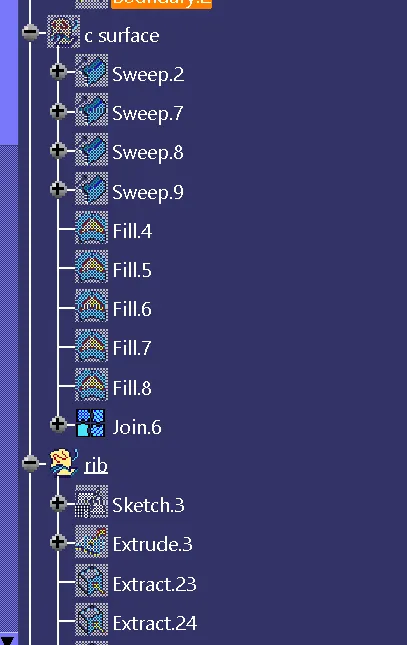

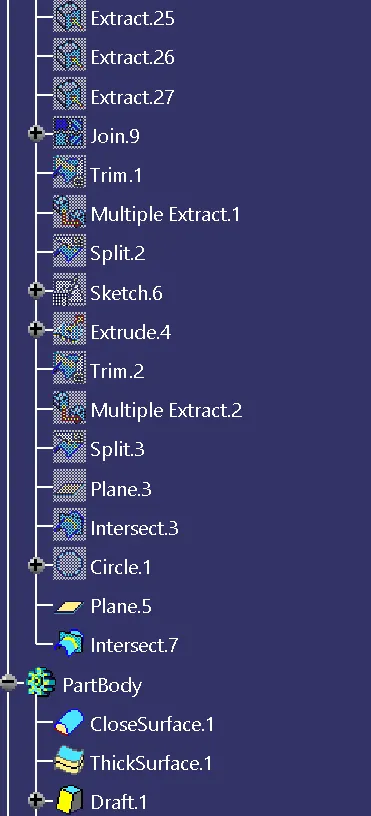

CREATING CLASS C SURFACE

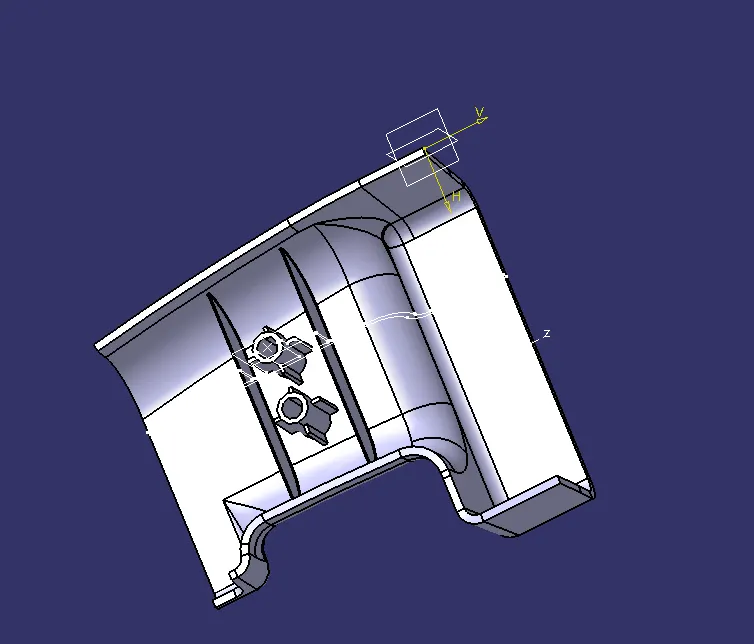

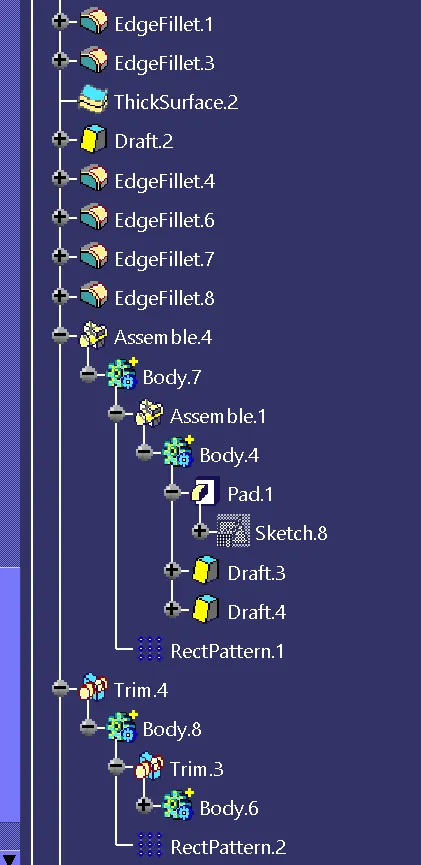

B SIDE FEATURES CREATION
RIB CREATION
- Design Principle for Rib Creation
SCREW BOSS DESIGN
- Design Principle for Screw Boss Creation
