Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

RIB DESIGN

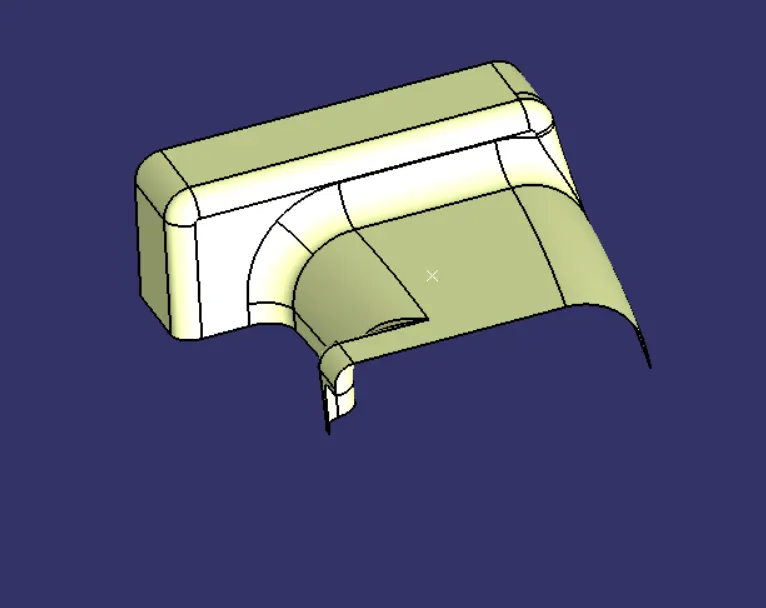

GIVEN CLASS A SURFACE

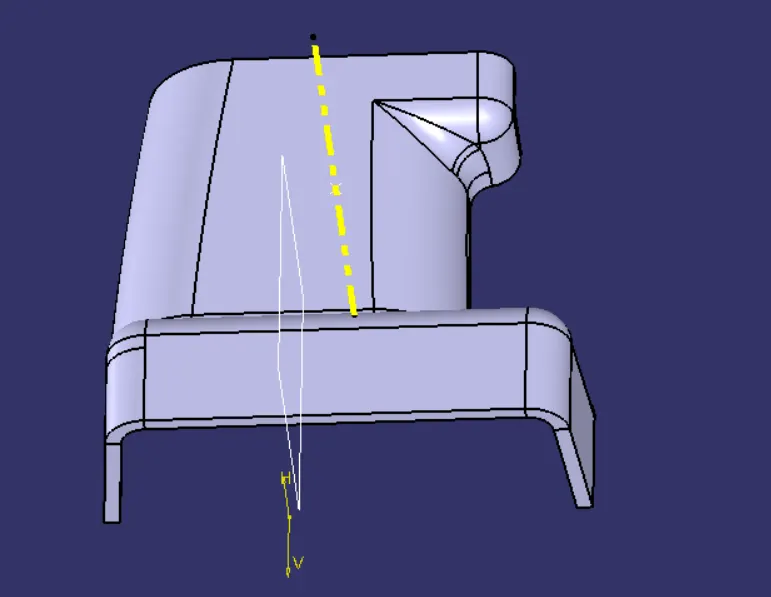

TOOLING DIRECTION

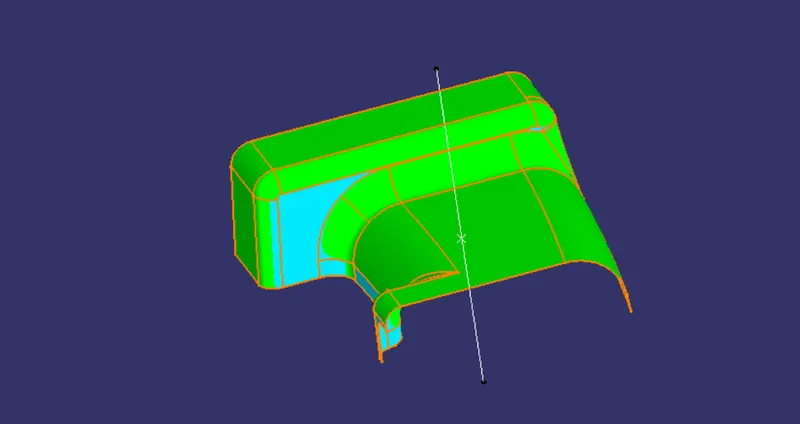

CHECK THE TOOLING DIRECTION IS CORRECT OR NOT BY DRAFT ANALYSIS

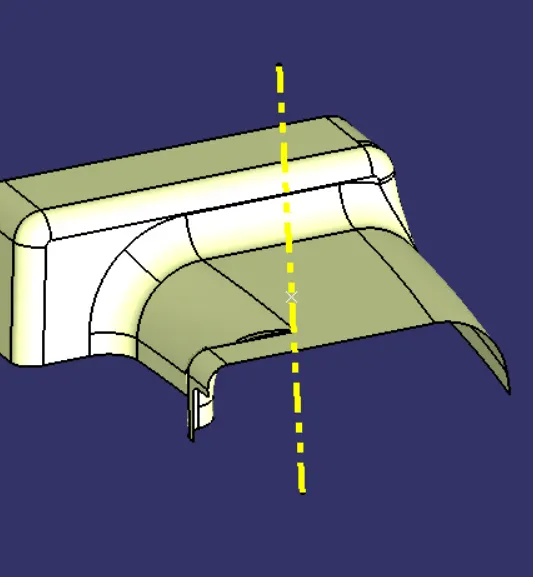

THICKENED SURFACE

3MM

3MM THICKNESS

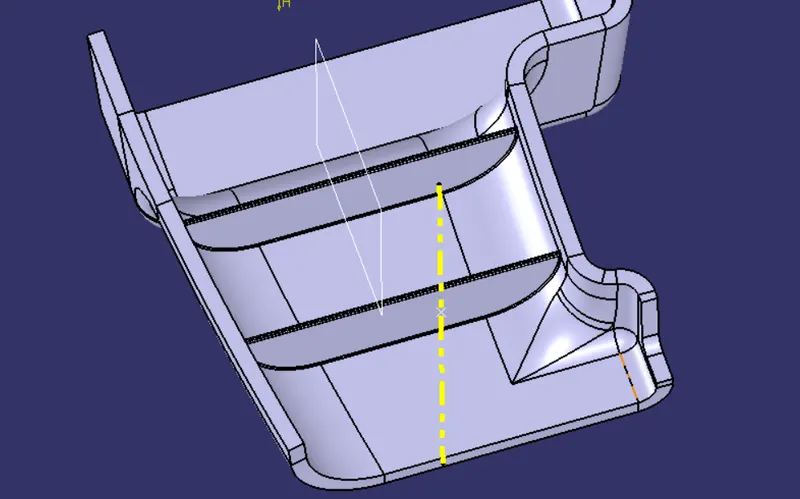

RIB DESIGN

1MM THICKNESS,0.5 DRAFTED

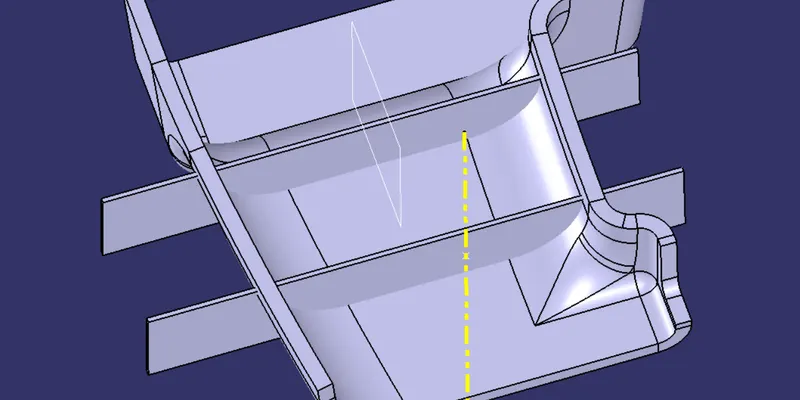

TRANSLATE RIB

UNION TRIM

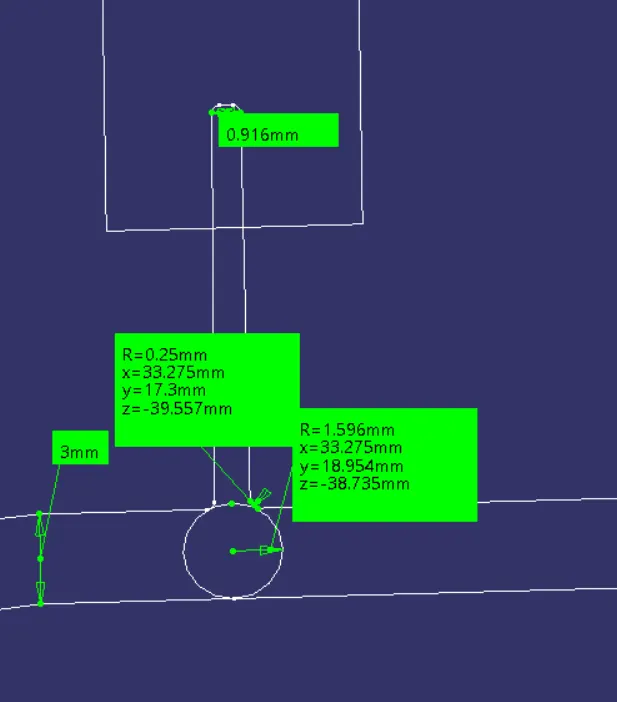

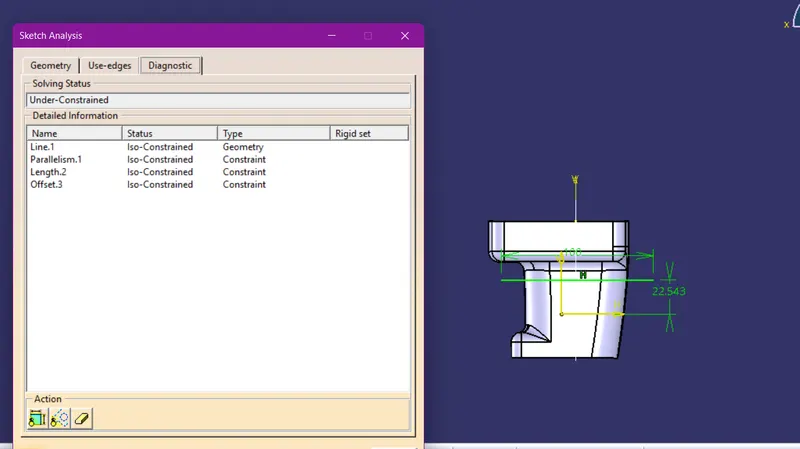

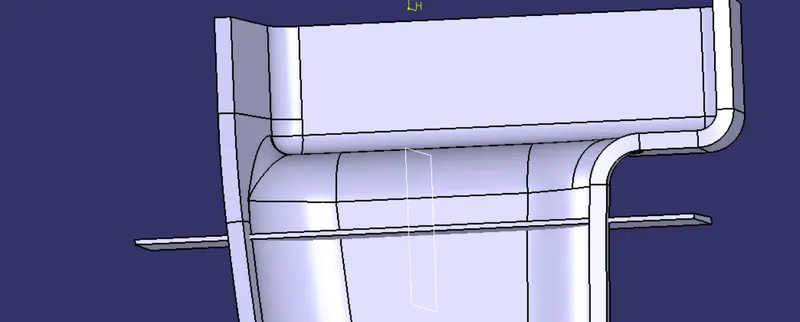

CROSS SECTION

SCREW BOSS

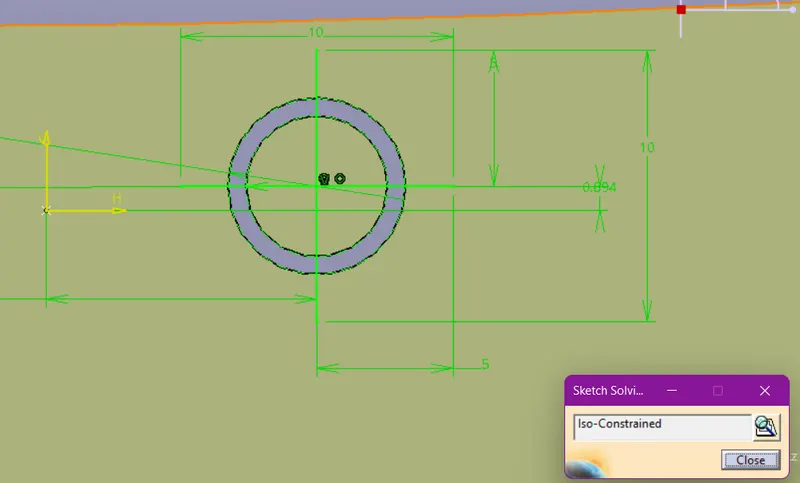

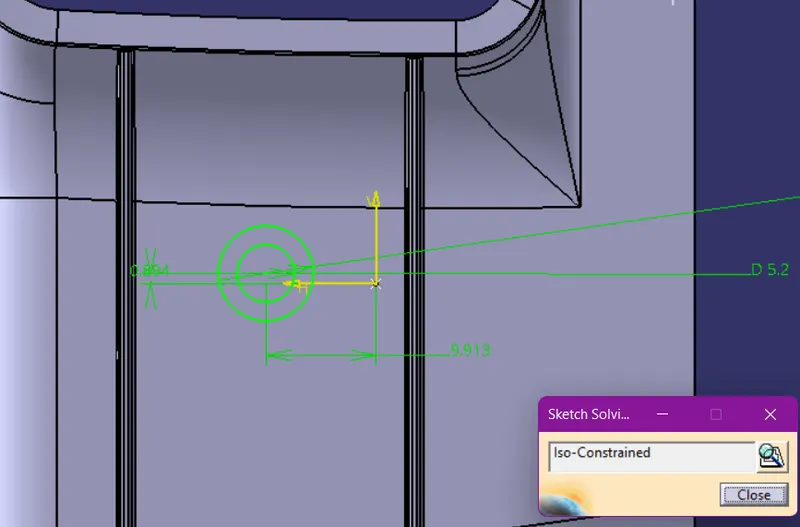

SKETCH

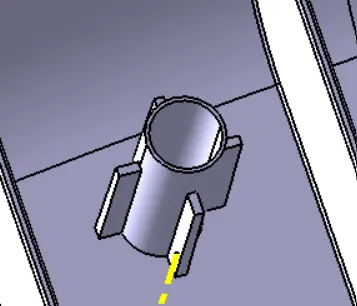

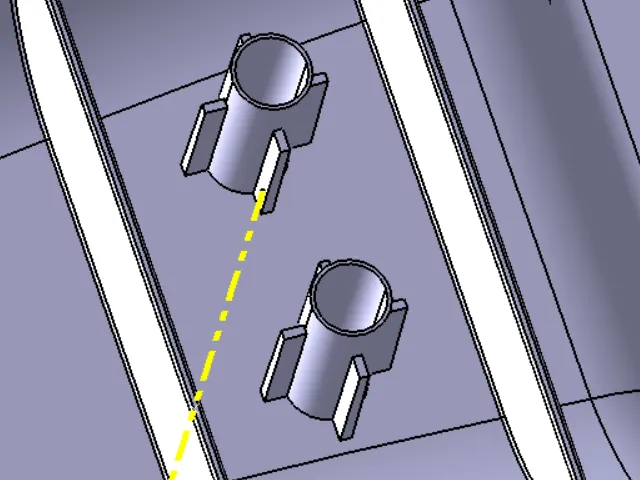

SCREW BOSS

0.5 DRAFTED UNION TRIM

TRANSLATE SCREW BOSS

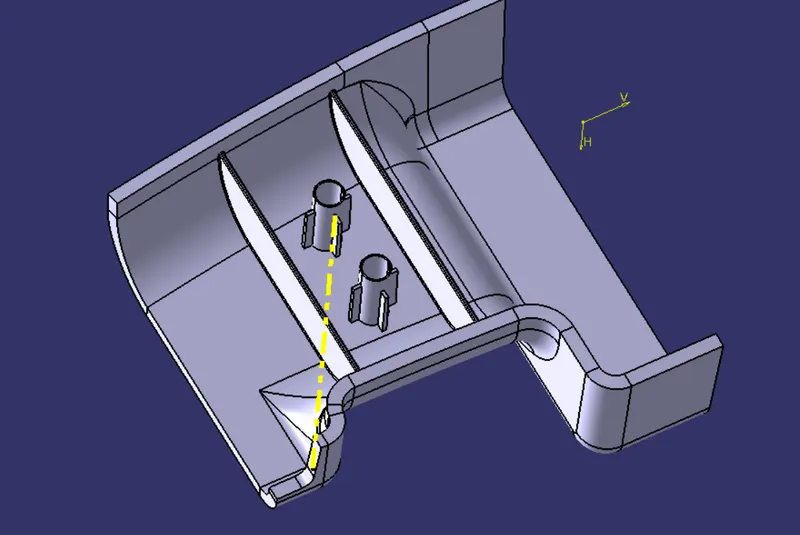

FINAL PART

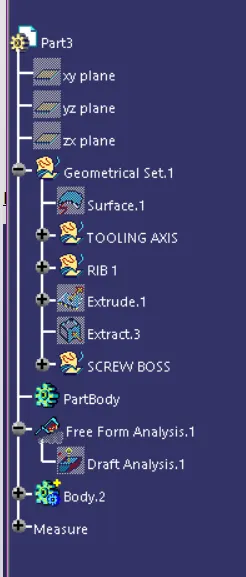

TREE STRUCTURE

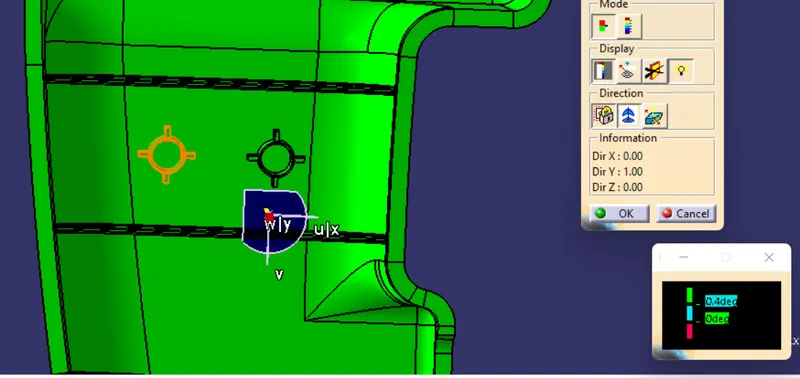

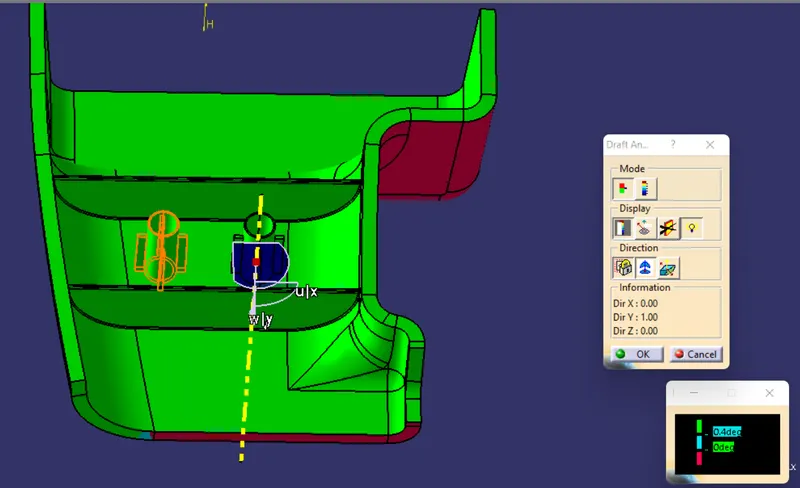

DRAFT ANALYSIS
