Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

Aim:

To Create the rib and screw boss for the Drill Handle considering the design rules

Body of content:

• From the given class a Surface creates a closed surface and creates a body

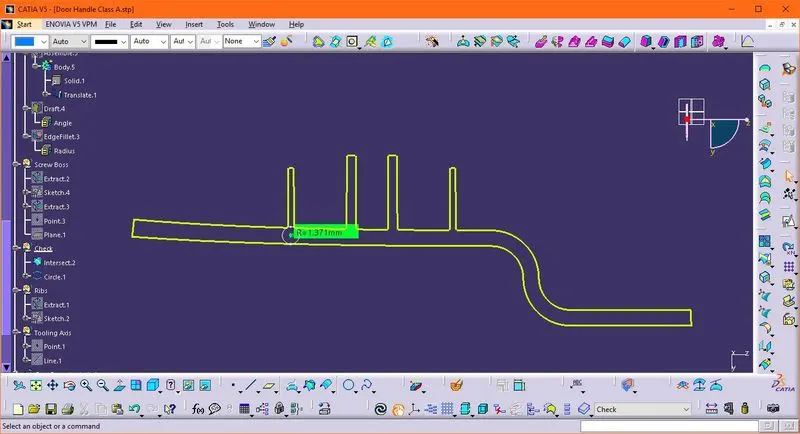

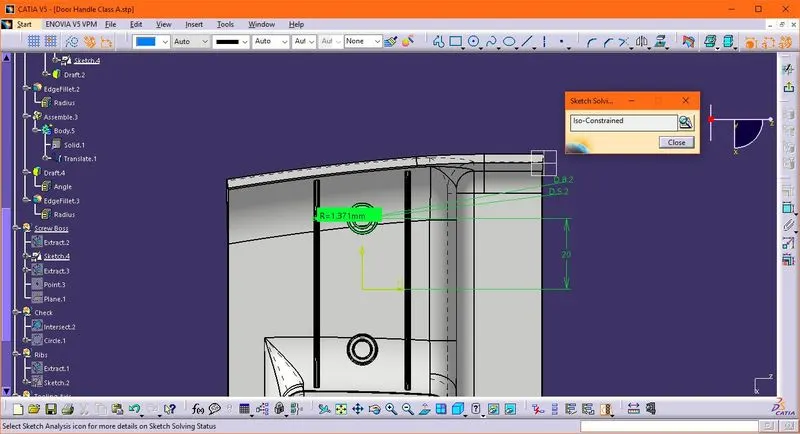

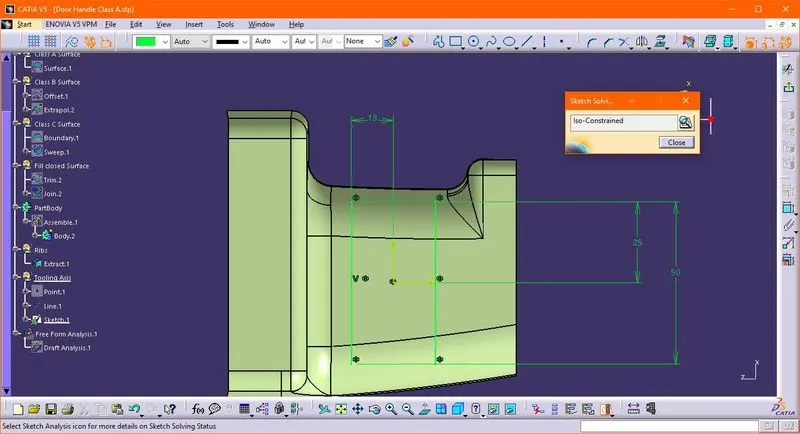

• Create a sketch for the ribs and the screw boss on the surface
• Pad the sketches and assemble them to the main body
• Draft the sides and fillet the edges as per the rules

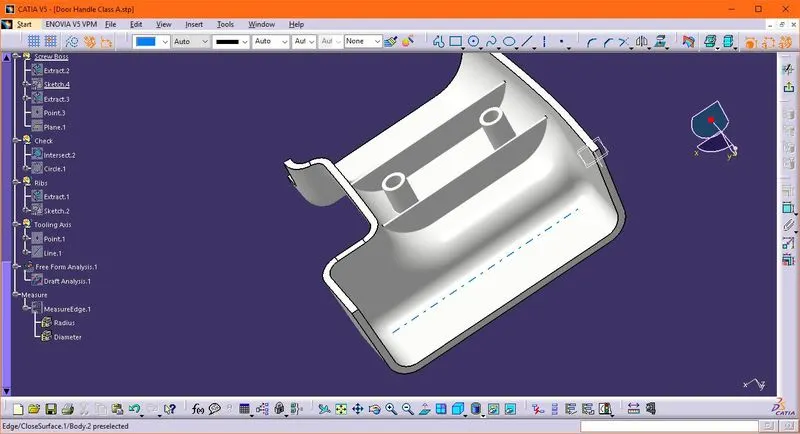

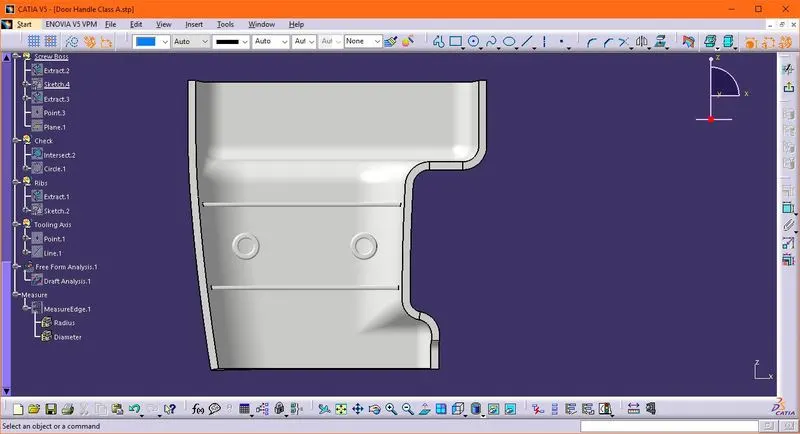

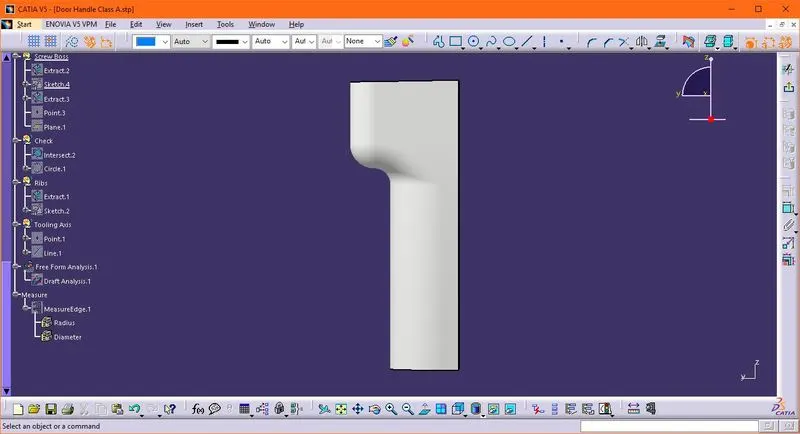

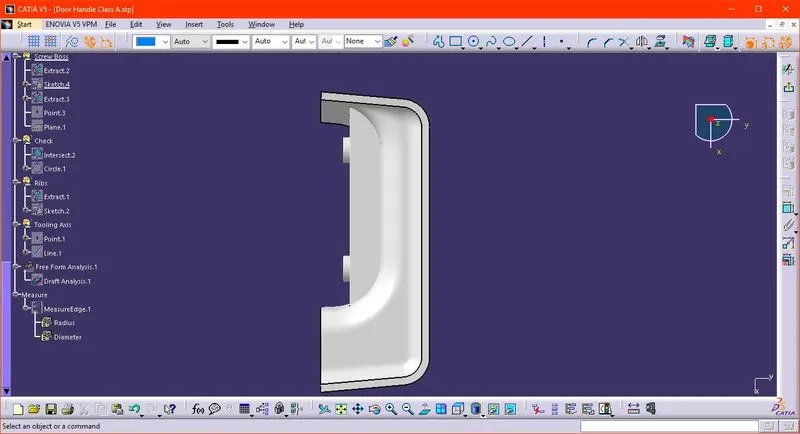

• The final output is as follows
• Screenshots are attached
