Week 9 - Attachment Feature Creation - Challenge 2

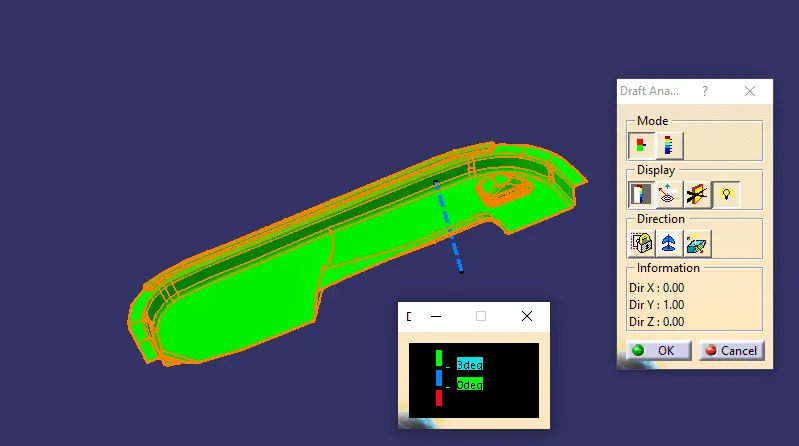

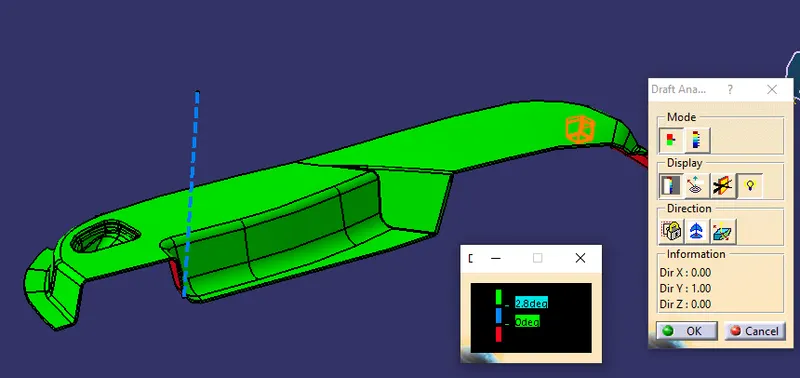

DRAFT ANALYSIS FOR THE GIVEN CLASS A SURFACE:

Conclusion:

From the draft analysis, it is evident that the most of the given class A surface draft is more than 3 degree to the selected tooling axis. Hence it is feasible to manufacture.

Findings:

However, the draft analysis should negative draft for the below two surfaces.

As this is CLASS A surface, we need to check with respective styling team to enquire about this negative draft and get it corrected feasible for manufacturing.

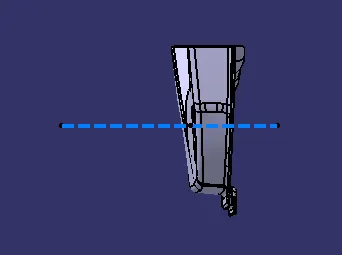

DRAFT ANALYSIS FOR THE FINAL PLASTIC COMPONENT (Image 1):

Conclusion:

From the draft analysis, it is evident that the final plastic components draft is more than 3 degree to the selected tooling axis. Hence it is feasible to manufacture.

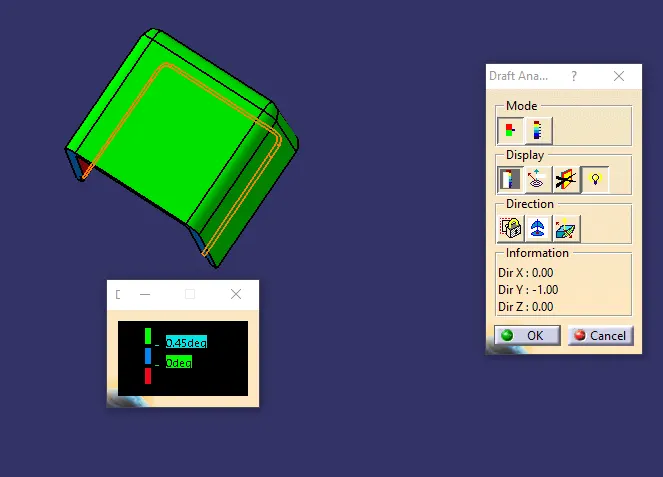

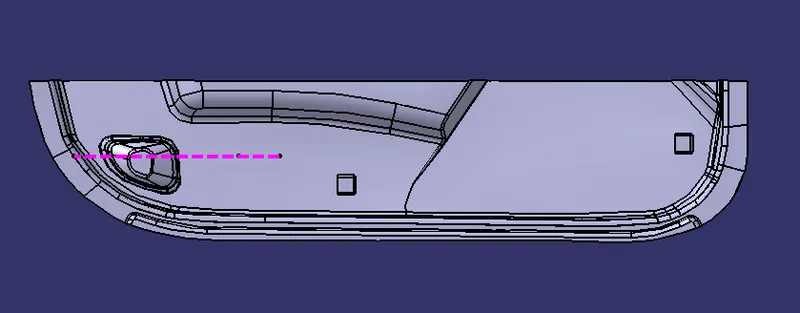

Image 2:

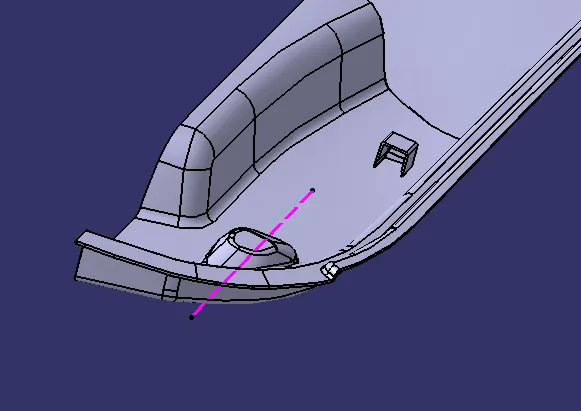

Image 3:

Tooling Axis:

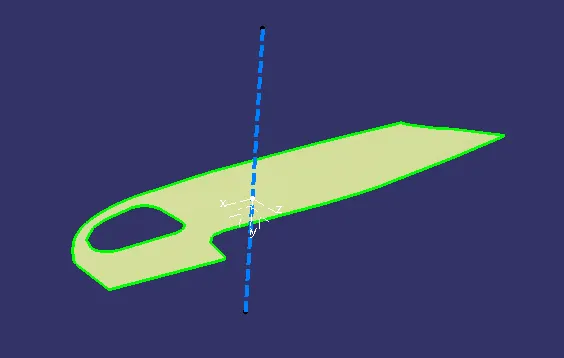

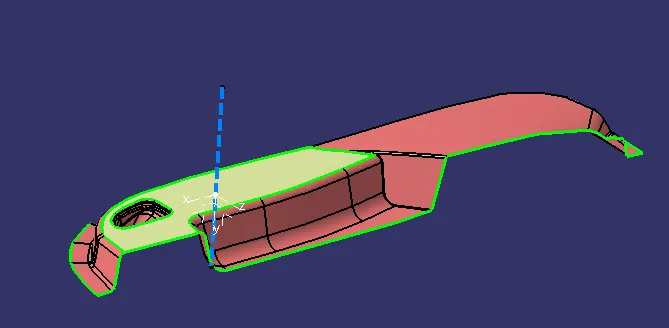

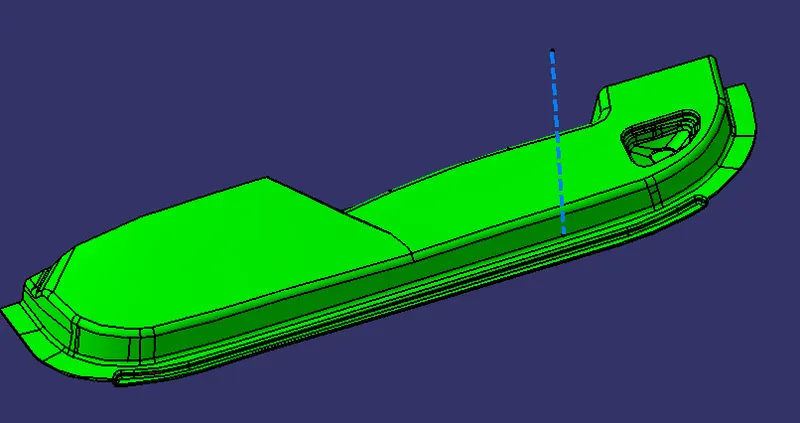

I extracted a surface from Class A, as shown in below image and created an axis perpendicular to the extracted surface.As the selected axis cleared almost all the surface, I made it as my Tooling Axis.

Tooling Axis without Class A Surface:

Side Core Axis:

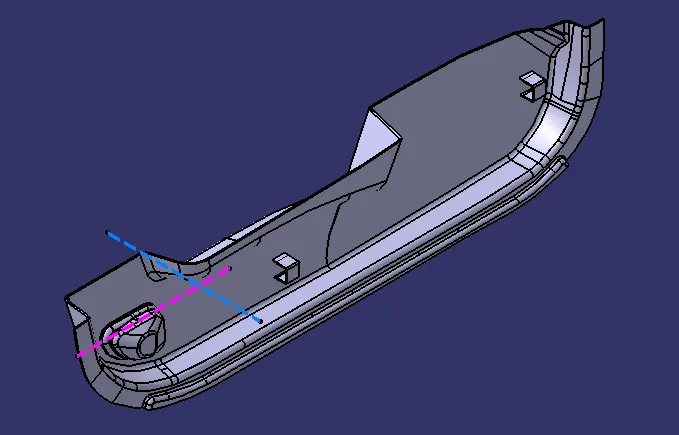

I created this side core axis perpendiclau to my tooling axis.

This axis is created to check the draft analysis of dog house feature.

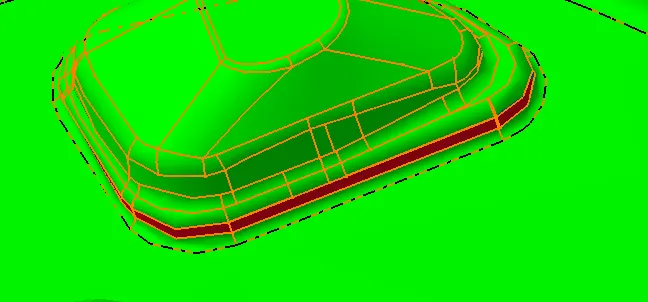

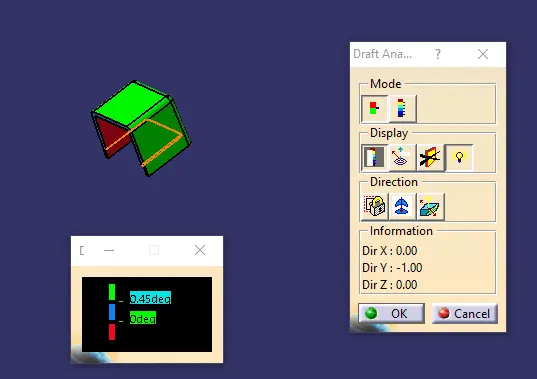

Draft Analysis for Dog House Feature with respect to Tooling Axis (Image 1):

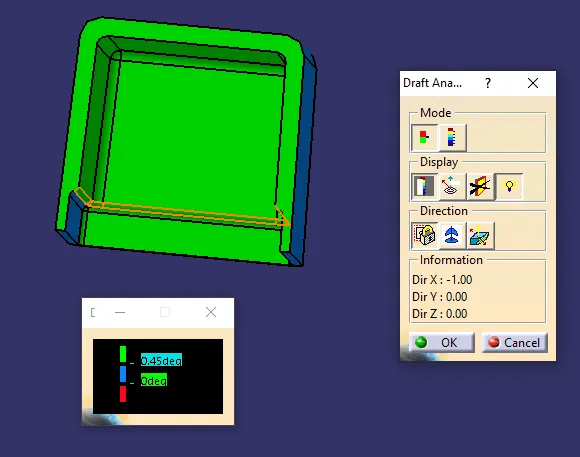

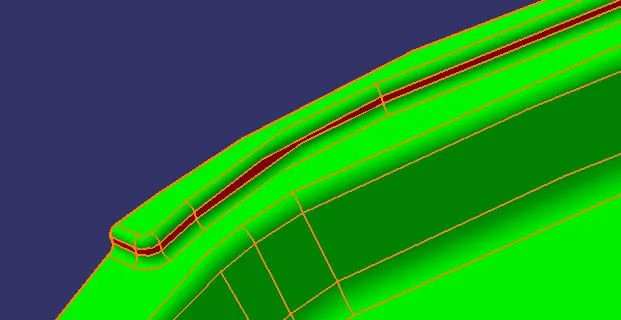

Draft Analysis for Dog House Feature with respect to Tooling Axis (Image 2):

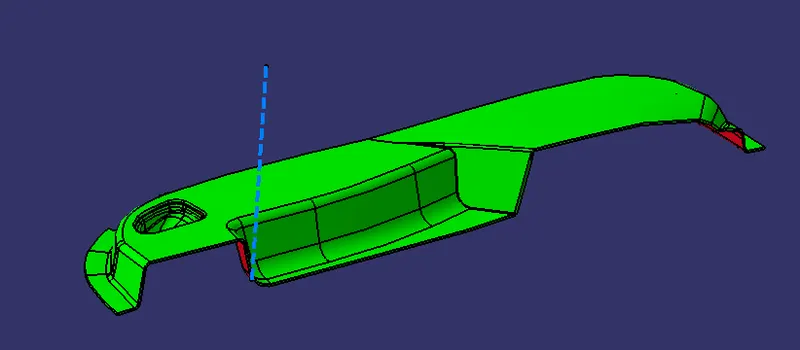

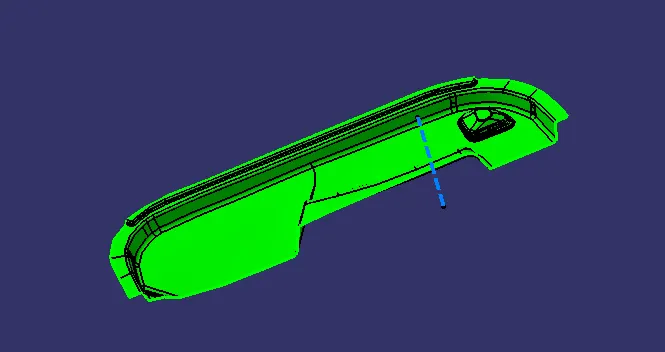

Draft Analysis for Dog House Feature with respect to Side Core Axis (Image 1):

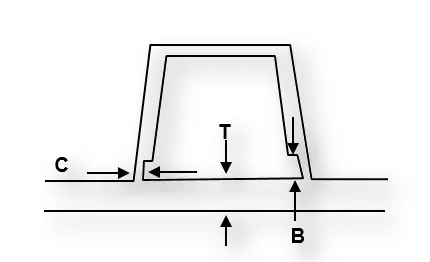

Design Rules followed for Dog House feature:

Thickess of Door Trim:2.5mm

C= 40% of thickness, (1mm)

B= 4mm (B can be 3 to 6mm).

Draft=0.5 Degree

Final Model Images:

Isometric View:

Front View:

Right Side View:
