Week 8 - Challenge 3 - Coin Holder Design

DRAFT ANALYSIS FOR THE GIVEN CLASS A SURFACE:

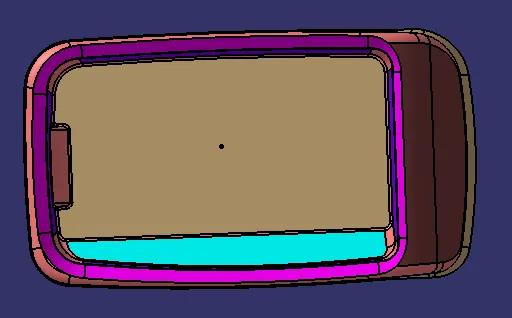

DRAFT ANALYSIS FOR THE FINAL PLASTIC COMPONENT (Image 1):

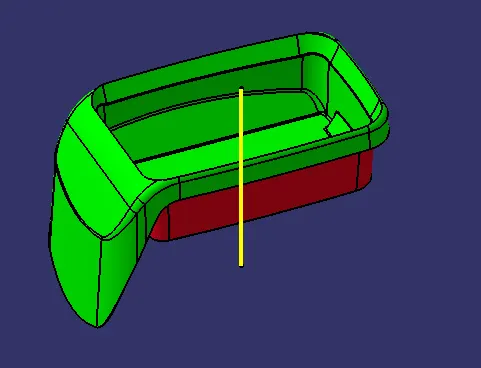

DRAFT ANALYSIS FOR THE FINAL PLASTIC COMPONENT (Image 2):

Normal to Tooling Axis:

SCREENSHOTS OF SOLID MODEL WITH COLOR CODE IN VARIOUS ORIENTATION:

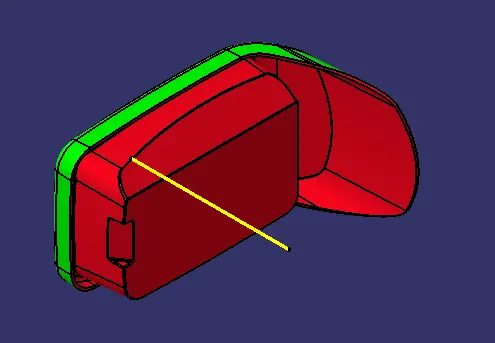

ISOMETRIC VIEW:

FRONT VIEW:

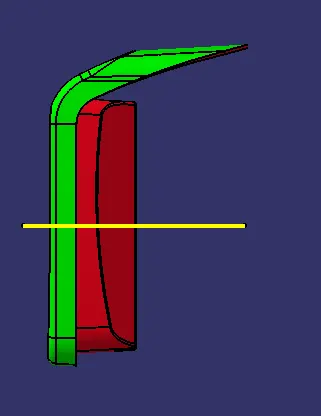

RIGHT SIDE VIEW:

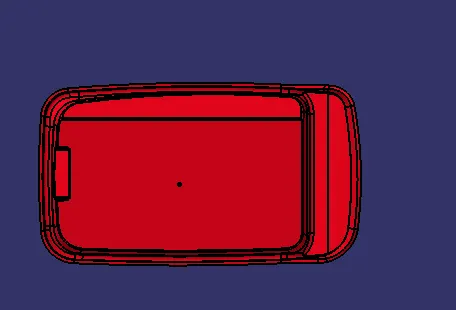

TOP VIEW:

REPORT

1) DRAFT ANALYSIS:

CLASS A SURFACE:

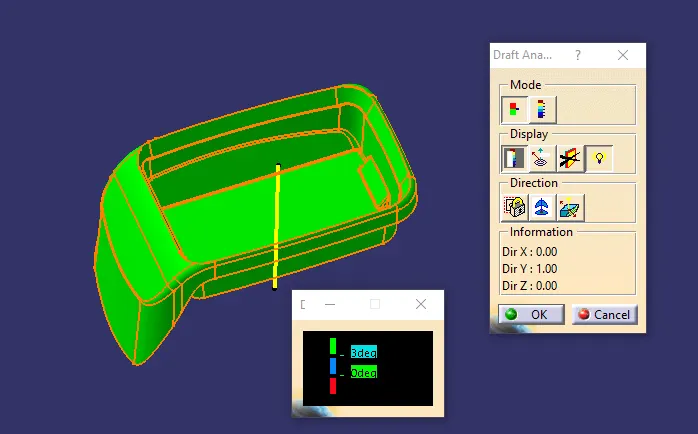

From the draft analysis on class A surface, it is very evident that all the top surfaces are greater than 3 degree.

This is concluded with the green color.

Final Plastic Component:

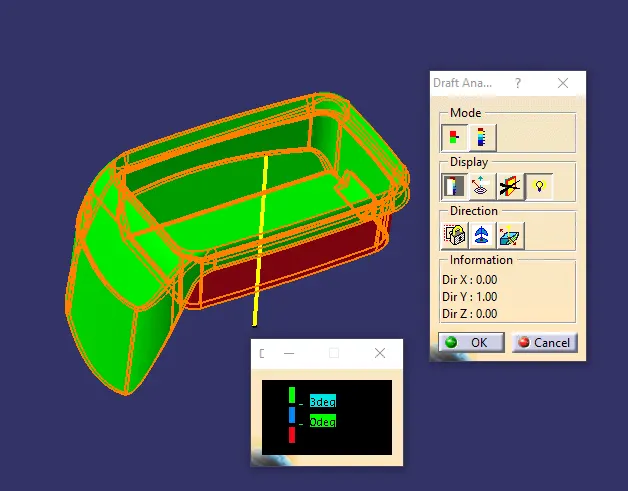

From the draft analysis on final plastic model, it is evident that all the top and side faces are greater than 3 degree.

Hence it is feasible to manufacture as per standards.

2) TOOLING AXIS:

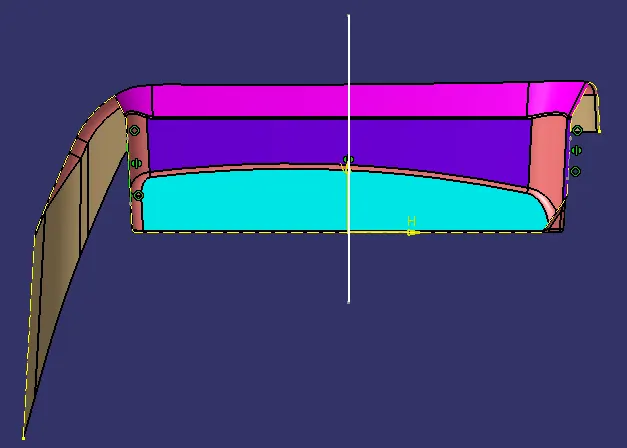

Initially for YZ surface, i created a dummy tooling axis.

I used the walls to create a bisecting line ( Dummy Axis 1)

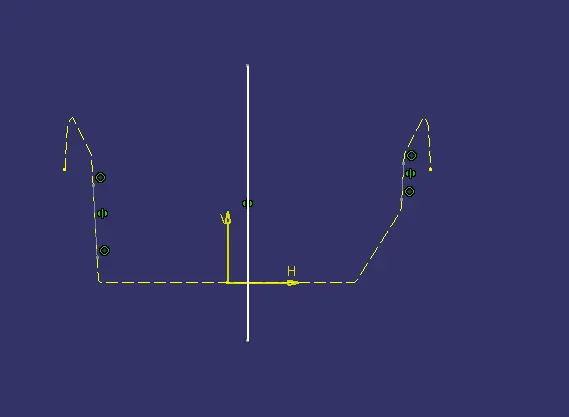

Same image without the Class A surface.

Then for XY surface, i created a dummy tooling axis.

I used the walls to create a bisecting line ( Dummy Axis 1)

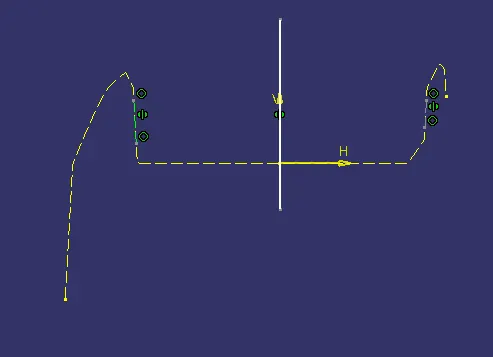

Same image without the Class A surface.

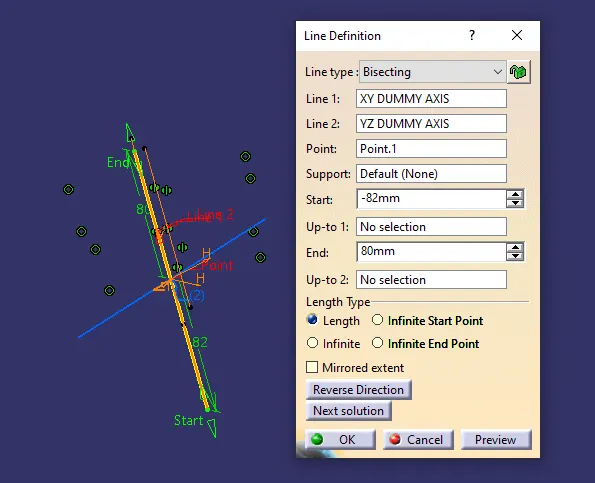

Using the above two dummy axis i create, main tooling axis by bisecting the two dummy axis, which i create initially

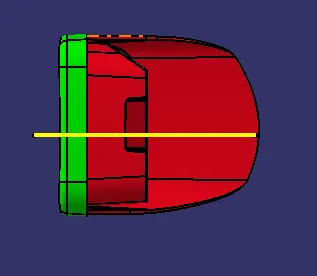

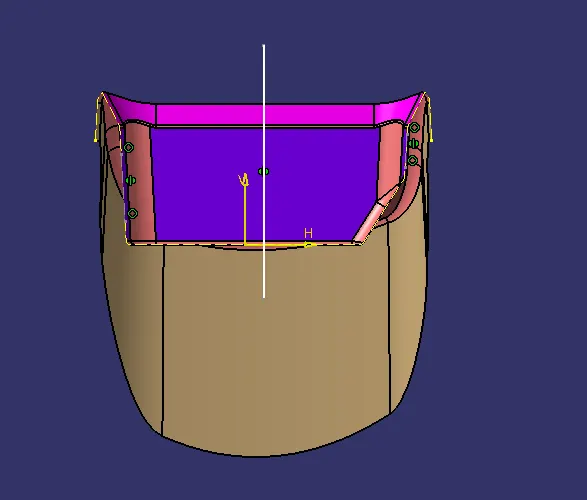

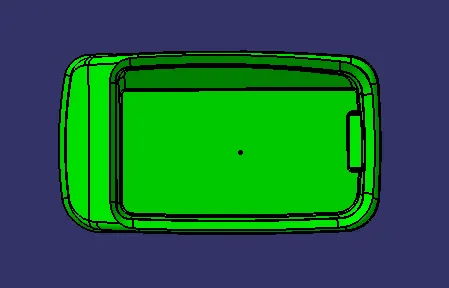

Normal view to tooling axis:

1) All the side walls are visible
