Week 9 - Attachment Feature Creation - Challenge 2

REPORT

1-FIRST USING SOLID SURFACE DEFINED LICATION OF DOG HOUSE

2-EXTRACTED FACE ON WHICH DOG HOUSE TO BE CREATED

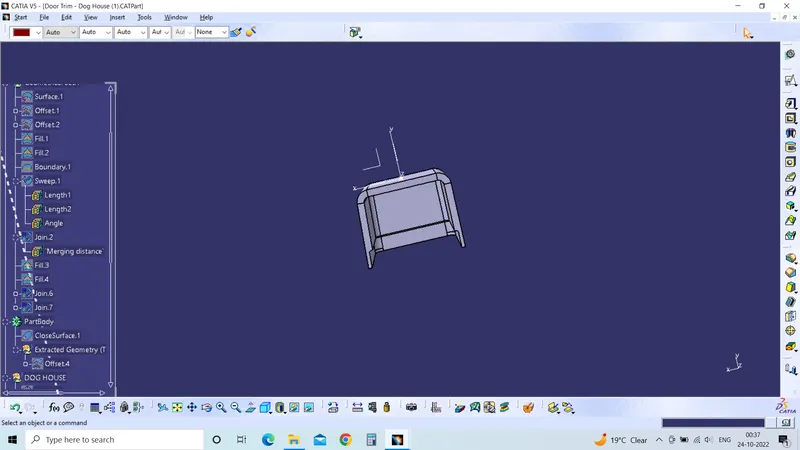

3-THEN DRAWN A BASIC SKECTH OF DOG HOUSE AND EXTRUDED

4- DRAFT ANGLE AND FILLETS CREATED

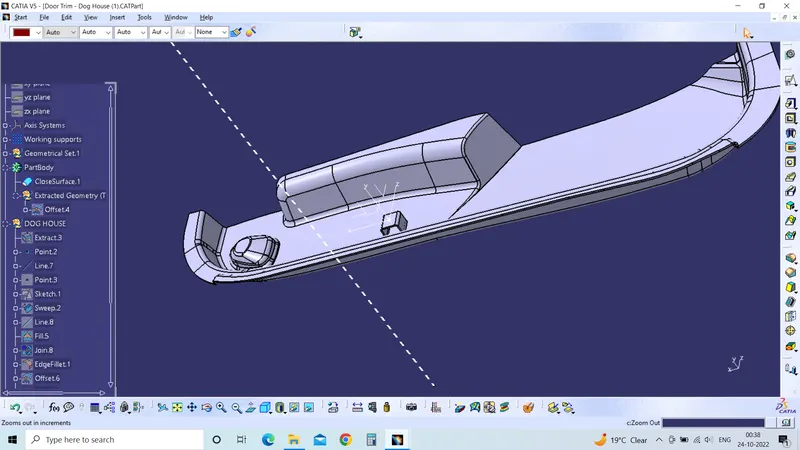

5-THEN IN PART DESIGN USING THICKNESS COMMAND , CREATED DOG HOUSE PART

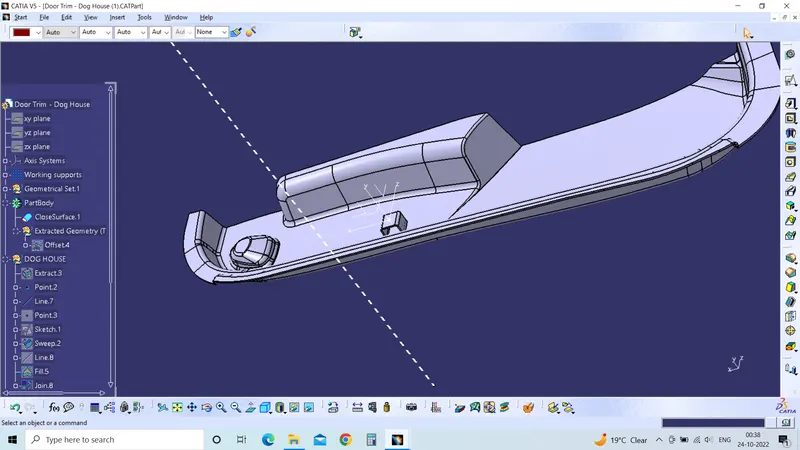

6- THEN CREATED PROFILE TO CUT BASE PART OF DOG HOUSE AS PER INTERSECTION AND CONTACT STANDARDS AND REMOVED PART OF DOG HOUSE AS PER REQUIREMENT STANDARDS
