Week 8 - Challenge 3 - Coin Holder Design

REPORT

1-FIRST TAKEN CLASS A SURFACE TO ANALYSE BEST TOOLING AXIS.

2-EXTRACTING BASE SURFACE OF CLASS A CREATED ATOOLING AXIS NOT TO THAT SURFACE

3-THEN FIRST ANALYZED CLASS A SURFACE AND EXTRACTED THREE BASIC PROFILES CONTAINING MULTIPLE SURFACES

4-FIRST EXTRACTED SIDE WALLS AND THEN UNTRIMED AND EXTRAPOLED SAME SURFACE AND TRIMED TOGETHER AND OFFSET GIVEN AS PER REQUIRED THICKNESS TO FORM A BASIC BIN SHAPE PROFILE

5-THEN EXTRACTED BASE SURFACE AND INCLINED SURFACE AND UNTRIMED AND EXTRAPOLATED ALL SURFACES AND TRIMED AND OFFSET GIVEN AS PER REQUIREMENT TO FORM BASE SURFACE

6-AGAIN TOGETHER BASE SURFACES AND SIDE WALLS TRIMMED

7-THEN EXTRACTED OUTER WALLS AND UNTRIMED AND EXTRAPOLATED AND OFFSET ALL OUTER WALLS AS PER REQUIREMENT AND JOINED THEM TOGETHER

8-THEN TRIMMED ALL THE OUTER WALLS WITH BASE AND SIDE WALLS TOGETHER

9-THEN CREATED A SMALL OUTWARD POCKET AND TRIMMED AND OFFSET WITH COMPLETE (SIDE WALL , BASE WALL. OUTER WALL)SURFACES

10-THEN CREATED REQUIRED FILLET REFERING CLASS A SURFACE AND MEASUREING FILLETS VALUE USING MEASUREMENT TOOL

11-NOW TO CREATE CLASS C SURFACE AGAIN EXTRACTED SIDE WALL BOUNDARY PROFILE AND SURFACES

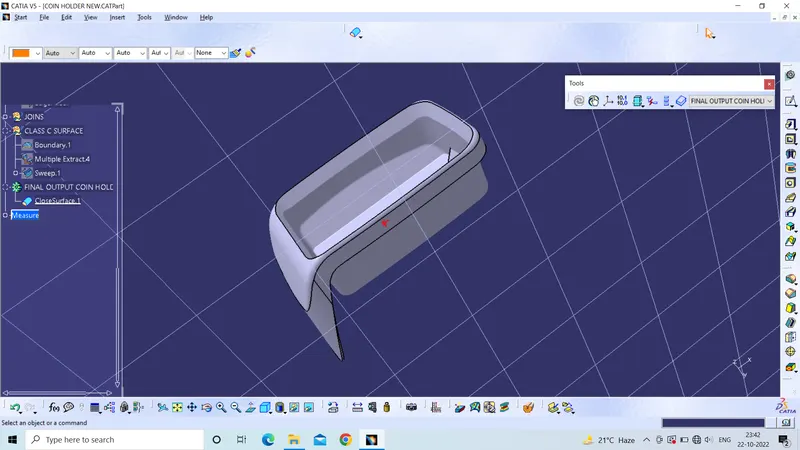

12-IN SWEEP COMMAND USING REFERENCE TO THE SURFACE COMMAND CREATED CLASS C SURFACE BY REFERING SIDE WALL SURFACE AND C SURFACE ANGLE 90 DEGREE TO IT.

13-JOINED CLASS A SURFACE WITH CLASS C SURFACE

14-THEN TRIMMED JOIN(CLASS A AND CLASS C) WITH CLASS B SURFACE

15-NOT COMPLETE PROFILE CREATED

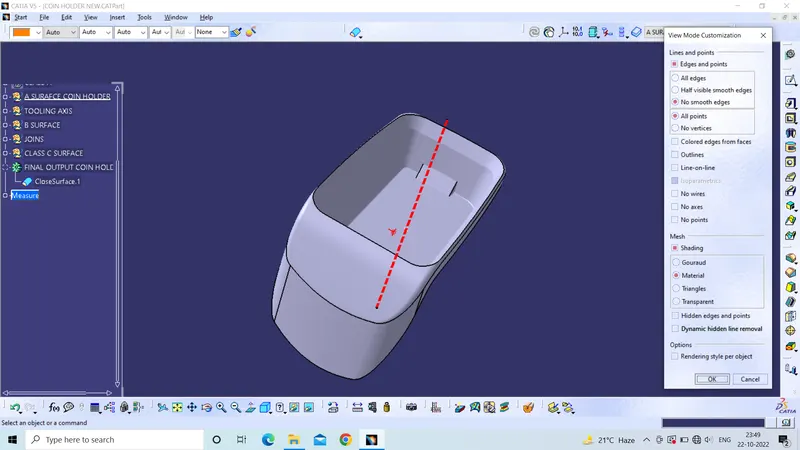

16-SWITCHED TO PART DESIGN AND USING CLOSE SURFACE COMMAND CREATED FINAL SOLID PRODUCT

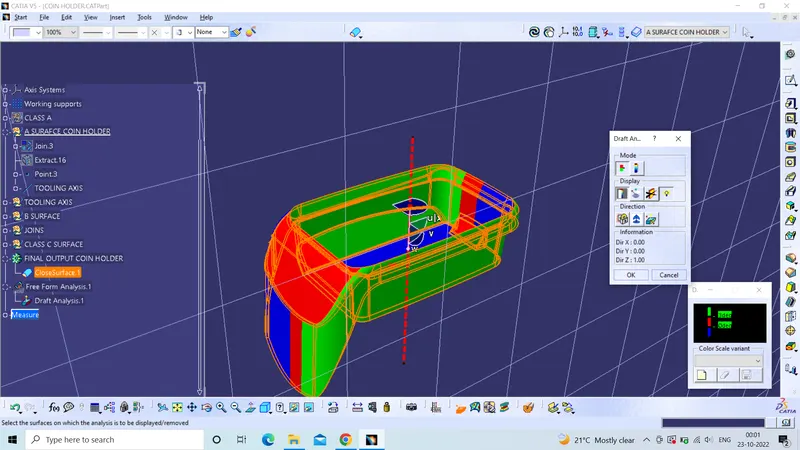

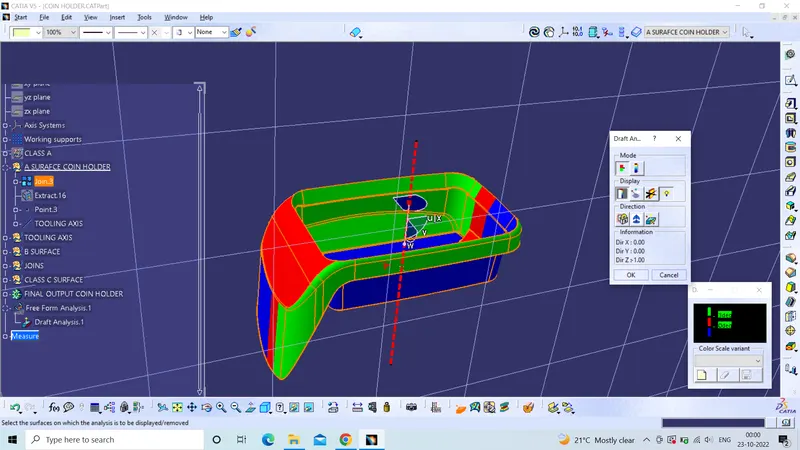

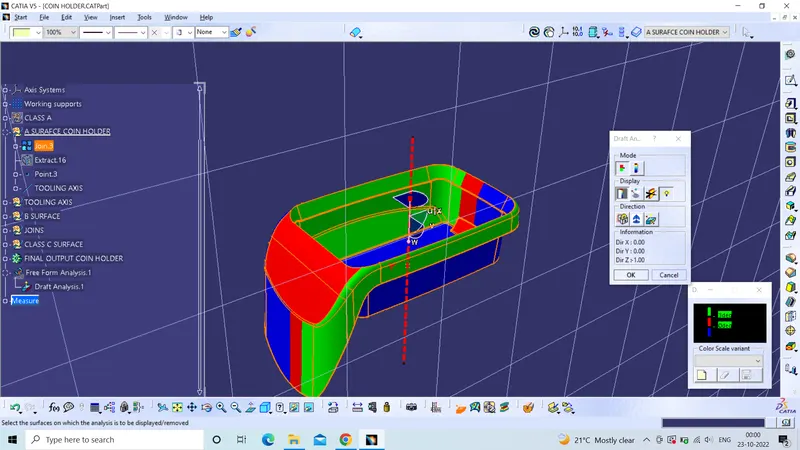

17-ANAYLZED DRAFT ANGLES USING DRAFT ANALYSIS COMMAND
