Week 8 - Challenge 6 - Core & Cavity Design

REPORT

1-TAKEN SWITCH BEZEL TO CEATE CORE CAVITY DESIGN

2-FIRST ANALYZED THE SURAFCES AND ANALYZEDPARTNIG SURFACE AND PARTING LINE

3-TO CREATE PARTING SURFACE, TAKEN JOIN OF A AND C SURFACE

4-THEN TAKEN B SURFACE AND TRIMMED A & C SURFACE TOGETHER WITH CLASS B SURFACE ANOD FORM A PARTING SURFACE

5-THEN TO CREATE CORE PART CLASS A SURACE AND CLASS B SURAFCE TRIMMED

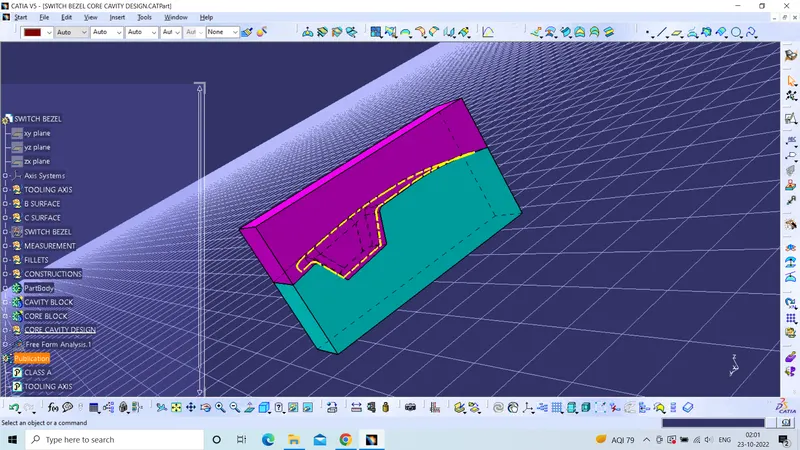

6-TO CREATE SOILD OUT OF IT FIRST CREATED A RECTANGULAR PROFILE ON SURFACE USING AXIS SYATEM AND EXTRUDED THE SAME TO FORM A SOLID PART , THEN USING FILL COMMAND CORE SURFACE CLOSED.

7- CORE DESIGN THE CONVERTED INTO SOLID USING CLOSE SURFACE IN PART DESIGN

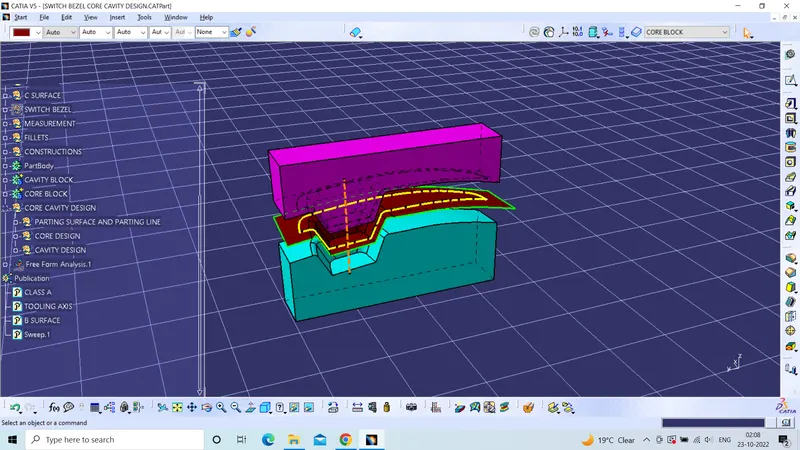

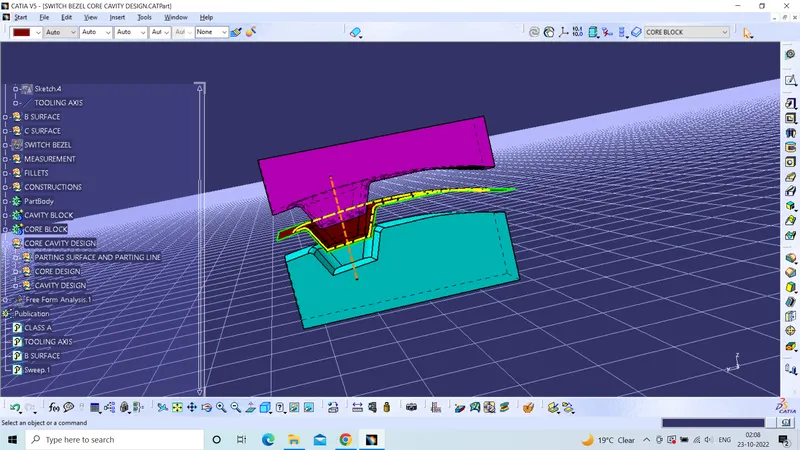

8-TO CREATE CAVITY DESIGN FIRST CREATED EXTRUDE USING SAME PROFILE USED FOR CORE DESIGN, THEN CLASS B AND CLASS C SURFACE TRIMMED TOGETHER TO FORM CAVITY PROFILE AND THEN USING FILL COMMAND CAVITY DESIGN CLOSED

9-USINF CLOSE SURFACE IN PART DESIGN CAVITY CONVERTED INTO SOLID PART.

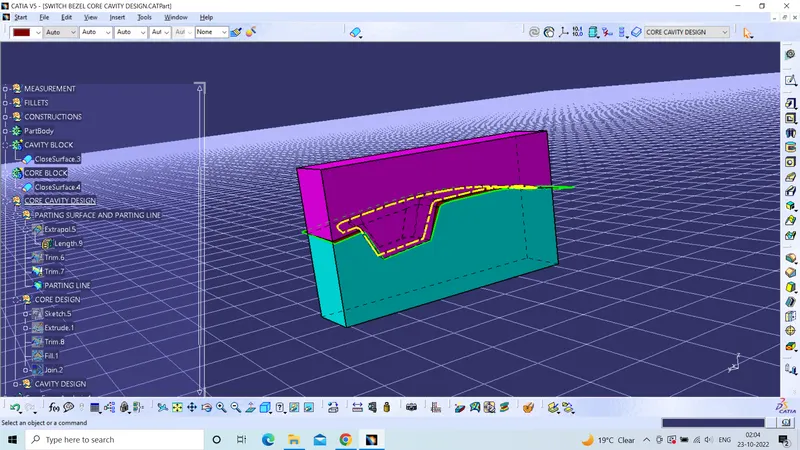

10-THEN CREATED PARTING LINE USING INTERSECTION COMMAND BY INTERSECTING CLASS (A & C) WITH CLASS B SURFACE.
