Week 8 - Challenge 2 - Switch Bezel Design

SUMMARY REPORT

1-USING CLASS A SURFACE CREATED A TOOLING AXIS .

2-FOR CREATION OF TOOLING AXIS W.R.T YZ PLANE FIRST EXTRACTED A BASE SURFACE AND PLOTTED POINT ON IT ANS AXIS SYSTEM ON THAT POINT.

3-SWITCHED INTO POSITIONED SCKETCH AND INTERSECTED CLASS A SURAFCE , AND PLOTTED LINES WITH REFERENCE TO THE SIDE BASE SURFACE AND DRAW A BISECTING LINE.

4-FOR CREATION OF SECOND TOOLING AXIS W.R.T XZ PLANE AGAIN USING POSITIONED SKETCH , INTERSECTED A SURFACE AND CREATED BISECTING LINE.

5-BY BISECTING THESE TWO LINES FINAL TOOLING AXIS DRAWN.

6-THEN EXTRACTED BASIC SIMPLE PLANES IGNORING FILLETS AND EXTRAPOLATED.

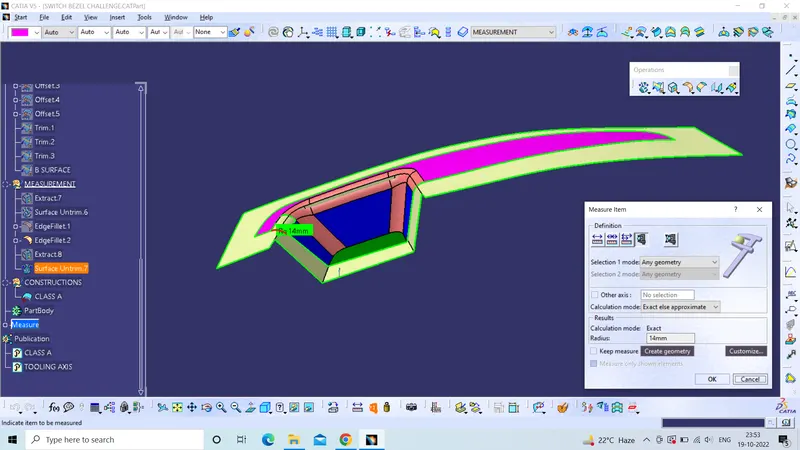

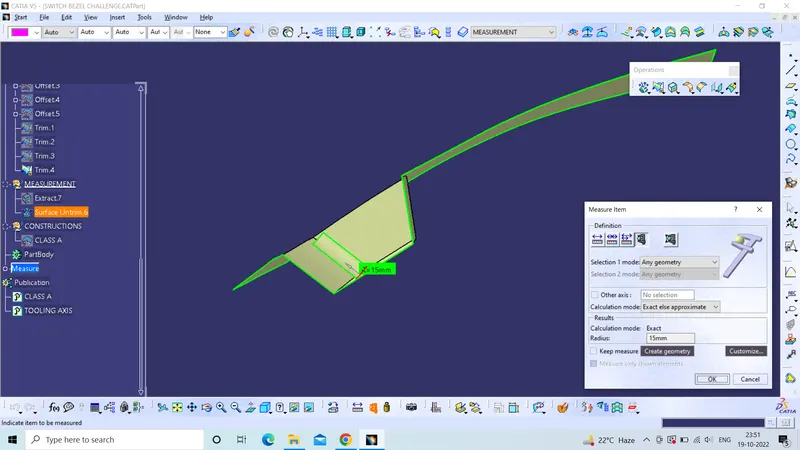

7-OFFSET GIVEN TO ALL EXTRAPOLATED SURFACES AND TRIMMED ALL THE SURFACE AND GIVEN FILLET TO ALL EDGES AS PER A SURFACE AND CREATED CLASS B SURFACE.

8-FOR CREATING CLASS C SURFACE FIRST DEFINED BOUNDARY OF CLASS A SURFACE AND EXTRUDED USING SWEEP COMMAND.

9-JOINED A SURAFCE WITH C SURFACE USING JOIN COMMAND

10-THEN TRIMMED B SURACE WITH SURFACE A AND B TOGETHER AND FORMED APPROPRIATE SURFACE BODY.

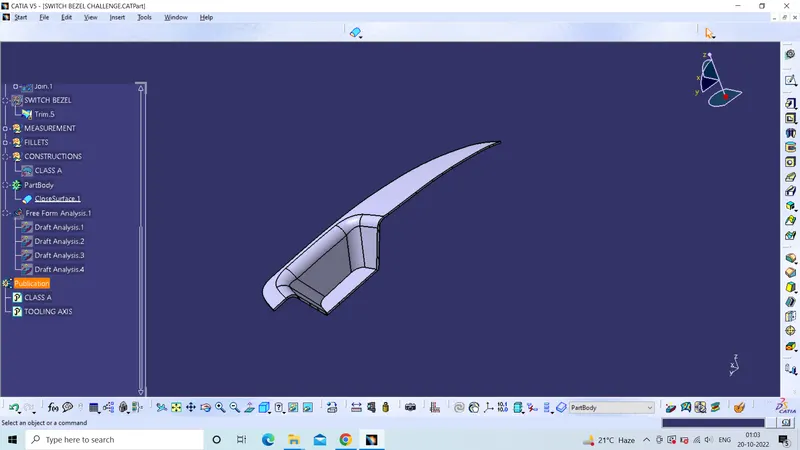

11-SWITCHED TO THE PART DESIGN AND CREATED CLOSE SURFACE.

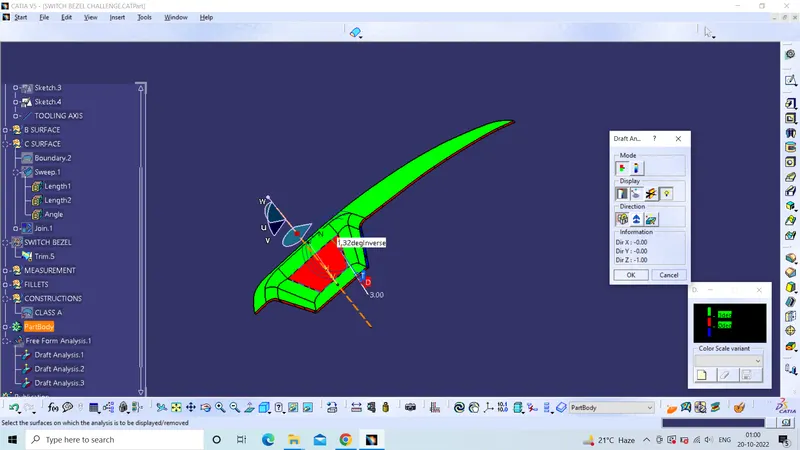

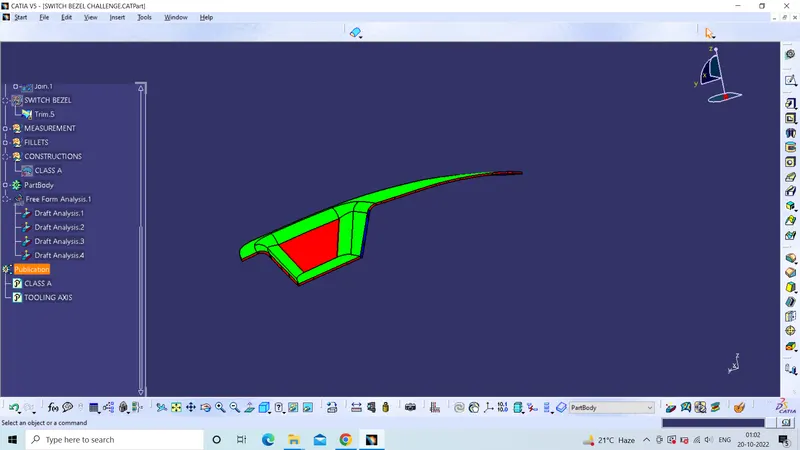

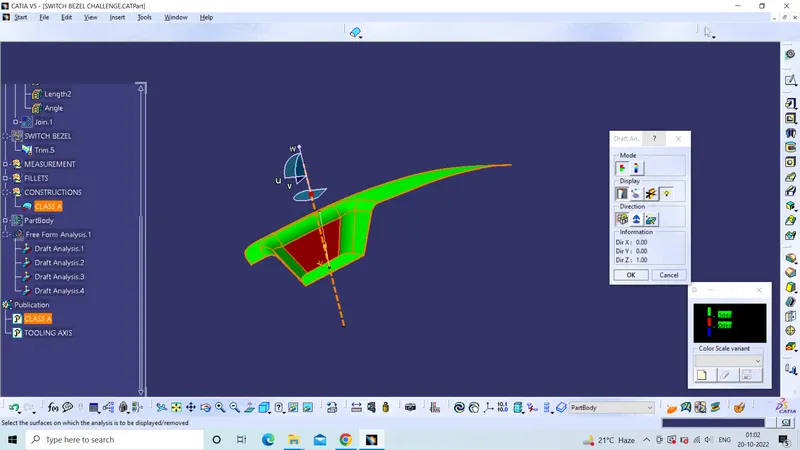

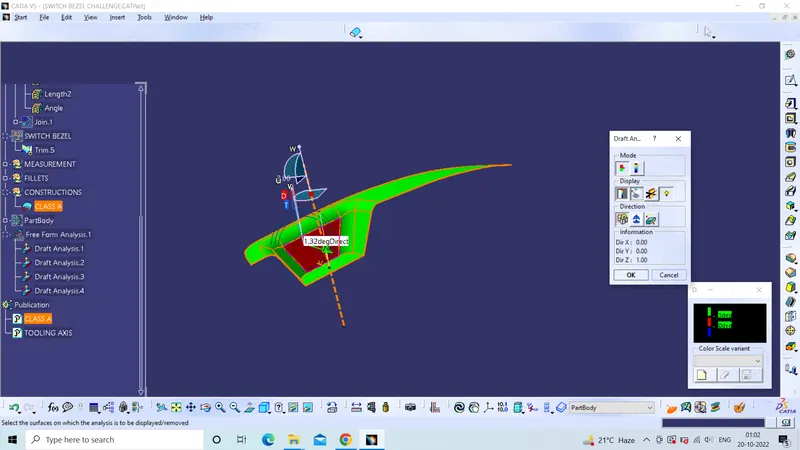

12-AFTER CREATING CLOSE SURFACE ANALYSED DRAFT ANGLES USING DRAFT ANALYSIS COMMAND
