Week 8 - Challenge 1 - Base Bracket Design

SUMMARY REPORT

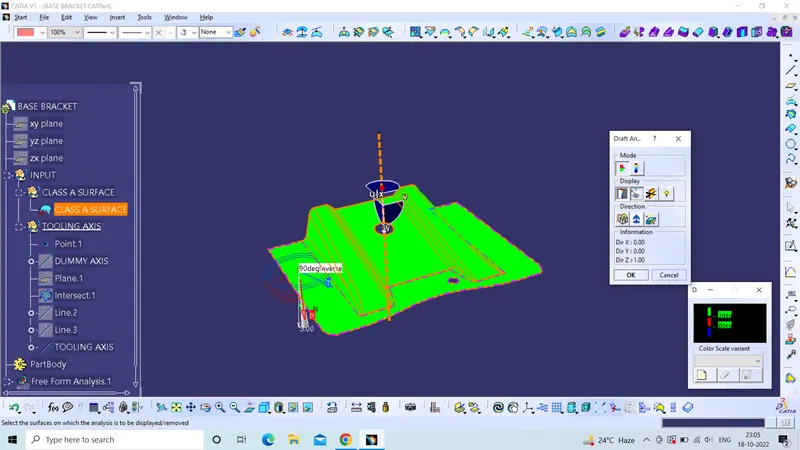

1-USING CLASS A SURFACE CREATED A TOOLING AXIS USING INTERSECT METHOD.USING THIS METHOD CREATED LINES AND CREATED BISECTING LINE AND CREATED TOOLING AXIS.

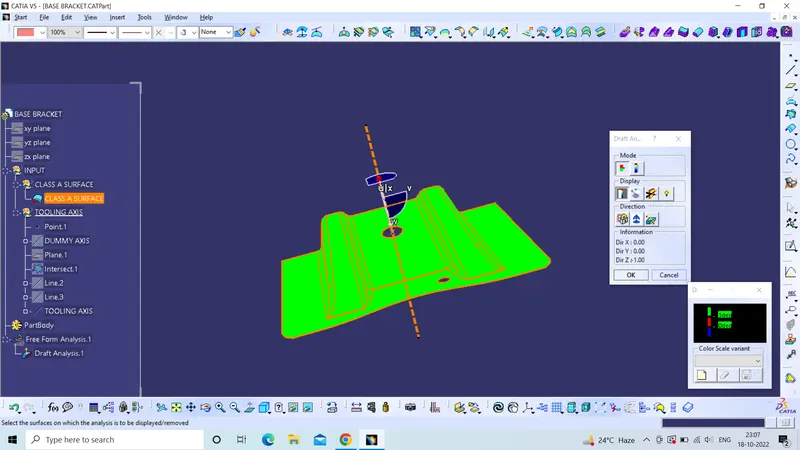

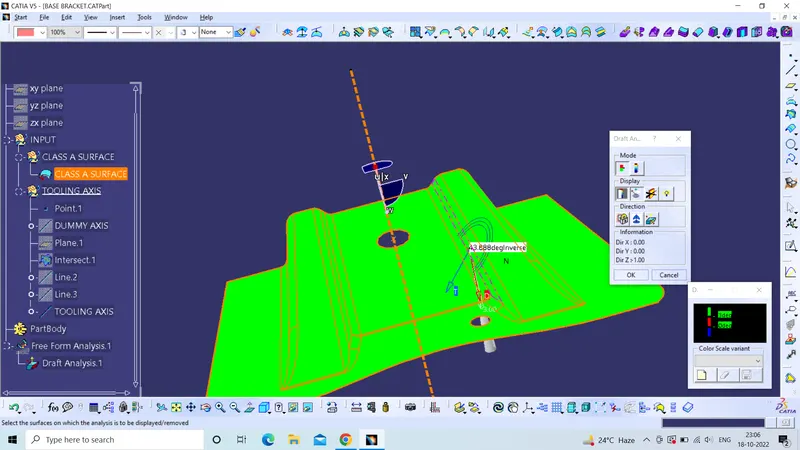

2-ANALYSE THE DRAFT CLASS A SURFACE

3-AFTER CREATING TOOLING AXIS SPLIT THE COMPLETE SURAFCE INTO THREE SIMPLE PROFILES.1-RIB 2-INCLINED SURFACE 3- BASE SURFACE

4-USING UNTRIM AND EXTRAPOLATE COMMAND CREATED A RIB WITHOUT FILLETS AND CREATED OFFSET OF IT.

5-SAME PROCEDURE FOLLOWED TO CREATE SECOND RIB

6-THEN USING UNTRIM AND EXTRAPOLATE CREATED INCLINED SURFACE AND BASE SURFACE AND CREATED OFFSET OF IT.

7-USING TRIM COMMAND RIB AND BASE SURFACES JOINED TOGETHER

8-CLASS B SURFACE CREATED BY DOING FILLETS.

9-CREATED A CLASS C SURFACE USING BOUNDARY AND SWEEP COMMAND

10-FIRST DEFINED A BOUNDARY TO CLASS A SURFACE AND USING SWEEP COMMAND AND REFERING BOUNDARY CREATED A CLASS C SURAFCE IN DRAFT DIRECTION (3DEGREE DRAFT ANGLE)

11-THEN FOR TWO HOLES ALSO CLASS C SURFACE CREATED USING BOUNDARY AND SWEEP COMMAND

12-THEN JOINED A AND C SURFACES USING JOIN COMMAND

13-USING TRIM COMMAND JOIN(A & S SURFACE) AND CLASS B SURFACE TRIMMED.

14-THEN IN PART DESIGN USING CLOSE SURFACE COMMAND CREATED FINAL SOLID PART FORM A,B,C SURFACES.

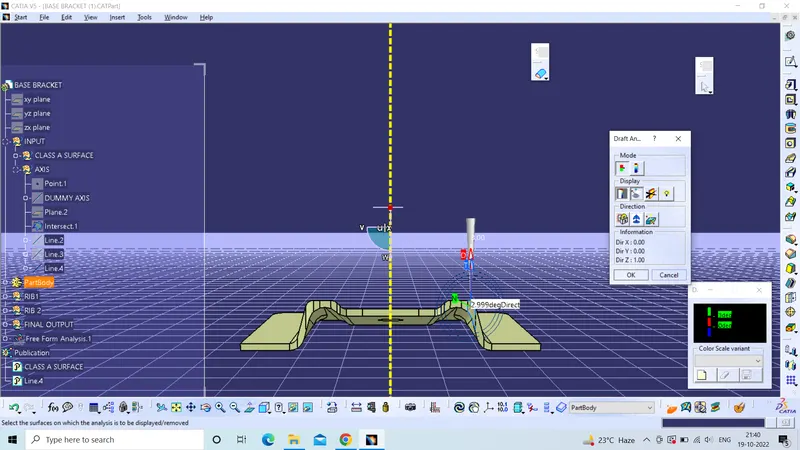

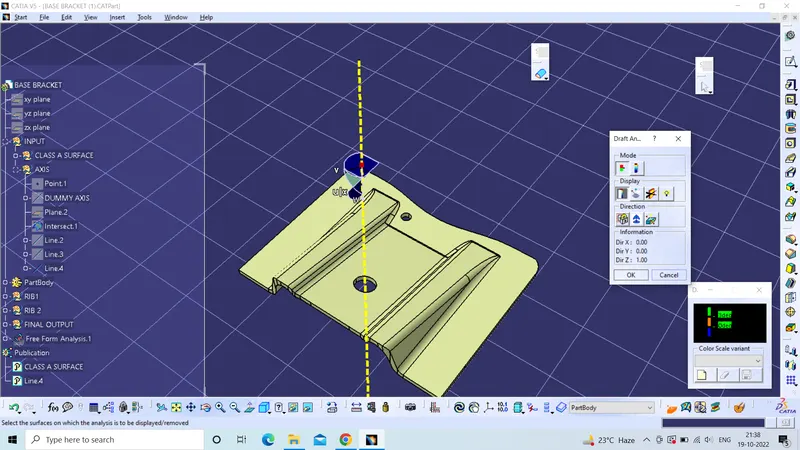

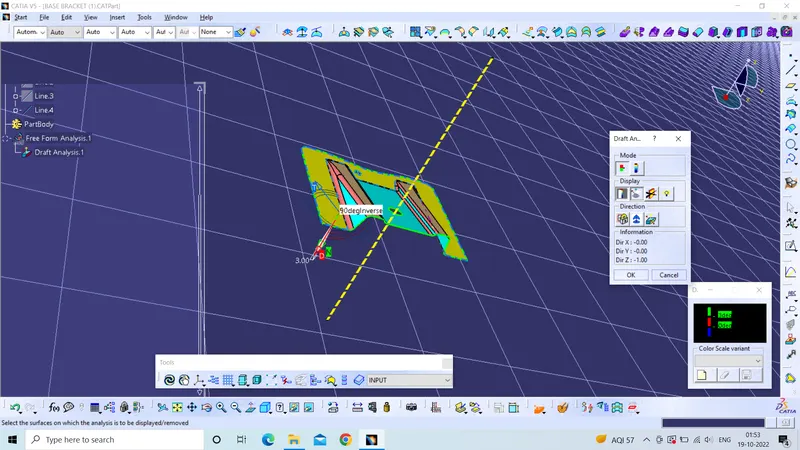

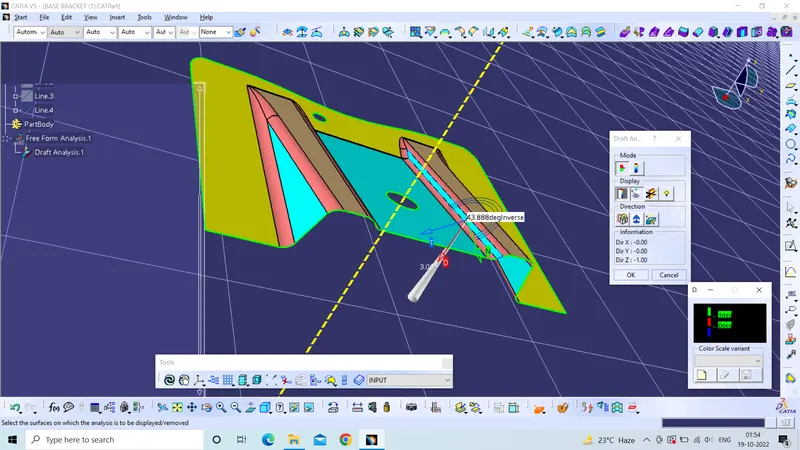

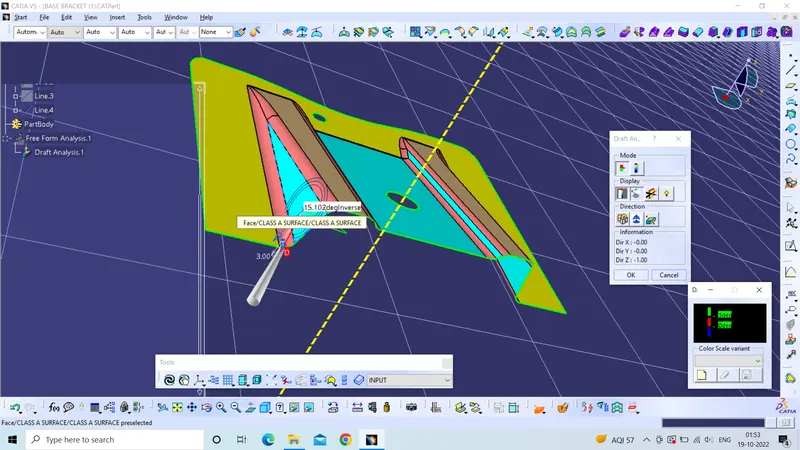

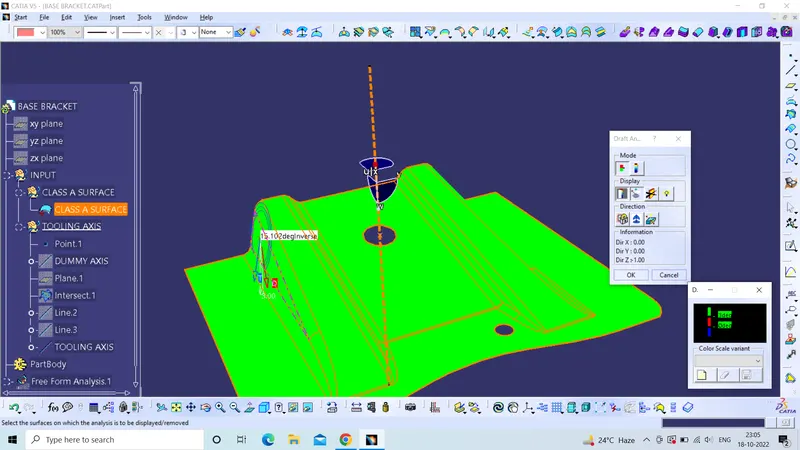

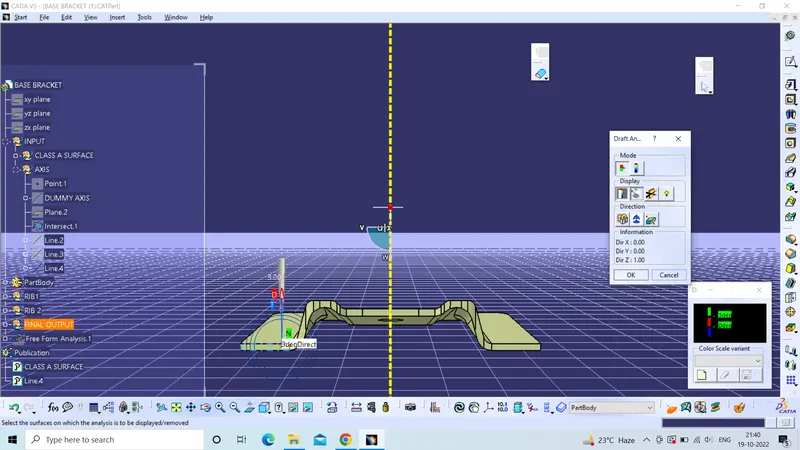

15-ANALYSE DRAFT USING DRAFT ANALYSIS COMMAND.
