Week 9 - Attachment Feature Creation - Challenge 2

REPORT:

TOOLING AXIS FOR DOOR TRIM CREATION:

• ANALYSE SUITABLE SURFACE FOR CREATING TOOLING AXIS
• ESTRACT SURFACE FROM CLASS A
• CRATE A POINT USING POINT ON A SURFACE COMMAND
• CREATE A LINE PERPENDICULAR TO THE SURFACE
• THIS IS OUR TOOLING AXIS

TOOLING AXIS FOR DOG HOUSE CREATION:

• USING MAIN TOOLIN AXIS POINT AS A REFERENCE
• THEN CREATE A LINE COMMAND AND MAKE X AS A DIRECTION.
• THIS IS OUR SIDE TOOLING AXIS

DRAFT ANALYSIS:

• TO PERFORM DRAFT ANALYSIS OPEN FEATURE DRAFT ANALYSIS OPTION
• THEN PUT CUSTOMIZE VIEW PARAMETERS TO MATERIAL MODE
• THEN CLICK ON COMPASS ICON TO ALIGN THE COMPASS INTO TOOLING AXIS, THEN CLICK ON THE SURFACE.
• IN MOST OF THE CLASS A FILLETS ARE NOT IN SHAPE, I TRIED SWEEP (WITH DTRAFT DIRECTION & REFERENCE SURFACE), MULTISECTIONS. STILL IM NOT ABLE TO GET A PROPER DRAFT ANGLE IN THE FILLETS.

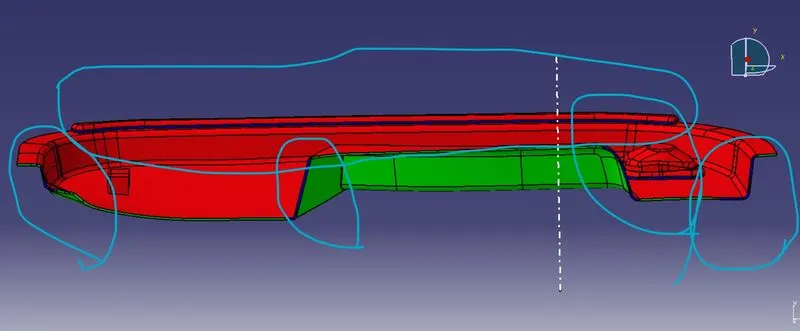

• KINDLY SEE THE IMAGES BELOW FOR BETTER UNDERSTANDINGS,

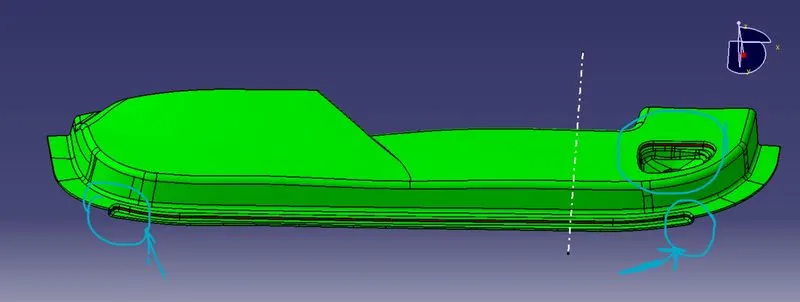

ABOVE IMAGE IM USING FILL COMMEND FOR CREATING C SURFACES DUE TO SMALL FILLER RADIUS, BOTH SWEEP AND MULTISECTION COMMENDS ARE NOT GIVING THE OUTPUT.

NOTE: DUE TO CLASS A SURFACE PROBLEM IM NOT ABLE TO GET PROPER DRAFT ANALYSIS.

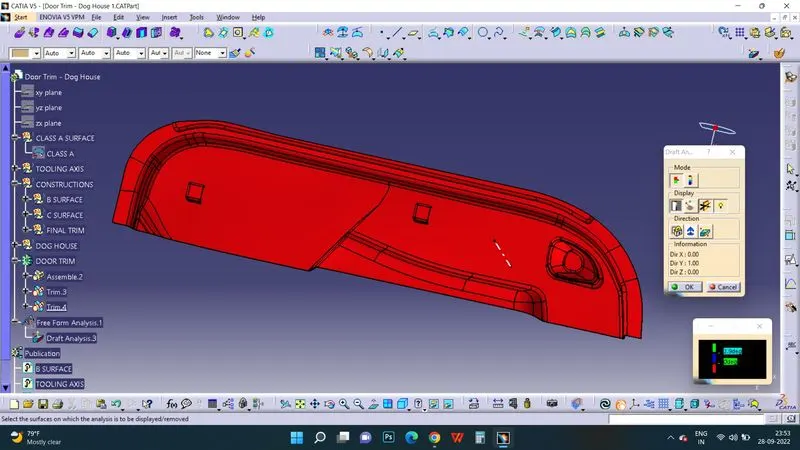

DRAFT ANALYSIS:

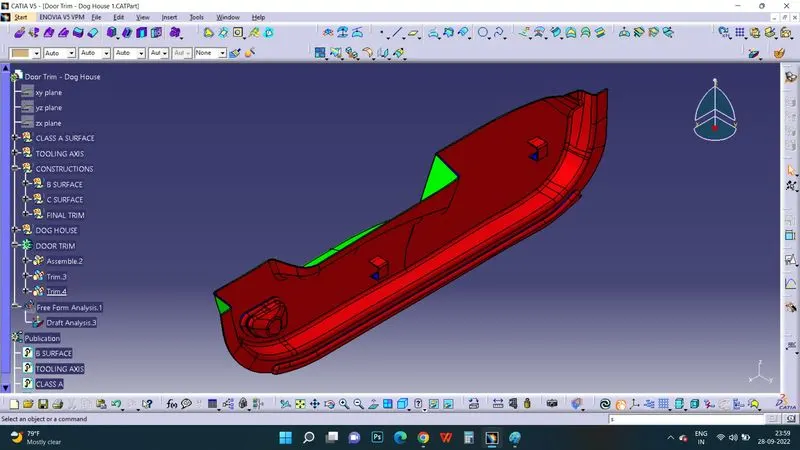

ISOMETRIC VIEW:

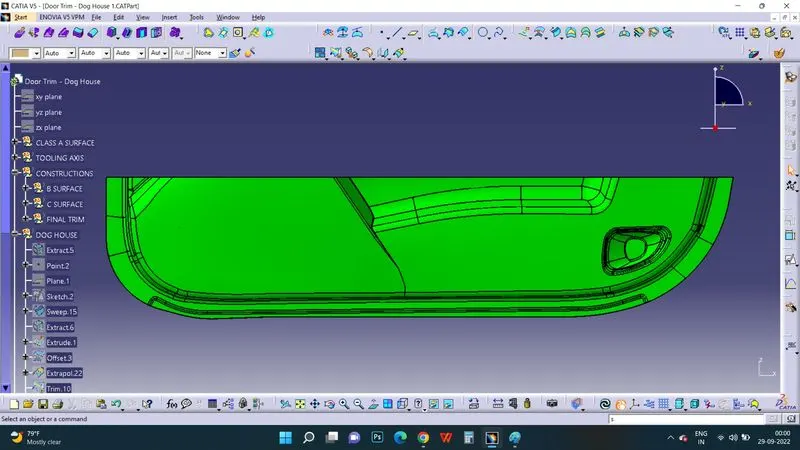

FRONT VIEW

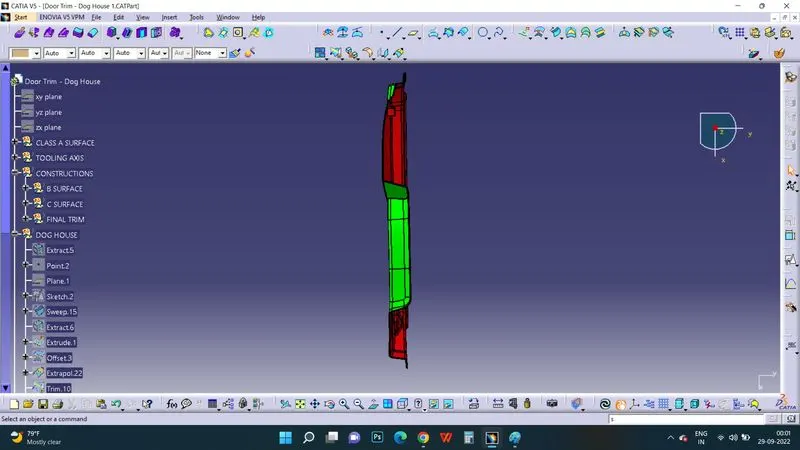

LEFT SIDE VIEW

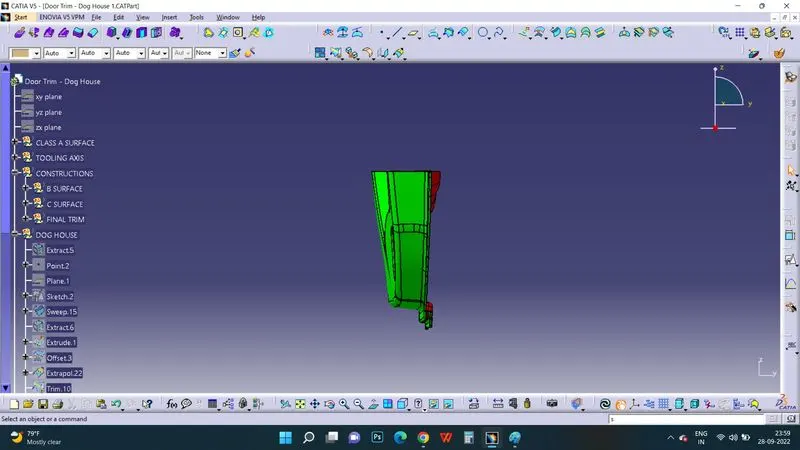

RIGHT SIDE VIEW

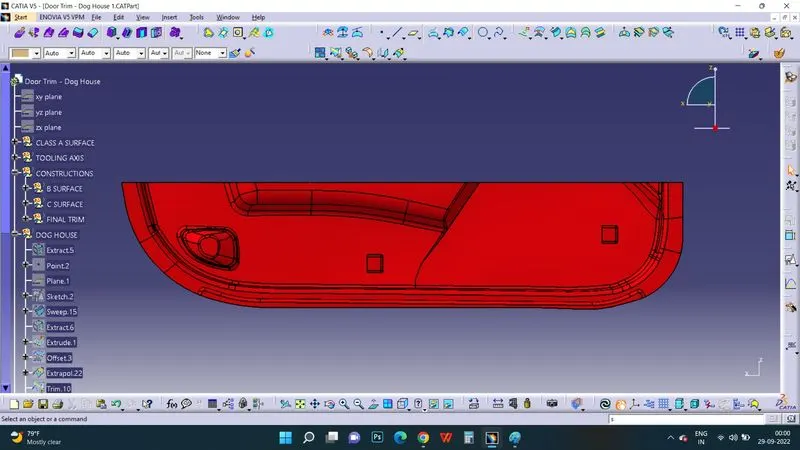

TOP VIEW
