Week 9 - Attachment Feature Creation - Challenge 2

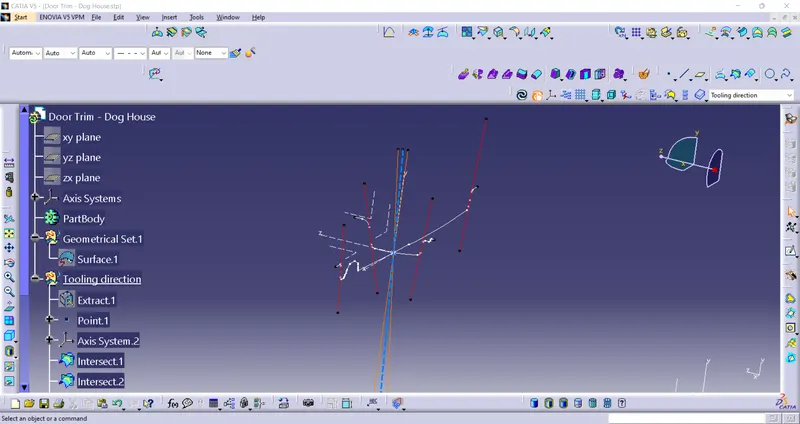

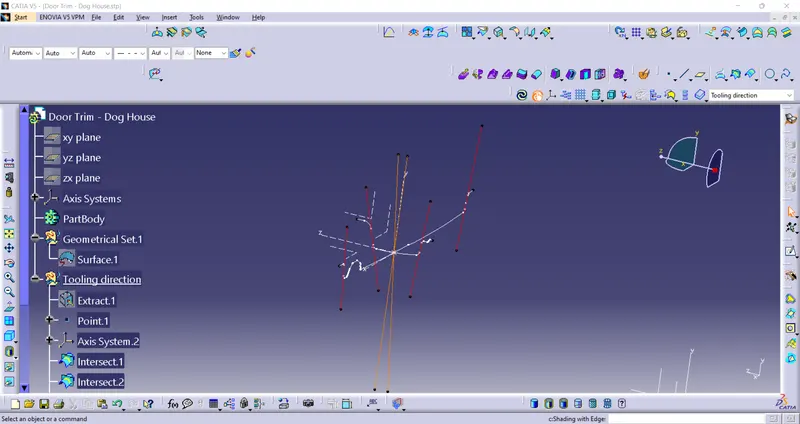

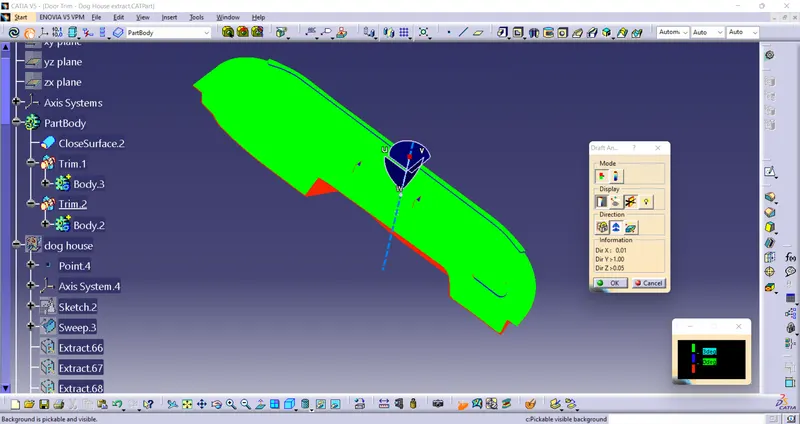

Drafting angle created by the bisecting line of the area which is difficult to access in ZX and XY planes of intersection with the part however the tooling direction unable to use for the C-section, boundaries are created and process the multi-section to create c-section and in a class-A surface contains few fillets with a radius less than 2.5 mm so few operations performed to rebuild the surfaces of the fillet area
