Week 9 - Attachment Feature Creation - Challenge 2

Dog House on Door trim

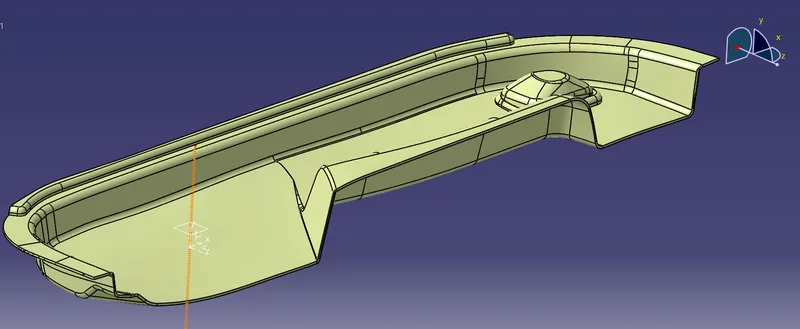

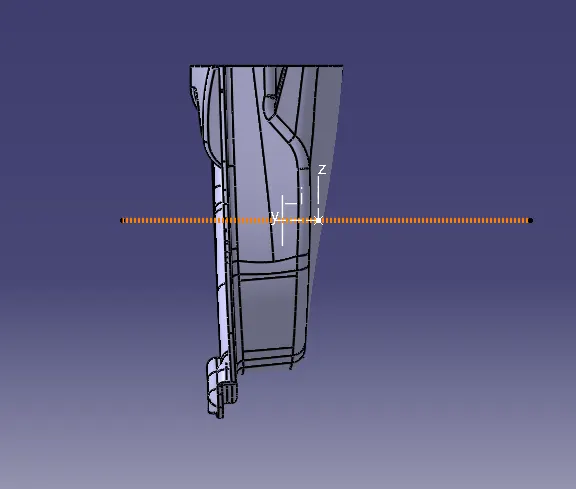

1.Tooling axis creation via axis system (current off)

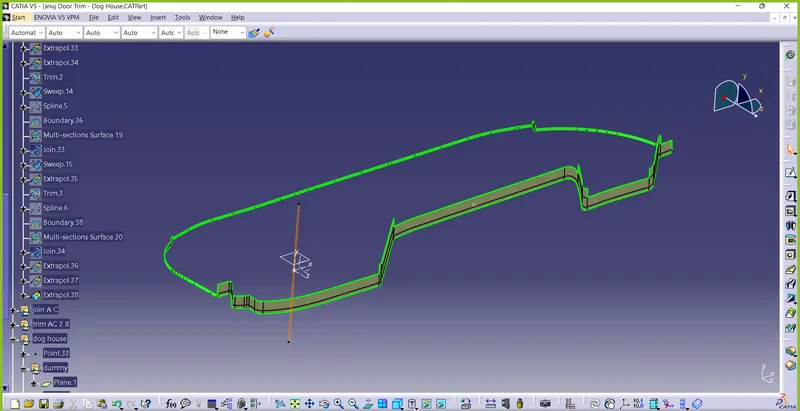

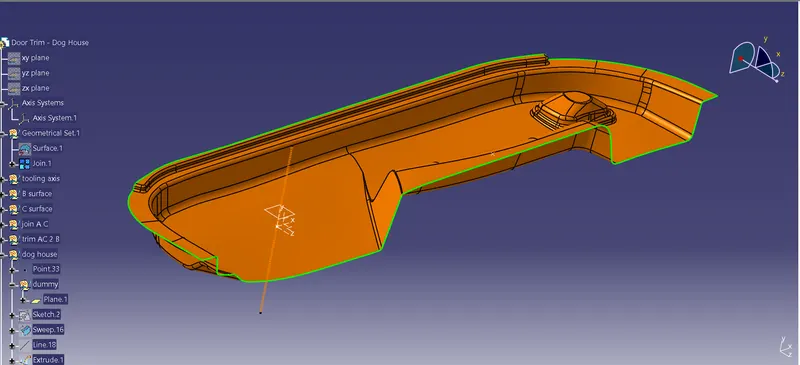

2. closing the surface then check boundery

B-SURFACE

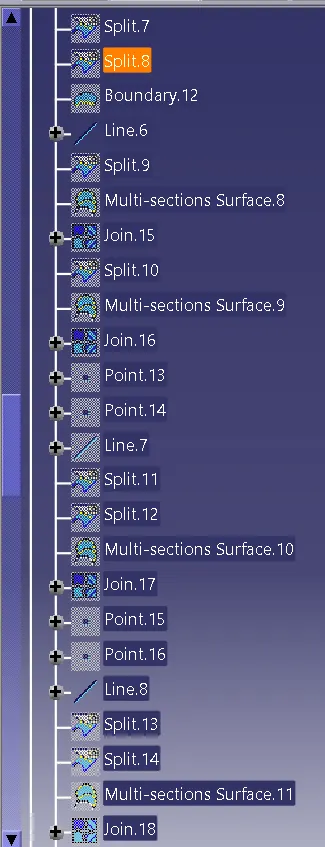

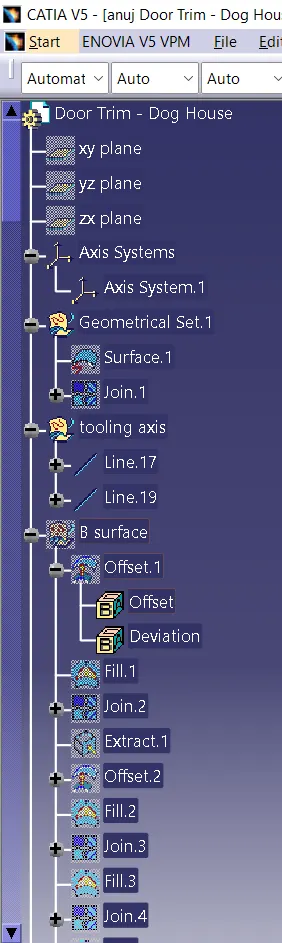

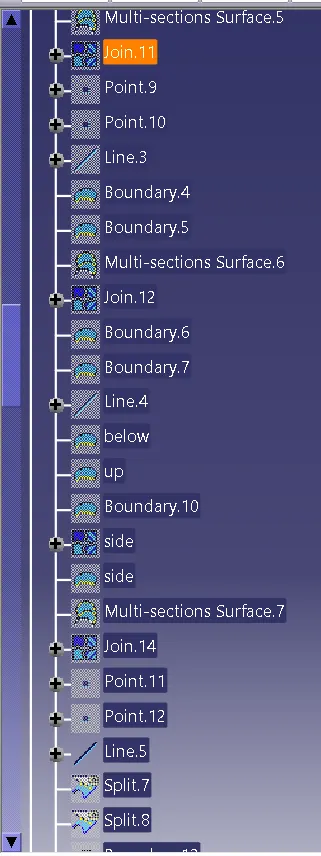

Now maker the B-surface By Offseting from A-surface if we dont get all part offset then make the surface

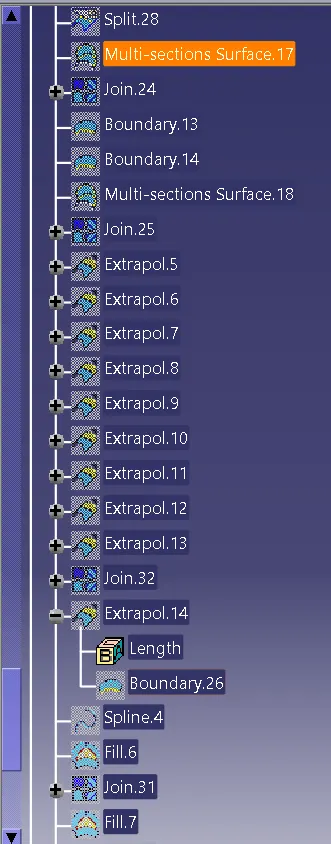

Then extend tghe surface on the edges

C-SURFACE

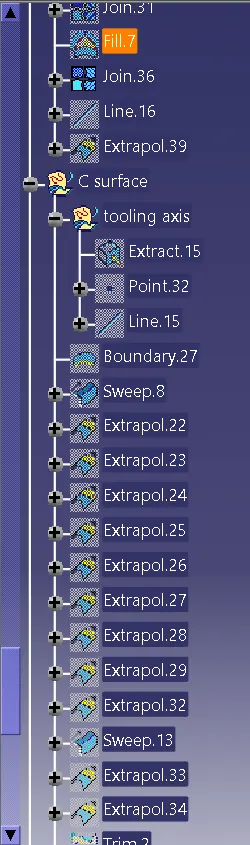

Now make C-surface by using the A-surface

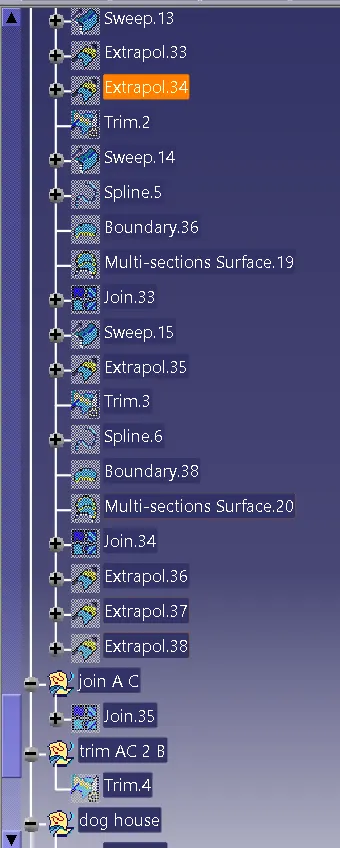

A-C SURFACE

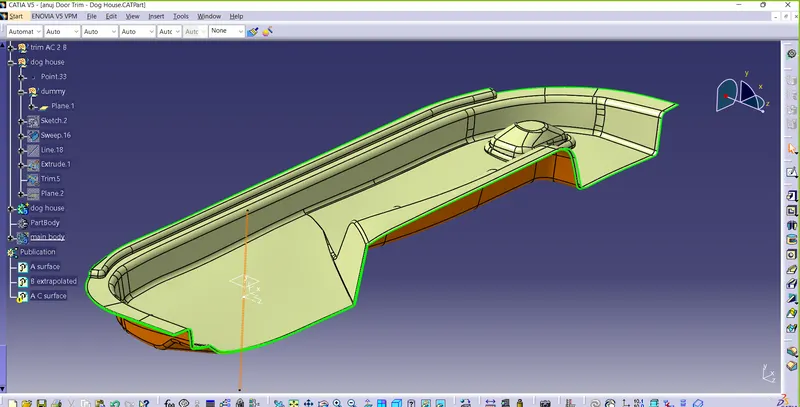

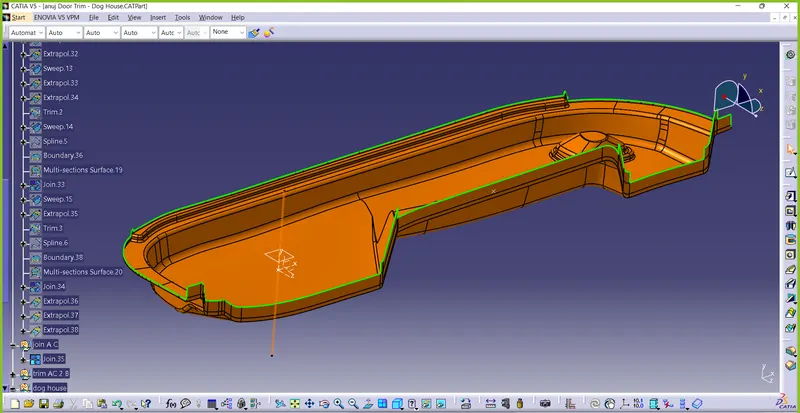

Join the A-C surface and check the boundery

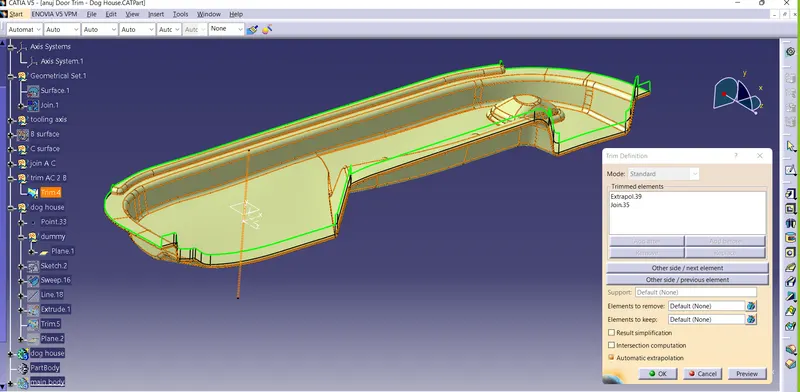

Trim A-C WITH B

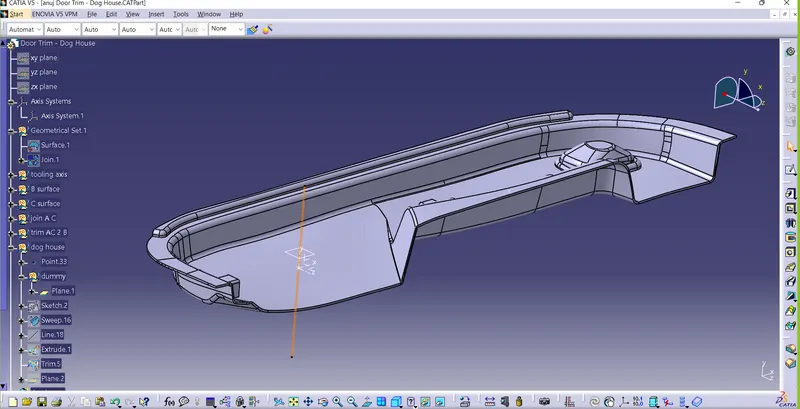

we get

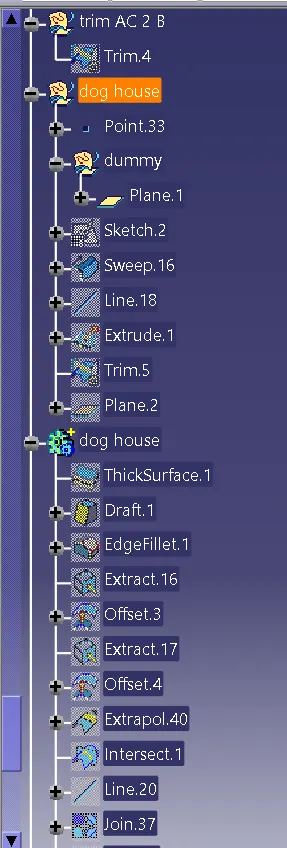

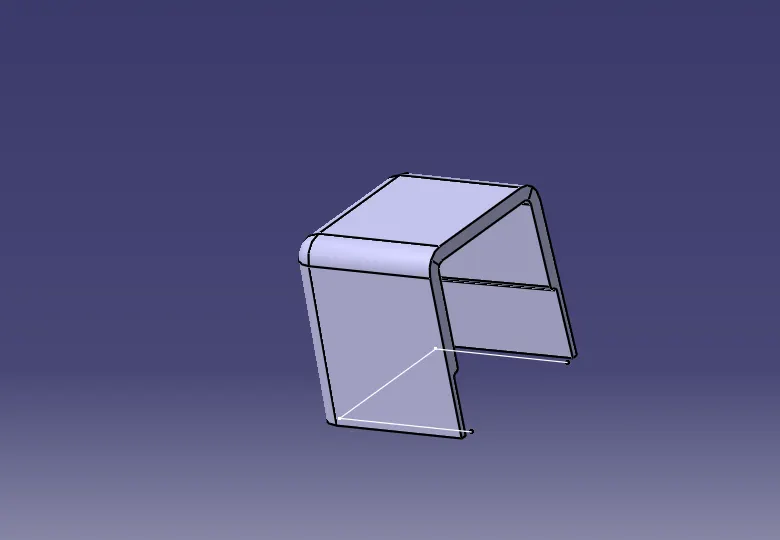

Dog House

Create the Dog House for the Door Trim considering the design rules mentioned in the video.

"C" is where the doghouse contacts the backside of the surface

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• The height of ( B ) should be between 3.0 – 6.0 mm

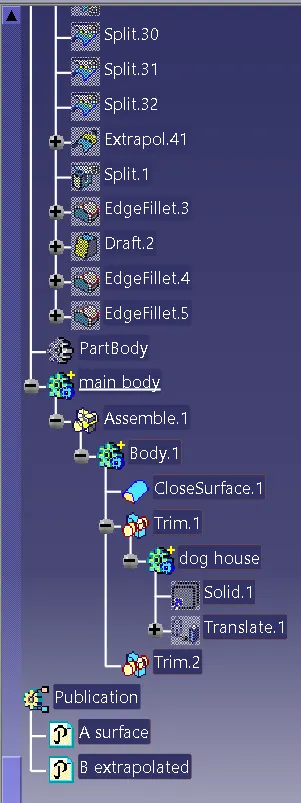

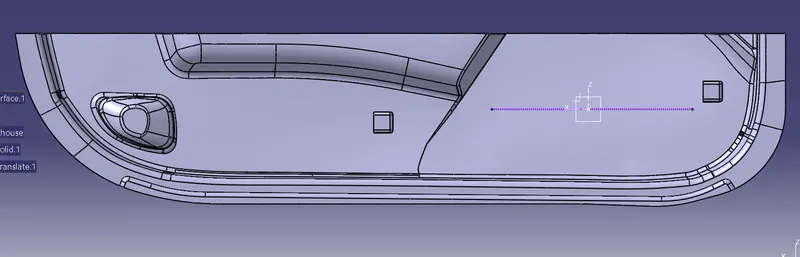

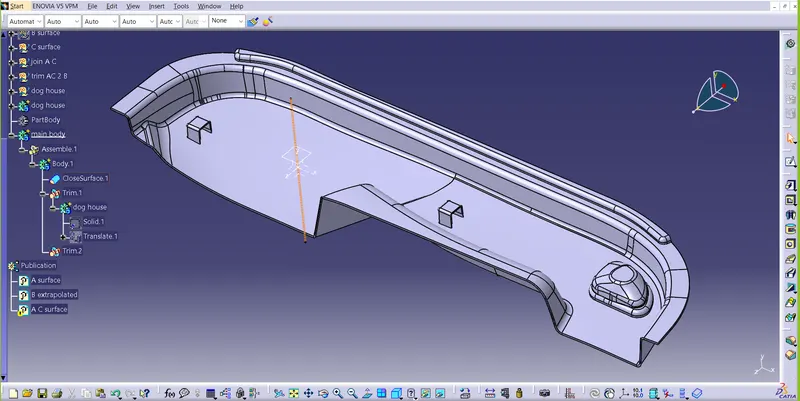

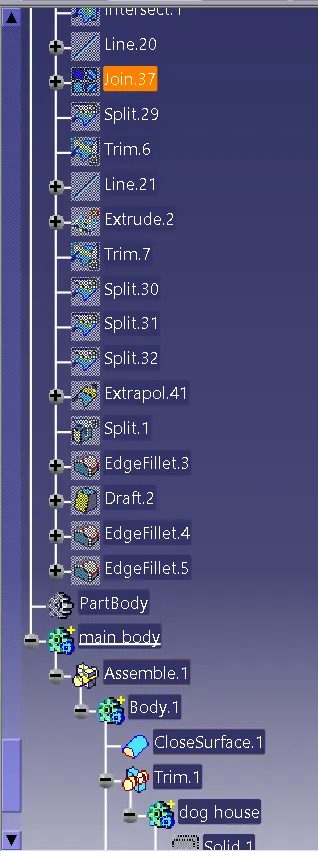

Close The surface AND 2 Dog House (1 Made & 1 Translate)

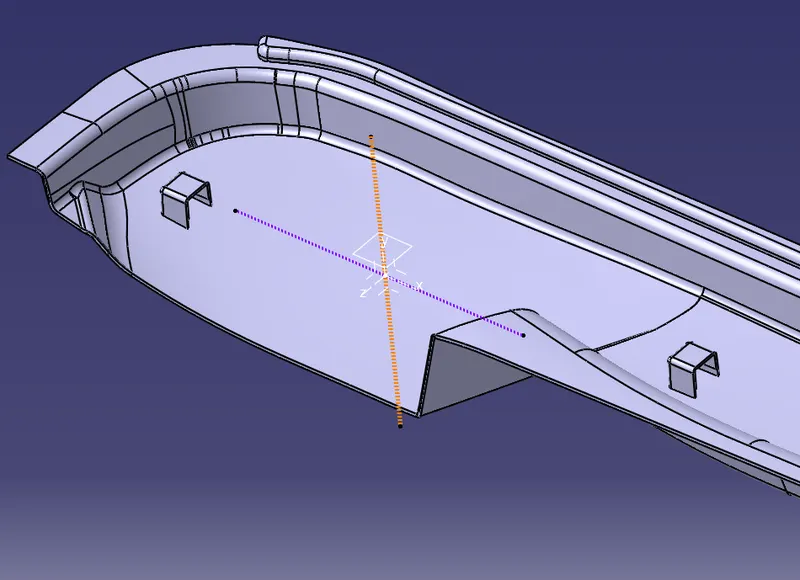

Tooling axis for Dog house Side

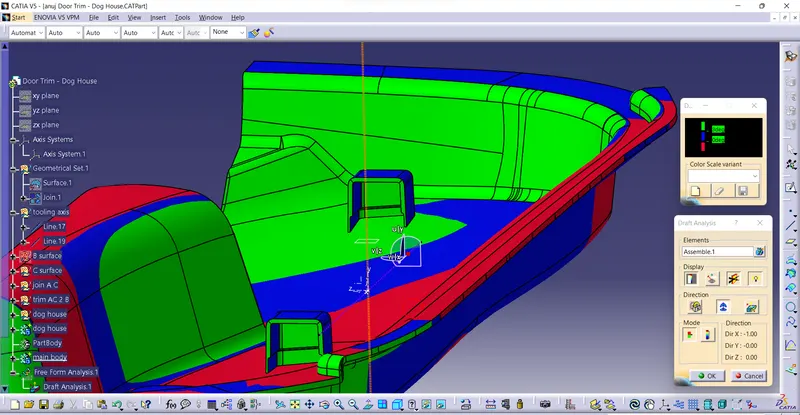

Draft analysis of dog House

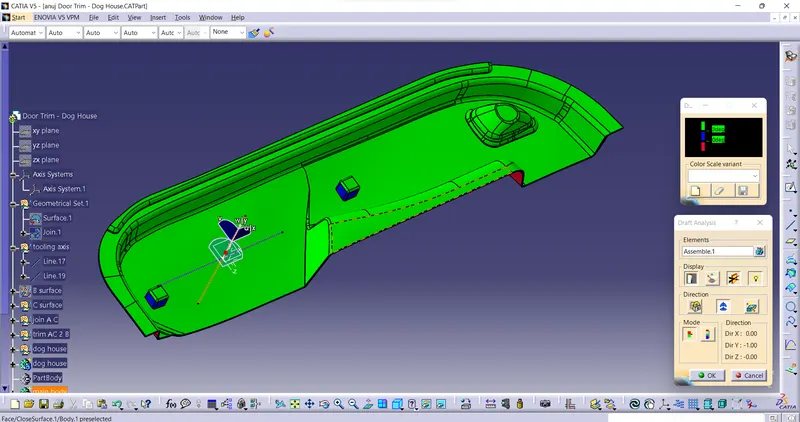

Door trim Draft analysis

Front View

Back view

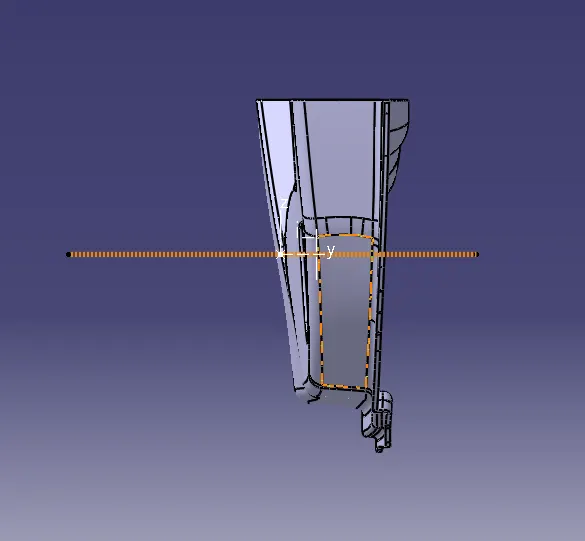

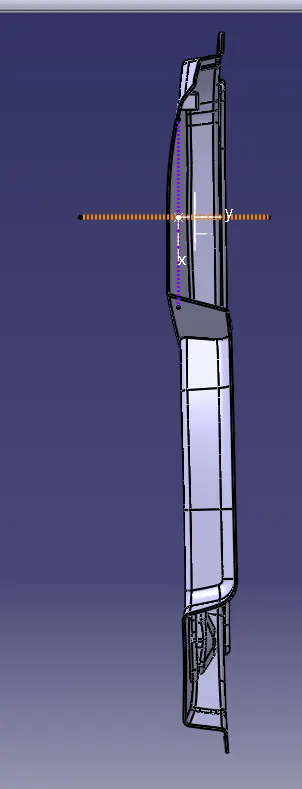

Right view

Top View
