Photo Realistic Rendering
Title of project -Chopper motorcycle design,assembly,sketching rendering.
OBJECCTIVE: To practice and get useto with solidworks interface for part Modeling,assembly and rendering,sketching of the chopper Motercycle.
INTRODUCTION: A chopper is a type of custom Motorcycle which emerged in California in late 1950s. It has radically modified steering angles and lengthened forks giving it a stretched out appearance. In this project, we have tried to design a cosmetic model of the chopper.
B)Solidworks is a computer aided design (CAD) and Computer Aided Engineering (CAE) prograrn. It is published by Dassault systems and is used largely in the manufacturing space by companies all over the world. We have used solidworks to design different parts of a model of the Chopper and assemble and render
images of it in the and.
C)In this we have designed different components or parts of it like Front wheel,rear wheels and both fenders, front fork, Engine, Chassis, Fuel tank and pedal and other parts and assembled them to get a look alike of the chopper in Solidworks.
1.Design-unit-options-origin-planes-feature design tree-part-dimensions-filly defined/under defined/over defined-Relations-features,extrude,cut extrude,loft,shell,fillet-sweep.

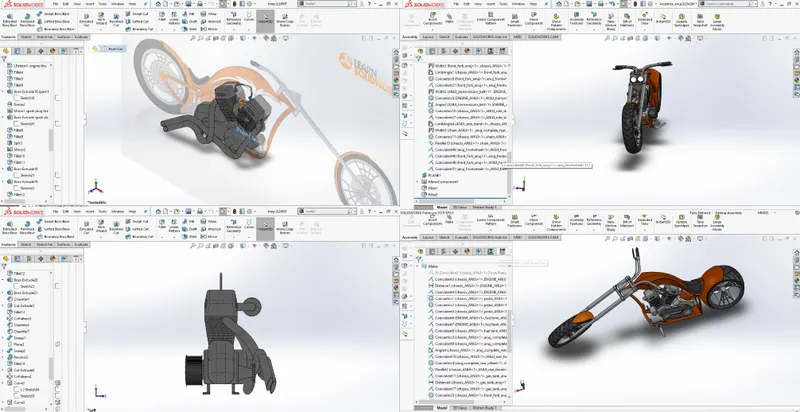

2.Assembly -imports-move,rotate-mates,concentric,coincident-direct modification in parts.
3.rendering- In solid works,andd inc-photo360-camera-& solidworks visualize
1.
2.
3.

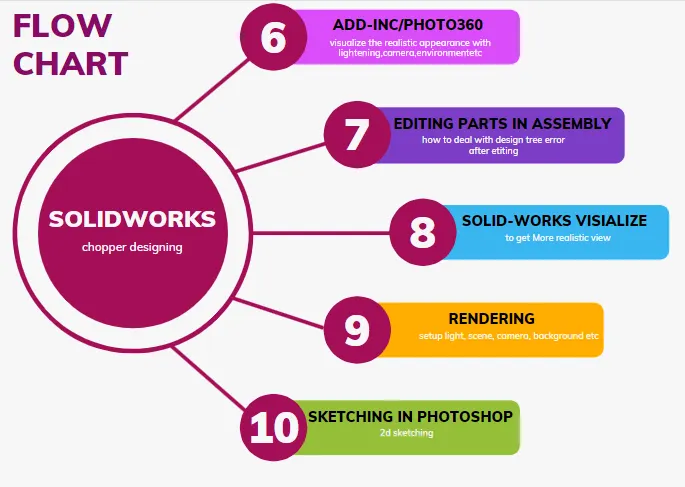

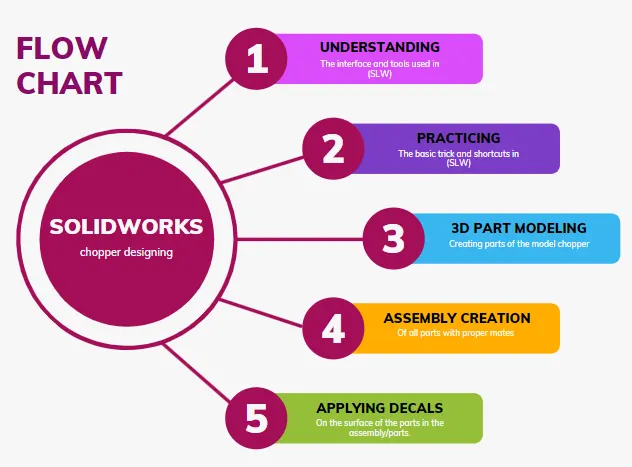

DESIGN METHODOLOGY/APPROACH FLOWCHART:
DISCRIPTION(tools/features):
Some basic tools used are:

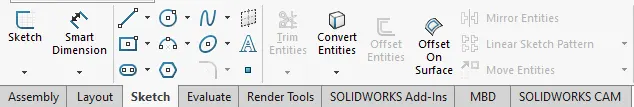

Sketch:
1. Smart dimensions - It helps applying dimensions to the entities easier and
make the sketch fully constrained.
2. Convert entities - Helps projecting entities from a different plane to the
current sketch plane.
3. Offset entities - creates an offset for the selected entity.
4. Trim entities - Deletes selected parts of the sketch.
5. Mirror entities - Creates a similar pattern about the selected plane.
6. Linear and Circular pattern - Creates a linear or circular pattern of the
selected entity about the selected plane or axis.
Features:
1. Extruded surface/boss/basc/cut - Creates a solid body for the sketch in the defined direction.
2. Revolved surfacc/boss/basc/cut - Creates a solid revolve, mainly used for creating circular rods.
3. Swept surfacc/boss/base/cut - Creates a solid surface along a given curved profile

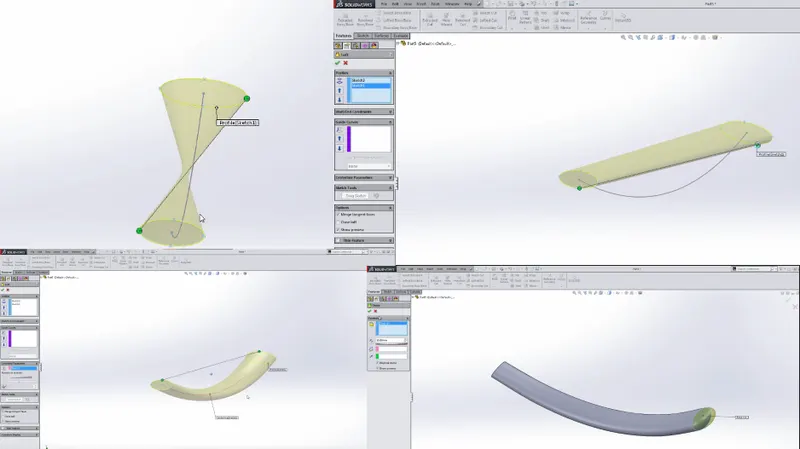

4. Lofted surface - creates a lofted surface along the references.
5. Fillet - Creates a fillet along sharp edges of the given radius.

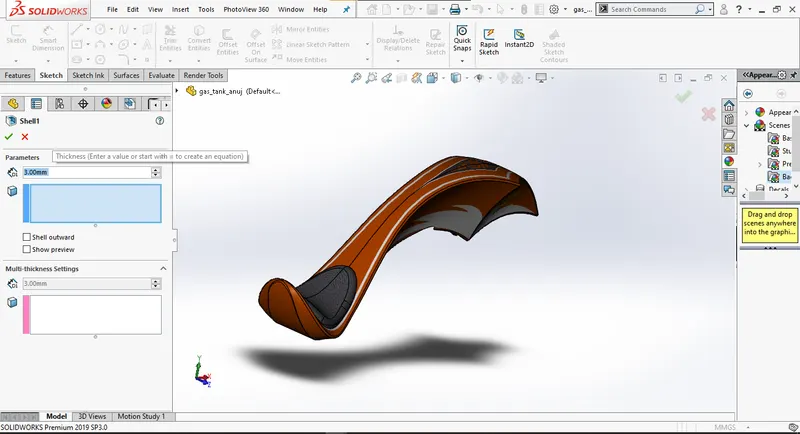

6. Shell - Creates a hollow inside a solid block.
7. Combine - Merges two solids after the extrude is done.
ADVANCE TOOLS:

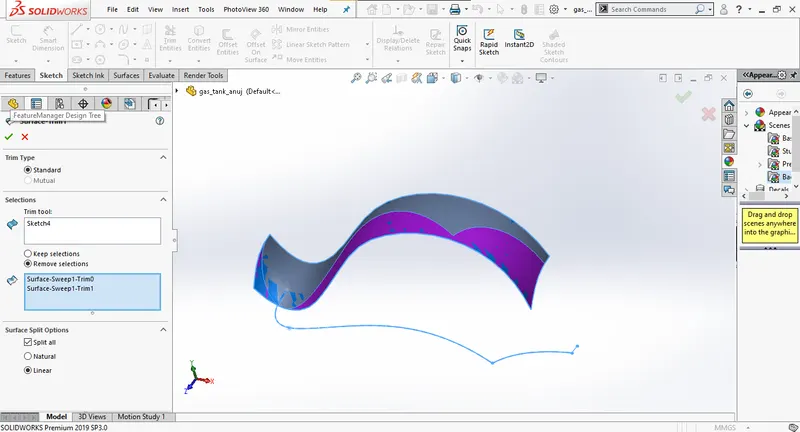

SURFACE TRIM:

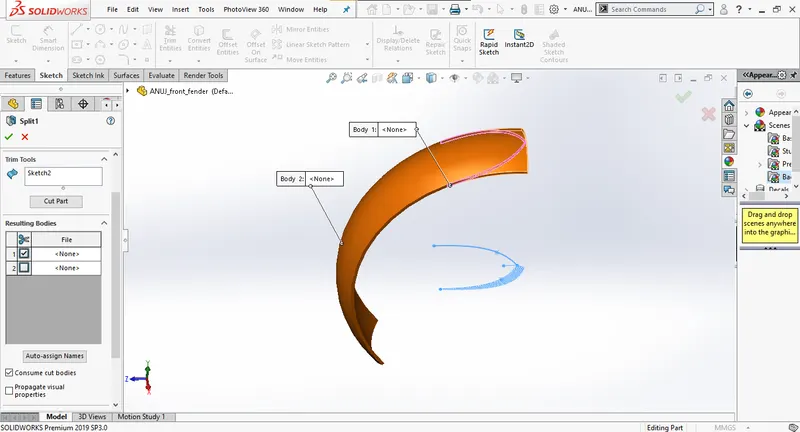

SPLIT:

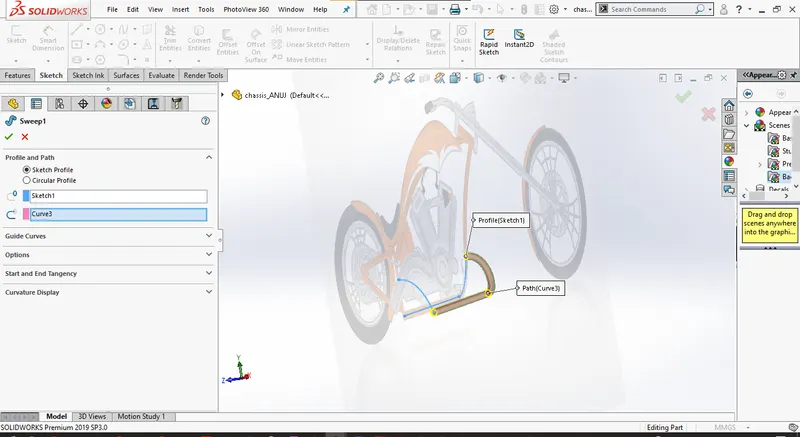

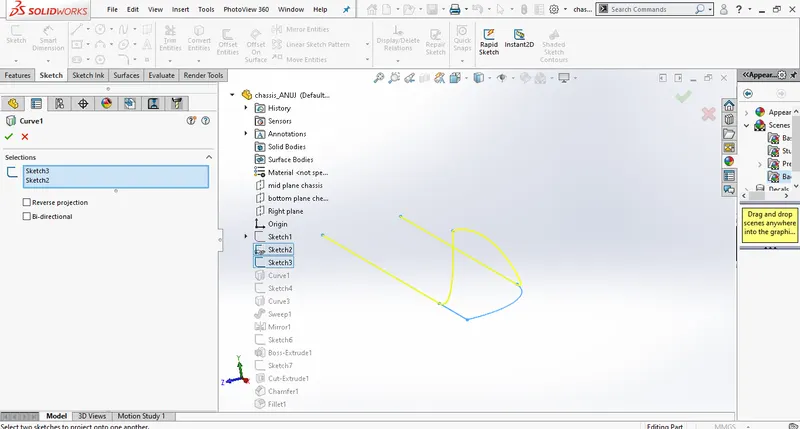

PROJECTED CURVE SWEEP:
LOFT&DOME:
PEARS:
COMBINE:
SHELL:not works on surface
ASSEMBLY IMAGES:
ISO VIEW:

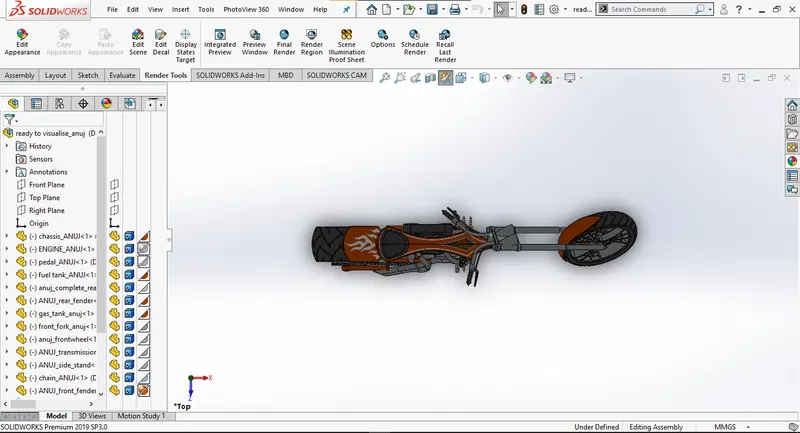

TOP VIEW:
FRONT VIEW:
CAMERA VIEW:

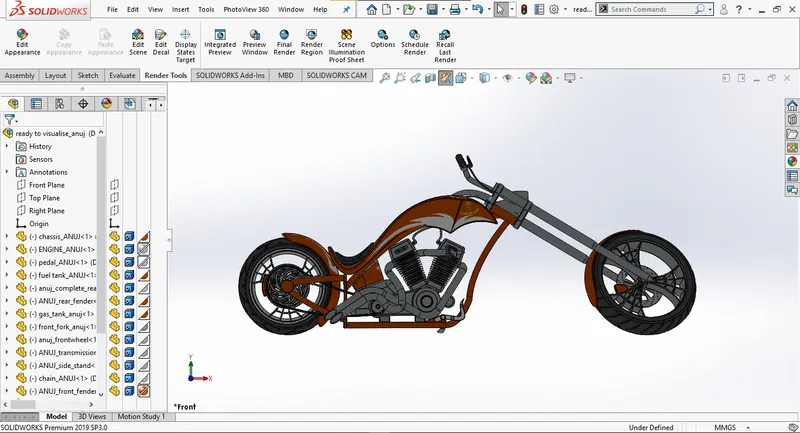

SIDE VIEW:

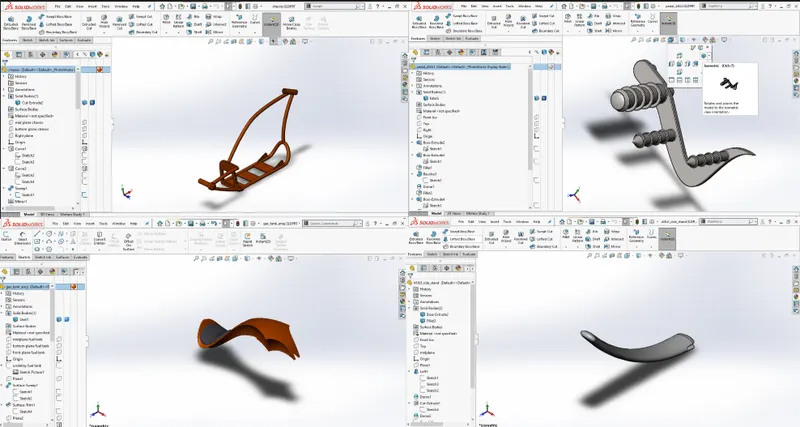

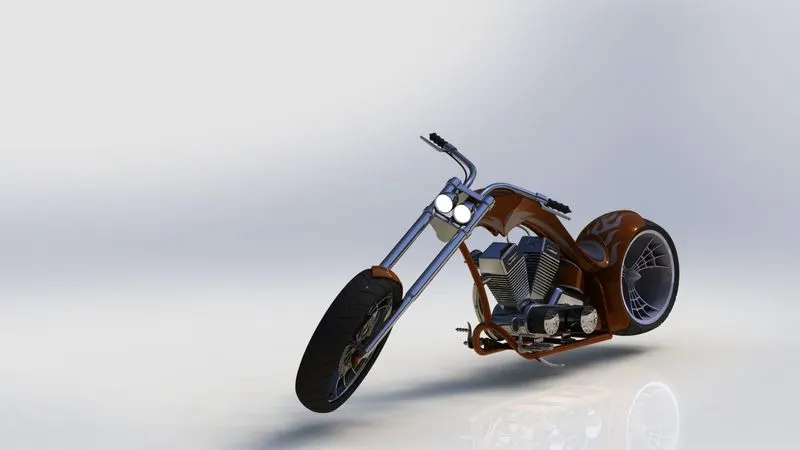

DETAIL RENDERING IMAGE OF CHOPPER-ASSEMBLY:

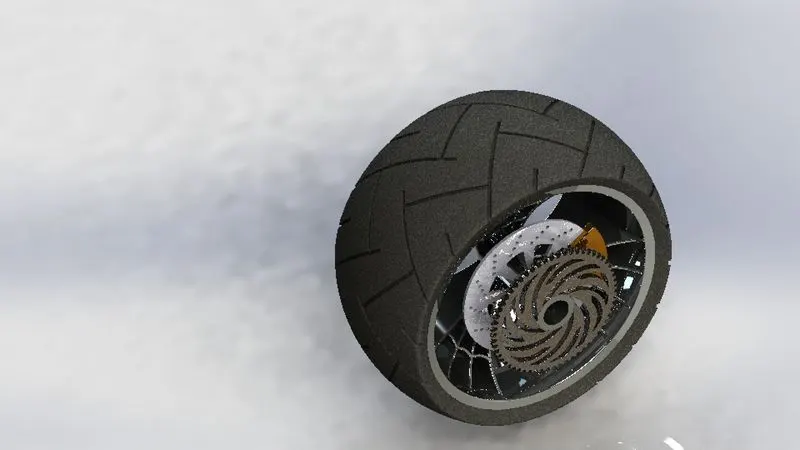

REAR WHEEL OF CHOPPER:

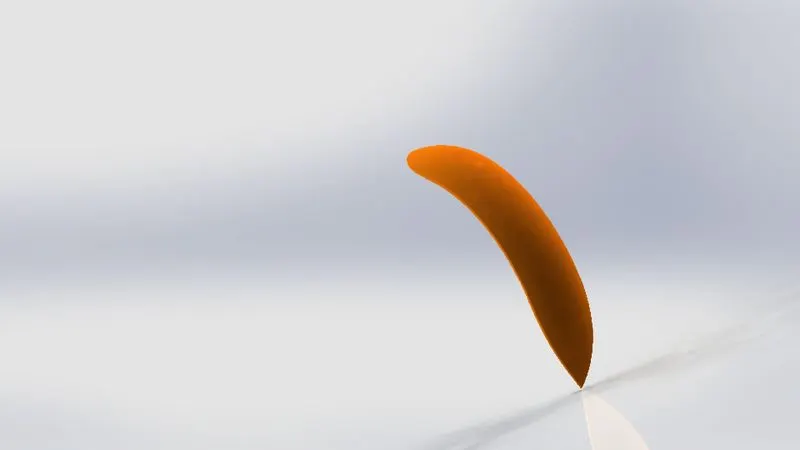

REAR FENDER OF CHOPPER:
FRONT FENDER OF CHOPPER:

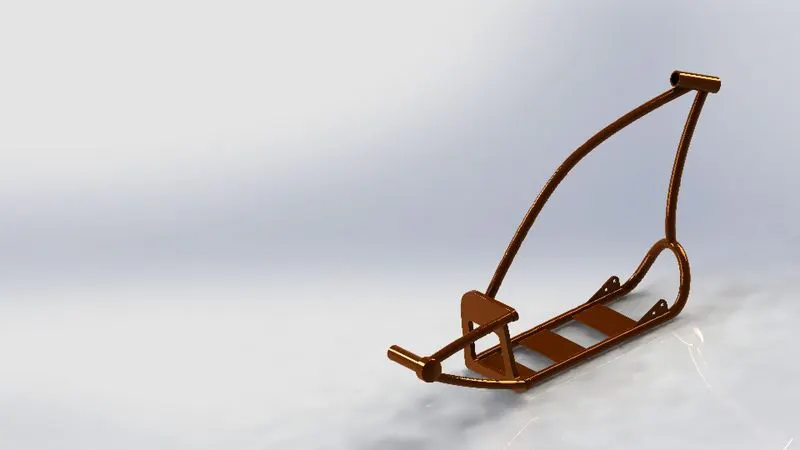

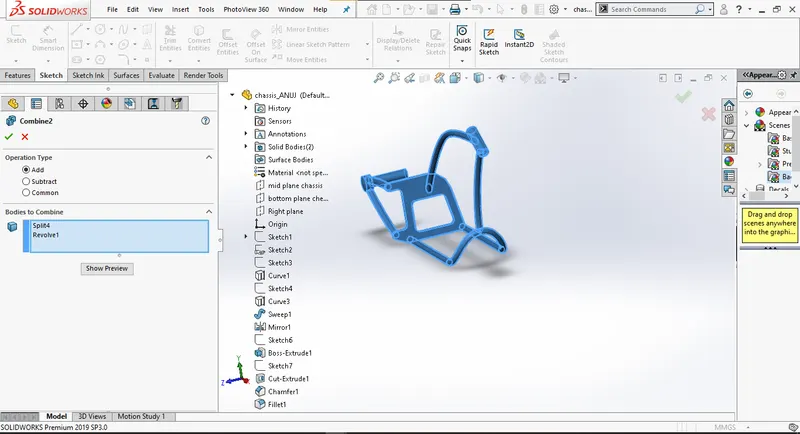

CHESSIS OF CHOPPER:

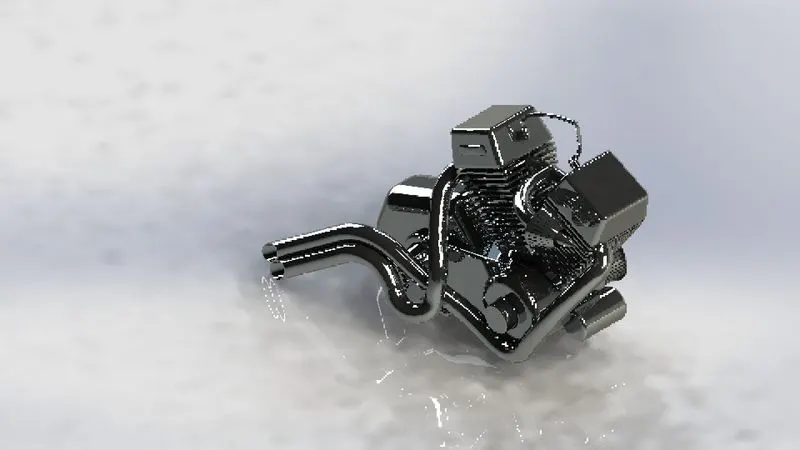

ENGINE OF CHOPPER:

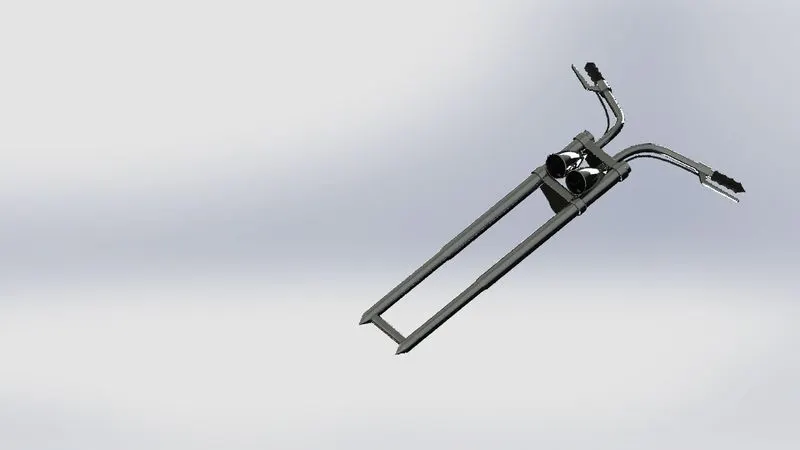

FRONT FORK OF CHOPPER:

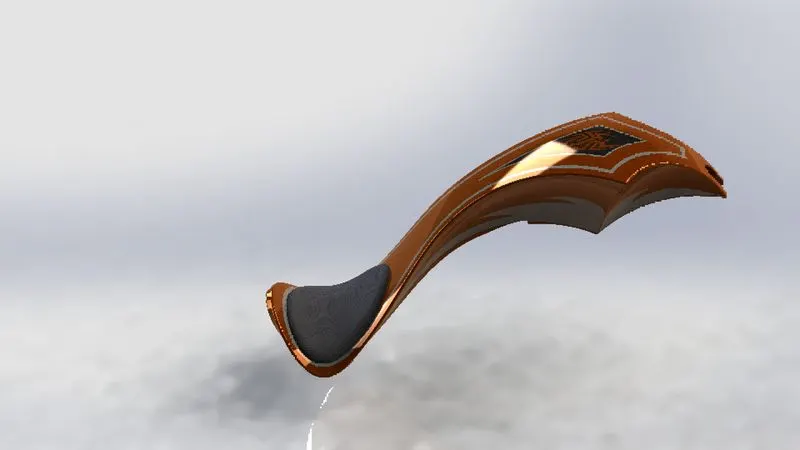

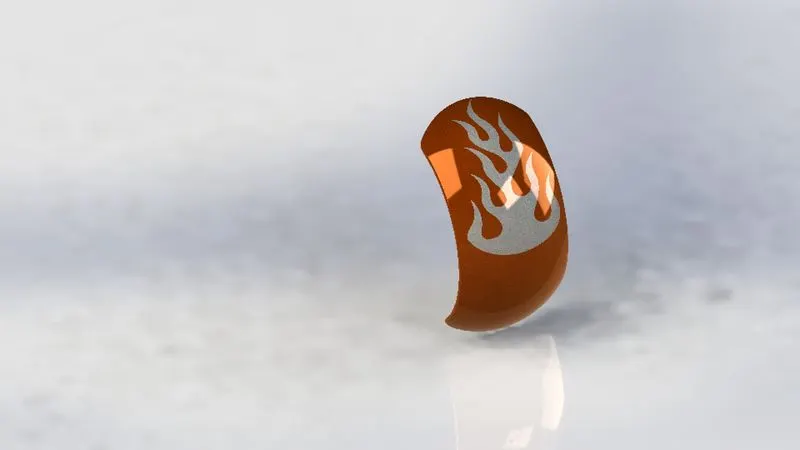

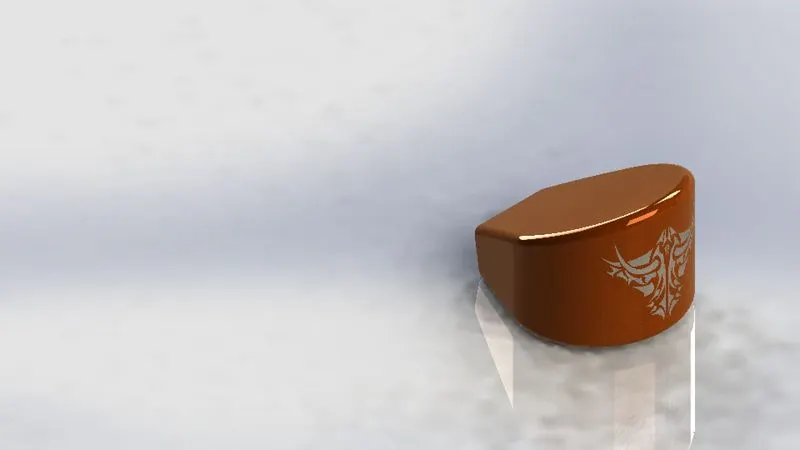

FUEL TANK OF CHOPPER:
OILTANK OF CHOPPER:

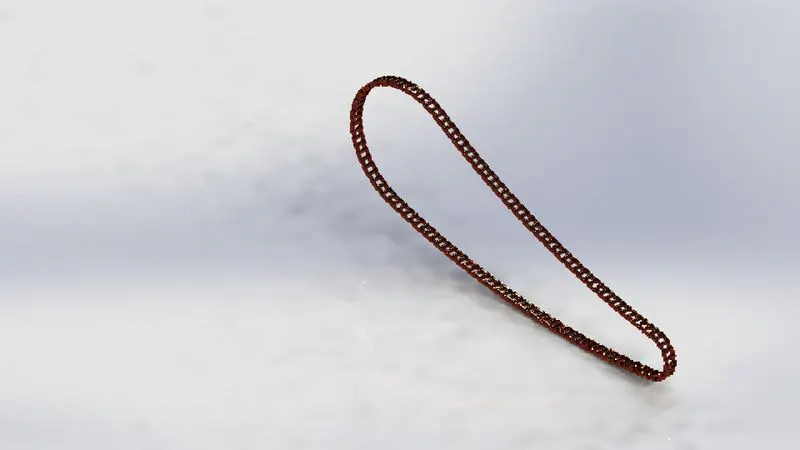

CHAIN OF CHOPPER:

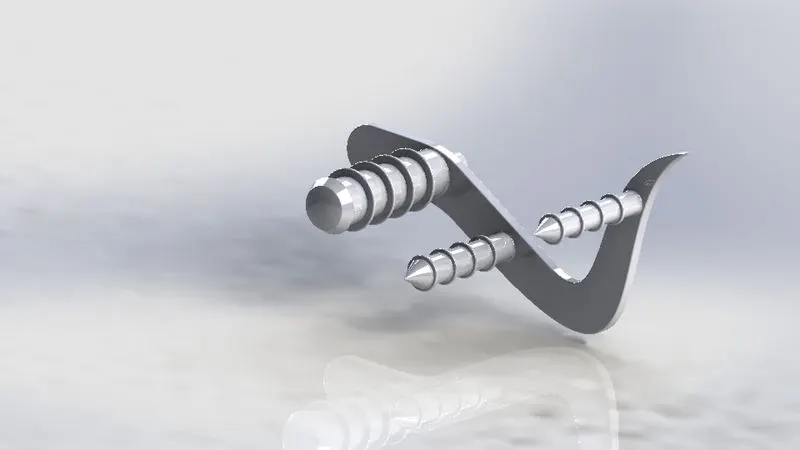

PEDAL OF CHOPPER:

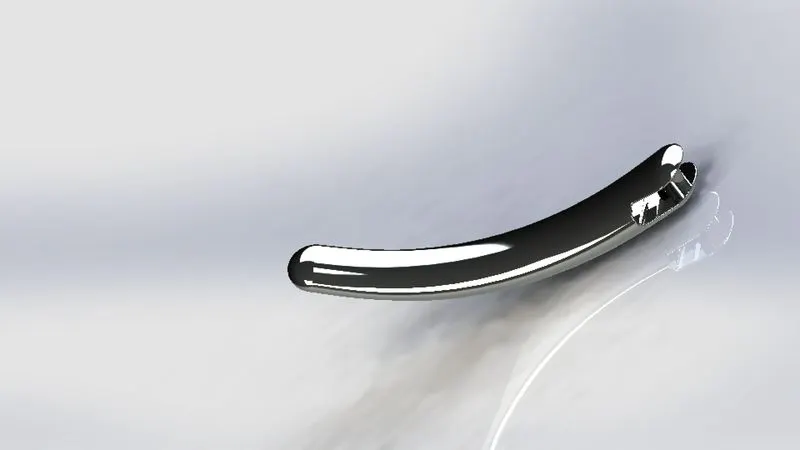

KICK STAND OF CHOPPER:

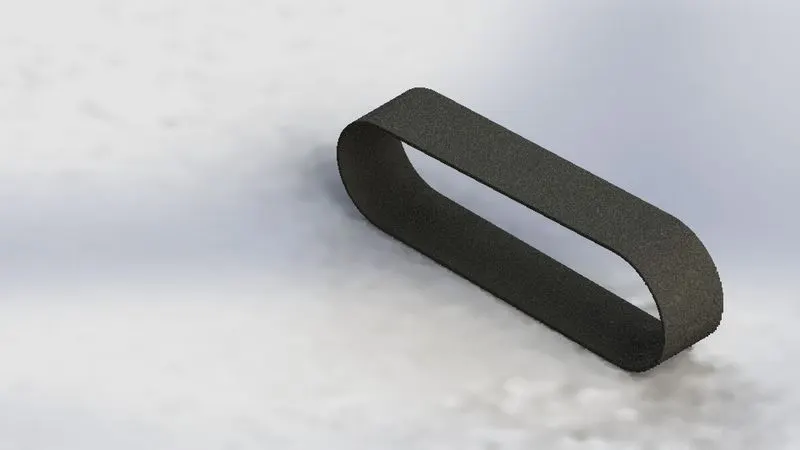

TRANSMISSION BELT OF CHOPPER:
RENDER IMAGES:CARTOON

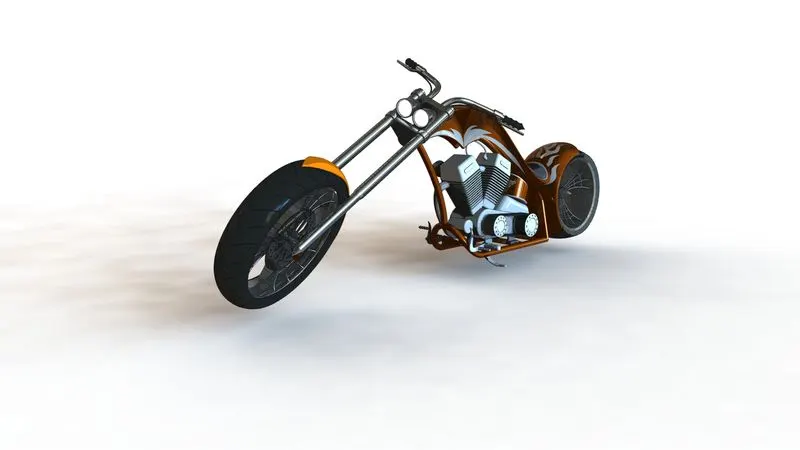

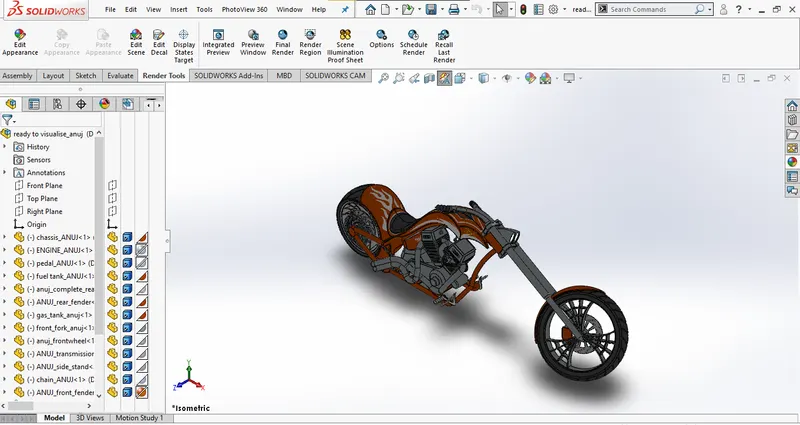

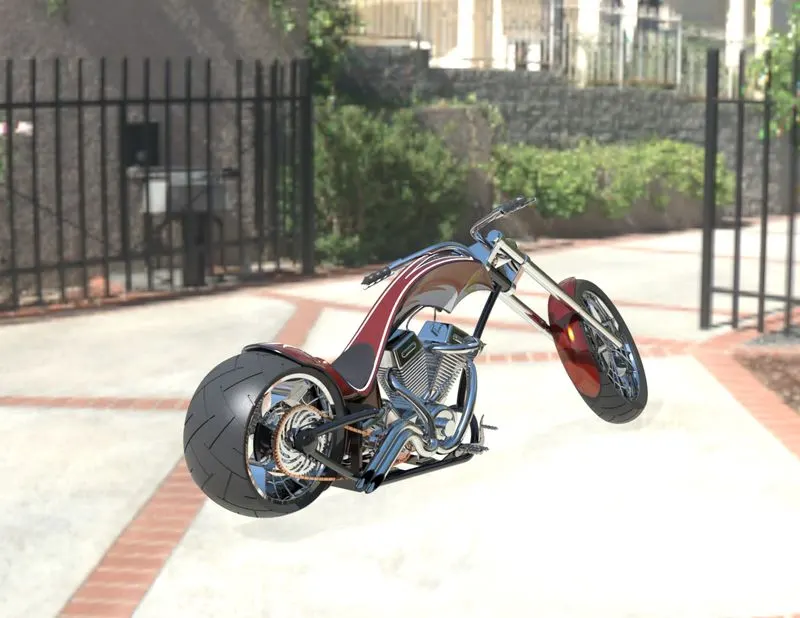

REALISTIC:

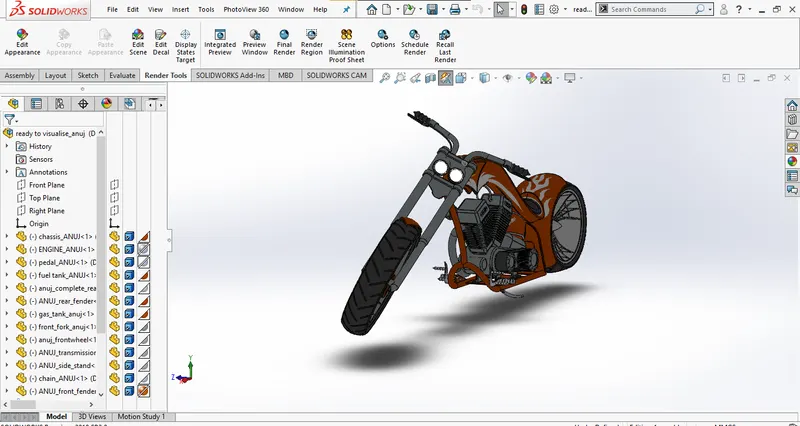

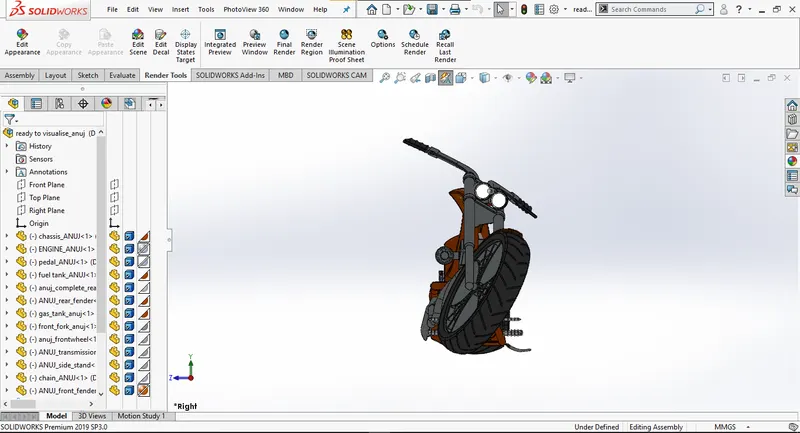

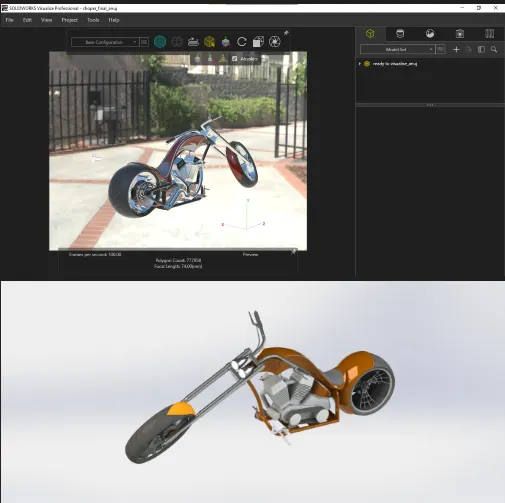

SOLID WORKS ISUALIZE SETUP:
CONCLUSION:By doing this project we get to learn all the commandes and tools and settings, views which will provide a breaf indepth overview of solidworks.
