Week 8 - Challenge 1 - Draft Analysis on a Fan Cover
DRAFT ANALYSIS :IT IS DONE TO FINDOUT IF THE COMPONENT IS MANUFACTURABLE USING CORE AND CAVITY. FOR WHICH WE HAVE TO ANALYSE THE COMPONENT DIFFERENT SURFACE DRAFT ANGLES.THIS IS DONE FOR GETTING TOOLING AXIS CLEARENCE.
WE WILL USE FEW THING IN ACHIVING THIS SUCH AS 1.TOOLING AXIS 2.BISECTING LINES
THE DRAFT ANGLES FOR PLASTIC COMPONENT CLASS A SURFACE SHOULD BE IN 3DEGREE.
TOOLING AXIS CREATION: WE USE THE TOOLING AXIS TO FIND THE AXIS WHICH IS MOST SUITABLE FOR TOOLING OR TO GET THE CORE AND CAVITY AXIS SYSTEM WITH A DRAFTING ANGLE OF 3 DEGREE.
WAY OF CREATING TOOLING AXIS (BISECTING METHOD): WE USE THE BISECTING LINES WHICH WILL TELL THE COMPONENT FROM WHIC SURFACE THE CORE AND CAVITY INTERSECT WITH EACH OTHER.
IT WILL BE ACHIVE IN XZ AND YZ DIRECTION/INTERCECTION .

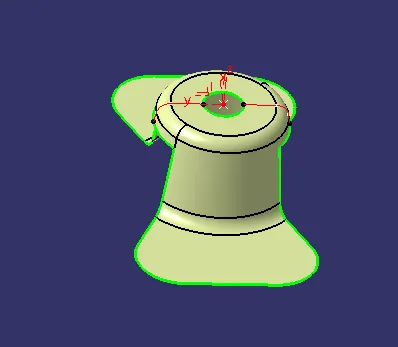

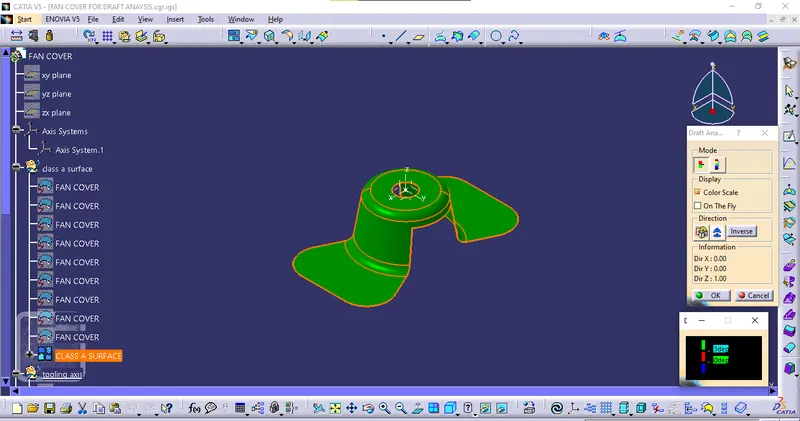

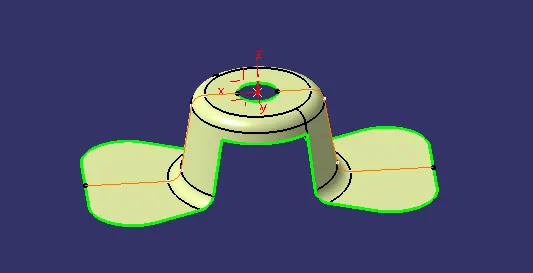

ISOMETRIC VIEW

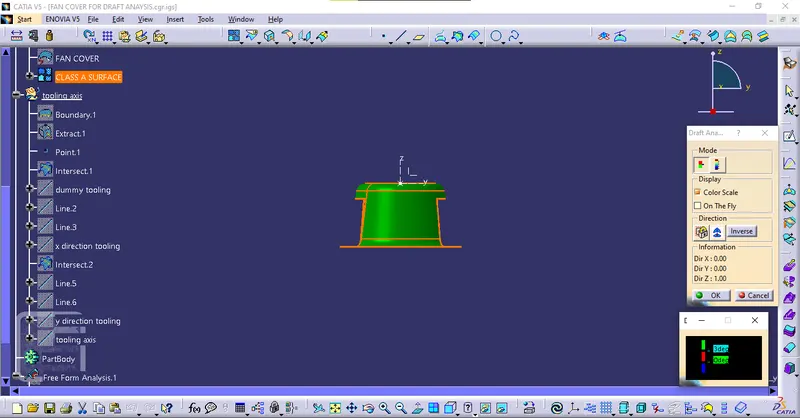

FRONT VIEW

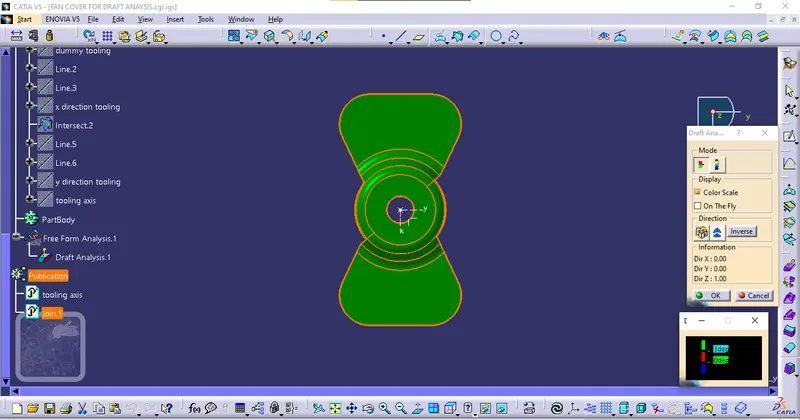

TOP VIEW
SIDE VIEW
