Week 9 - Attachment Feature Creation - Challenge 2

AIM

Create the Dog House for the Door Trim considering the design rules mentioned in the video.

"C" is where the doghouse contacts the backside of the surface

• Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• The height of ( B ) should be between 3.0 – 6.0 mm

CLASS A SURFACE

Class-A (or 'Strak') is a term used in specifically in automotive design. It describes the final production Class data for the aesthetic parts of the car. The term 'Class A' is often misunderstood, but it's generally seen as the 'Holy Grail' of Class modeling.

• Since we copy the Class A from the original Class A, then create separate geometric set then paste it. Then join the Class A.

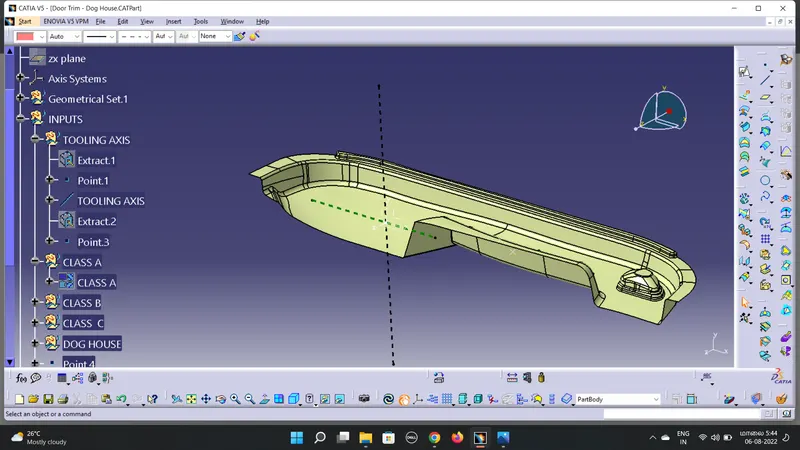

TOOLING AXIS

• Now we create tooling axis for the Class A. First a create axis system for where we want, then we create intersect based on the axis system.
• Extract the bottom surface and insert point on a surface then create lind based on a point.

CLASS A SURFACE

CLASS B SURFACE

• Now create a class B surface.
• In class B, first create base of class B from class A. Insert geometrical set define as class B, that is base of class B.
• Use extract command and extract a base from class A. Then use untrim tool get full body of a base. Next use extrapolate tool extended a base , then offset of 2.5 mm.

CLASS C

• Class C is nothing but its connecting part of Class A & B.
• Unhide the class A and take boundary of its and now boundary select the all corner of a class A and use sweep commends the we get a class c of boundary in Class A.
• Then trim it finally get class C.

JOIN A & C

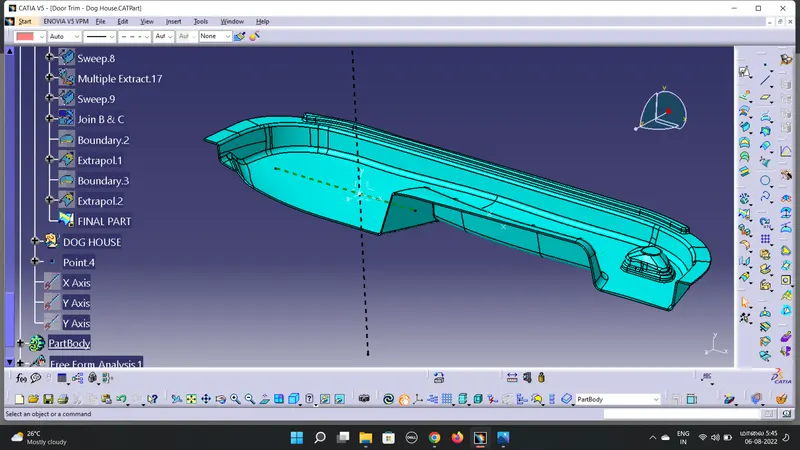

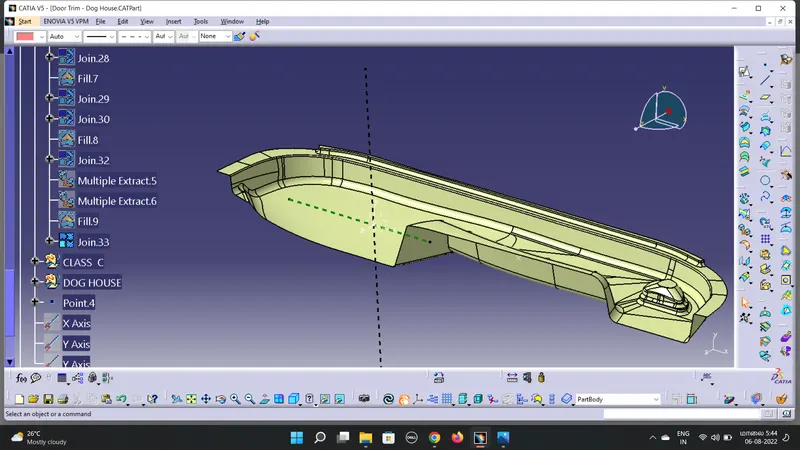

FINAL BODY

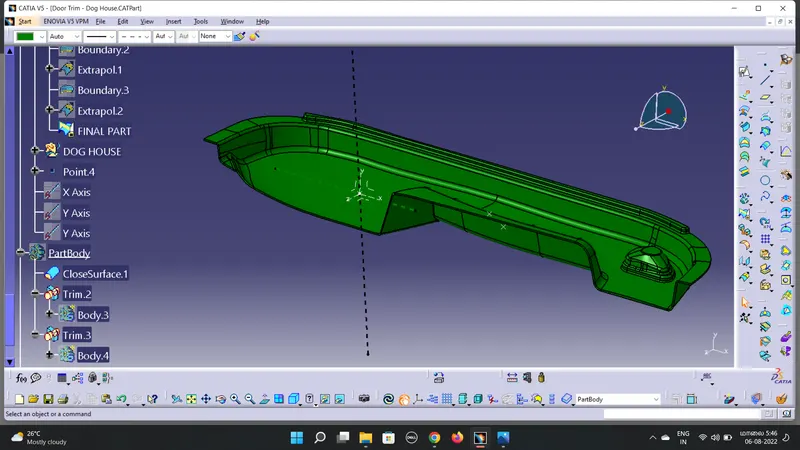

CLOSE BODY

• Go to the part body workbench then use close boby tool and finally get close body of base bracket

DOG HOUSE

Dog house is an engineering feature used in plastic trim design. Dog houses are used as supporting feature. Sometimes other engineering features like snaps; locators etc. are mounded on them to increase their strength.

RESULTS

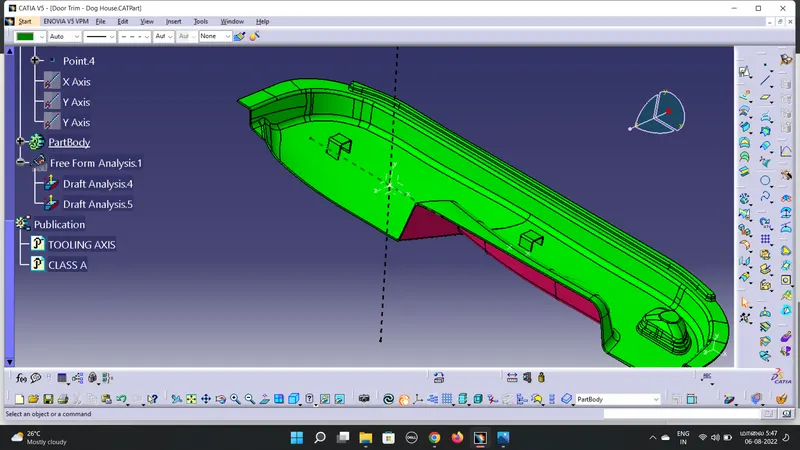

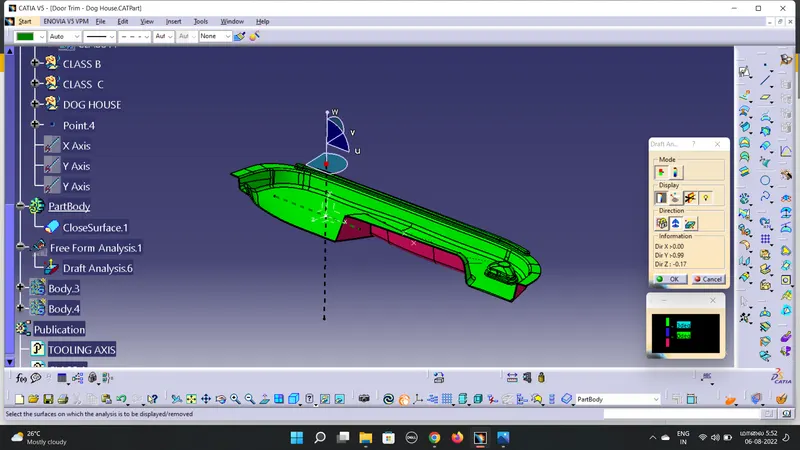

Finally used draft analysis tool, analysis model get positive results from a draft successfully Class A,B & C is required angles from a draft angle analysis. Analysis the draft angle red is below 0 degree and green is 3 dgeree, blue is between tha 0 and 3 degree.

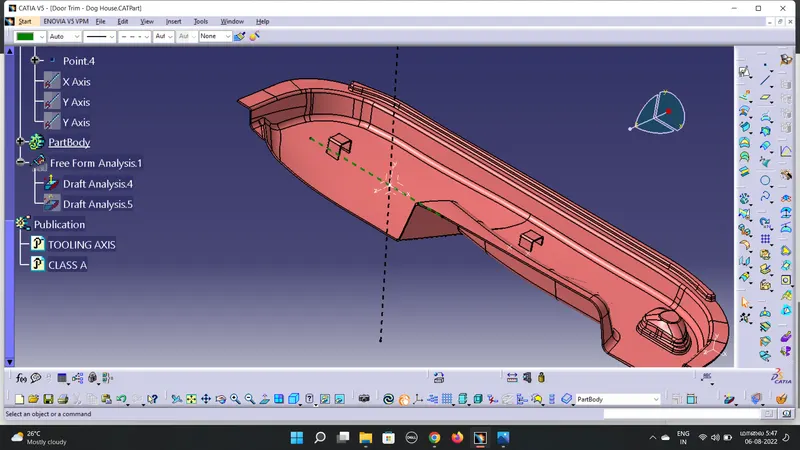

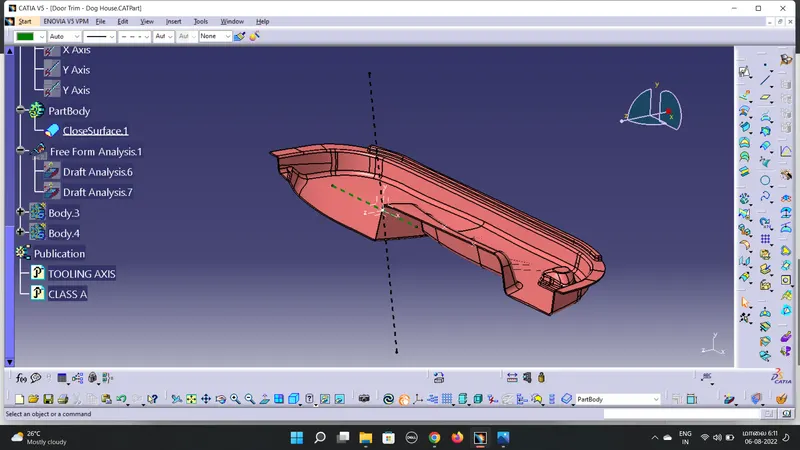

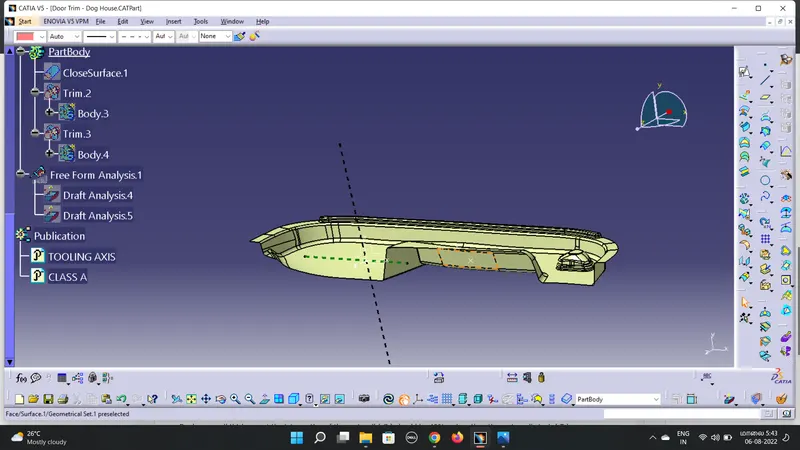

CLOSED BODY DRAFT

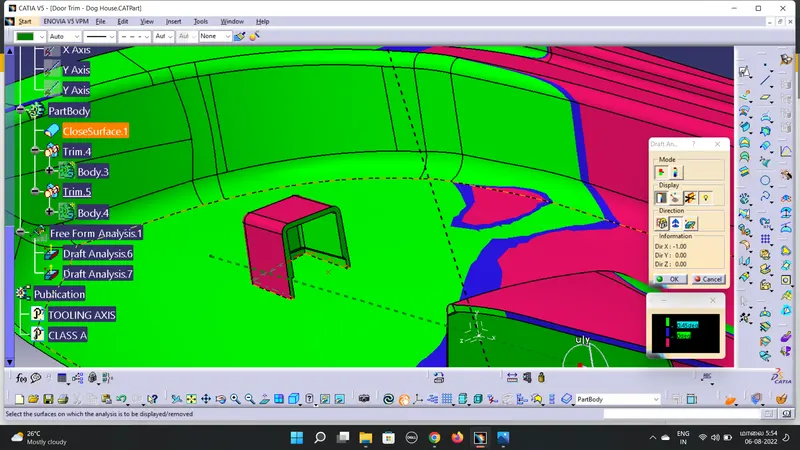

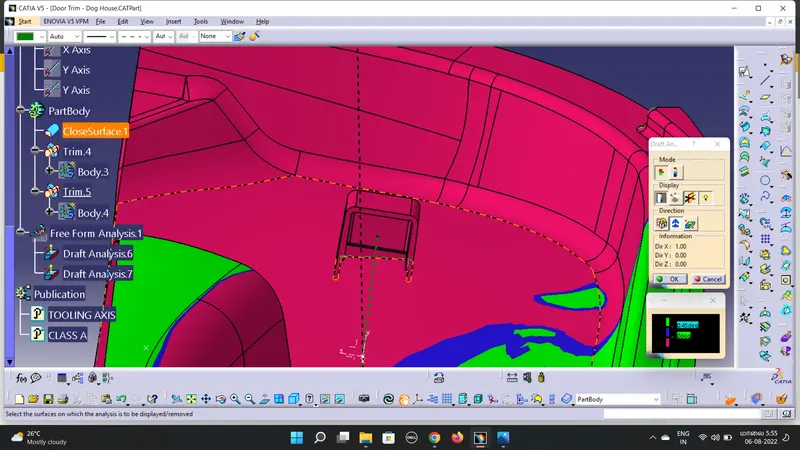

DRAFT WITH DOG HOUSE
