Week 9 - Attachment Feature Creation - Challenge 2

We will be first creating the Screw Boss and then the dog house as it is a part that ensures the screw boss is proper.

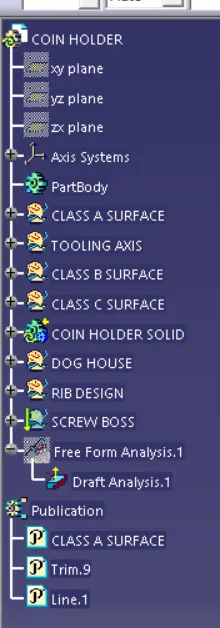

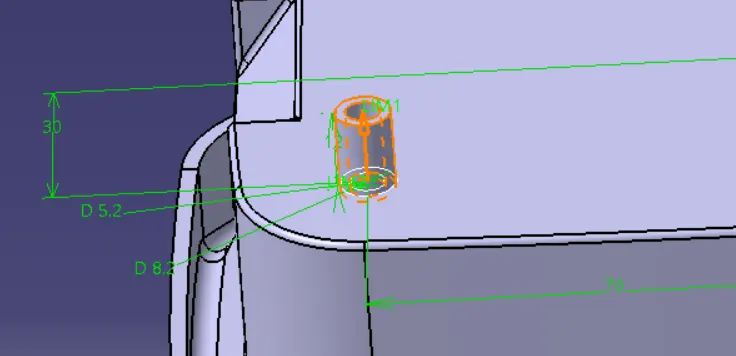

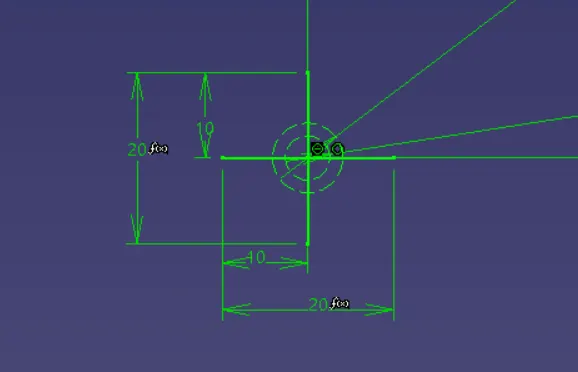

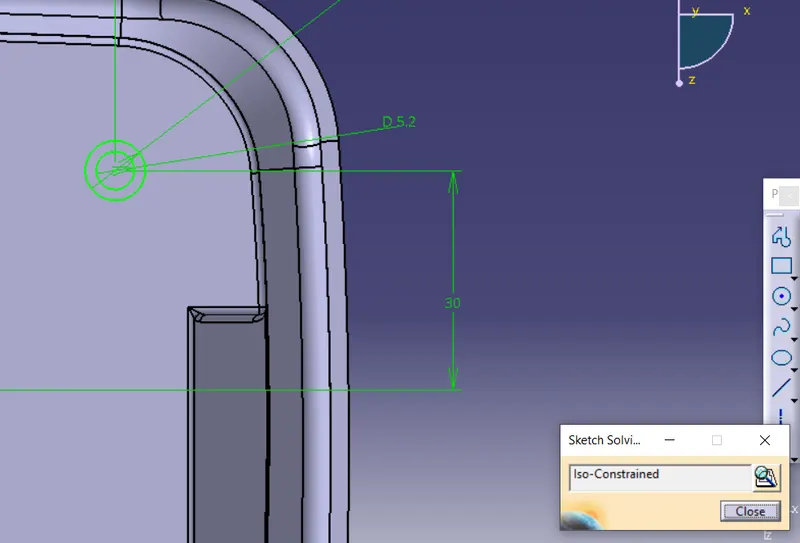

• First the screw boss is done by creating concentric circles and then extruding them,

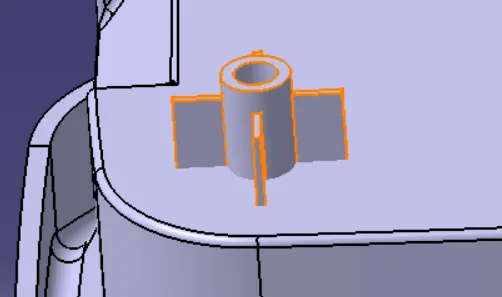

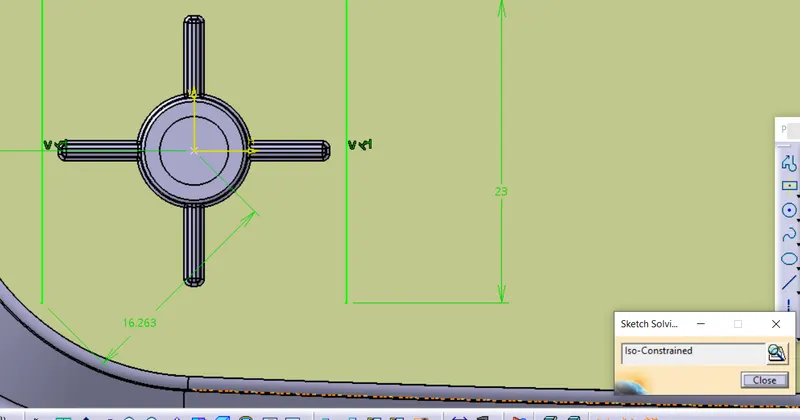

• It is then followed by giving ribs for the screw boss as it will be very weak without them

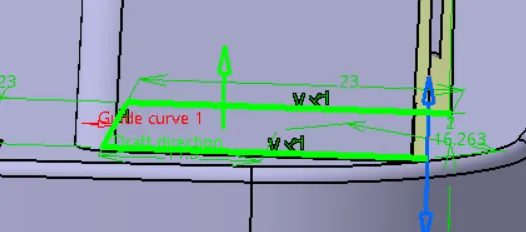

• Then these ribs along with the main screw boss are drafted at an angle of 0.5 degree which is the perfect draft.

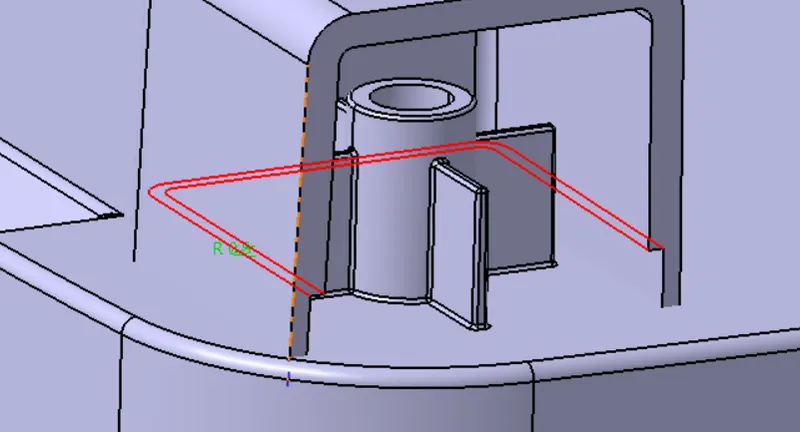

• now after drafting them we assemble it to the main component and it is then filleted.
• screw boss is created, this is then copied and moved.
• There are certain criteria to be followed while doing the screw boss, first we assume that it is done for an M6 screw and the dimensions are taken for that.
• The height should be a ratio of 3:1 whcih makes the ideal height for a screw boss.
• And the thickness of the screw boss should be same thickness as the material thickness.
• same goes for the fillets as they should be at 0.25mm max.

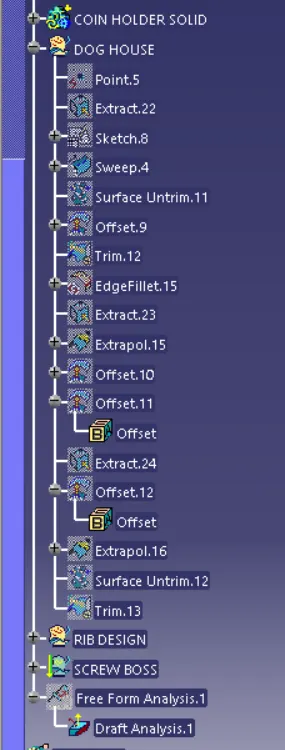

Now we make the Dog House

• It is much simpler to make than the screw boss

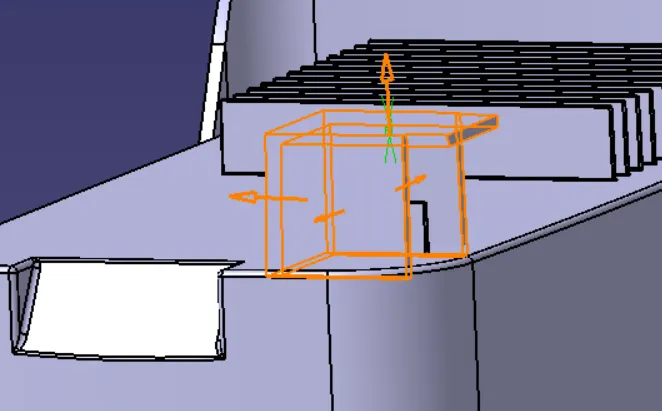

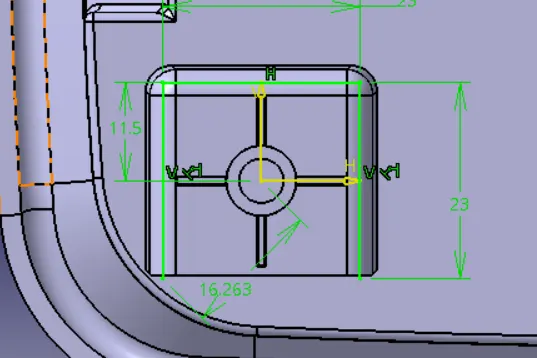

• First the outer shell is created by offsetting the surface and then created a sketch around it
• Now after the extrudde of the sketch is done we thciken the surface and give an thickness.

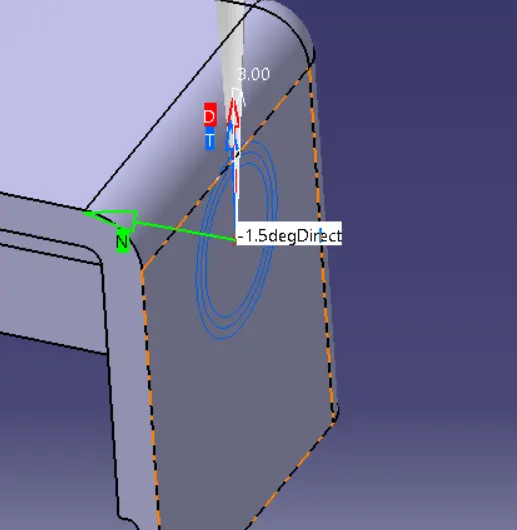

• Next step is to give draft for it (0.5 Degree).

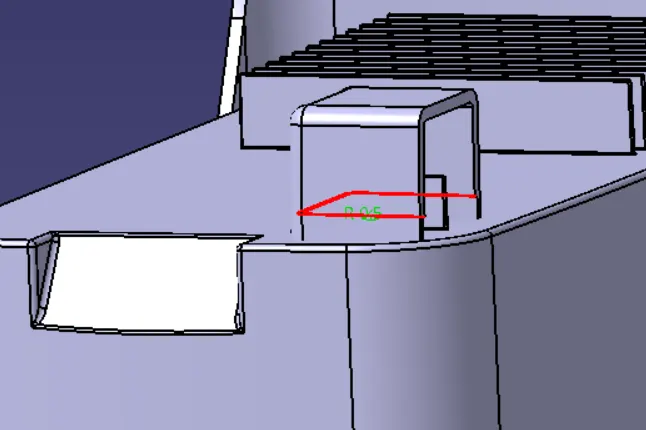

• FIllets are also given, Next we create the inner thcikness, which should be at 40% lesser thickness than the outer material, whcih comes around 1 mm.
• the hieght of it should be around 3 mm.
• next the draft angle is given for the inner part also and then fillets are given.

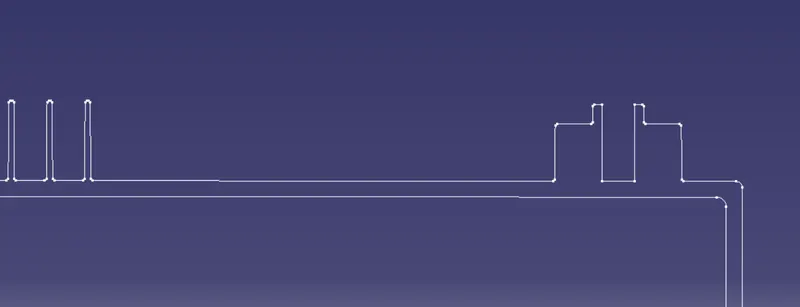

• finally we give a draft analysis of it and ensure that the pulling direction will be ok.
• we will also create a tooling axis perpendicular to the original tooling axis.

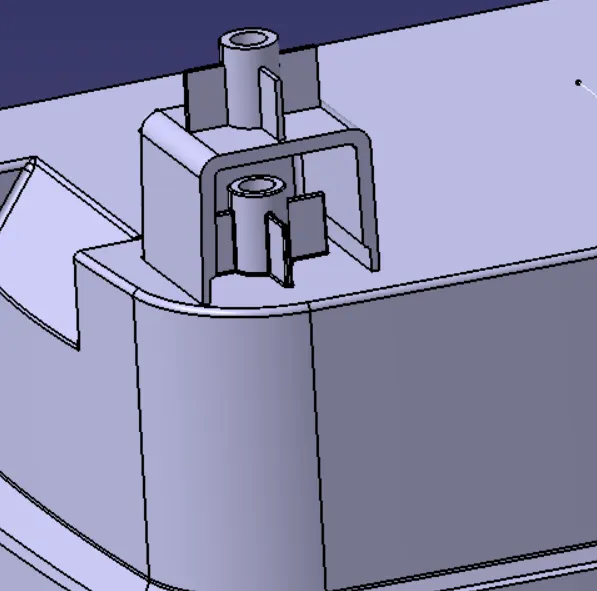

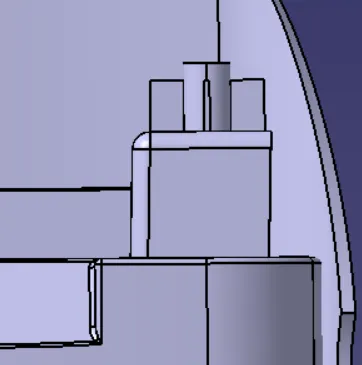

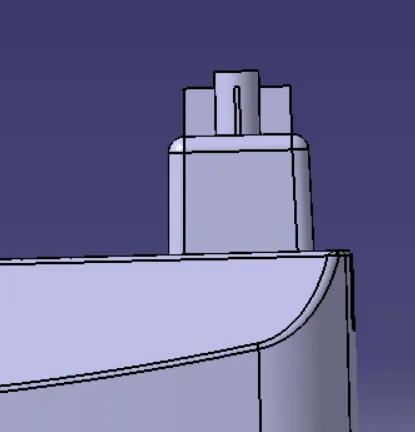

• finally we move the screw boss above the dog house so that we can make it for the original purpose.
