Week 9 - Attachment Feature Creation - Challenge 2
Design of Screw boss and Dog House
Objective:
- To create screw house and dog house as per the design procedure

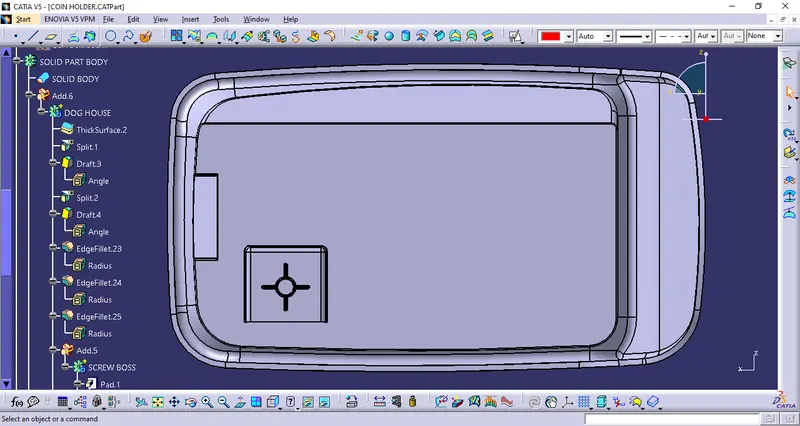

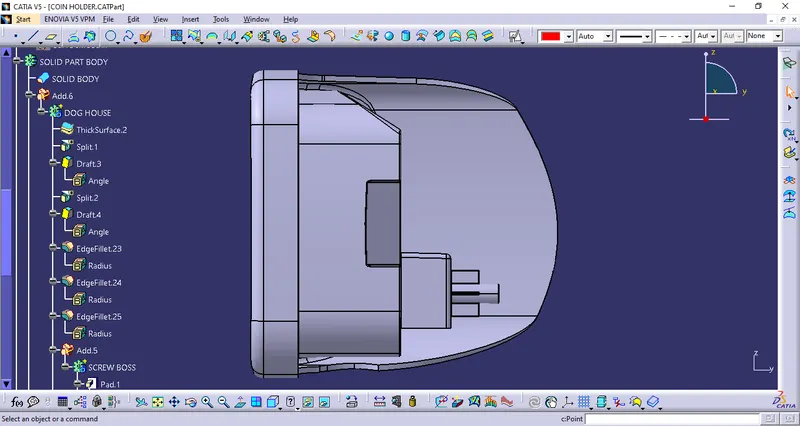

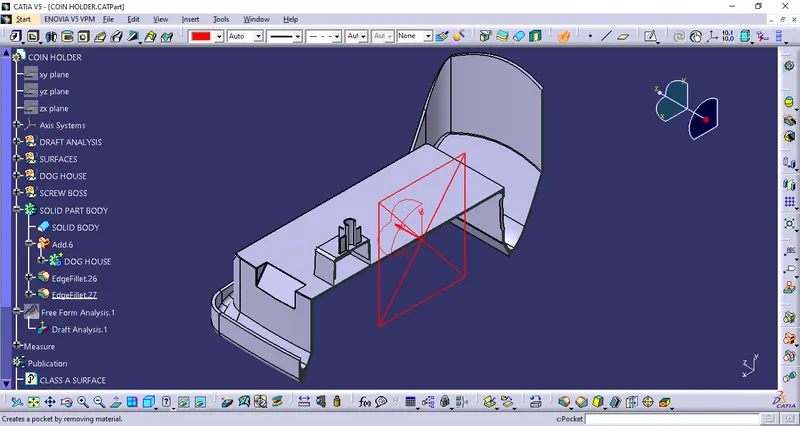

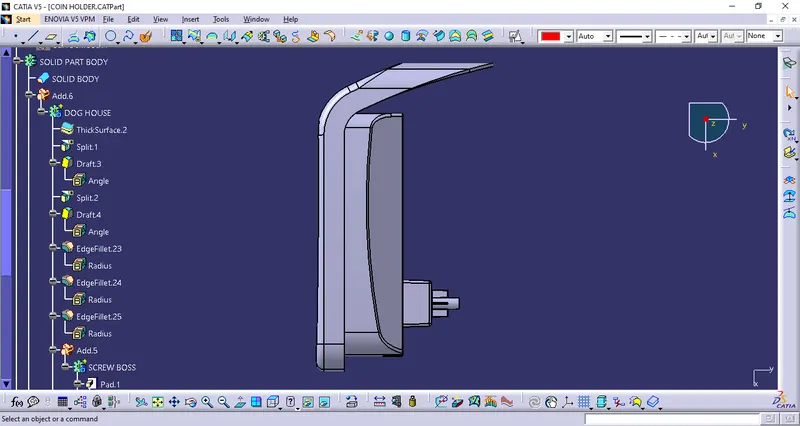

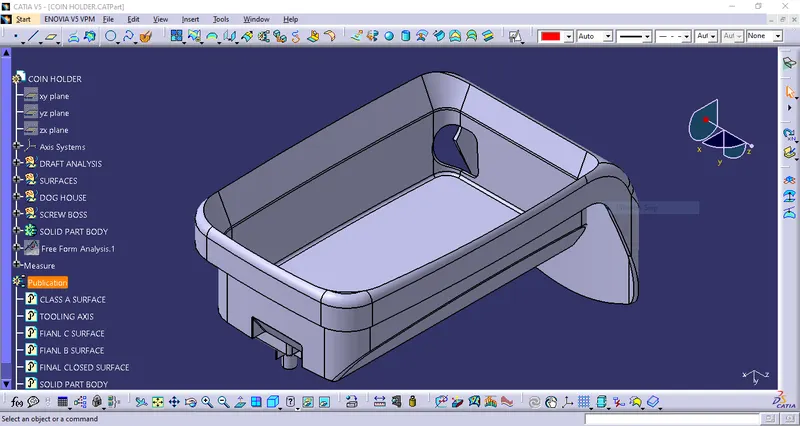

Images and tree structure for Screw Boss and Dog House:

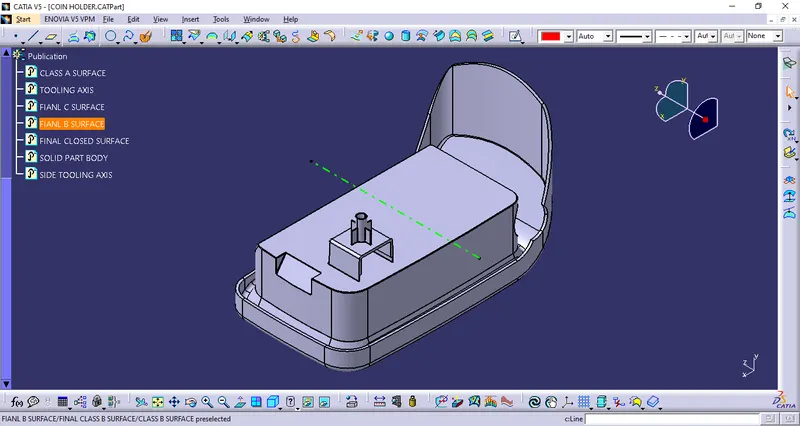

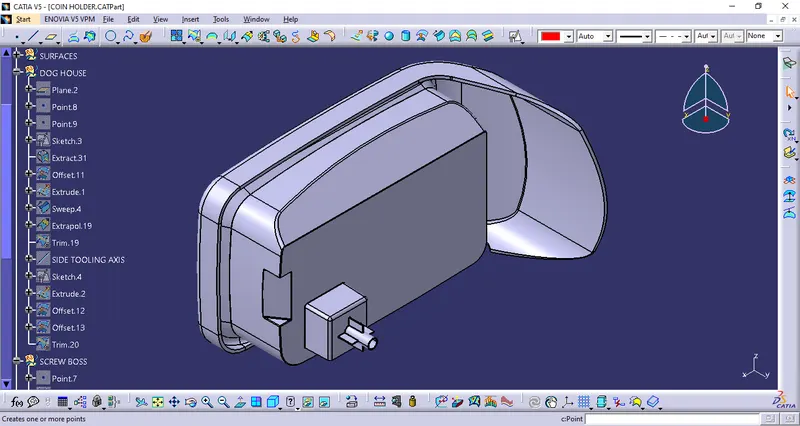

The dog house has Secondry tooling axis to clear it, as it needs a side core to be created :

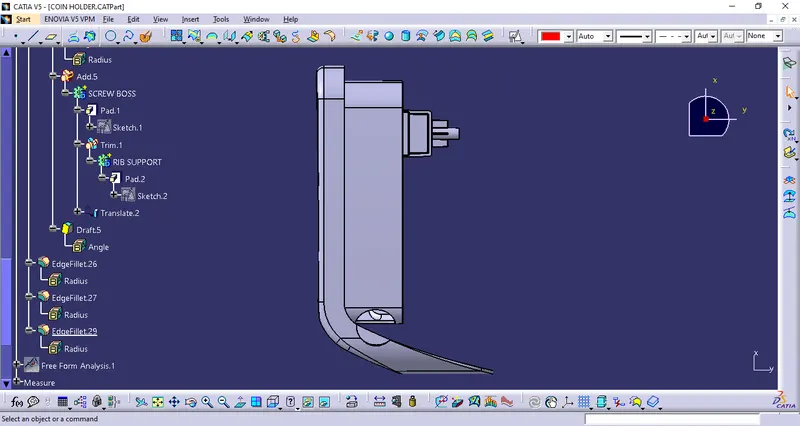

The dog house had draft of 1.5 degree draft for both the tooling dircetions, the screw bose has a 0.5 degree draft in primary tooling axis.
Conclusion:
Screw Boss and Dog house was created for the give coin holder.
