Week 9 - Attachment Feature Creation - Challenge 2

Explanation:

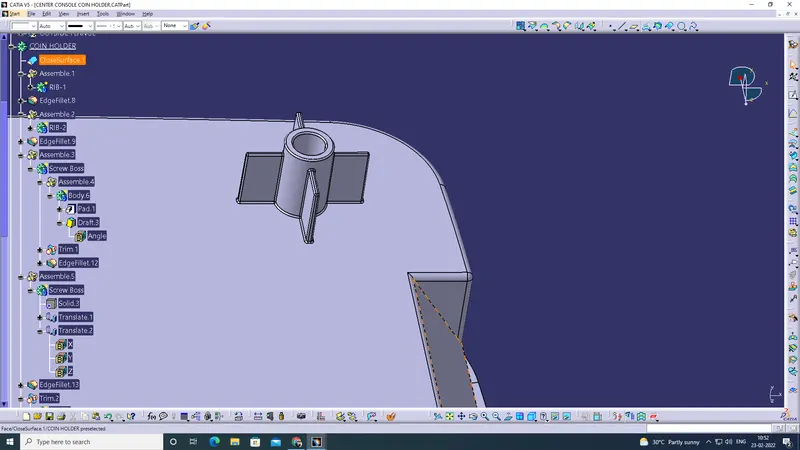

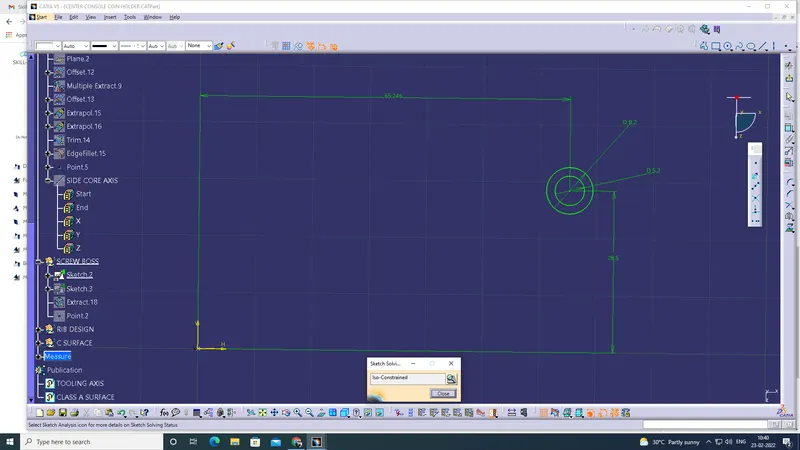

1. Screw Boss:- Extract the top face and draw the sketch ensure the isoconstrain.

2. And inside 4 ribs using sketch ensure isocontrain.

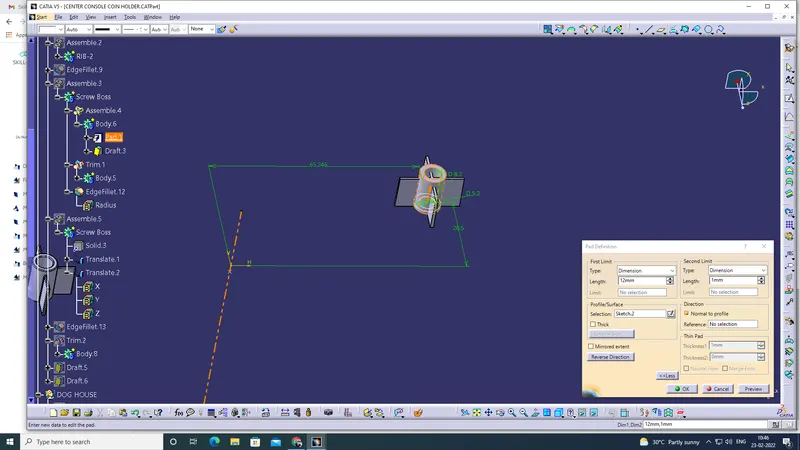

3. Then using Pad as per the design rules.

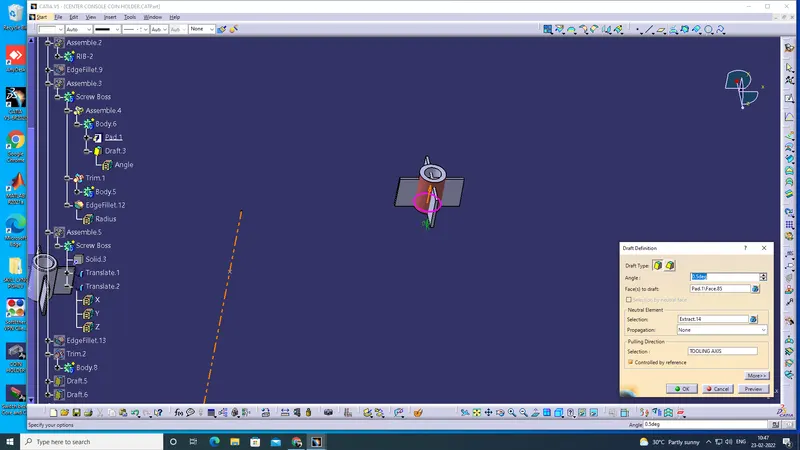

4. Then put the draft as per the design standard 0.5 degree.

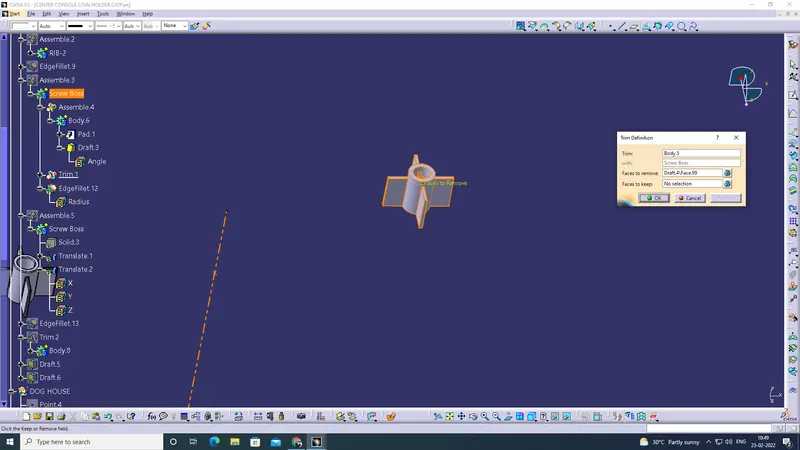

5. Then using trim to create the screw boss.

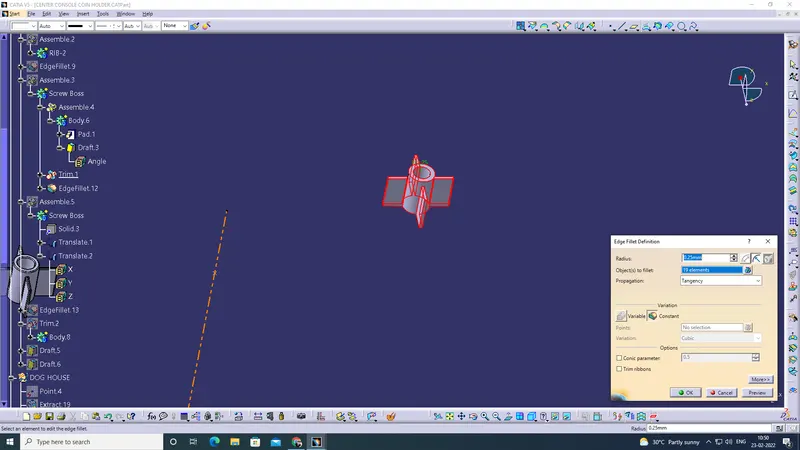

6. Then as per the design rules put the edge fillet dimension is 0.25 in all edges.

7. Then create a body added in to coin holder.(part design)

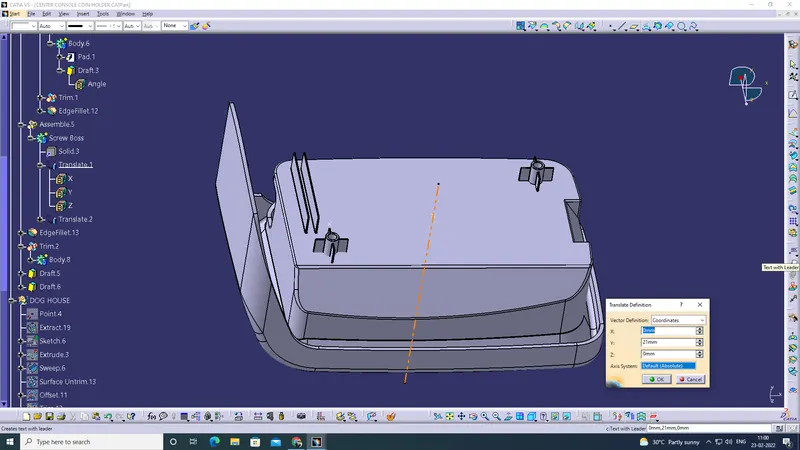

8. Then using translate tool as the same components copy transfer in another side.(using x,y,z)

Dog house

1. Extract the top side.

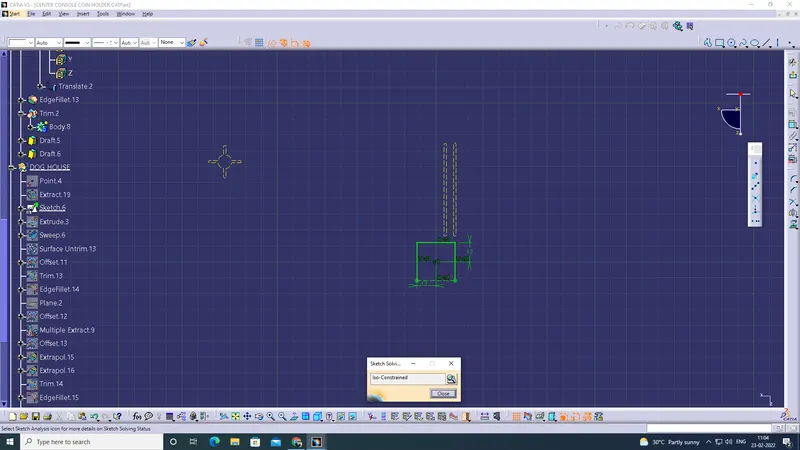

2. Then put the sketch and ensure the isocontrained.

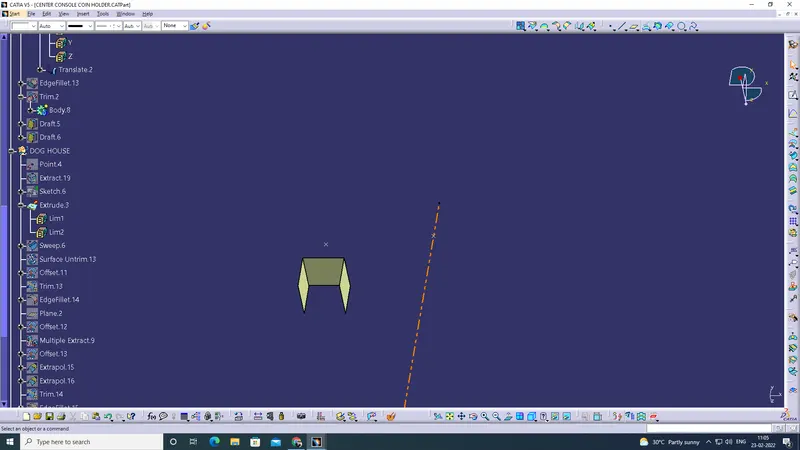

3. Then extrude the sketch

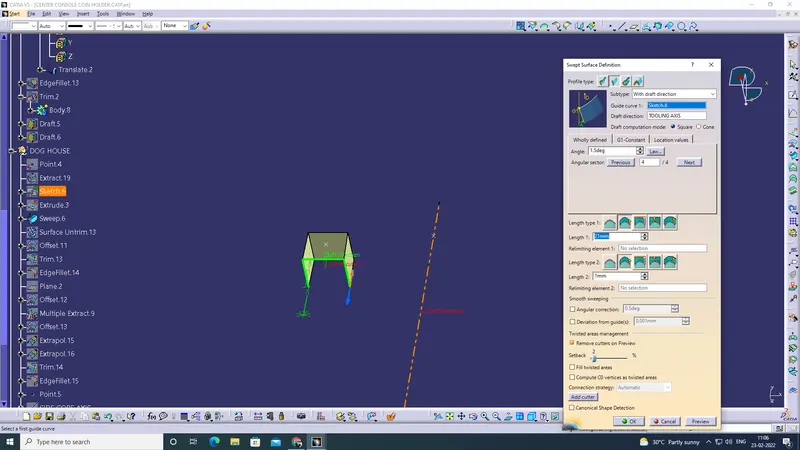

4. Then using sweep and put the angle 1.5 deg. as per the design rules.

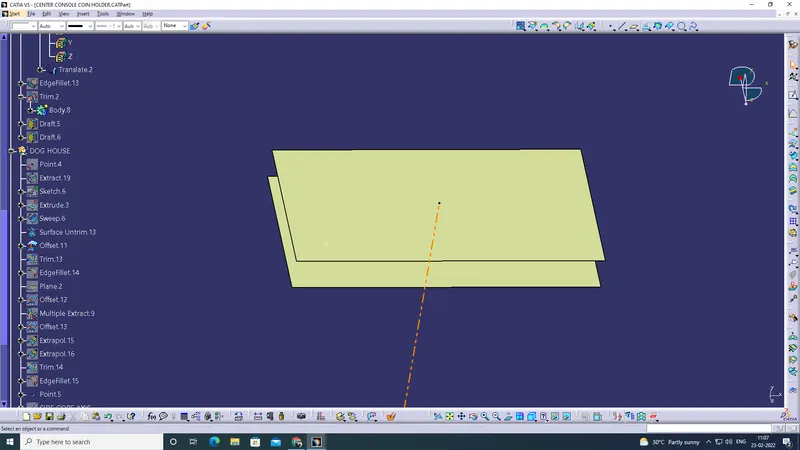

5. Then the top side untrim and offset 20mm on top.

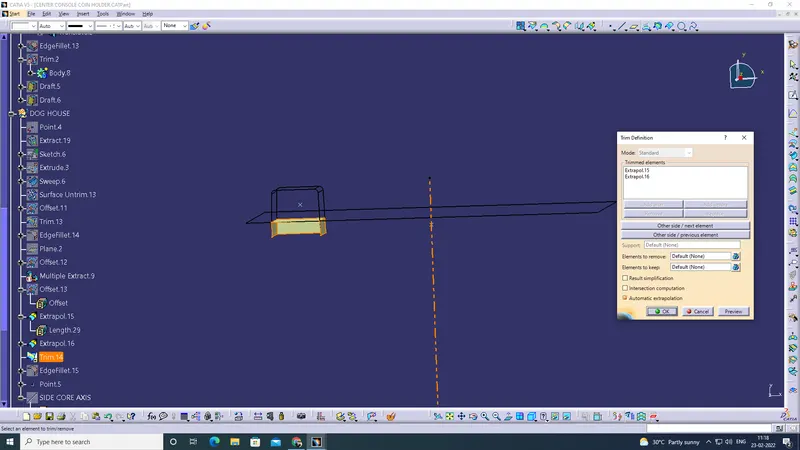

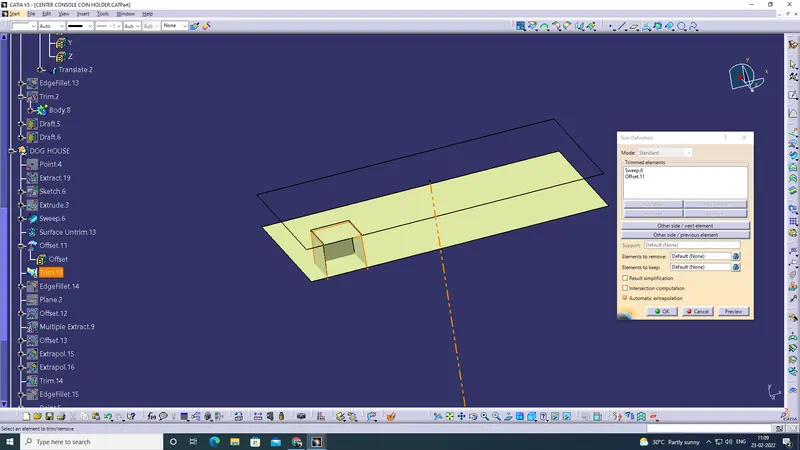

6. Then using trim and create the dog house.

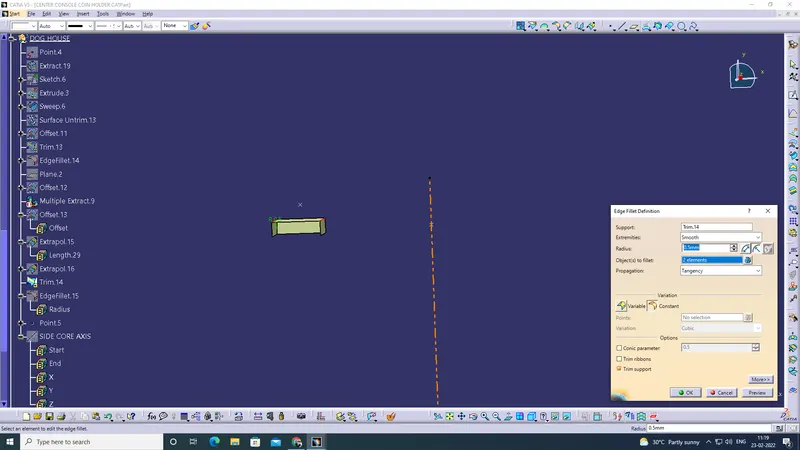

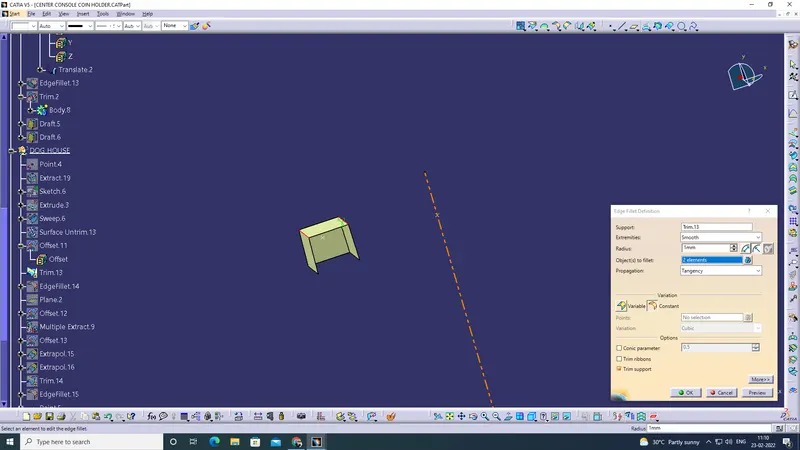

7. Then using draft and put the edge fillet in as per the design rules.

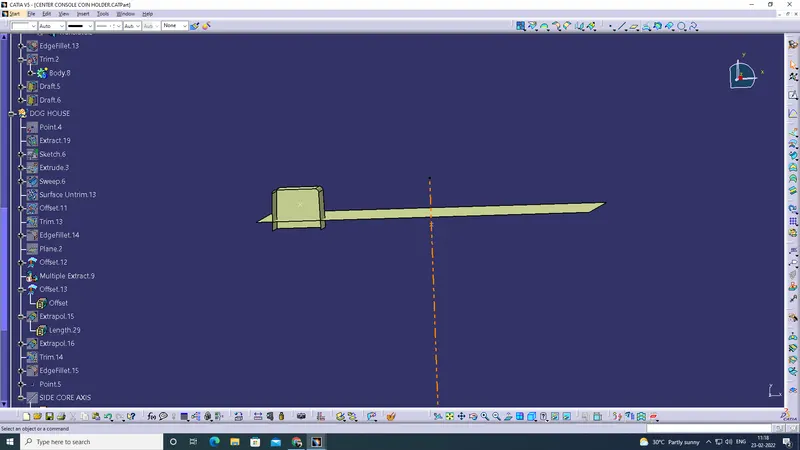

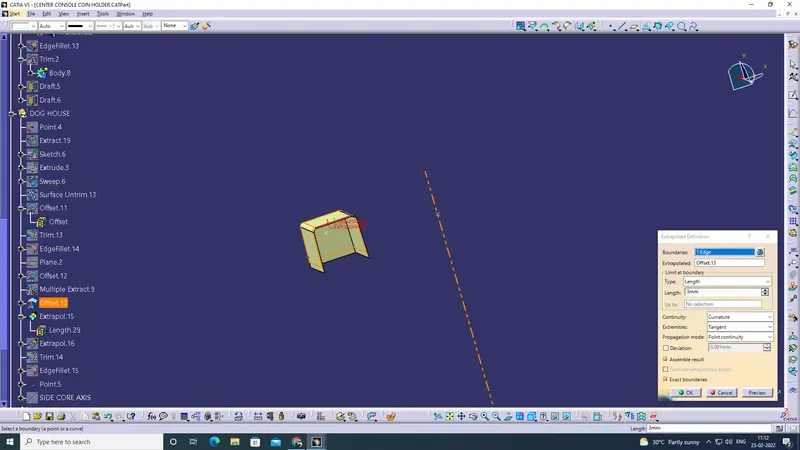

8. Then using offset using extrapolate tool.

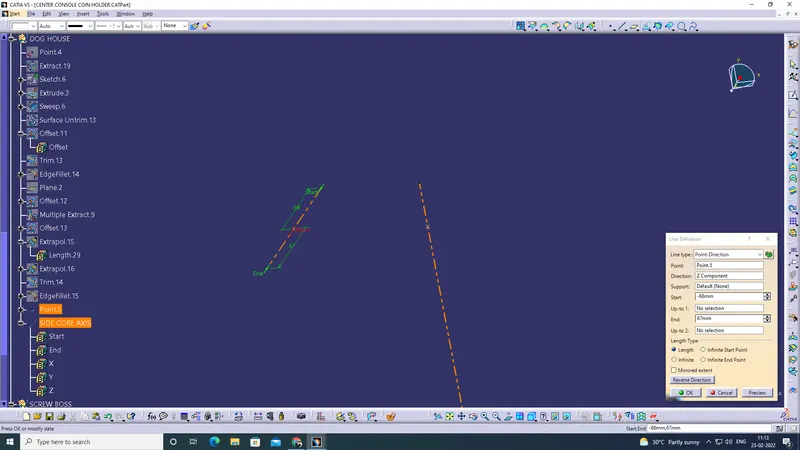

9. Using side core axis (via- extract the one side and put the point and using line (point to direction) line should be extended. then the line should be in thick and put the name side core axis.)

10. As the design rule dog house bottom side should be in lower deminsions. so using offset and and create the draft using the side core axis and finally created.

11. then put the fillet

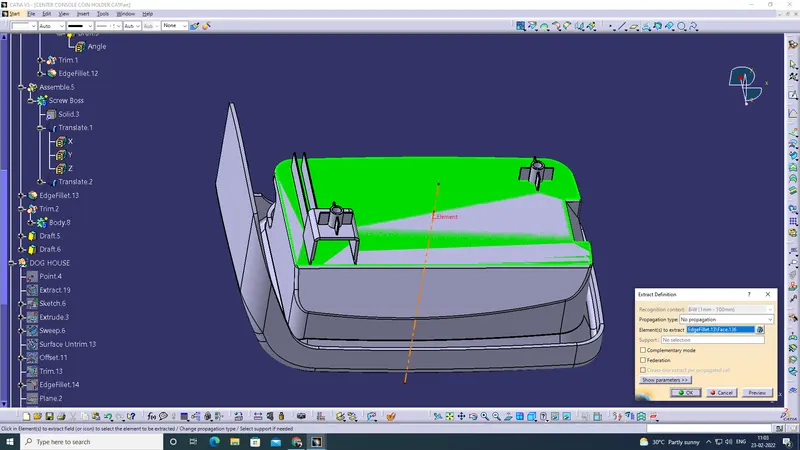

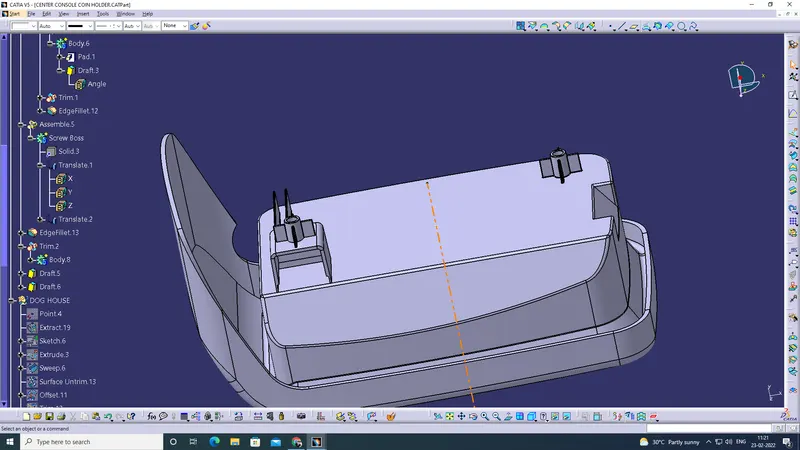

12. Then finally create the body and should be in solid and using translate tool the screwboss adjust in top and body should be in assemble.

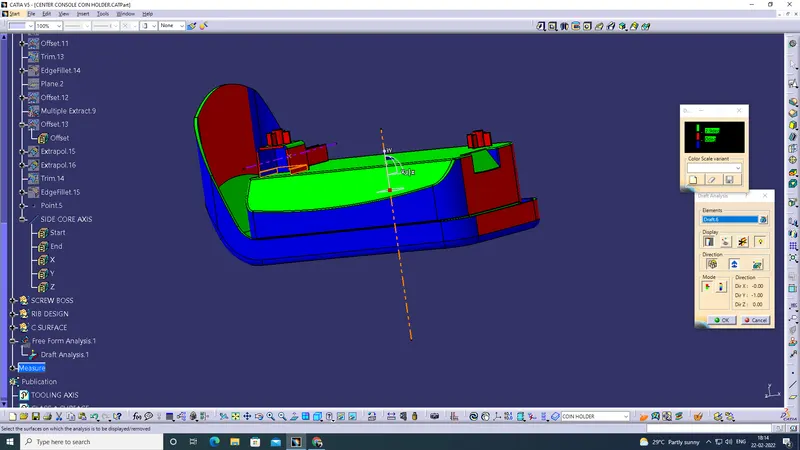

Then put the draft analysis.
