Week 9 - Attachment Feature Creation - Challenge 2

AIM:Create the boss and Dog House for the Centre console coin holder considering the design rules

procedure:

from challange 1 we completed rib creation in coin holder design , in this challange we need to create screw boss and dog house on coin holder design

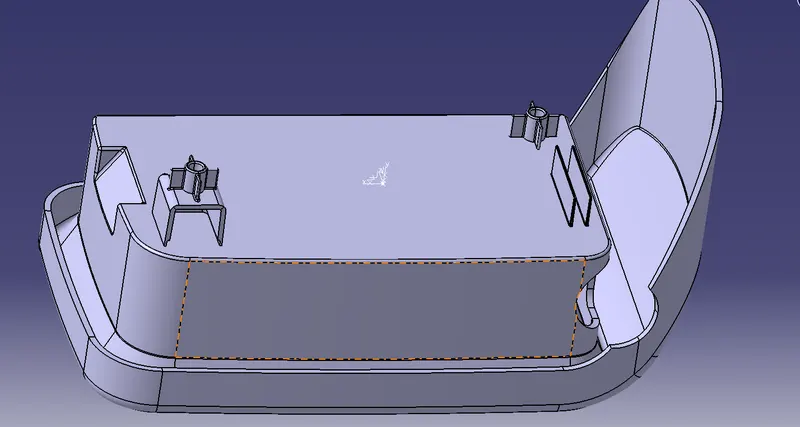

import the model from challange1

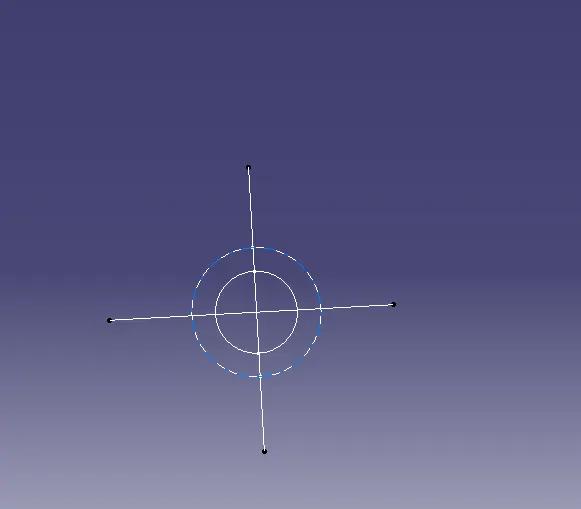

create screw boss for that draw a circular structure with mentioned dimention and constrained it

pad the circular structure in 12mm hight

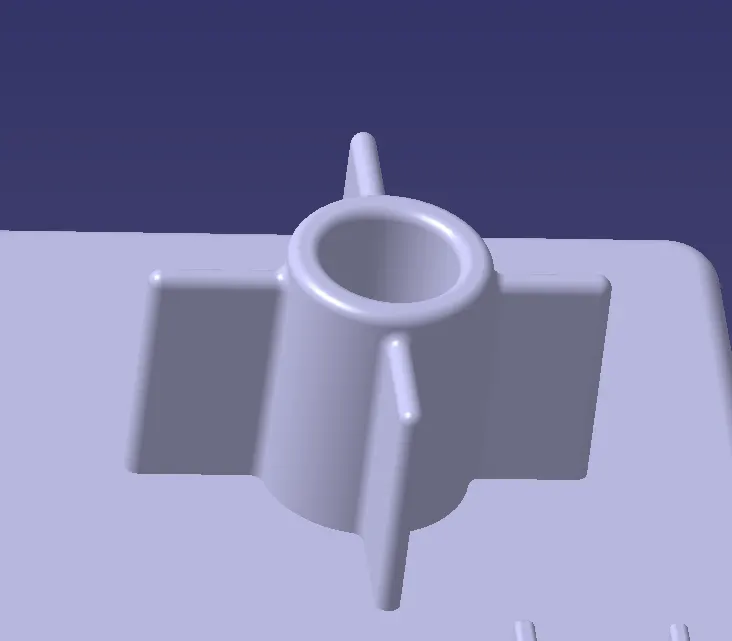

then draw ribs which sapport the cylinder and make it proper dimension
then add to a body and done union trim with circular portion
removed the face inside the body

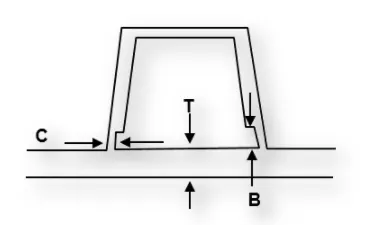

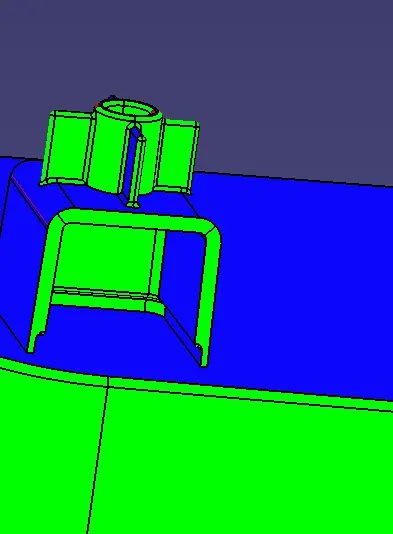

then we need to create the dog house
for that draw a sketch which cover the screw boss

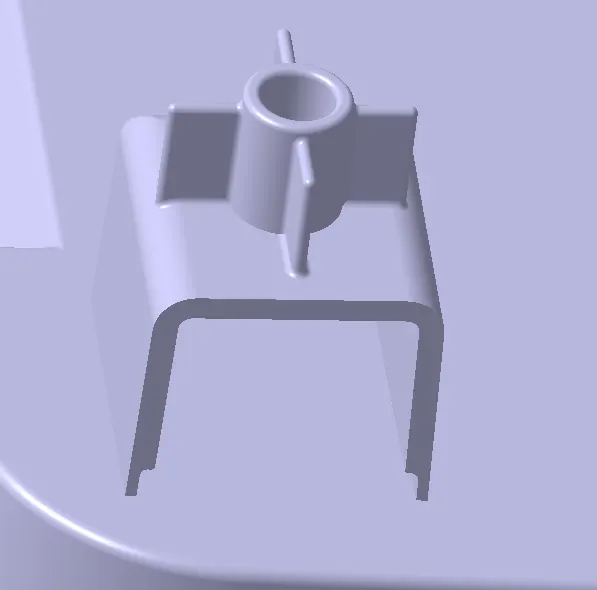

do sweep in 1.5deg and make in proper dimension
then go to part workbench and done surface thickness in 2mm
then apply required fillets
then extracted a surface and do split comment in part workbench for removing certain area from boss
