Week 9 - Attachment Feature Creation - Challenge 2

SCREW BOSS and DOG HOUSE CREATION:

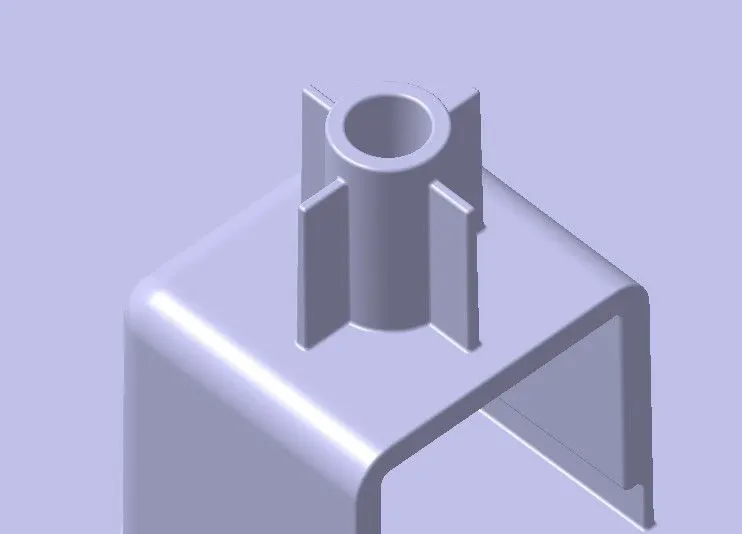

SCREW BOSS:

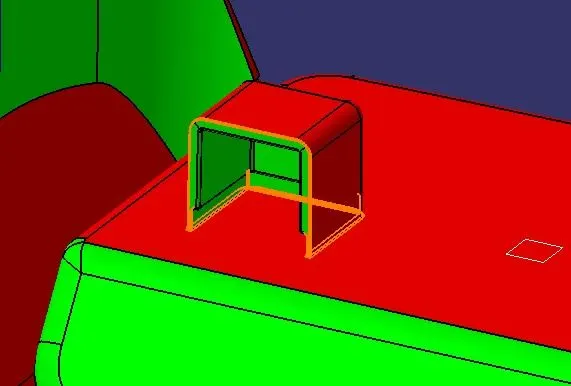

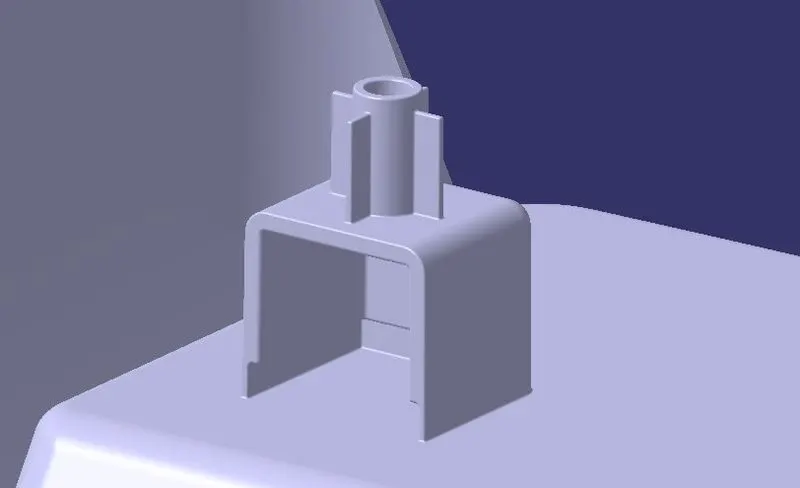

DOG HOUSE WITh SCREW BOSS:

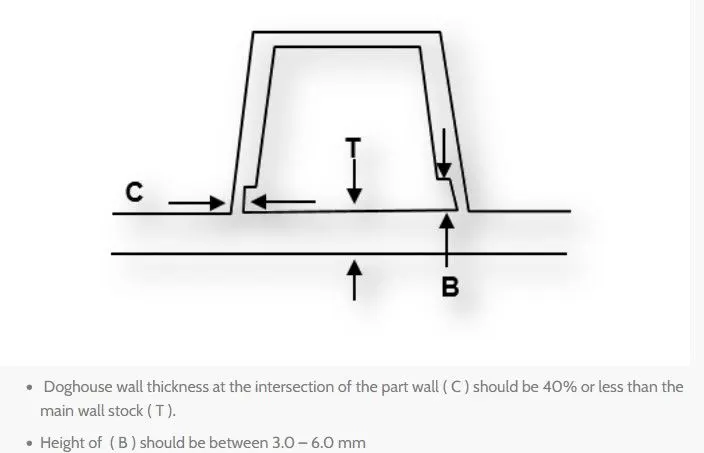

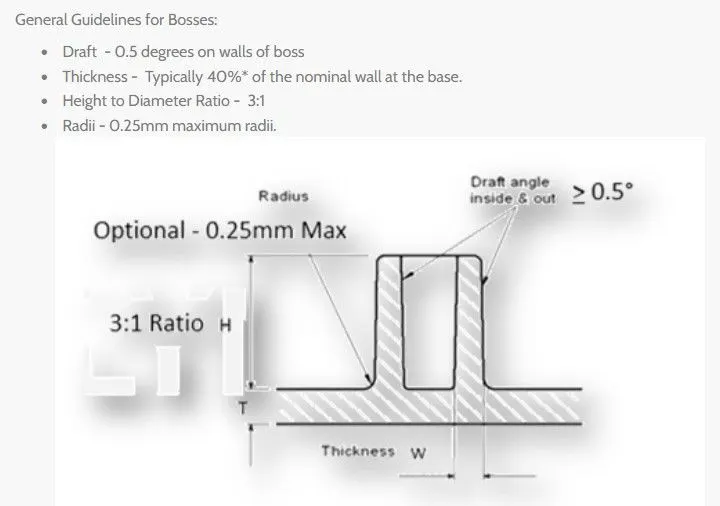

CONDITIONS TO KEEP IN MIND:

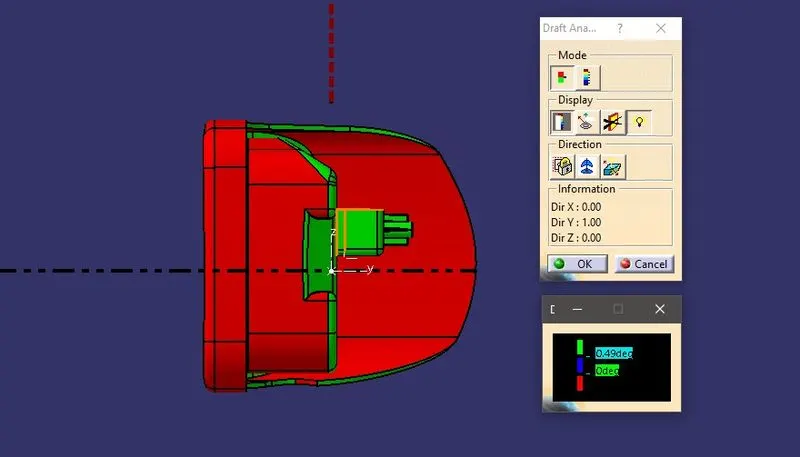

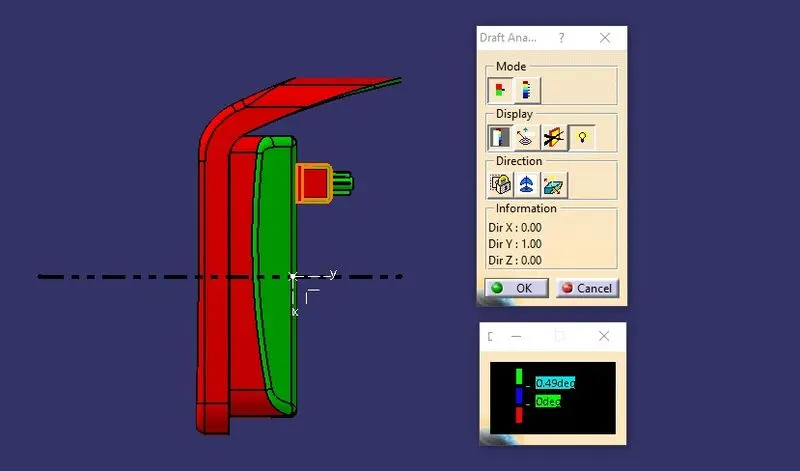

DRAFT ANALYSIS:

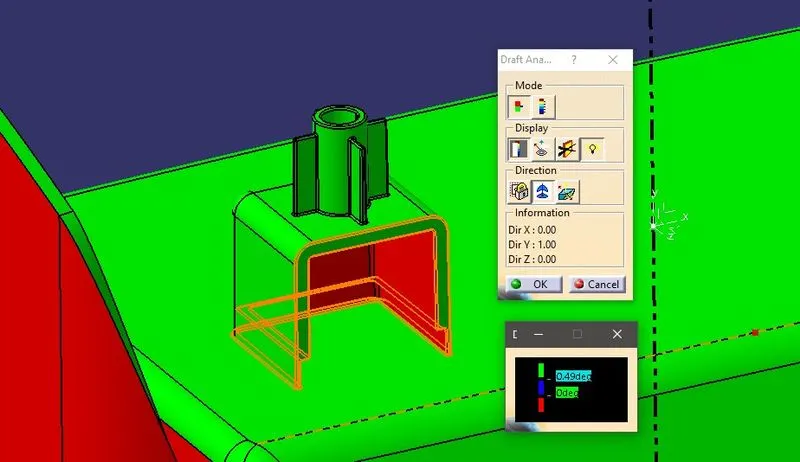

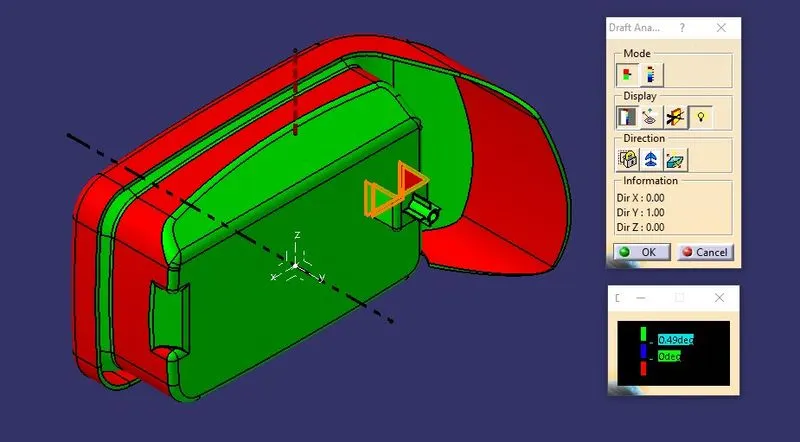

Screw Boss and Part:

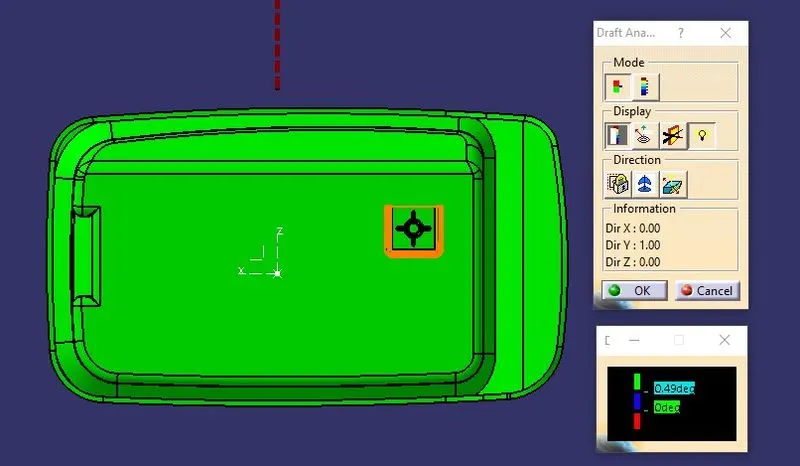

Dog House:

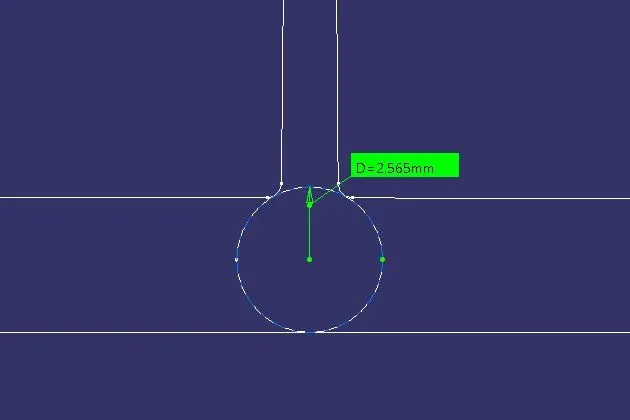

Rib Root Thickness:

It shpuld be + or - 30% of wall thickness (Here wall thickness is 2.5mm), i.e should be within 1.75-3.25mm. Here my value is within the condition. hence the design is good.

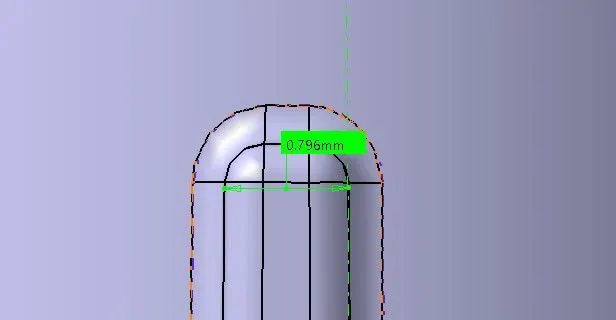

Rib Tip Thickness:

Wall Thickness = 2.5mm

the rib tip thickness should be greater than 0.75mm. In my case, it satisfies the condition and hece my design is good.

Part Views:

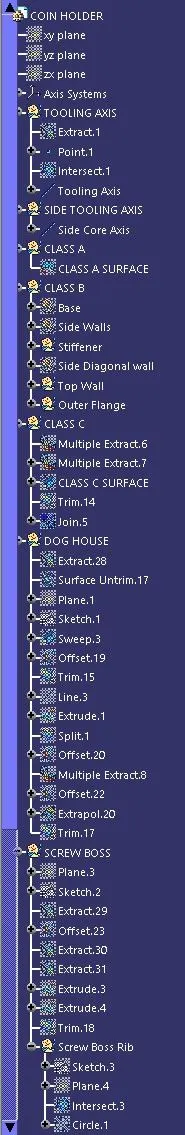

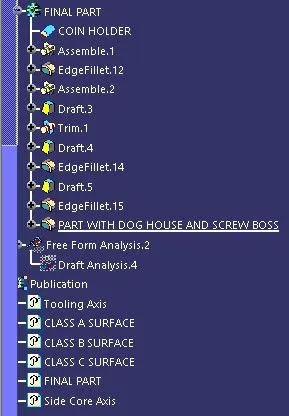

Tree Structure:
